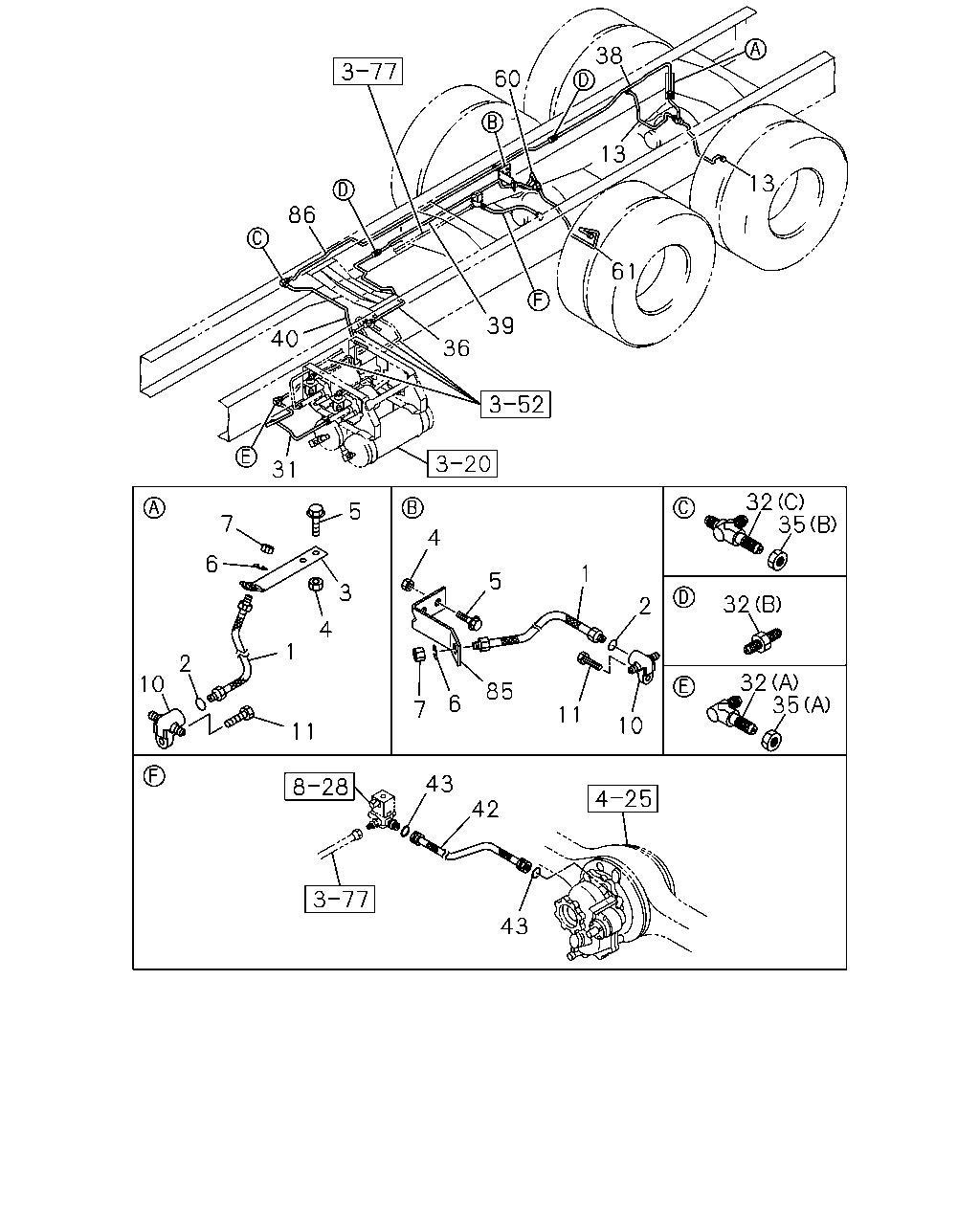

3-55 — BRAKE PIPING; OIL,REAR (#64679) — 44 parça

38 60 13 13 86 61 39 40 36 31 32 35 5 7 4 6 1 5 3 32 2 4 1 2 32 35 10 85 6 7 11 10 11 43 42 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK FWD RR L=525	1-09364-191-0	01	1	9704-
1	HOSE; FLEX,RR BRK RWD RR L=575	1-09364-195-0	01	1	9704-
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	9704-
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	9704-
3	BRACKET; FLEX HOSE,RR BRK	1-47476-573-1	01	1	9704-
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91150-108-0	02	1	9704-0602
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91150-108-0	02	1	9704-0602
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91180-108-0	02	1	0603-
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91180-108-0	02	1	0603-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X35 FLANGE	0-28680-835-0	02	1	9704-0512
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X35 FLANGE	0-28650-835-0	02	1	0601-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X40 FLANGE	0-28680-840-0	02	1	9704-0512
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X40 FLANGE	0-28650-840-0	02	1	0601-
6	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	9704-0603
6	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	9704-0603
6	WASHER; LK,FLEX HOSE ID=12.2	0-91510-512-0	01	1	0604-
6	WASHER; LK,FLEX HOSE ID=12.2	0-91510-512-0	01	1	0604-
7	NUT; FLEX HOSE M12	9-09840-280-0	01	1	9704-
7	NUT; FLEX HOSE M12	9-09840-280-0	01	1	9704-
10	NIPPLE; RR AXLE CASE	9-09903-668-3	02	1	9704-
11	BOLT; NIPPLE,RR AXLE CASE M10X25 W/LK WASHER	0-50041-025-0	02	1	9704-0512
11	BOLT; NIPPLE,RR AXLE CASE M10X25 W/LK WASHER	0-50541-025-0	02	1	0601-
13	PIPE; BRK,RR AXLE L=871	1-47426-907-0	01	1	9704-
13	PIPE; BRK,RR AXLE L=1002	1-47426-906-0	01	1	9704-
31	PIPE; OIL,AIR MASTER TO UNION	1-47427-778-0	01	1	9704-
32	UNION; OIL PIPE (C) M12 2WAY	1-09654-059-2	01	1	9704-
32	UNION; OIL PIPE (B) M12 L=40	9-09223-006-1	02	1	9704-0607
32	UNION; OIL PIPE (B) M12 L=40	0-92113-006-0	02	1	0608-
32	UNION; OIL PIPE (A) M12 ELBOW	9-09225-206-1	01	1	9704-0607
32	UNION; OIL PIPE (A) M12 ELBOW	0-92125-206-0	01	1	0608-
35	NUT; UNION (A) M12	9-09840-280-0	01	1	9704-
35	NUT; UNION (B) M12	9-99111-412-0	01	1	9704-0512
35	NUT; UNION (B) M12	0-91111-512-0	01	1	0601-
36	PIPE; OIL,UNION TO UNION L=1853 SERVICED BY L=2000	1-47426-359-0	01	1	9704-
38	PIPE; OIL,UNION TO FLEX HOSE	1-47427-756-0	01	1	9704-
39	PIPE; OIL,UNION TO RR FLEX HOSE L=1263 SERVICED BY L=1370	1-47426-354-0	01	1	9704-
40	PIPE; BRK,UNION TO UNION	1-47427-754-0	01	1	9704-
42	HOSE; FLEX,DIFF LOCK L=580	0-07151-580-0	01	1	9704-0605
42	HOSE; FLEX,DIFF LOCK L=580	0-57151-580-0	01	1	0606-
43	GASKET; FLEX TUBE ID=11 OD=18	9-09572-510-0	02	1	9704-
60	PIPE ASM; BRK L=793	1-47427-916-0	01	1	9704-
61	PIPE ASM; BRK L=1207	1-47426-905-0	01	1	9704-
85	BRACKET; FLEX HOSE,FWD RR	1-47476-295-1	01	1	9704-
86	PIPE; BRK,UNION TO UNION L=2498 SERVICED BY L=2650	1-47426-363-0	01	1	9704-
