3 - Brakes, Brake System
▶
3-52 - BRAKE PIPING; OIL,FRONT
▶

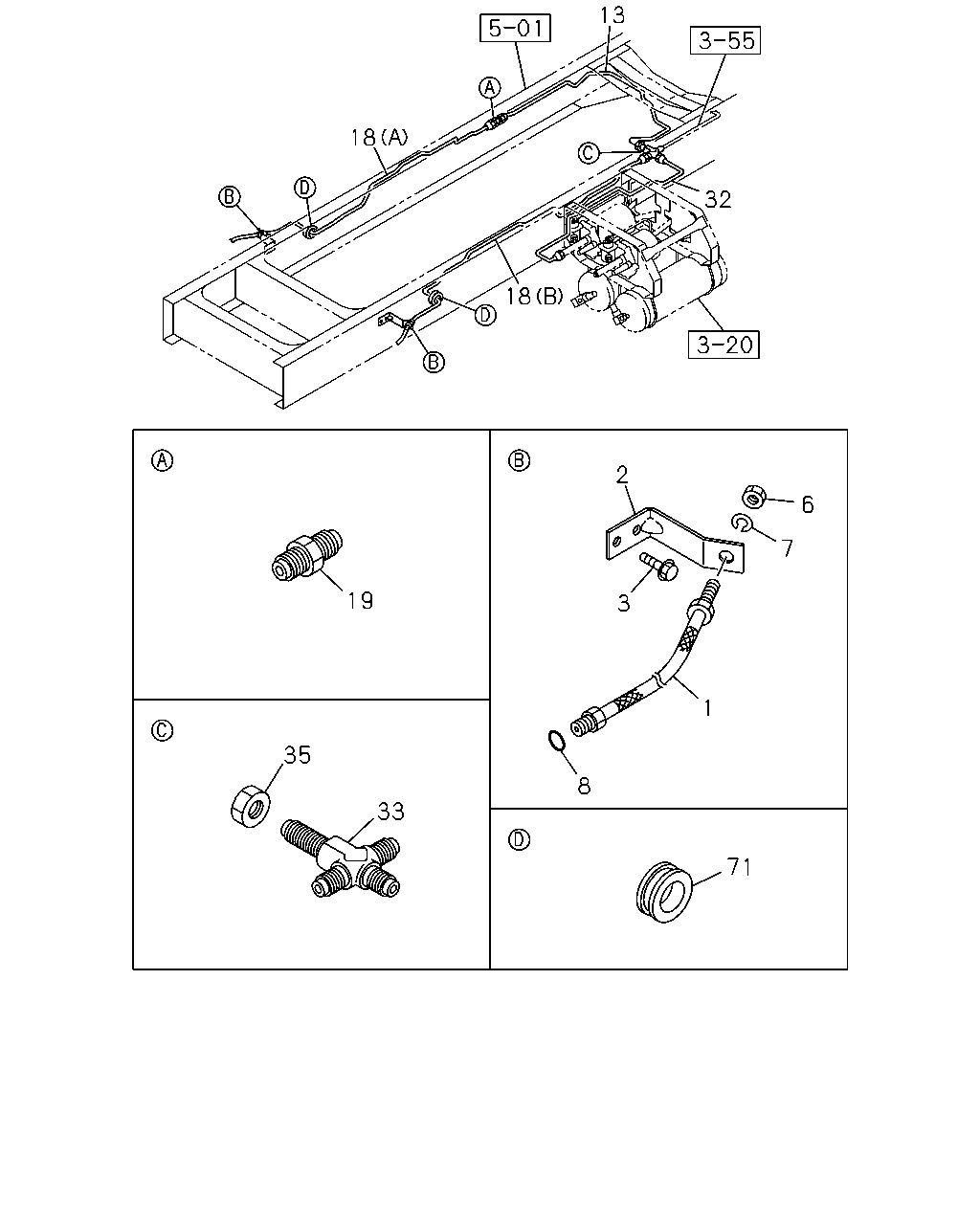

3-52 — BRAKE PIPING; OIL,FRONT
(#64678) — 18 parça
13
18
32
18
2
6
7
19
3
1
35
8
33
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,FRT BRK
L=650
1-09364-200-0
02
1
9704-
2
BRACKET; FLEX HOSE,FRT BRK
1-47476-295-1
02
1
9704-
3
BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE IDN
0-28680-825-0
04
1
9704-0512
3
BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE IDN
0-28650-825-0
04
1
0601-
6
NUT; FLEX HOSE,FRT BRK
M12
9-09840-280-0
02
1
9704-
7
WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2
9-09150-512-0
02
1
9704-0603
7
WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2
0-91510-512-0
02
1
0604-
8
GASKET; FLEX HOSE,FRT BRK
ID=9 OD=17
9-09920-472-0
02
1
9704-
13
PIPE; OIL,UNION TO UNION
L=1577 SERVICED BY L=1620
1-47426-356-0
01
1
9704-
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=1834 SERVICED BY L=2000
1-47426-359-0
01
1
9704-
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1502 SERVICED BY L=1620
1-47426-356-0
01
1
9704-
19
UNION; OIL PIPE
M12 L=40
9-09223-006-1
01
1
9704-0607
19
UNION; OIL PIPE
M12 L=40
0-92113-006-0
01
1
0608-
32
PIPE; OIL,AIR MASTER TO UNION
1-47428-060-0
01
1
9704-
33
UNION; OIL PIPE
1-09656-019-1
01
1
9704-
35
NUT; UNION,OIL PIPE
M14
9-99111-414-0
01
1
9704-0512
35
NUT; UNION,OIL PIPE
M14
0-91111-514-0
01
1
0601-
71
GROMMET; OIL PIPE
ID=28 OD=35 T=17
9-09956-256-2
02
1
9704-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
