Isuzu WW
▶
TRUCKS
▶
FXZ
▶
10754 - FXZ(INDONESIA)
▶
3 - Brakes, Brake System
▶
3-34 - BRAKE VALVE; AIR
▶
3-34 — BRAKE VALVE; AIR
(#64677) — 102 parça
◀

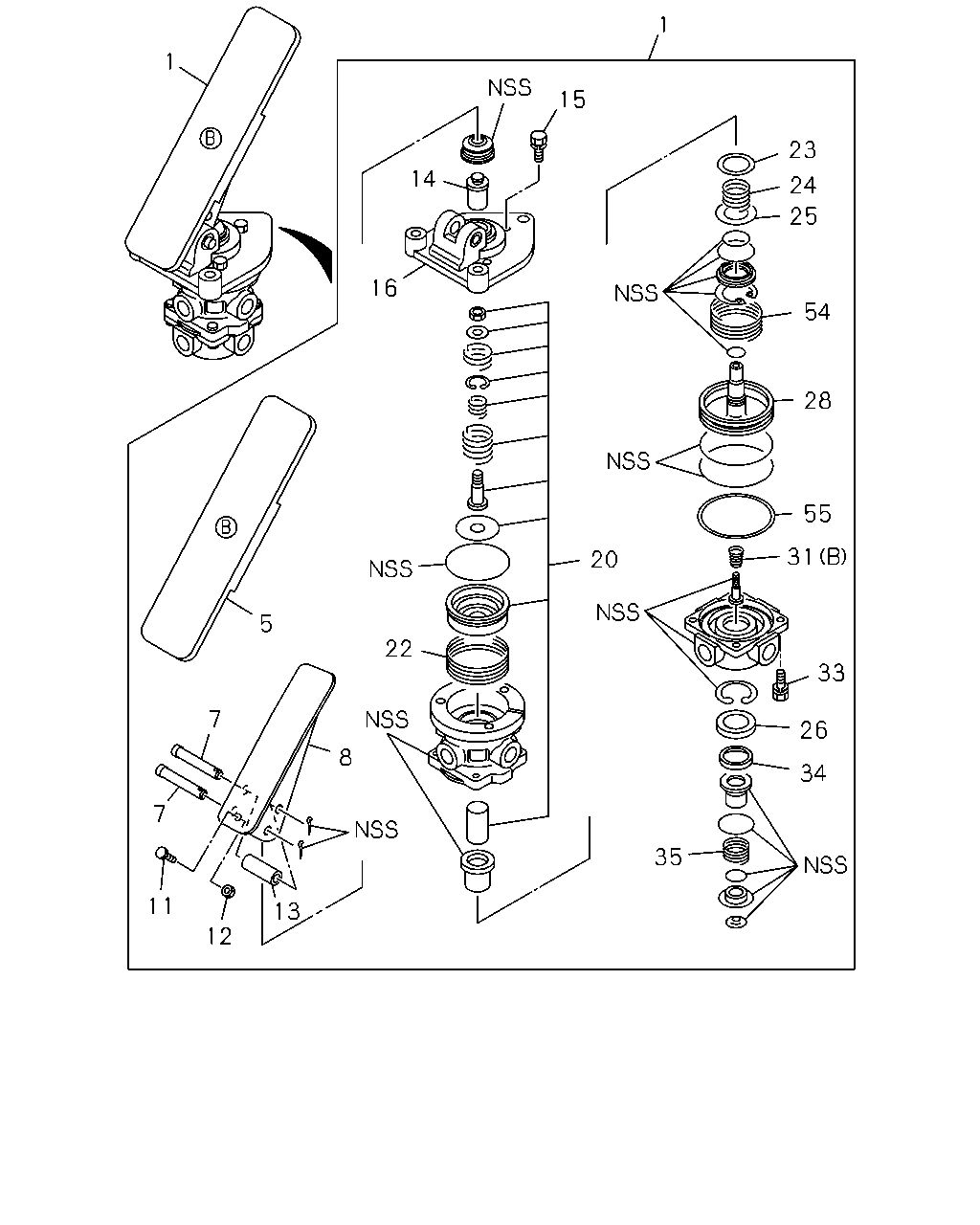

[334A] COMPONENT '01/10- (45 parça)

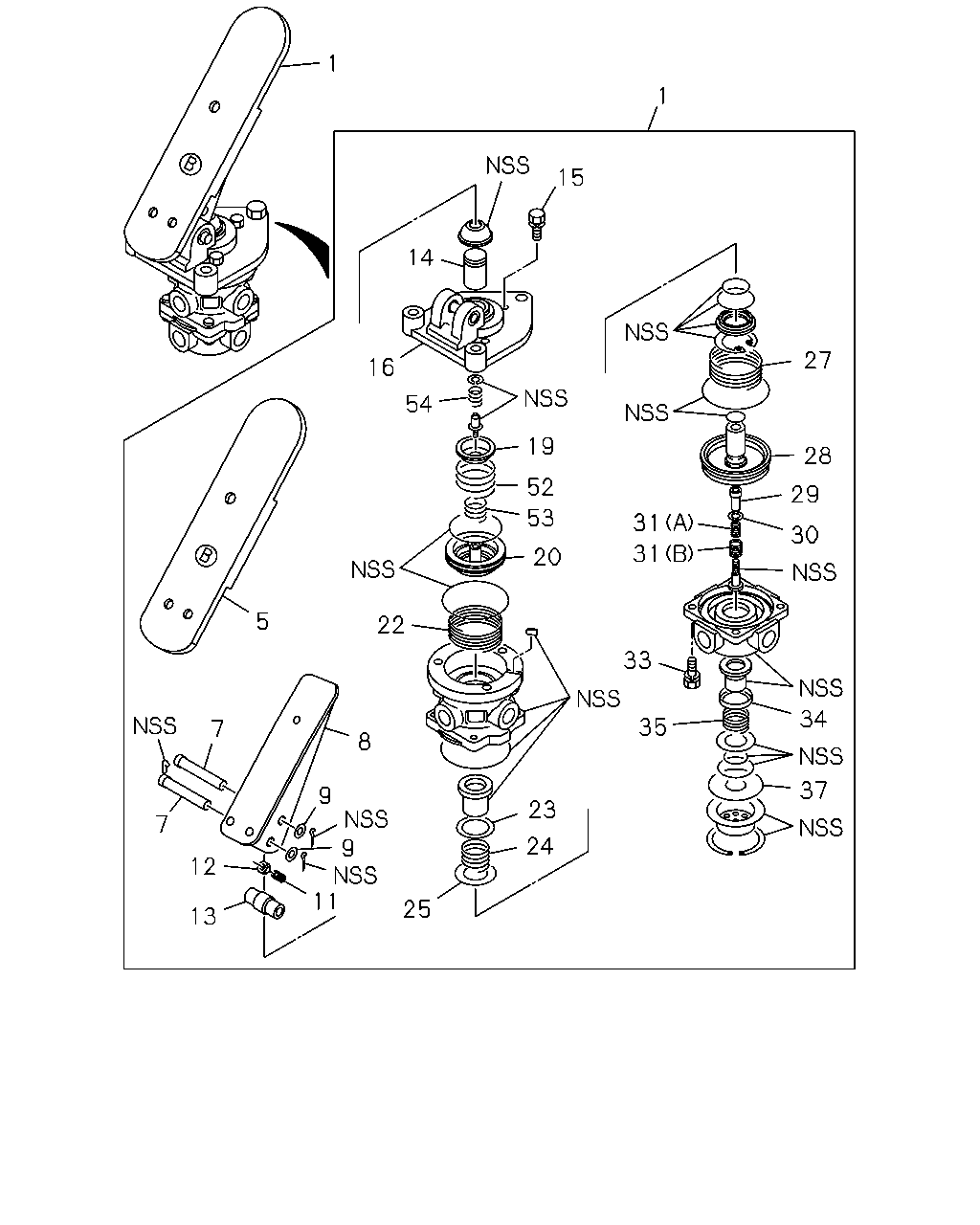

[334A] COMPONENT -'01/9 (51 parça)

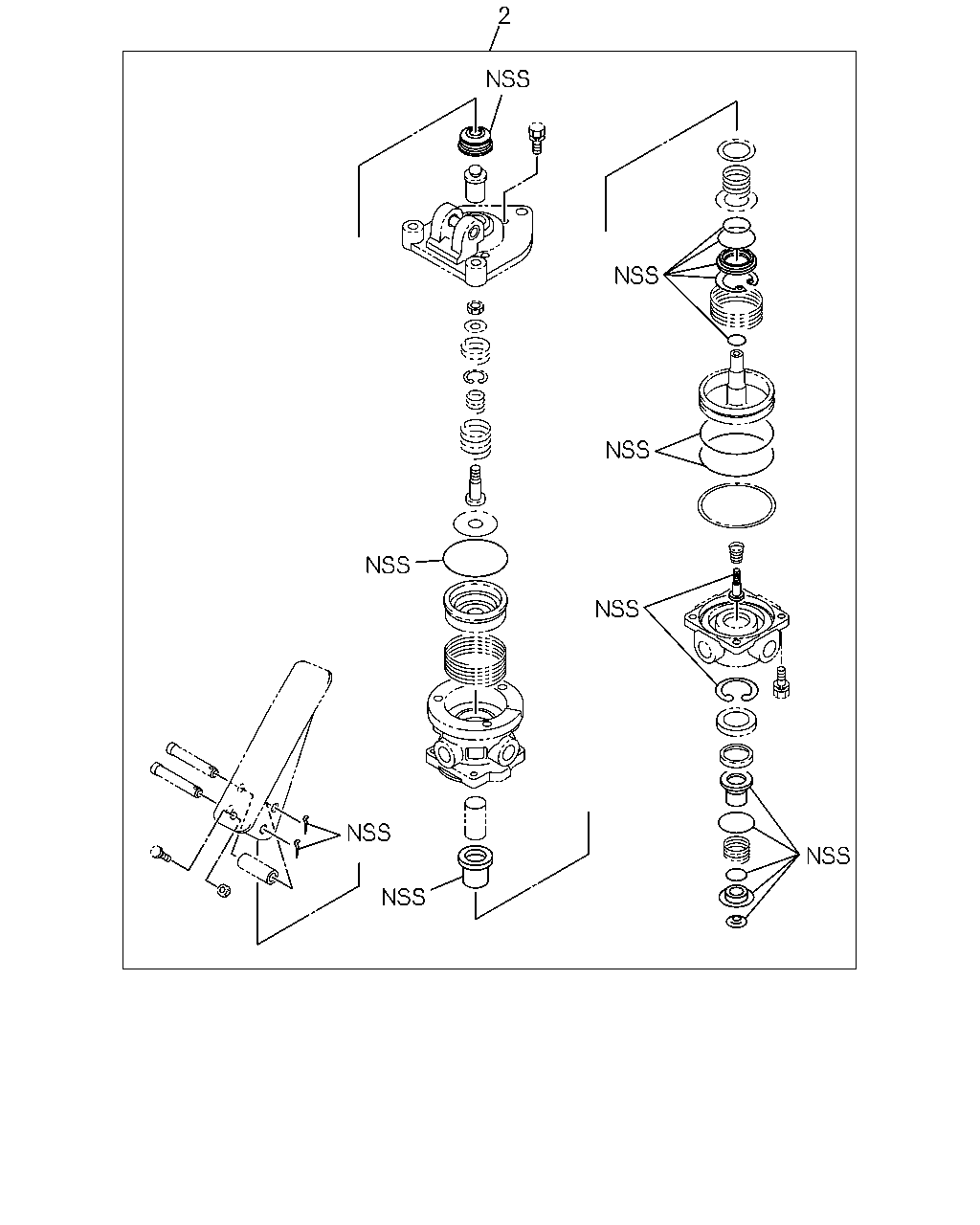

[334A] REPAIR KIT '01/10- (3 parça)

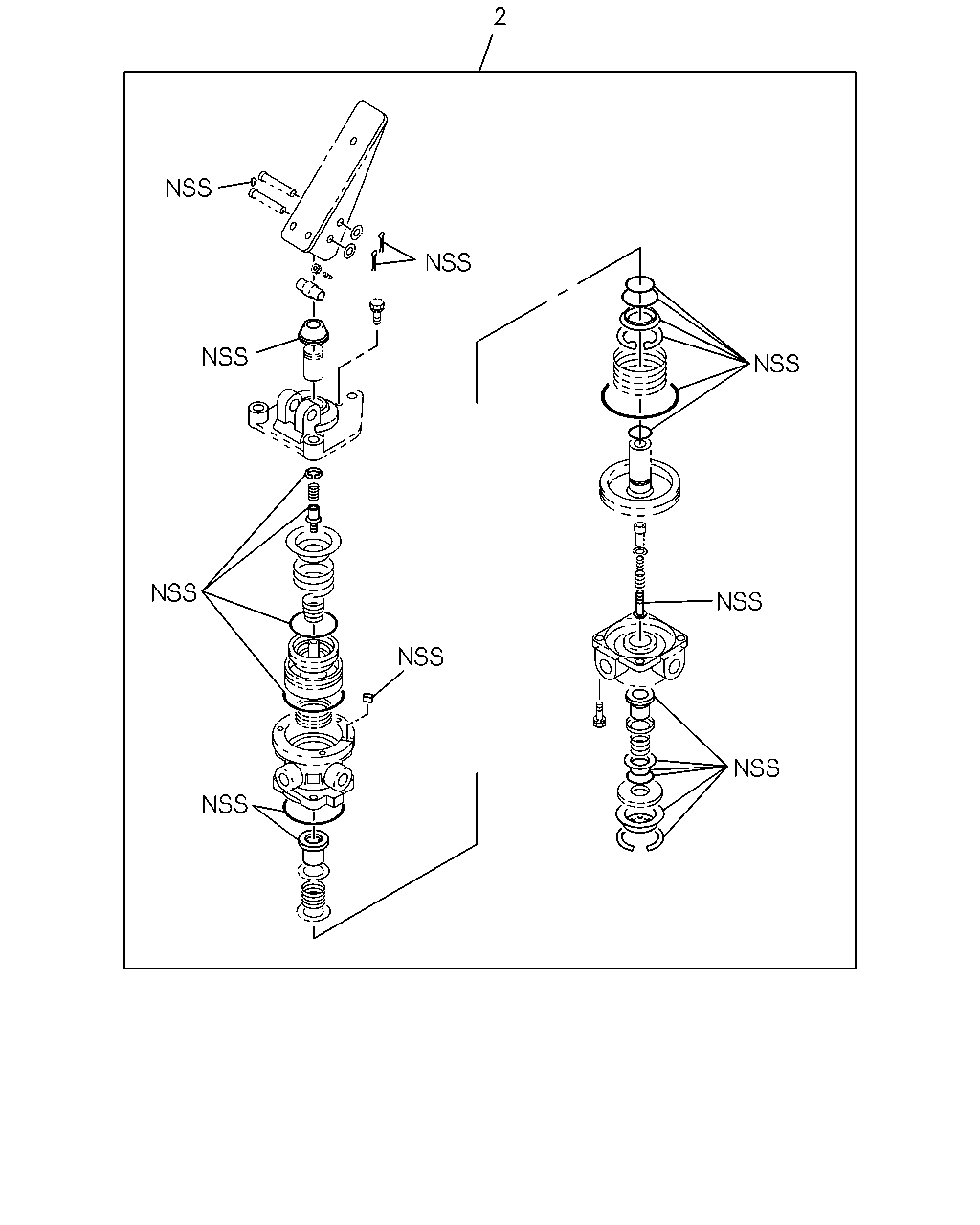

[334A] REPAIR KIT -'01/9 (3 parça)
▶
1
1
15
23
14
24
25
16
54
28
55
31
20
5
22
33
7
26
8
34
7
35
11
13
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE; BRK
1-48100-775-0
01
1
9704-0109
1
VALVE; BRK
1-48100-781-1
01
1
0110-0206
1
VALVE; BRK
1-48100-865-1
01
1
0207-1211
1
VALVE; BRK
8-98222-800-0
01
1
1212-
5
COVER; PEDAL,BRK VLV
1-48119-333-0
01
1
9704-0109
5
COVER; PEDAL,BRK VLV
1-48119-432-0
01
1
0110-
7
PIN; PEDAL,BRK VLV
1-48119-244-0
02
1
9704-0109
7
PIN; PEDAL,BRK VLV
1-48119-431-0
02
1
0110-
8
PEDAL; BRK VLV
1-48119-332-0
01
1
9704-0109
8
PEDAL; BRK VLV
1-48119-429-0
01
1
0110-
11
SCREW; SET,BRK VLV
1-48119-245-0
01
1
9704-0109
11
SCREW; SET,BRK VLV
1-48119-003-1
01
1
0110-
12
NUT; SCREW,PEDAL,BRK VLV
9-88510-123-0
01
1
9704-
13
ROLLER; PEDAL,BRK VLV
1-48119-243-0
01
1
9704-0109
13
ROLLER; PEDAL,BRK VLV
1-48119-430-0
01
1
0110-
14
PLUNGER; BRK VLV
1-48119-383-0
01
1
9704-0109
14
PLUNGER; BRK VLV
1-48119-434-0
01
1
0110-
15
BOLT; PLATE,BRK VLV
1-48219-039-0
03
1
9704-
16
PLATE; MTG,BRKT VLV
1-48119-268-0
01
1
9704-0109
16
PLATE; MTG,BRKT VLV
1-48119-433-0
01
1
0110-
20
PISTON; UPR,BRK VLV
1-48119-381-0
01
1
9704-0109
20
PISTON; UPR,BRK VLV
1-48119-436-0
01
1
0110-0206
20
PISTON; UPR,BRK VLV
1-48119-586-0
01
1
0207-
22
SPRING; PISTON,LWR,BRK VLV
1-48123-071-0
01
1
9704-0109
22
SPRING; PISTON,LWR,BRK VLV
1-48123-076-0
01
1
0110-
23
WASHER; UPR,BRK VLV
1-48129-145-0
01
1
9704-0109
23
WASHER; UPR,BRK VLV
1-48129-299-0
01
1
0110-
24
SPRING; UPR,BRK VLV
1-48123-018-0
01
1
9704-0109
24
SPRING; UPR,BRK VLV
1-48123-077-0
01
1
0110-
25
WASHER; PISTON,BRK VLV
1-48129-138-0
01
1
9704-0109
25
WASHER; PISTON,BRK VLV
1-48129-300-0
01
1
0110-
26
RETAINER; VLV,BRK VLV
1-48129-308-0
01
1
0110-
28
PISTON; LWR,BRK VLV
1-48129-140-0
01
1
9704-0109
28
PISTON; LWR,BRK VLV
1-48129-302-0
01
1
0110-
31
SPRING; VLV,BRK VLV
(B)
1-48123-032-0
01
1
9704-0109
31
SPRING; VLV,BRK VLV
(B)
1-48123-079-0
01
1
0110-
31
SPRING; VLV,BRK VLV
(A)
1-48123-033-0
01
1
9704-0109
33
BOLT; BODY,BRK VLV
1-48119-213-0
04
1
9704-
34
RETAINER; VLV,BRK VLV
1-48129-144-0
01
1
9704-0109
34
RETAINER; VLV,BRK VLV
1-48129-307-0
01
1
0110-
35
SPRING; VLV,BRK VLV
1-48123-019-0
01
1
9704-0109
35
SPRING; VLV,BRK VLV
1-48123-078-0
01
1
0110-
54
SPRING; PISTON,UPR,BRK VLV
1-48123-067-0
01
1
9704-0109
54
SPRING; PISTON,UPR,BRK VLV
1-48123-075-0
01
1
0110-
55
RETAINER; PLATE,BRK VLV
1-48129-305-0
01
1
0110-
1
1
15
14
27
16
54
19
28
52
29
53
31
30
31
20
5
22
33
34
35
7
8
37
9
23
9
11
7
24
12
25
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE; BRK
1-48100-775-0
01
1
9704-0109
1
VALVE; BRK
1-48100-781-1
01
1
0110-0206
1
VALVE; BRK
1-48100-865-1
01
1
0207-1211
1
VALVE; BRK
8-98222-800-0
01
1
1212-
5
COVER; PEDAL,BRK VLV
1-48119-333-0
01
1
9704-0109
5
COVER; PEDAL,BRK VLV
1-48119-432-0
01
1
0110-
7
PIN; PEDAL,BRK VLV
1-48119-244-0
02
1
9704-0109
7
PIN; PEDAL,BRK VLV
1-48119-431-0
02
1
0110-
8
PEDAL; BRK VLV
1-48119-332-0
01
1
9704-0109
8
PEDAL; BRK VLV
1-48119-429-0
01
1
0110-
9
WASHER; PIN,BRK VLV
1-48119-106-0
02
1
9704-0109
11
SCREW; SET,BRK VLV
1-48119-245-0
01
1
9704-0109
11
SCREW; SET,BRK VLV
1-48119-003-1
01
1
0110-
12
NUT; SCREW,PEDAL,BRK VLV
9-88510-123-0
01
1
9704-
13
ROLLER; PEDAL,BRK VLV
1-48119-243-0
01
1
9704-0109
13
ROLLER; PEDAL,BRK VLV
1-48119-430-0
01
1
0110-
14
PLUNGER; BRK VLV
1-48119-383-0
01
1
9704-0109
14
PLUNGER; BRK VLV
1-48119-434-0
01
1
0110-
15
BOLT; PLATE,BRK VLV
1-48219-039-0
03
1
9704-
16
PLATE; MTG,BRKT VLV
1-48119-268-0
01
1
9704-0109
16
PLATE; MTG,BRKT VLV
1-48119-433-0
01
1
0110-
19
SEAT; SPRING,BRK VLV
1-48123-041-0
01
1
9704-0109
20
PISTON; UPR,BRK VLV
1-48119-381-0
01
1
9704-0109
20
PISTON; UPR,BRK VLV
1-48119-436-0
01
1
0110-0206
20
PISTON; UPR,BRK VLV
1-48119-586-0
01
1
0207-
22
SPRING; PISTON,LWR,BRK VLV
1-48123-071-0
01
1
9704-0109
22
SPRING; PISTON,LWR,BRK VLV
1-48123-076-0
01
1
0110-
23
WASHER; UPR,BRK VLV
1-48129-145-0
01
1
9704-0109
23
WASHER; UPR,BRK VLV
1-48129-299-0
01
1
0110-
24
SPRING; UPR,BRK VLV
1-48123-018-0
01
1
9704-0109
24
SPRING; UPR,BRK VLV
1-48123-077-0
01
1
0110-
25
WASHER; PISTON,BRK VLV
1-48129-138-0
01
1
9704-0109
25
WASHER; PISTON,BRK VLV
1-48129-300-0
01
1
0110-
27
SPRING; PISTON,LWR,BRK VLV
1-48123-055-0
01
1
9704-0109
28
PISTON; LWR,BRK VLV
1-48129-140-0
01
1
9704-0109
28
PISTON; LWR,BRK VLV
1-48129-302-0
01
1
0110-
29
SLEEVE; VLV,BRK VLV
1-48129-083-1
01
1
9704-0109
30
WASHER; SLEEVE,BRK VLV
1-48129-082-0
01
1
9704-0109
31
SPRING; VLV,BRK VLV
(B)
1-48123-032-0
01
1
9704-0109
31
SPRING; VLV,BRK VLV
(B)
1-48123-079-0
01
1
0110-
31
SPRING; VLV,BRK VLV
(A)
1-48123-033-0
01
1
9704-0109
33
BOLT; BODY,BRK VLV
1-48119-213-0
04
1
9704-
34
RETAINER; VLV,BRK VLV
1-48129-144-0
01
1
9704-0109
34
RETAINER; VLV,BRK VLV
1-48129-307-0
01
1
0110-
35
SPRING; VLV,BRK VLV
1-48123-019-0
01
1
9704-0109
35
SPRING; VLV,BRK VLV
1-48123-078-0
01
1
0110-
37
WASHER; VLV LWR,BRK VLV
1-48129-080-0
01
1
9704-0109
52
SPRING; PISTON,OUTER,BRK VLV
1-48123-074-0
01
1
9704-0109
53
SPRING; PISTON,INNER,BRK VLV
1-48123-068-0
01
1
9704-0109
54
SPRING; PISTON,UPR,BRK VLV
1-48123-067-0
01
1
9704-0109
54
SPRING; PISTON,UPR,BRK VLV
1-48123-075-0
01
1
0110-
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; BRK VLV
1-85576-182-0
01
1
9704-0109
2
REPAIR KIT; BRK VLV
1-85576-211-1
01
1
0110-1211
2
REPAIR KIT; BRK VLV
8-98222-817-0
01
1
1212-
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; BRK VLV
1-85576-182-0
01
1
9704-0109
2
REPAIR KIT; BRK VLV
1-85576-211-1
01
1
0110-1211
2
REPAIR KIT; BRK VLV
8-98222-817-0
01
1
1212-
