3-20 — AIR TANK (#64674) — 86 parça

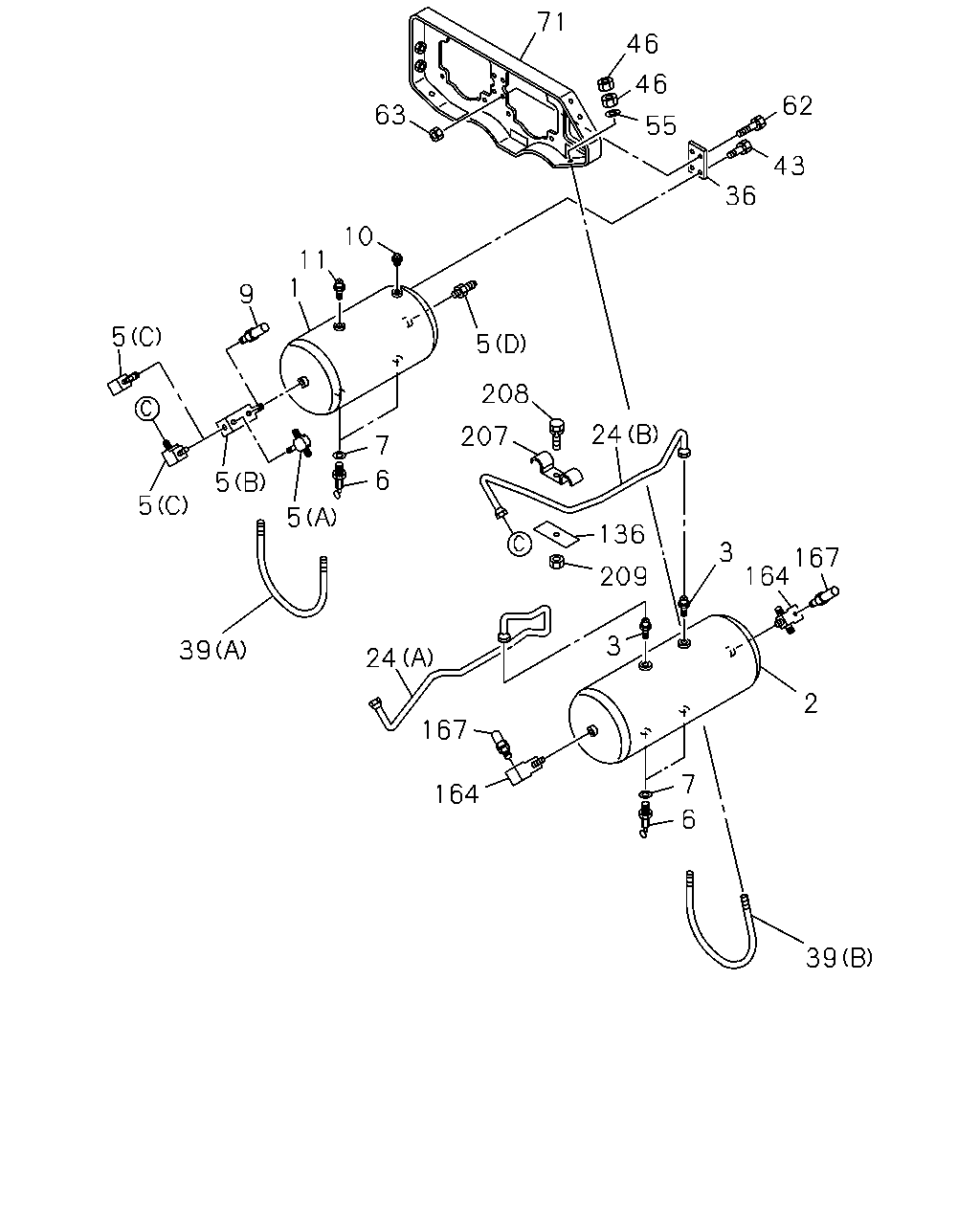

çizim 185134
71 46 46 62 63 55 43 36 10 11 1 9 5 5 208 7 24 207 6 5 5 5 136 3 167 164 209 3 39 24 2 167 7 164 6 39
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR 1-48330-736-0 01 1 9704-9810
1 TANK ASM; AIR 1-48370-807-0 01 1 9811-
2 TANK; AIR 1-48330-070-1 01 1 9704-9810
2 TANK; AIR 1-48370-806-0 01 1 9811-
3 VALVE; CHECK,AIR TANK 1-48410-182-3 02 1 9704-
5 UNION; AIR TANK
(C) M20 & PT3/8 ELBOW 		1-09650-439-0 02 1 9704-0607
5 UNION; AIR TANK
(C) M20 & PT3/8 ELBOW 		0-92134-312-0 02 1 0608-
5 UNION; AIR TANK
(A) M12X2 & PT1/4 3WAY 		1-09656-229-1 01 1 9704-
5 UNION; AIR TANK
(B) 		1-09660-521-2 01 1 9704-
5 UNION; AIR TANK
(D) M22 & PT3/4 		1-48410-136-3 01 1 9704-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 04 1 9704-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 9704-
7 GASKET; DRAIN COCK
ID=14.2 OD=23.0 IDN 		9-09572-014-0 02 1 9704-9810
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
530KPA 		1-48340-054-1 01 1 9704-
10 PLUG; AIR TANK
PT1/4 		9-99204-513-0 01 1 9704-
11 VALVE; SAFETY,AIR TANK 1-48320-003-2 01 1 9704-
24 PIPE ASM; AIR TANK
(B) 		1-49117-530-0 01 1 9704-
24 PIPE ASM; AIR TANK
(A) 		1-49117-531-0 01 1 9704-
36 STAY; MAIN TANK 1-48317-477-0 01 1 9704-
39 U-BOLT; AIR TANK
(A) IDN 		1-48317-301-0 01 1 9704-
39 U-BOLT; AIR TANK
(B) IDN 		1-48317-302-0 02 1 9704-
43 BOLT; STAY,AIR TANK,MAIN
M10X30 FLANGE 		0-28681-030-0 02 1 9704-0512
43 BOLT; STAY,AIR TANK,MAIN
M10X30 FLANGE 		0-28651-030-0 02 1 0601-
46 NUT; U-BOLT
M8 		9-09110-408-0 12 1 9704-0512
46 NUT; U-BOLT
M8 IDN 		0-91110-508-0 12 1 0601-
55 WASHER; PL,U-BOLT
ID=8.4 OD=18 		9-09160-608-0 08 1 9704-0605
55 WASHER; PL,U-BOLT
ID=8.4 OD=18 		0-91610-608-0 08 1 0606-
62 BOLT; SUPPORT
M10X25 FLANGE 		0-28681-025-0 02 1 9704-0512
62 BOLT; SUPPORT
M10X25 FLANGE IDN 		0-28651-025-0 02 1 0601-
63 NUT; SUPPORT
M10 FLANGE 		0-91150-210-0 02 1 9704-0602
63 NUT; SUPPORT
M10 FLANGE 		0-91180-210-0 02 1 0603-
71 BRACKET; AIR MASTER,TANDEM 1-53318-276-1 02 1 9704-
136 BRACKET; CLIP
L=50 		1-47475-299-2 01 1 9704-
164 CONNECTOR; SUB AIR TANK 1-09656-268-1 02 1 9704-
167 SWITCH; LOW PRESS GAUGE,AIR TANK,SUB
530KPA 		1-48340-054-1 02 1 9704-
207 CLIP; AIR PIPE
ID=13 & 13 L=18 & 18 		1-09700-833-0 01 1 9704-
208 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9704-0512
208 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
209 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 9704-0602
209 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-

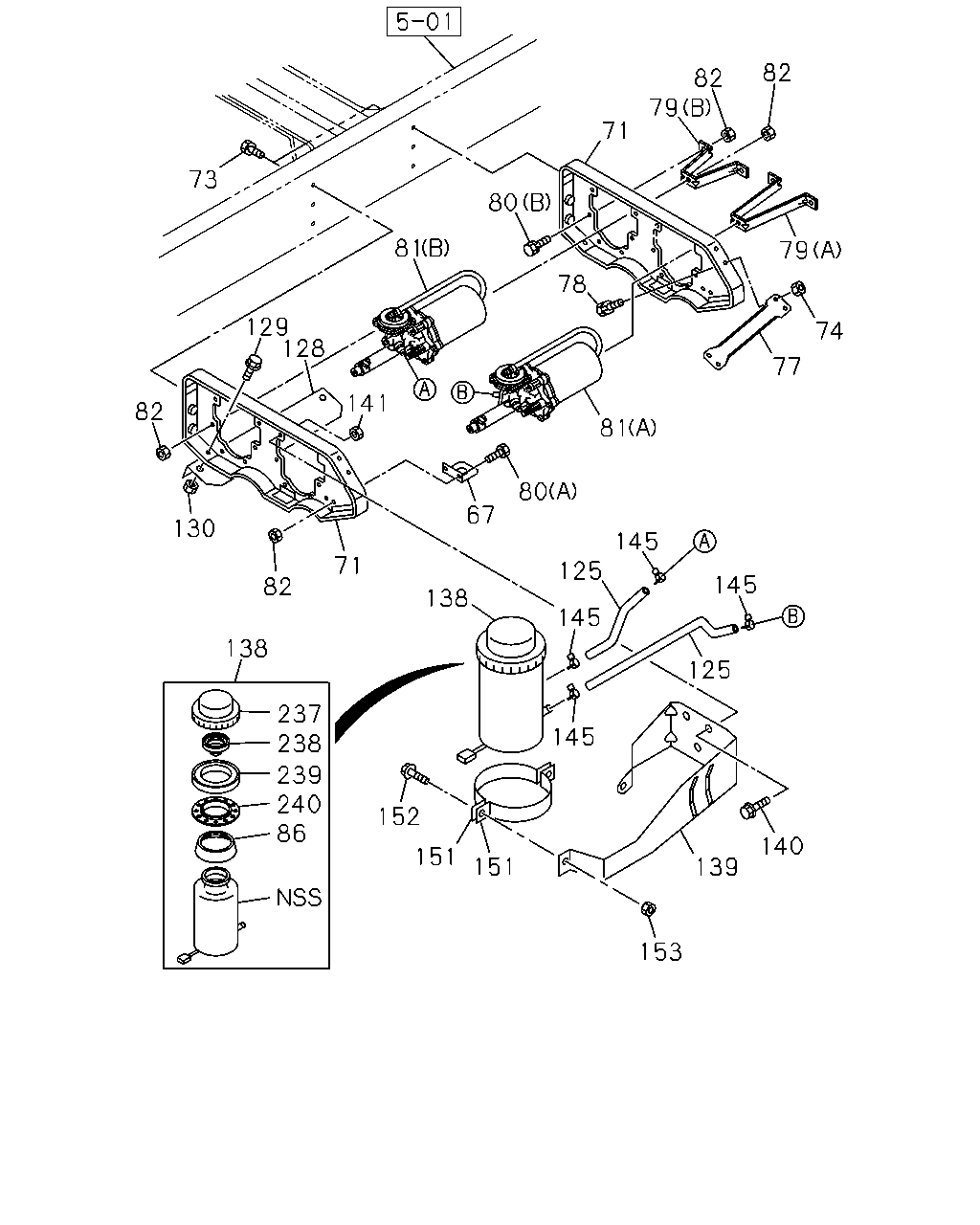

çizim 185136
82 82 79 71 73 80 81 79 78 129 128 74 77 141 82 81 80 67 130 145 71 125 145 82 138 145 138 125 237 238 145 239 240 86 152 140 151 139 151 153
BalonParca AdiParca NoAdetTipApplied Date
67 STAY; SUB TANK 1-48317-321-2 01 1 9704-
71 BRACKET; AIR MASTER,TANDEM 1-53318-276-1 02 1 9704-
73 BOLT; BRKT TO FRAME,AIR MASTER
M12X40 FLANGE 		0-28681-240-0 06 1 9704-0512
73 BOLT; BRKT TO FRAME,AIR MASTER
M12X40 FLANGE 		0-28651-240-0 06 1 0601-
74 NUT; STAY AIR MASTER
M10 FLANGE 		0-91150-210-0 04 1 9704-0602
74 NUT; STAY AIR MASTER
M10 FLANGE 		0-91180-210-0 04 1 0603-
77 STAY; AIR MASTER UPR 1-53318-293-1 01 1 9704-
78 BOLT; STAY AIR MASTER
M10X30 FLANGE 		0-28681-030-0 04 1 9704-0512
78 BOLT; STAY AIR MASTER
M10X30 FLANGE 		0-28651-030-0 04 1 0601-
79 STAY; AIR MASTER TO BRKT
(B) H=133 		1-53318-216-0 01 1 9704-
79 STAY; AIR MASTER TO BRKT
(A) H=203 		1-53318-217-0 01 1 9704-
80 BOLT; BRKT
(A) M10X25 FLANGE 		0-28681-025-0 02 1 9704-0512
80 BOLT; BRKT
(A) M10X25 FLANGE IDN 		0-28651-025-0 02 1 0601-
80 BOLT; BRKT
(B) M10X30 FLANGE 		0-28681-030-0 04 1 9704-0512
80 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 04 1 0601-
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. (B) 		1-47800-428-2 01 1 9704-
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. (A) 		1-47800-429-2 01 1 9704-
82 NUT; STAY,AIR MASTER BRKT
M10 FLANGE 		0-91150-210-0 16 1 9704-0602
82 NUT; STAY,AIR MASTER BRKT
M10 FLANGE 		0-91180-210-0 16 1 0603-
86 SEAL; DUST 1-47529-019-0 01 1 9704-
125 HOSE; OIL TANK TO AIR MASTER
L=140 		1-47469-051-1 01 1 9704-
125 HOSE; OIL TANK TO AIR MASTER
L=190 		1-47469-052-2 01 1 9704-
128 PROTECTOR 1-53319-018-0 01 1 9704-
129 BOLT; PROTECTOR FIX
M8X30 FLANGE 		0-28680-830-0 02 1 9704-0512
129 BOLT; PROTECTOR FIX
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
130 NUT; PROTECTOR FIX
M8 FLANGE 		0-91150-108-0 02 1 9704-0602
130 NUT; PROTECTOR FIX
M8 FLANGE 		0-91180-108-0 02 1 0603-
138 TANK ASM; OIL,AIR MASTER 1-47530-170-1 01 1 9704-0011
138 TANK ASM; OIL,AIR MASTER 1-47530-184-0 01 1 0012-0206
138 TANK ASM; OIL,AIR MASTER 1-47530-185-1 01 1 0207-
139 BRACKET; OIL TANK 1-47537-114-3 01 1 9704-
140 BOLT; OIL TANK TO BRKT
M10X25 FLANGE 		0-28681-025-0 03 1 9704-0512
140 BOLT; OIL TANK TO BRKT
M10X25 FLANGE IDN 		0-28651-025-0 03 1 0601-
141 NUT; OIL TANK TO BRKT
M10 FLANGE 		0-91150-210-0 03 1 9704-0602
141 NUT; OIL TANK TO BRKT
M10 FLANGE 		0-91180-210-0 03 1 0603-
145 CLIP; OIL TANK TO AIR MASTER HOSE
ID=14 IDN 		1-09704-102-0 04 1 9704-
151 BAND; OIL TANK,AIR MASTER 1-47537-113-0 02 1 9704-
152 BOLT; OIL TANK TO BAND
M8X30 FLANGE 		0-28680-830-0 02 1 9704-0512
152 BOLT; OIL TANK TO BAND
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
153 NUT; OIL TANK TO BAND
M8 FLANGE 		0-91150-108-0 02 1 9704-0602
153 NUT; OIL TANK TO BAND
M8 FLANGE 		0-91180-108-0 02 1 0603-
237 CAP; OIL TANK 1-47525-024-0 01 1 9704-0011
237 CAP; OIL TANK 1-47525-030-0 01 1 0012-
238 PLATE; BAFFLE 1-47529-022-0 01 1 9704-
239 FILTER; DUST 1-47529-017-0 01 1 9704-
240 HOLDER; FILTER 1-47529-018-0 01 1 9704-
