Isuzu WW
▶
TRUCKS
▶
FXZ
▶
10754 - FXZ(INDONESIA)
▶
3 - Brakes, Brake System
▶
3-11 - PARKING BRAKE CONTROL
▶
3-11 — PARKING BRAKE CONTROL
(#64673) — 41 parça
◀

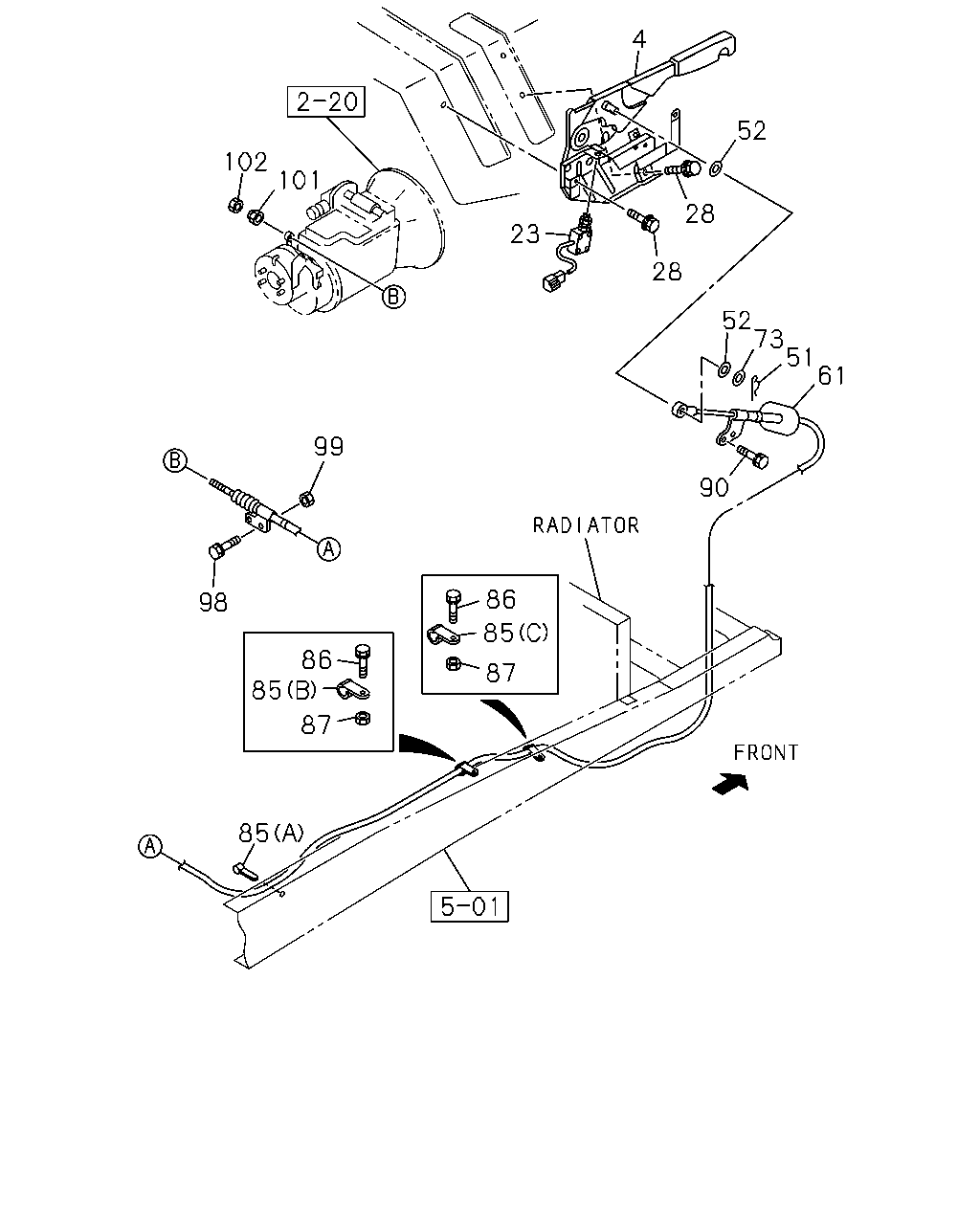

[311A] NO.1 (34 parça)
[311A] NO.2 (7 parça)
▶
4
52
102
101
28
23
28
52
73
51
61
99
90
86
98
85
86
85
87
87
85
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
STEM; PARKING BRK
1-79996-259-0
01
1
9704-9809
4
STEM; PARKING BRK
1-79996-424-0
01
1
9810-9908
4
STEM; PARKING BRK
1-79996-493-0
01
1
9909-9911
4
STEM; PARKING BRK
1-79996-508-0
01
1
9912-0010
4
STEM; PARKING BRK
1-79996-568-0
01
1
0011-
23
SWITCH; PARKING BRK
1-82440-100-0
01
1
9704-
28
BOLT; HAND BRK LEVER
M8X24.5 W/LK&PL WASHER
8-94279-208-0
03
1
9704-0904
28
BOLT; HAND BRK LEVER
M8X24.5 W/LK&PL WASHER
8-98059-720-0
03
1
0905-
51
PIN; JOINT,RELAY LEVER
1-09987-243-1
01
1
9704-
52
WASHER; CURVED RELAY LEVER
ID=19
8-94206-429-1
02
1
9704-
61
CABLE; PARKING BRK
L=4605
1-79996-348-0
01
1
9704-9909
61
CABLE; PARKING BRK
L=4894
1-79996-464-2
01
1
9910-
73
WASHER; PL,CABLE
ID=17
9-09160-516-0
01
1
9704-0605
73
WASHER; PL,CABLE
ID=17 OD=30
0-91610-516-0
01
1
0606-
85
CLIP; BRKT
(A) ID=15 L=65
1-09700-466-0
01
1
9704-
85
CLIP; BRKT
(C) ID=14.5 L=40
1-09701-014-0
01
1
9704-
85
CLIP; BRKT
(B) ID=13 L=20
9-09525-235-0
02
1
9704-0606
85
CLIP; BRKT
(B) ID=13 L=20
0-95235-235-0
02
1
0607-
86
BOLT
M8X16 FLANGE
0-28080-816-0
02
1
9704-0512
86
BOLT
M8X16 FLANGE
0-28050-816-0
02
1
0601-
86
BOLT
M8X25 FLANGE IDN
0-28680-825-0
01
1
9704-0512
86
BOLT
M8X25 FLANGE IDN
0-28650-825-0
01
1
0601-
87
NUT
M8 FLANGE
0-91150-108-0
03
1
9704-0602
87
NUT
M8 FLANGE
0-91180-108-0
03
1
0603-
90
BOLT; CABLE TO BRKT
M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
9704-0904
90
BOLT; CABLE TO BRKT
M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
0905-
98
BOLT; RR COVER
M10X30 FLANGE
0-28681-030-0
02
1
9704-0512
98
BOLT; RR COVER
M10X30 FLANGE
0-28651-030-0
02
1
0601-
99
NUT; CONT CABLE
M10 FLANGE
0-91150-210-0
02
1
9704-0602
99
NUT; CONT CABLE
M10 FLANGE
0-91180-210-0
02
1
0603-
101
NUT; CABLE TO LEVER
1-46259-007-0
01
1
9704-
102
NUT; LK,CABLE TO LEVER
M8
9-09110-408-0
01
1
9704-9709
102
NUT; LK,CABLE TO LEVER
M8 FLANGE
0-91150-108-0
01
1
9710-0602
102
NUT; LK,CABLE TO LEVER
M8 FLANGE
0-91180-108-0
01
1
0603-
46
45
324
218
46
45
343
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
45
BOLT; CABLE TO FLOOR
M8X24.5 W/LK&PL WASHER
8-94279-208-0
03
1
9704-9812
45
BOLT; CABLE TO FLOOR
M8X20.5 W/LK&PL WASHER
8-94279-207-0
03
1
9901-
46
CLIP; FRT CABLE TO FLOOR
ID=16 L=20
9-09525-535-0
03
1
9704-0606
46
CLIP; FRT CABLE TO FLOOR
ID=16 L=20
0-95235-535-0
03
1
0607-
218
NUT; BRKT,PARKING BRK CABLE
M8 CUTTING NUT W/FLANGE
1-09985-340-0
02
1
9704-
324
BRACKET
1-79998-750-3
01
1
9704-
343
SEAL
OD=25 BLACK
1-76798-019-0
02
1
9704-
