Isuzu WW
▶
BUSES
▶
LV
▶
10772 - LV280(THAI)
▶
0 - Engine, Emission, Engine Electrical
▶
0-13 - OIL PAN AND LEVEL GAUGE
▶

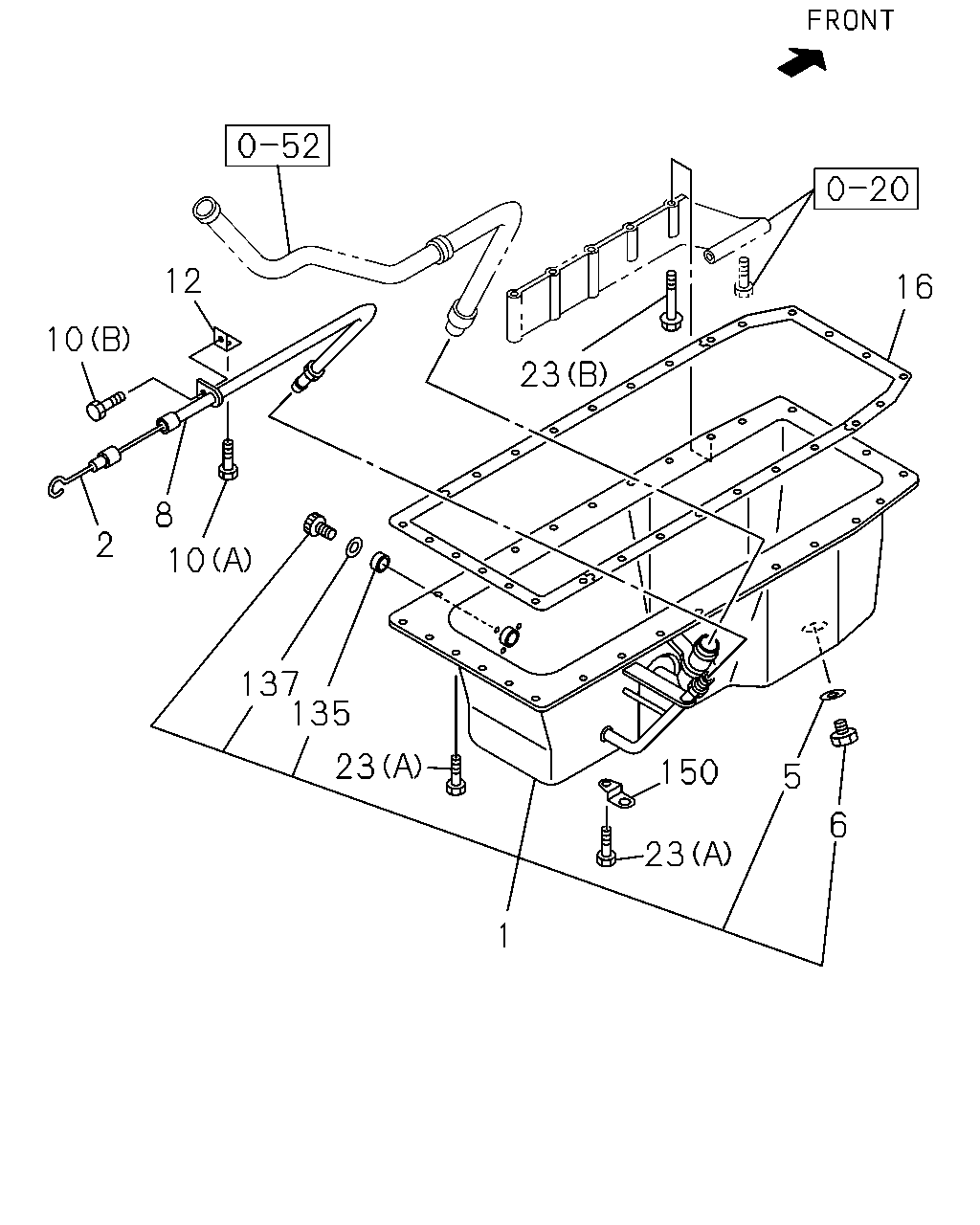

0-13 — OIL PAN AND LEVEL GAUGE
(#6467) — 18 parça
12
16
10
23
8
2
10
137
135
23
150
5
6
23
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAN ASM; OIL
1-11360-771-3
01
1
9705-
2
GAUGE; OIL LEVEL
1-11760-407-0
01
1
9705-9811
2
GAUGE; OIL LEVEL
1-11760-419-1
01
1
9812-
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8
1-09623-415-0
01
1
9705-
6
PLUG; OIL DRAIN
M24X17 FLANGE
1-09604-064-1
01
1
9705-0111
6
PLUG; OIL DRAIN
M24X17 FLANGE
1-09604-022-0
01
1
0112-
8
TUBE; GUIDE,OIL LEVEL GAUGE
1-11766-492-0
01
1
9705-9811
8
TUBE; GUIDE,OIL LEVEL GAUGE
1-11766-537-0
01
1
9812-
10
BOLT; GUIDE TUBE
(A) M8X16 FLANGE
0-28080-816-0
01
1
9705-
10
BOLT; GUIDE TUBE
(B) M8X20 FLANGE
0-28080-820-0
01
1
9705-9811
12
BRACKET; TUBE,OIL LEVEL GAUGE
1-11769-171-0
01
1
9705-9811
12
BRACKET; TUBE,OIL LEVEL GAUGE
1-11769-186-0
01
1
9812-
16
GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
1-11367-107-0
01
1
9705-
23
BOLT; OIL PAN
(A) M8X18 W/LK&PL WASHER
1-09030-004-0
18
1
9705-
23
BOLT; OIL PAN
(B) M8X90 W/LK&PL WASHER
1-09030-078-0
10
1
9705-
135
ADAPTER; GUIDE TUBE
1-11369-126-0
01
1
9705-
137
GASKET; ADAPTER
1-09623-588-0
01
1
9705-
150
CLIP; WATER,OIL DRAIN
9-11229-070-0
01
1
9705-
