2-30 — GEAR SHIFTER AND QUADRANT BOX (#64662) — 101 parça

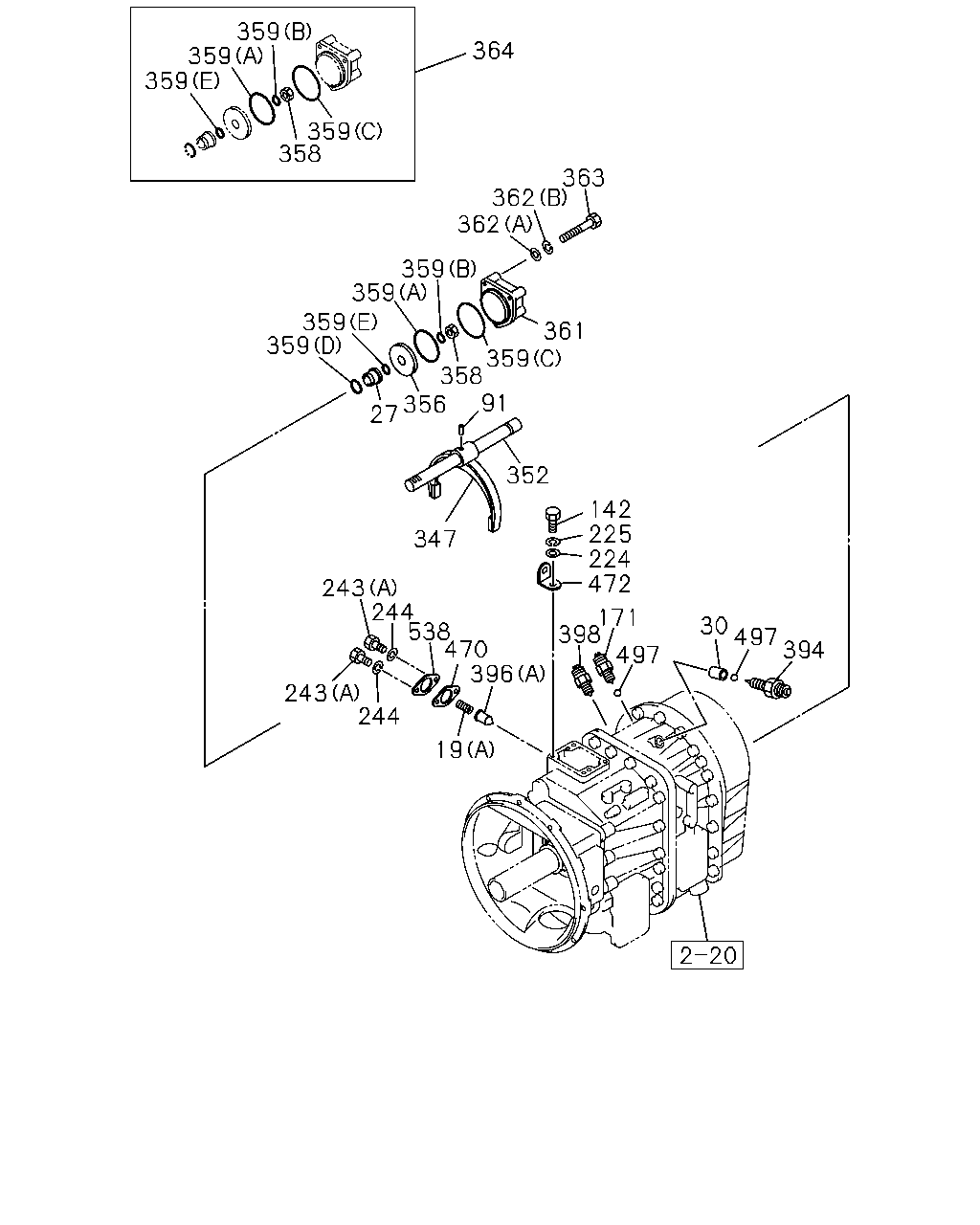

çizim 185123
359 359 359 364 359 358 363 362 362 359 359 359 359 361 359 358 27 352 142 225 224 472 347 243 244 538 470 396 171 398 30 497 394 497 243 244 19 356 91
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
(A) 		1-33539-052-0 02 1 9704-
19 SPRING; COIL COMP
(B) 		1-33549-226-0 01 1 9704-
27 BUSHING; SHIFT ROD 1-33569-042-0 01 1 9704-
30 PIN; INTER LK 1-33119-309-0 01 1 9704-
91 PIN; SPR,SHIFT ARM 1-33519-100-0 01 1 9704-
142 BOLT; QUAD BOX 1-33549-222-0 04 1 9704-
171 SWITCH; NEUTRAL 1-82440-104-0 01 1 9704-
224 WASHER; PL,QUAD BOX 1-33119-318-0 03 1 9704-
225 WASHER; LK,QUAD BOX 1-34159-066-0 04 1 9704-
243 BOLT; COVER
(A) 		1-33119-322-0 02 1 9704-
243 BOLT; COVER
(B) 		1-33549-230-0 02 1 9704-
244 WASHER; LK,COVER 1-33119-323-0 06 1 9704-
347 ARM; SHIFT,RANGE CHANGE 1-33511-533-0 01 1 9704-
352 ROD; SHIFT,RANGE CHANGE 1-33531-435-0 01 1 9704-
356 PISTON; AIR CYL 1-33551-015-0 01 1 9704-
358 NUT; SHIFT ROD 1-33539-053-0 01 1 9704-
359 GASKET; AIR CYL
(B) 		1-33552-007-0 01 1 9704-
359 GASKET; AIR CYL
(C) 		1-33563-008-0 01 1 9704-
359 GASKET; AIR CYL
(D) 		1-33569-043-0 01 1 9704-
359 GASKET; AIR CYL
(E) 		1-33569-044-0 01 1 9704-
359 GASKET; AIR CYL
(A) 		1-87061-122-0 01 1 9704-
361 CYLINDER; AIR,SHIFT 1-33569-045-0 01 1 9704-
362 WASHER; AIR CYL
(A) 		1-33119-318-0 03 1 9704-
362 WASHER; AIR CYL
(B) 		1-34159-066-0 03 1 9704-
363 BOLT; AIR CYL 1-33119-365-0 03 1 9704-
364 SEAL KIT; AIR CYL 1-85572-108-0 01 1 9704-
394 SWITCH; RANGE CHANGE 1-82440-103-0 01 1 9712-
396 PLUNGER; SHIFT ROD
(A) 		1-33539-051-0 01 1 9704-
396 PLUNGER; SHIFT ROD
(B) 		1-33549-229-0 01 1 9704-
398 SWITCH; REV LAMP 1-82440-103-0 01 1 9704-
470 GASKET; SPRING COVER 1-33119-321-0 02 1 9704-
472 EYE; LIFTING 1-87060-783-0 01 1 9704-
497 BALL; SWITCH 1-33119-308-0 01 1 9704-9711
497 BALL; SWITCH 1-33119-308-0 02 1 9712-
538 COVER; DETENT 1-33119-320-0 01 1 9704-

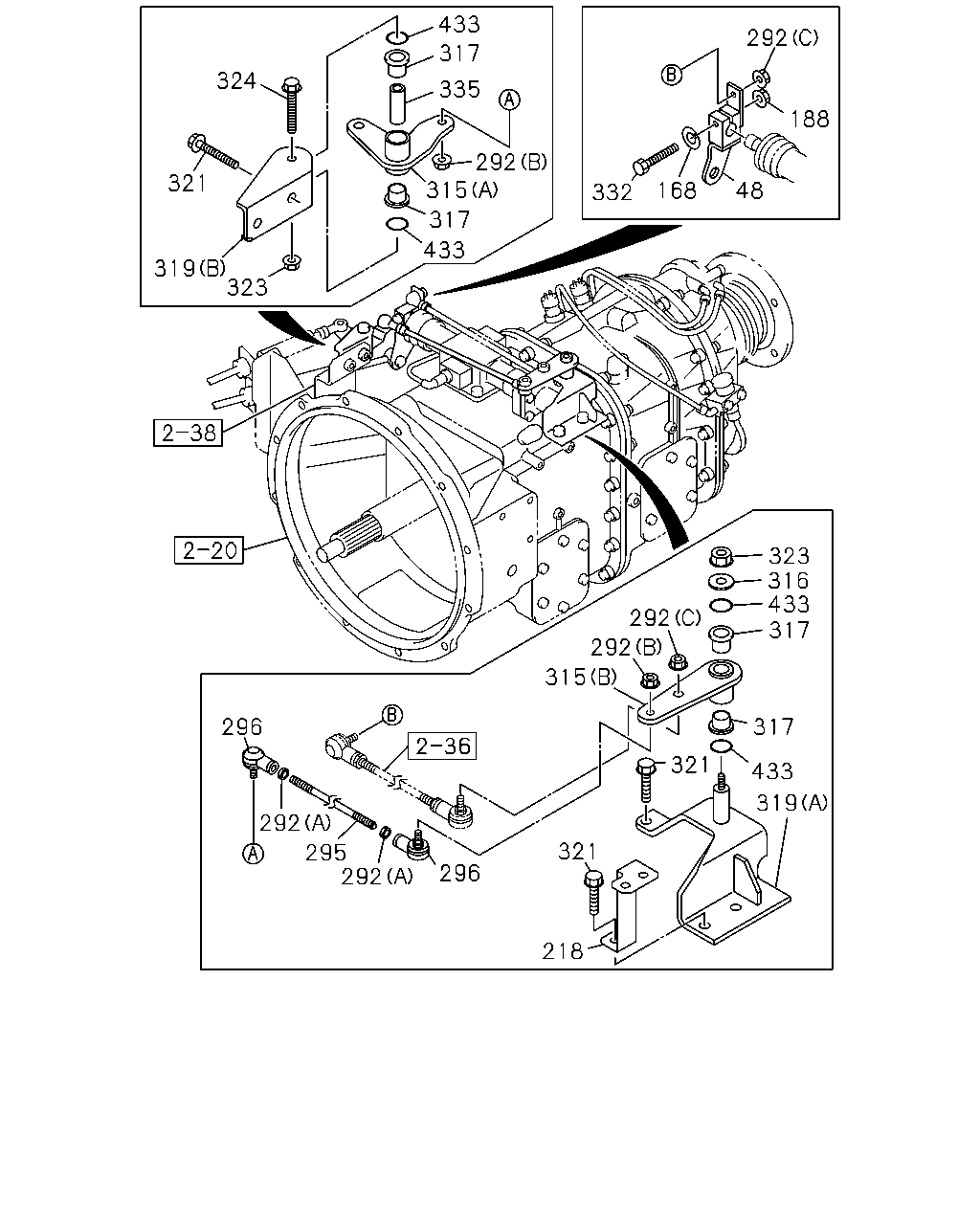

çizim 185125
433 292 317 324 335 188 292 315 321 168 48 332 317 433 319 323 323 316 433 317 292 292 315 317 296 321 433 319 292 321 295 292 296 218
BalonParca AdiParca NoAdetTipApplied Date
48 LEVER; 4TH,SHIFT 1-33651-681-0 01 1 9704-
168 WASHER; LK,SELECT LEVER
ID=10.2 		9-09150-510-0 01 1 9704-0603
168 WASHER; LK,SELECT LEVER
ID=10.2 		0-91510-510-0 01 1 0604-
188 NUT; SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 9704-0602
188 NUT; SELECT LEVER
M10 FLANGE 		0-91180-110-0 01 1 0603-
218 BRACKET; HARNESS CLIP,QUAD BOX 1-82699-639-1 01 1 9704-
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-049-0 02 1 9704-9804
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 9805-
292 NUT; LINK ROD
(C) M10 FLANGE 		1-09440-050-0 02 1 9704-9710
292 NUT; LINK ROD
(C) M10 FLANGE 		1-09440-056-0 02 1 9711-
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9704-0512
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 0601-
295 ROD; LINK,RELAY LEVER 9-08400-824-0 01 1 9704-
296 ROD END
L=48 		1-09760-038-1 02 1 9704-0309
296 ROD END
L=45.5 		1-09760-118-1 02 1 0310-
315 LEVER; SELECT
(A) 		1-33651-682-0 01 1 9704-
315 LEVER; SELECT
(B) 		1-33651-683-0 01 1 9704-
316 WASHER; PL,LEVER
ID=10.5 OD=26 		9-09160-710-0 01 1 9704-
317 BUSHING; LEVER 1-09330-119-0 02 1 9704-
319 BRACKET; SELECT LEVER
(B) 		1-33657-603-0 01 1 9704-
319 BRACKET; SELECT LEVER
(A) 		1-33657-648-0 01 1 9704-
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 9704-
321 BOLT; BRKT,RELAY LEVER
M10X30 FLANGE 		0-28181-030-0 01 1 9704-0512
321 BOLT; BRKT,RELAY LEVER
M10X30 FLANGE 		0-28151-030-0 01 1 0601-
321 BOLT; BRKT,RELAY LEVER
M10X25 FLANGE 		0-28681-025-0 02 1 9704-0512
321 BOLT; BRKT,RELAY LEVER
M10X25 FLANGE IDN 		0-28651-025-0 02 1 0601-
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 02 1 9704-
324 BOLT; SHAFT
M10X60 FLANGE 		0-28081-060-0 01 1 9704-
332 BOLT; 4TH,SHIFT LEVER 0-20801-060-0 01 1 9704-
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-203-0 01 1 9704-
433 GASKET; BUSHING 1-09623-594-0 02 1 9704-

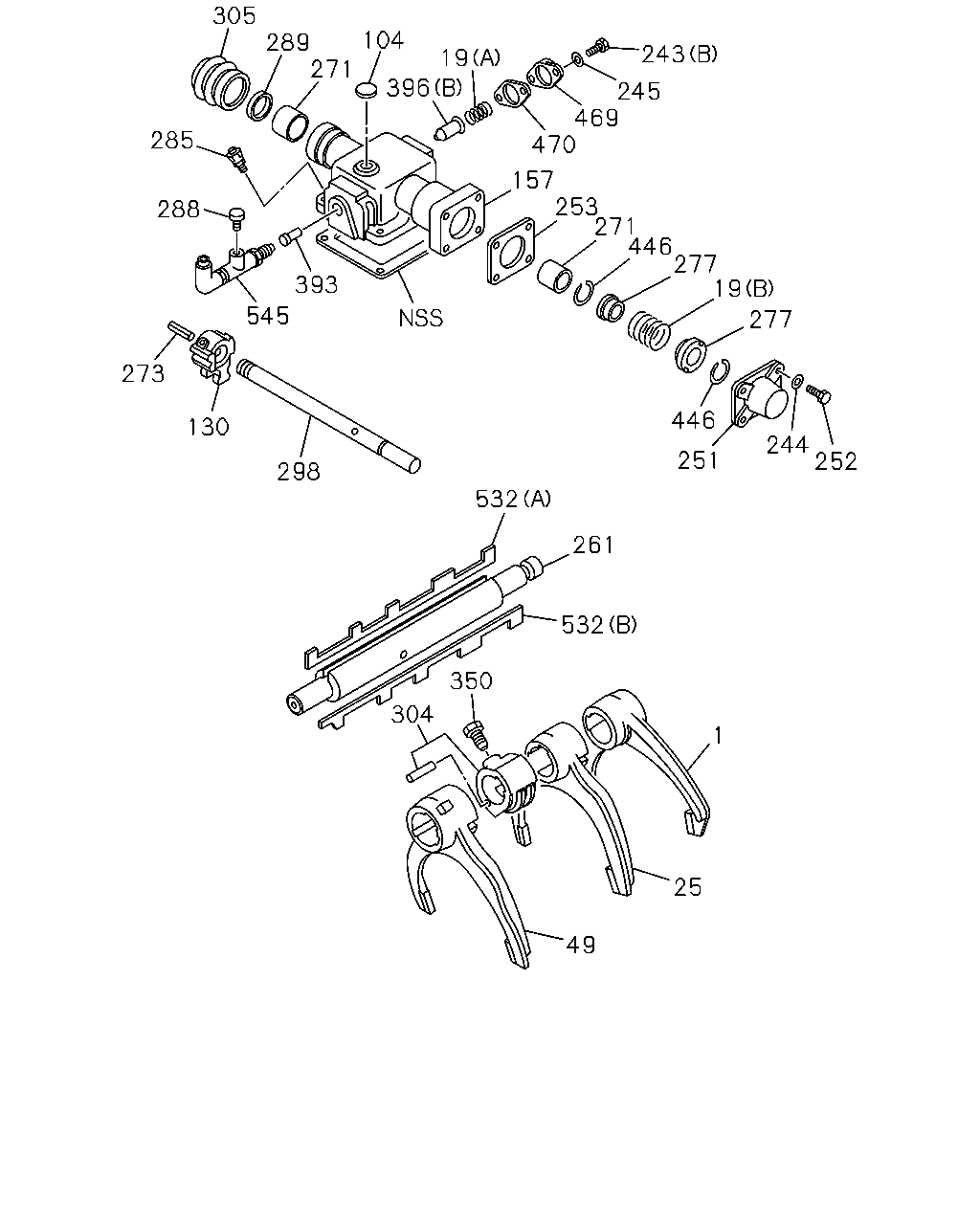

çizim 185127
305 289 271 104 243 19 396 245 469 470 285 157 253 271 446 277 19 288 393 545 277 273 446 130 244 252 251 298 532 261 532 350 304 1 25 49
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; SHIFT,1ST & REV 1-33511-535-0 01 1 9704-
19 SPRING; COIL COMP
(A) 		1-33539-052-0 02 1 9704-
19 SPRING; COIL COMP
(B) 		1-33549-226-0 01 1 9704-
25 ARM; SHIFT,2ND & 3RD 1-33511-536-0 01 1 9704-
49 ARM; SHIFT,4TH & 5TH 1-33511-537-0 01 1 9704-
104 PLUG; PLATE 1-33549-231-0 01 1 9704-
130 LEVER; SHIFT,INTERNAL 1-33521-161-0 01 1 9704-
157 BOX; QUAD,TRANS 1-33541-486-0 01 1 9704-
243 BOLT; COVER
(A) 		1-33119-322-0 02 1 9704-
243 BOLT; COVER
(B) 		1-33549-230-0 02 1 9704-
244 WASHER; LK,COVER 1-33119-323-0 06 1 9704-
245 WASHER; PL,COVER 1-33119-323-0 02 1 9704-
251 COVER; SIDE 1-33545-009-0 01 1 9704-
252 BOLT; SIDE COVER 1-33549-228-0 04 1 9704-
253 GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33544-051-0 01 1 9704-
261 ROD; GEAR CONT 1-33531-436-0 01 1 9704-
271 BUSHING; QUAD BOX 1-33119-303-0 02 1 9704-
273 PIN; SPR,STOPPER 1-33529-095-0 01 1 9704-
277 PLATE; SPRING SEAT 1-33549-224-0 02 1 9704-
285 BREATHER; AIR,QUAD BOX 1-33549-232-0 01 1 9704-
288 PLUG; AIR BREATHER 1-33549-237-0 01 1 9704-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		1-33542-059-0 01 1 9704-
298 SHAFT; SHIFT LEVER 1-33522-158-0 01 1 9704-
304 BLOCK; SHIFT SHAFT 1-33511-575-0 01 1 9704-
305 BOOT; LEVER SHAFT 1-33549-233-0 01 1 9704-
350 SCREW; SHIFT ARM 1-33519-102-0 01 1 9704-
393 PIN; SW 1-33549-234-0 01 1 9704-
396 PLUNGER; SHIFT ROD
(A) 		1-33539-051-0 01 1 9704-
396 PLUNGER; SHIFT ROD
(B) 		1-33549-229-0 01 1 9704-
446 RING; SNAP,SPR SEAT 1-33549-223-0 02 1 9704-
469 COVER; SPRING,QUAD BOX 1-33119-320-0 01 1 9704-
470 GASKET; SPRING COVER 1-33119-321-0 02 1 9704-
532 PLATE; SHIFT FORK
(A) 		1-33539-054-0 01 1 9704-
532 PLATE; SHIFT FORK
(B) 		1-33539-055-0 01 1 9704-
545 VALVE; POPPET 1-33549-236-0 01 1 9704-
