2-07 — CLUTCH BOOSTER; MINIPACK (#64656) — 72 parça

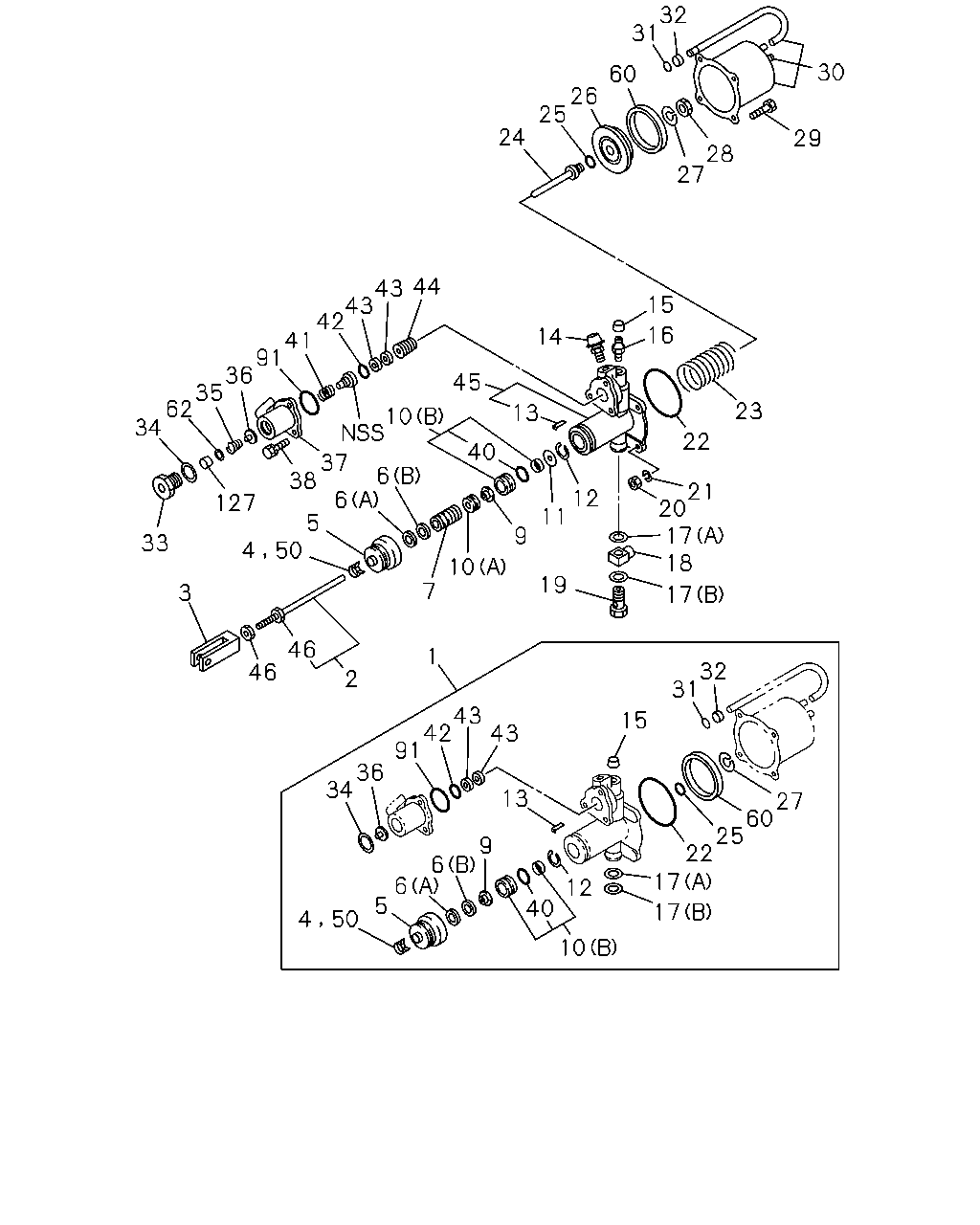

çizim 185120
32 31 30 60 26 25 24 29 28 27 43 44 43 42 41 91 36 35 62 34 15 16 14 45 23 13 10 22 40 37 38 6 21 20 17 18 12 6 127 11 5 9 33 10 19 7 3 17 46 1 32 31 46 2 43 91 15 36 34 13 27 60 25 22 17 9 6 6 5 12 40 17 10 42 43 4 50 4 50
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; CLU BOOSTER 1-31829-326-0 01 1 9704-0106
1 REPAIR KIT; CLU BOOSTER 1-31829-543-0 01 1 0107-
2 ROD; PUSH,CLU BOOSTER 1-31824-156-0 01 1 9704-0106
2 ROD; PUSH,CLU BOOSTER 1-31824-208-0 01 1 0107-0501
2 ROD; PUSH,CLU BOOSTER 1-31824-233-0 01 1 0502-
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-0 01 1 9704-0106
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-538-0 01 1 0107-0307
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-1 01 1 0308-
4 CLAMP; BOOSTER 1-31829-168-0 01 1 9704-0106
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 9704-0106
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 0107-
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 9704-
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 9704-
7 PISTON; CLU BOOSTER 1-31821-013-0 01 1 9704-0106
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0107-
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 9704-
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-107-0 01 1 9704-
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-108-0 01 1 9704-
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 9704-
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 9704-
13 PIN; SPR 1-31829-109-0 01 1 9704-
14 COVER; EXH,CLU BOOSTER 1-31829-102-0 01 1 9704-0106
14 COVER; EXH,CLU BOOSTER 1-31829-365-0 01 1 0107-0307
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 0308-
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 9704-
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 9704-
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 9704-
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 9704-
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 9704-
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 9704-
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 9704-
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 9704-
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-322-0 01 1 9704-
23 SPRING; SHELL,CLU BOOSTER 1-31829-110-0 01 1 9704-0106
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 0107-
24 ROD; PUSH,CLU BOOSTER 1-31829-112-0 01 1 9704-
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 9704-
26 PISTON; SHELL,CLU BOOSTER 1-31821-017-0 01 1 9704-0106
26 PISTON; SHELL,CLU BOOSTER 1-31821-084-0 01 1 0107-
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 9704-
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 9704-
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 9704-
30 SHELL; CYL,CLU BOOSTER 1-31811-061-0 01 1 9704-0106
30 SHELL; CYL,CLU BOOSTER 1-31811-124-0 01 1 0107-
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 9704-
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 9704-
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 9704-
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 9704-
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-077-0 01 1 9704-0106
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 0107-
36 VALVE; POPPET,CLU BOOSTER 1-31829-016-0 01 1 9704-0106
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 0107-
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-053-0 01 1 9704-0106
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 0107-
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 9704-
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 9704-1412
41 SPRING; DIAPH,CLU BOOSTER 1-31829-422-0 01 1 9704-0106
41 SPRING; DIAPH,CLU BOOSTER 1-31829-545-0 01 1 0107-
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 9704-
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 9704-
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-049-0 01 1 9704-0307
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-087-0 01 1 0308-
45 PLATE; END,CLU BOOSTER 1-31811-060-0 01 1 9704-
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 01 1 9704-0106
46 NUT; PUSH ROD,CLU BOOSTER 1-31824-126-0 02 1 0107-0501
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0502-
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 0107-
60 GASKET; SHELL,CLU BOOSTER 1-31829-058-0 01 1 9704-0106
60 GASKET; SHELL,CLU BOOSTER 1-31829-544-0 01 1 0107-
62 RETAINER; POPPET 1-31829-489-0 01 1 0107-
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 9704-
127 FILTER; POPPET 1-31829-495-0 01 1 0107-
