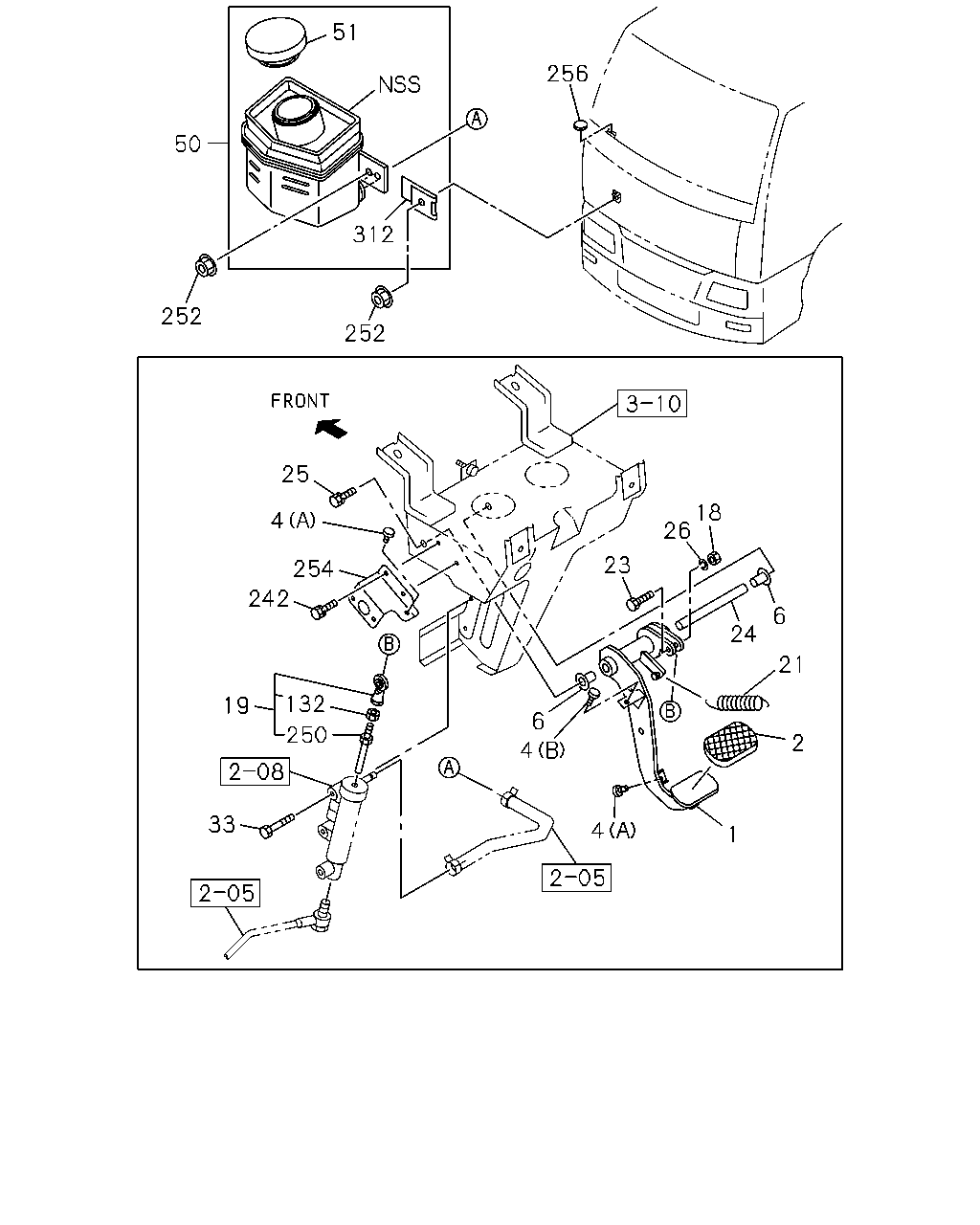

2-03 — CLUTCH PEDAL AND CONTROL
(#64654) — 33 parça
51
256
50
312
252
252
25
18
26
4
23
254
242
6
24
21
132
19
6
250
2
4
33
4
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PEDAL; CLU
1-73908-171-3
01
1
9704-
2
COVER; CLU PEDAL
8-94204-810-0
01
1
9704-0103
2
COVER; CLU PEDAL
8-97893-618-1
01
1
0104-
4
STOPPER; CLU PEDAL
(A)
1-47319-014-1
04
1
9704-
4
STOPPER; CLU PEDAL
(B)
5-31419-003-0
01
1
9704-0103
6
BUSHING; CLU PEDAL
1-09330-045-0
02
1
9704-
18
NUT; PUSH ROD
M8
9-09110-508-0
01
1
9704-0103
18
NUT; PUSH ROD
M8 IDN
0-91110-508-0
01
1
0104-
19
ROD ASM; PUSH,CLU
1-73996-144-0
01
1
9704-9809
19
ROD ASM; PUSH,CLU
1-73908-332-0
01
1
9810-0103
19
ROD ASM; PUSH,CLU
1-73996-144-1
01
1
0104-
21
SPRING; RETURN,CLU PEDAL
1-73908-265-0
01
1
9704-
23
BOLT; PUSH ROD
M8X35
9-01060-835-0
01
1
9704-9809
23
BOLT; PUSH ROD
M8X43.7
1-73908-333-0
01
1
9810-0103
23
BOLT; PUSH ROD
M8X35
0-10960-835-0
01
1
0104-
24
SHAFT; CLU PEDAL
1-73998-936-1
01
1
9704-
25
BOLT; PEDAL
M10X25 W/LK WASHER
0-50051-025-0
02
1
9704-
26
WASHER; LK,PUSH ROD
ID=8.2
9-09150-608-0
01
1
9704-0103
26
WASHER; LK,PUSH ROD
ID=8.2
0-91510-608-0
01
1
0104-
33
BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE
0-28081-060-0
02
1
9704-0512
33
BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE
0-28051-060-0
02
1
0601-
50
TANK; OIL,CLU
1-47530-182-0
01
1
9704-
51
CAP; OIL TANK,CLU
8-94136-483-1
02
1
9704-9902
51
CAP; OIL TANK,CLU
8-94136-483-1
01
1
9903-
132
NUT; LK,PUSH ROD
M8
9-09110-408-0
01
1
9704-0103
132
NUT; LK,PUSH ROD
M8 IDN
0-91110-508-0
01
1
0104-
242
BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER
0-50040-616-0
02
1
9704-0103
242
BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER
0-50540-616-0
02
1
0104-
250
ROD; PUSH,CLU
1-73996-219-0
01
1
9704-
252
NUT; OIL TANK
M8 FLANGE W/RUBBER
1-09984-176-0
02
1
9704-
254
BRACKET; CLU SENSOR
1-73998-979-5
01
1
9704-
256
SEAL; HOLE
OD=25 BLACK
1-76798-019-0
01
1
9704-
312
PLATE; OIL TANK,CLU
1-21249-007-1
01
1
9704-
