Isuzu WW
▶
TRUCKS
▶
FXZ
▶
10754 - FXZ(INDONESIA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-50 - EXHAUST PIPE AND SILENCER
▶

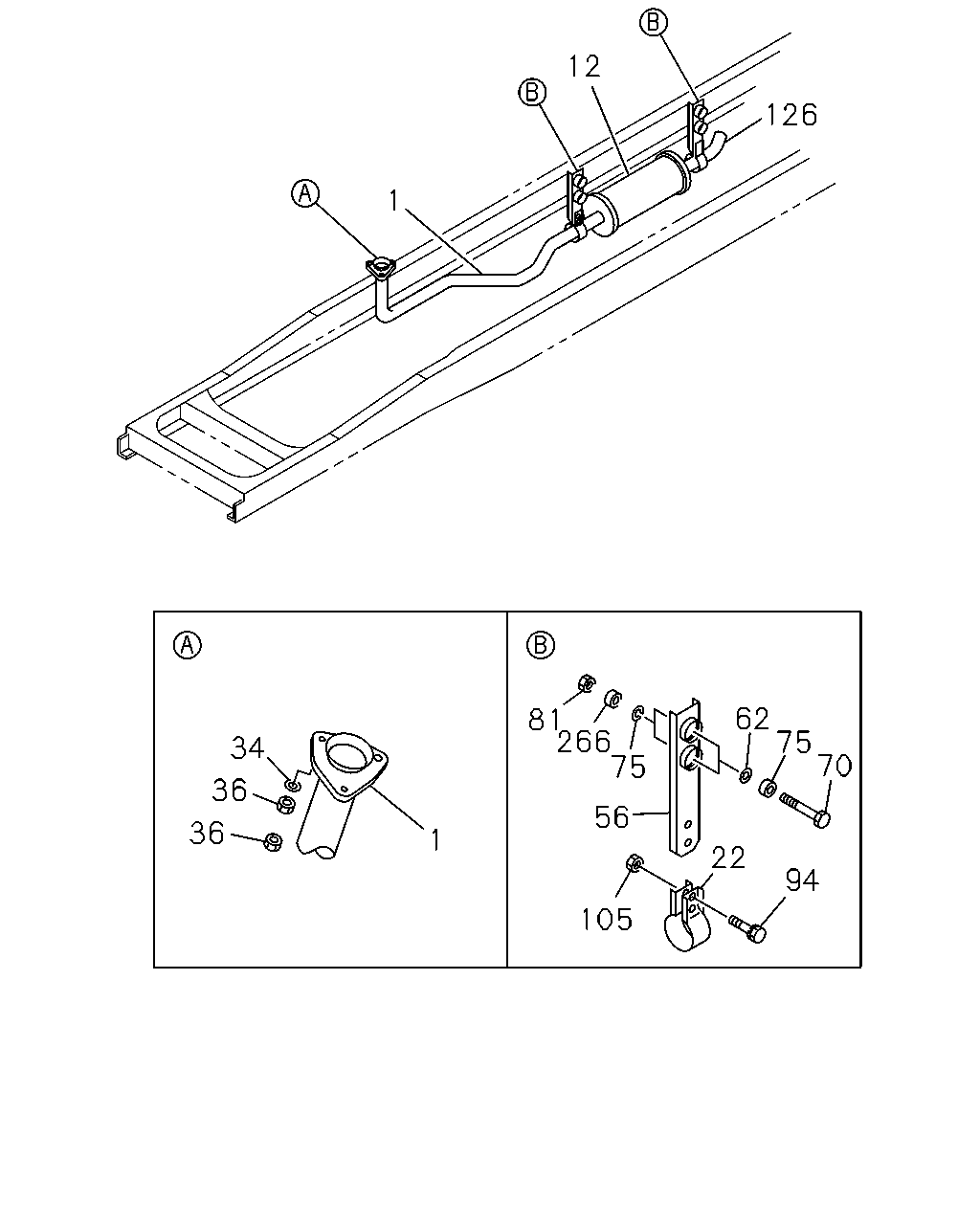

1-50 — EXHAUST PIPE AND SILENCER
(#64650) — 21 parça
12
126
1
62
75
70
81
266
75
34
36
56
36
1
22
94
105
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; EXH
1-22122-933-0
01
1
9704-9806
1
PIPE; EXH
1-22123-204-1
01
1
9807-
12
SILENCER ASM; EXH
1-22140-649-1
01
1
9704-
22
CLAMP; EXH PIPE
1-22133-217-0
02
1
9704-
34
WASHER; EXH PIPE
ID=13 OD=26 DISH
1-09556-002-0
03
1
9704-0410
34
WASHER; EXH PIPE
ID=13 OD=24 DISH
1-09500-030-0
03
1
0411-
36
NUT; EXH PIPE
M12
1-09400-010-0
06
1
9704-
56
BRACKET; CLAMP,EXH PIPE
1-22151-741-0
02
1
9704-
62
TUBE; DIST,BRKT
L=22
9-22159-024-0
04
1
9704-
70
BOLT; BRKT
M10X60 FLANGE
0-28081-060-0
04
1
9704-0512
70
BOLT; BRKT
M10X60 FLANGE
0-28051-060-0
04
1
0601-
75
RUBBER; SUPPORT,BRKT
OD=40
1-22159-094-0
08
1
9704-
81
NUT; BRKT
M10
9-09110-510-0
04
1
9704-0512
81
NUT; BRKT
M10
0-91110-510-0
04
1
0601-
94
BOLT; CLAMP
M8X35 FLANGE
0-28680-835-0
04
1
9704-0512
94
BOLT; CLAMP
M8X35 FLANGE
0-28650-835-0
04
1
0601-
105
NUT; CLAMP
M8
9-09110-408-0
04
1
9704-0512
105
NUT; CLAMP
M8 IDN
0-91110-508-0
04
1
0601-
126
PIPE; EXH,RR
1-22126-108-1
01
1
9704-
266
WASHER; LK,BRKT
ID=10.2
9-09150-510-0
04
1
9704-0603
266
WASHER; LK,BRKT
ID=10.2
0-91510-510-0
04
1
0604-
