1-41 — FUEL PIPING; CHASSIS (#64648) — 33 parça

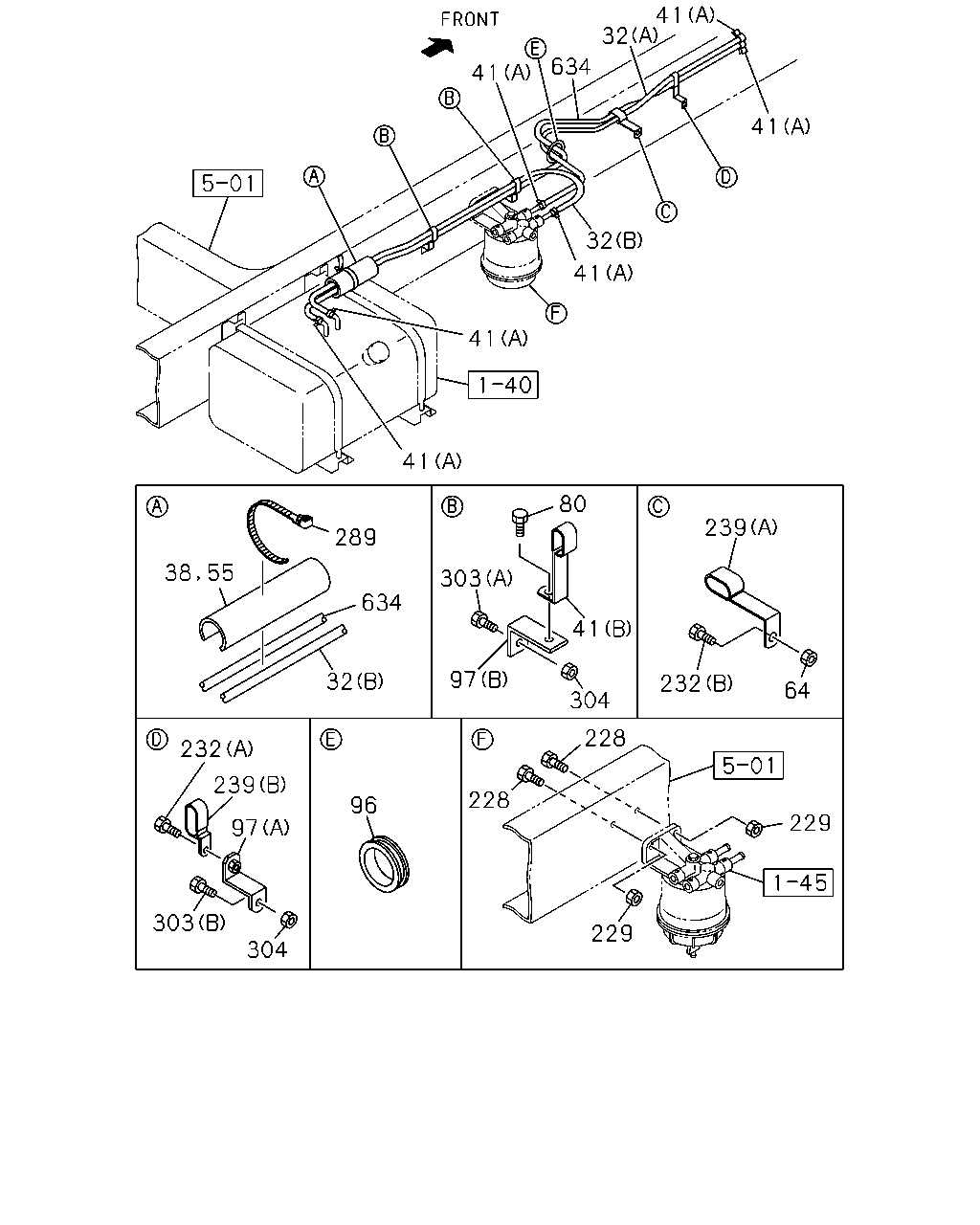

çizim 92987
41 32 634 41 41 32 41 41 41 80 239 289 303 634 41 97 32 232 64 304 228 232 239 228 96 229 97 303 229 304 38 55
BalonParca AdiParca NoAdetTipApplied Date
32 PIPE; DELIVERY,FUEL TANK
(B) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 9704-9709
32 PIPE; DELIVERY,FUEL TANK
(B) L=1250 SERVICED BY L=3000 		0-01260-300-0 01 1 9710-
32 PIPE; DELIVERY,FUEL TANK
(A) L=980 SERVICED BY L=3000 		0-01260-300-0 01 1 9704-
38 SLEEVE; RUBBER,RUBBER HOSE
L=150 		1-09360-677-1 01 1 9704-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=14X29 H=30 L=25 		1-09701-101-0 02 1 9704-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 IDN 		1-09704-102-0 06 1 9704-
55 COVER; PIPE,FUEL TANK
L=1300 		1-09360-677-1 01 1 9704-
64 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 9704-0602
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
80 BOLT; CLIP,FUEL TANK
M8X16 FLANGE 		0-28080-816-0 02 1 9704-0512
80 BOLT; CLIP,FUEL TANK
M8X16 FLANGE 		0-28050-816-0 02 1 0601-
96 GROMMET; PIPE,FUEL TANK
ID=28 OD=35 T=25 		1-09332-011-1 01 1 9704-
97 BRACKET; CLIP
(A) 		1-47476-200-0 01 1 9704-
97 BRACKET; CLIP
(B) L=60 		1-47476-217-0 02 1 9704-
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28681-040-0 02 1 9704-0512
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28651-040-0 02 1 0601-
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-210-0 02 1 9704-0602
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91180-210-0 02 1 0603-
232 BOLT; CLIP,PIPE
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9704-0512
232 BOLT; CLIP,PIPE
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601-
232 BOLT; CLIP,PIPE
(B) M8X30 FLANGE 		0-28680-830-0 01 1 9704-0512
232 BOLT; CLIP,PIPE
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0601-
239 CLIP; FUEL PIPE
(A) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 9704-
239 CLIP; FUEL PIPE
(B) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 9704-
289 CLIP; BAND,HOSE
L=250 IDN 		5-09707-030-1 01 1 9704-
303 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 02 1 9704-0512
303 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
303 BOLT; BRKT
(B) M8X35 FLANGE 		0-28680-835-0 01 1 9704-0512
303 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 01 1 0601-
304 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 9704-0602
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0603-
634 HOSE; RUBBER RETURN
L=2250 SERVICED BY L=3000 		0-01260-300-0 01 1 9704-9709
634 HOSE; RUBBER RETURN
L=2100 SERVICED BY L=3000 		0-01260-300-0 01 1 9710-
