1-11 - RADIATOR HOSE AND SUB TANK
▶

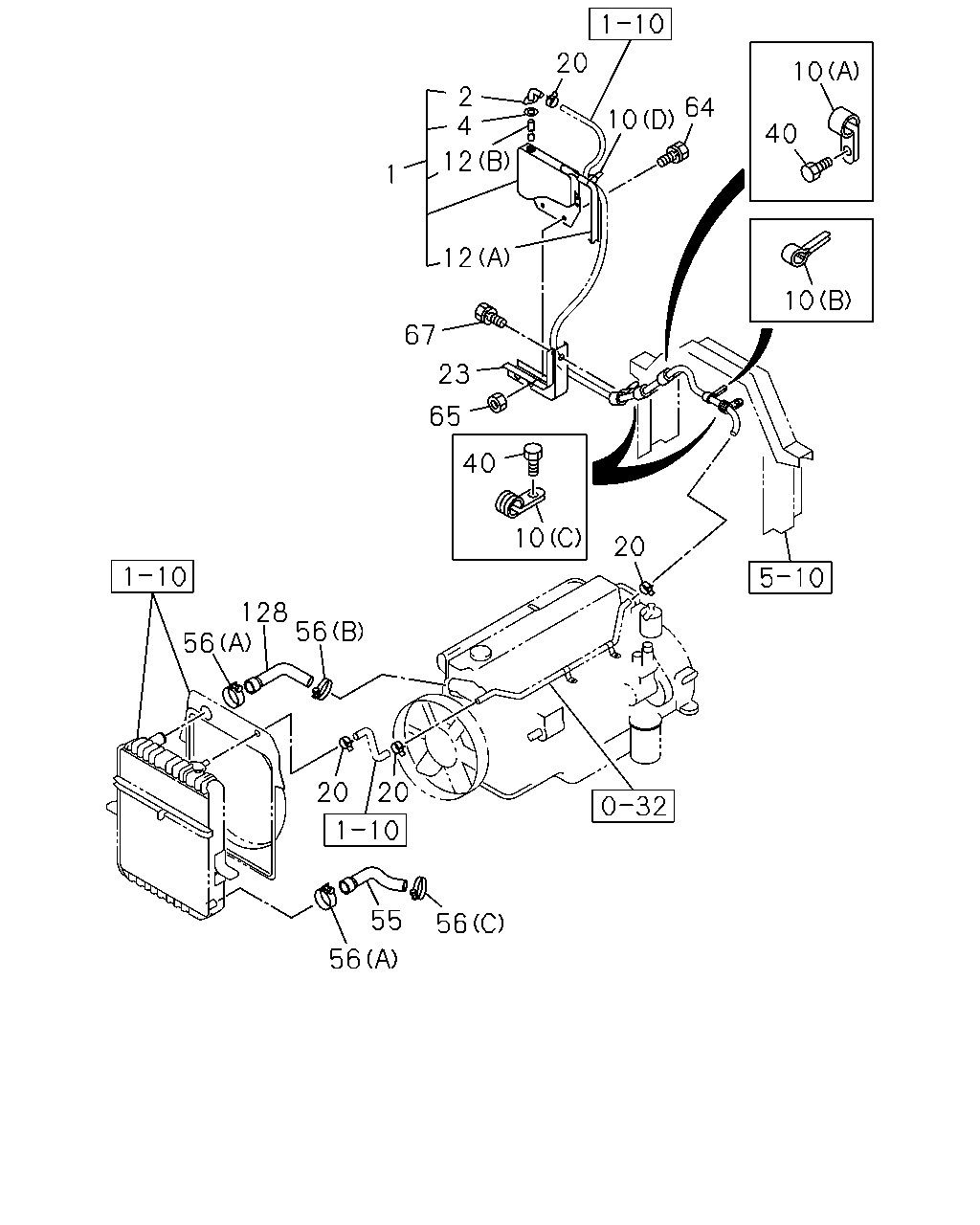

1-11 — RADIATOR HOSE AND SUB TANK
(#64644) — 27 parça
20
10
2
4
64
10
40
12
1
12
10
67
23
65
40
10
20
128
56
56
20
20
55
56
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; SURGE,RAD
1-21480-077-2
01
1
9704-9812
1
TANK; SURGE,RAD
1-21480-104-1
01
1
9901-
2
CAP; SURGE TANK
5-21483-001-1
01
1
9704-9812
2
CAP; SURGE TANK
1-21483-008-0
01
1
9901-
4
GASKET; SURGE TANK
5-21489-006-0
01
1
9704-
10
CLIP; RUBBER HOSE
(C) ID=14.5 L=40
1-09701-014-0
02
1
9704-
10
CLIP; RUBBER HOSE
(D) L=140 IDN
5-09707-031-1
01
1
9704-
10
CLIP; RUBBER HOSE
(A) ID=13 L=50
9-09525-286-0
01
1
9704-0606
10
CLIP; RUBBER HOSE
(A) ID=13 L=50
0-95235-286-0
01
1
0607-
10
CLIP; RUBBER HOSE
(B) ID=14 L=44
9-09917-427-0
01
1
9704-
12
HOSE; SURGE TANK
(B)
1-21489-203-0
01
1
9901-
12
HOSE; SURGE TANK
(A) L=300
1-09366-199-0
01
1
9704-
20
CLIP; HOSE,RAD
ID=12 IDN
8-94238-610-0
04
1
9704-
23
BRACKET; RESERVE TANK
1-21489-128-0
01
1
9704-
40
BOLT; CLIP
M8X20 FLANGE
0-28680-820-0
03
1
9704-0512
40
BOLT; CLIP
M8X20 FLANGE IDN
0-28650-820-0
03
1
0601-
55
HOSE; WATER,RAD OUTLET
1-21437-554-0
01
1
9704-
56
CLIP; WATER HOSE,RAD
(A) ID=63
1-09704-067-0
02
1
9704-
56
CLIP; WATER HOSE,RAD
(B) ID=76
1-09704-069-0
01
1
9704-
56
CLIP; WATER HOSE,RAD
(C) ID=70
1-09704-078-0
01
1
9704-
64
BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER
1-09030-074-0
04
1
9704-0707
64
BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER
1-09030-093-0
04
1
0708-
65
NUT; BRKT,SUB TANK
M8 FLANGE
0-91150-108-0
04
1
9704-0602
65
NUT; BRKT,SUB TANK
M8 FLANGE
0-91180-108-0
04
1
0603-
67
BOLT; BRKT
M10X20 FLANGE IDN
0-28681-020-0
02
1
9704-0512
67
BOLT; BRKT
M10X20 FLANGE IDN
0-28651-020-0
02
1
0601-
128
HOSE; WATER,RAD INL
1-21437-544-0
01
1
9704-
