Isuzu WW
▶
TRUCKS
▶
FXZ
▶
10754 - FXZ(INDONESIA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶

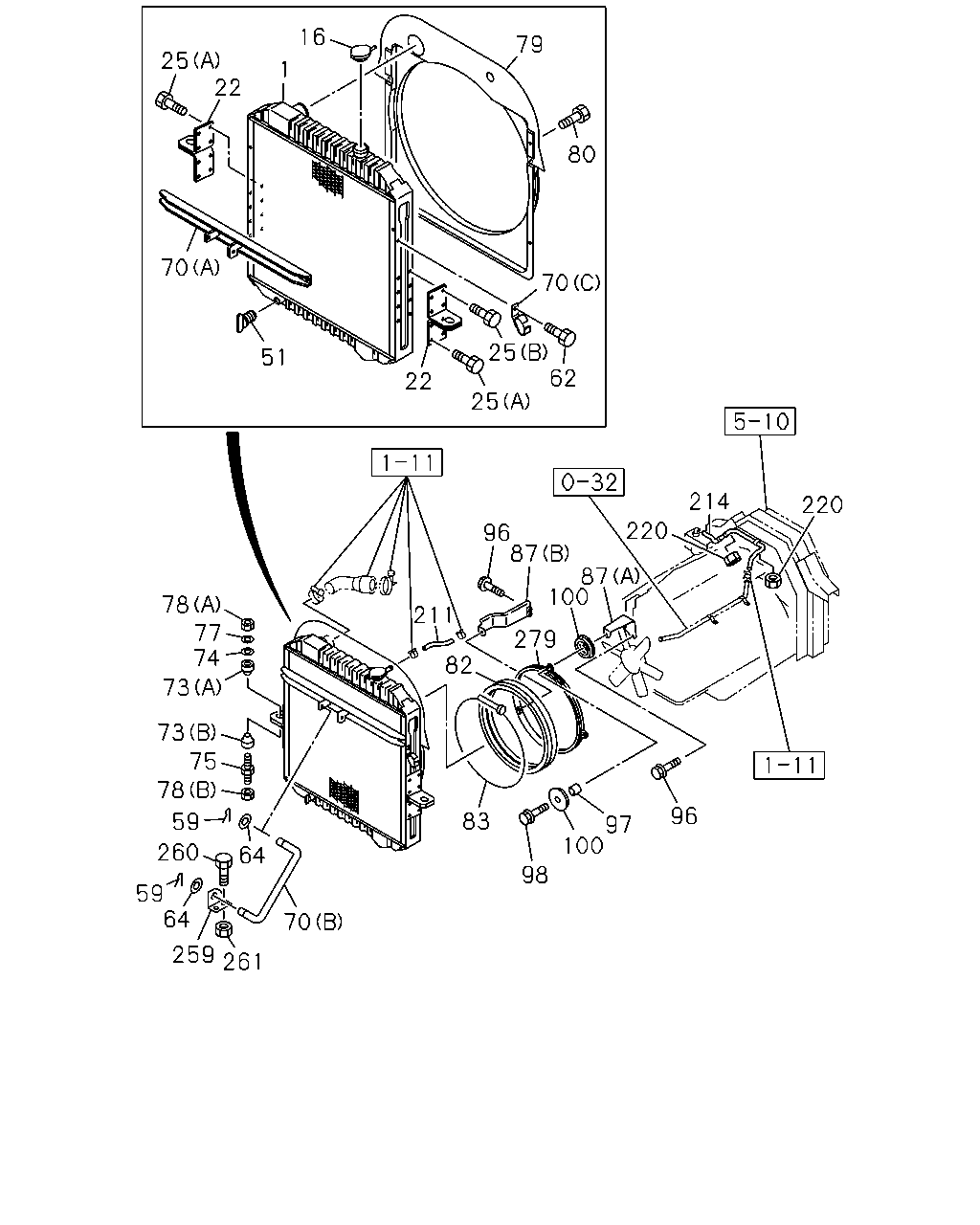

1-10 — RADIATOR
(#64643) — 49 parça
16
79
25
22
1
80
70
70
25
62
51
22
25
214
220
220
96
87
87
100
78
77
74
211
279
82
73
73
75
78
96
83
59
97
100
260
64
98
59
64
70
259
261
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
1-21410-675-1
01
1
9704-
16
CAP; RAD
1-21450-053-1
01
1
9704-
22
BRACKET; RAD MTG
1-21464-459-0
01
1
9704-
22
BRACKET; RAD MTG
1-21464-492-0
01
1
9704-
25
BOLT; BRKT
(B) M8X12 FLANGE
0-28080-812-0
15
1
9704-
25
BOLT; BRKT
(A) M8X16 FLANGE
0-28080-816-0
01
1
9704-
51
PLUG; DRAIN
W/GASKET IDN
1-09609-009-0
01
1
9704-
59
PIN; SNAP,STAY
1-09987-158-1
02
1
9704-
62
BOLT; STAY
M8X12 FLANGE
0-28080-812-0
03
1
9704-
64
WASHER; STAY TO RAD
ID=12.5
9-09160-512-0
02
1
9704-0605
64
WASHER; STAY TO RAD
ID=12.5 OD=22 IDN
0-91610-512-0
02
1
0606-
70
STAY; RAD
(A) IDN
1-21522-064-0
01
1
9704-
70
STAY; RAD
(B)
1-21522-070-0
01
1
9704-
70
STAY; RAD
(C)
1-83571-875-0
01
1
9704-
73
RUBBER; CUSHION,RAD MTG
(A) T=14
1-21467-004-0
02
1
9704-
73
RUBBER; CUSHION,RAD MTG
(B) T=24
1-21467-011-1
02
1
9704-
74
WASHER; PL,CUSHION RUBBER
OD=55
9-09852-169-0
02
1
9704-
75
BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5
1-21466-007-3
02
1
9704-
77
WASHER; LK,CUSHION RUBBER
ID=12.2
9-09150-512-0
02
1
9704-0603
77
WASHER; LK,CUSHION RUBBER
ID=12.2
0-91510-512-0
02
1
0604-
78
NUT; CUSHION RUBBER
(A) M10 FLANGE IDN
5-09440-006-0
02
1
9704-
78
NUT; CUSHION RUBBER
(B) M12 IDN
9-99110-512-0
02
1
9704-0512
78
NUT; CUSHION RUBBER
(B) M12
0-91110-512-0
02
1
0601-
79
GUIDE; FAN,RAD
1-21551-409-0
01
1
9704-
80
BOLT; FAN GUIDE
M6X10 FLANGE IDN
0-28080-610-0
04
1
9704-
82
COVER; FAN,RAD
1-21559-211-0
01
1
9704-
83
CLIP; FAN COVER
IDN
1-09707-177-2
01
1
9704-
87
STAY; FAN GUIDE
(A)
1-21559-394-0
01
1
9704-
87
STAY; FAN GUIDE
(B)
1-21559-395-0
01
1
9704-
96
BOLT; STAY FIX
M8X16 FLANGE
0-28080-816-0
02
1
9704-0512
96
BOLT; STAY FIX
M8X16 FLANGE
0-28050-816-0
02
1
0601-
96
BOLT; STAY FIX
M8X25 FLANGE
0-28080-825-0
02
1
9704-0512
96
BOLT; STAY FIX
M8X25 FLANGE
0-28050-825-0
02
1
0601-
97
TUBE; DIST,FAN GUIDE
9-09651-072-0
03
1
9704-
98
BOLT; RAD FAN GUIDE
M8X45 FLANGE
0-28080-845-0
03
1
9704-0512
98
BOLT; RAD FAN GUIDE
M8X45 FLANGE
0-28050-845-0
03
1
0601-
100
RUBBER; MTG
8-94395-766-0
06
1
9704-
211
HOSE; RAD TO PIPE
L=350 SERVICED BY L=3000
0-03257-300-0
01
1
9704-0109
211
HOSE; RAD TO PIPE
L=350 SERVICED BY L=3000
0-03557-300-0
01
1
0110-
214
HOSE; PIPE TO RESERVE TANK
L=1200 SERVICED BY L=3000
0-03257-300-0
01
1
9704-0109
214
HOSE; PIPE TO RESERVE TANK
L=1200 SERVICED BY L=3000
0-03557-300-0
01
1
0110-
220
NUT; CLIP
M8 FLANGE
0-91150-108-0
03
1
9704-0602
220
NUT; CLIP
M8 FLANGE
0-91180-108-0
03
1
0603-
259
BRACKET; RAD STAY
1-21523-027-1
01
1
9704-
260
BOLT; BRKT
M8X25 FLANGE IDN
0-28680-825-0
01
1
9704-0512
260
BOLT; BRKT
M8X25 FLANGE IDN
0-28650-825-0
01
1
0601-
261
NUT; BRKT
M8 FLANGE
0-91150-108-0
01
1
9704-0602
261
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
0603-
279
BELL MOUTH
8-94394-174-1
01
1
9704-
