Isuzu WW
▶
BUSES
▶
LV
▶
10772 - LV280(THAI)
▶
0 - Engine, Emission, Engine Electrical
▶
0-10 - CYLINDER HEAD COVER
▶

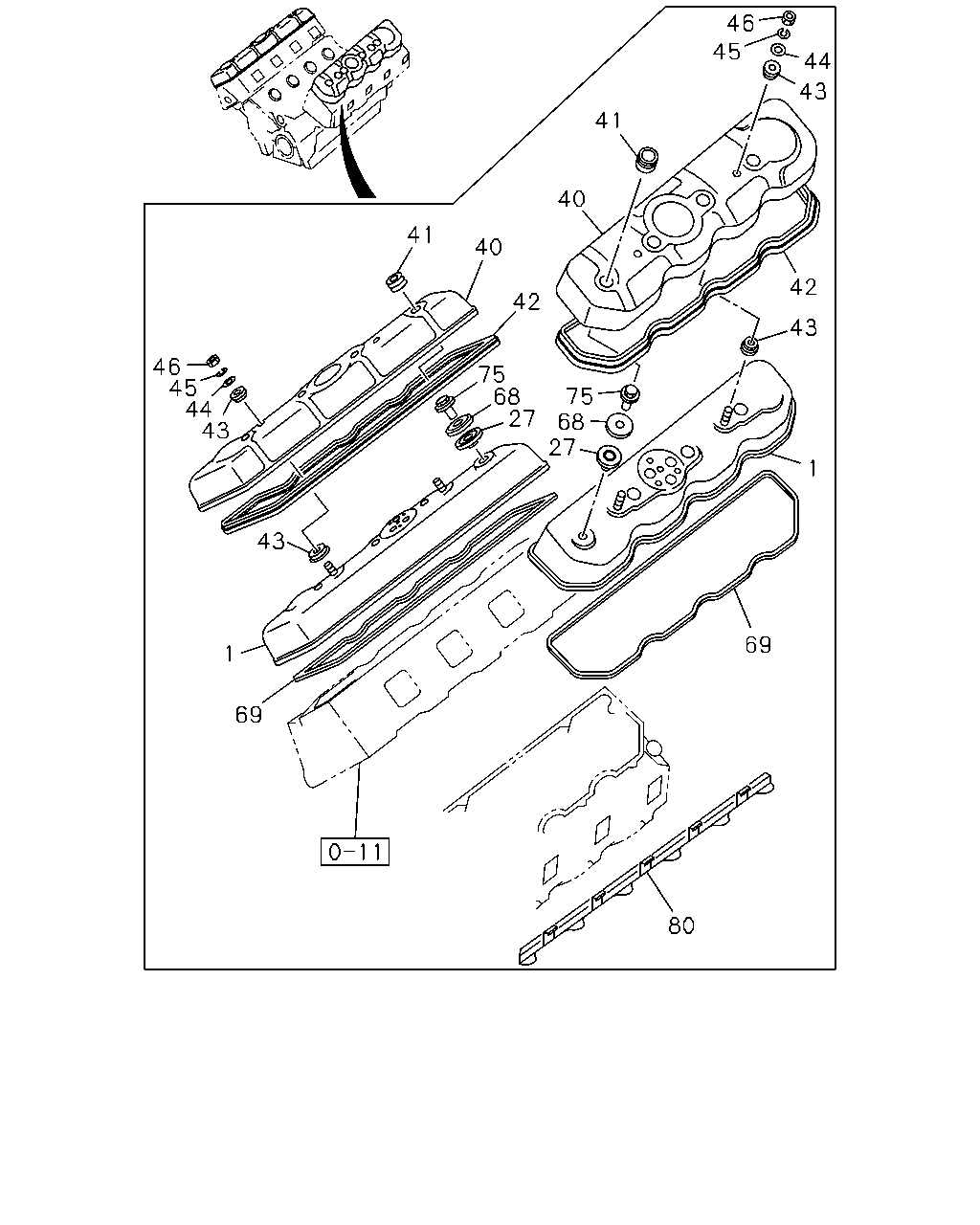

0-10 — CYLINDER HEAD COVER
(#6464) — 16 parça
46
45
44
43
41
40
41
40
42
42
43
46
45
44
43
75
68
27
75
68
27
1
43
69
1
69
80
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COVER; CYL HD
RH BANK
1-11171-338-2
01
1
9705-
1
COVER; CYL HD
LH BANK
1-11171-412-0
01
1
9705-
27
GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-09639-031-0
08
1
9705-
40
COVER
1-19381-047-0
01
1
9705-
40
COVER
1-19381-265-0
01
1
9705-
41
GROMMET; HD COVER,OUTER
1-19389-004-0
08
1
9705-
42
SEAL; RUBBER,HD COVER,OUTER
L=1520
1-19387-008-0
02
1
9705-
43
RUBBER; MTG,HD COVER,OUTER
1-09337-027-0
08
1
9705-
44
WASHER; PL,HD COVER,OUTER
ID=8.4 OD=18
9-09160-608-0
04
1
9705-
45
WASHER; LK,HD COVER,OUTER
ID=8.2
9-09150-508-0
04
1
9705-
46
NUT; HD COVER,OUTER
M8
9-09110-408-0
04
1
9705-
68
WASHER; CAP NUT,HD COVER
1-11179-048-0
08
1
9705-
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-11173-090-0
02
1
9705-9904
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-11173-106-0
02
1
9905-
75
NUT; CAP,HD COVER
1-11175-008-0
08
1
9705-
80
PROTECTOR; HEAT,SEAL RUBBER
1-14181-184-1
02
1
9705-
