Isuzu WW
▶
TRUCKS
▶
FXZ
▶
10754 - FXZ(INDONESIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-60 - ENGINE ELECTRICAL CONTROL PARTS
▶

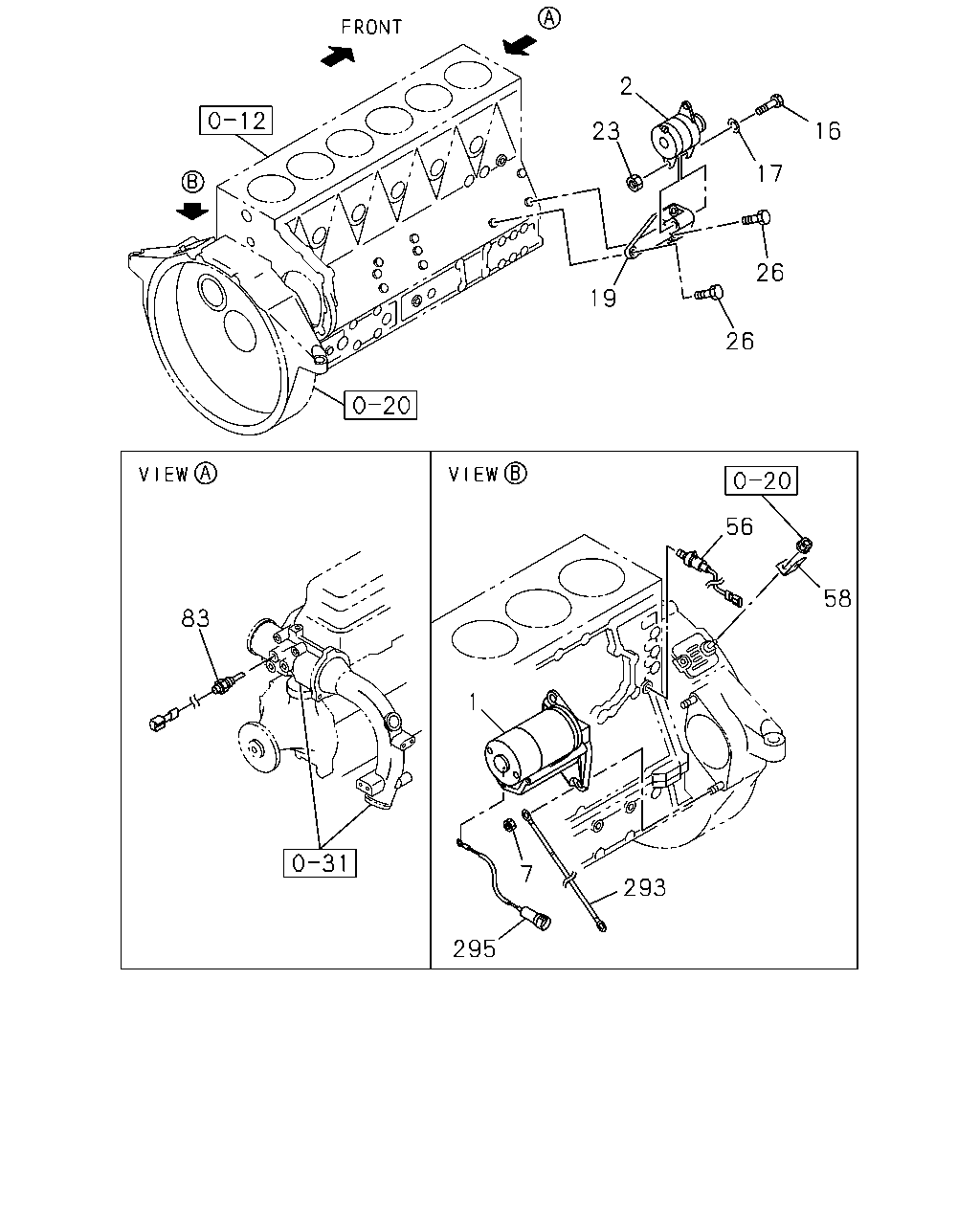

0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#64633) — 33 parça
◀
[060A] NO.2 (15 parça)
[060A] NO.1 (18 parça)
▶
428
441
296
11
10
210
489
488
492
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
RELAY; STARTER
DENSO
1-81171-070-0
01
1
9704-
11
BOLT; RELAY STARTER
M8X25 FLANGE IDN
0-28680-825-0
02
1
9704-0512
11
BOLT; RELAY STARTER
M8X25 FLANGE IDN
0-28650-825-0
02
1
0601-
210
BOLT; CABLE FIX
M8X20 W/LK&PL WASHER IDN
8-97086-825-0
01
1
9704-9903
210
BOLT; CABLE FIX
M8X16 W/LK&PL WASHER
8-97087-055-0
01
1
9904-1202
210
BOLT; CABLE FIX
M8X14 W/PL WASHER
8-98164-837-0
01
1
1203-
296
NUT; RELAY,STARTER
M8 FLANGE
0-91150-108-0
02
1
9704-0602
296
NUT; RELAY,STARTER
M8 FLANGE
0-91180-108-0
02
1
0603-
428
CLIP; HARNESS
ID=35 L=50
1-09701-214-0
02
1
9704-
441
BOLT; HARNESS TO FRAME
M8X25 FLANGE IDN
0-28680-825-0
02
1
9704-0512
441
BOLT; HARNESS TO FRAME
M8X25 FLANGE IDN
0-28650-825-0
02
1
0601-
488
STOPPER; ENG
1-82840-142-3
01
1
9704-
489
BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER IDN
0-50140-825-0
02
1
9704-0512
489
BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER IDN
0-50640-825-0
02
1
0601-
492
BRACKET; ENG STOPPER
1-82849-089-1
01
1
9704-
2
23
16
17
26
19
26
56
58
83
1
7
293
295
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.5KW DENSO
1-81100-230-2
01
1
9704-0108
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.5KW DENSO
1-81100-422-0
01
1
0109-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A DENSO
8-94399-157-1
01
1
9704-
7
NUT; STARTER
M14 FLANGE
0-91150-114-0
02
1
9704-
16
BOLT; GEN
M14X123
9-09801-204-1
01
1
9704-
17
WASHER; PL,GEN
ID=15
9-09160-514-0
01
1
9704-0605
17
WASHER; PL,GEN
ID=15
0-91610-514-0
01
1
0606-
19
BRACKET; GEN
1-19711-038-0
01
1
9704-
23
NUT; GEN
M14 FLANGE
0-91150-114-0
01
1
9704-
26
BOLT; GEN BRKT
M10X40 FLANGE
0-28181-040-0
01
1
9704-0512
26
BOLT; GEN BRKT
M10X40 FLANGE
0-28151-040-0
01
1
0601-
26
BOLT; GEN BRKT
M10X70 FLANGE
0-28181-070-0
02
1
9704-0512
26
BOLT; GEN BRKT
M10X70 FLANGE
0-28151-070-0
02
1
0601-
56
SWITCH; OIL PRESSURE WARNING
1-82410-170-1
01
1
9704-
58
BRACKET; CLIP
L=55
1-47475-304-0
01
1
9704-
83
THERMOMETER UNIT
1-83161-031-1
01
1
9704-
293
CABLE; STARTER EARTH
L=550
1-82650-239-0
01
1
9704-
295
HARNESS; STARTER
1-82640-527-1
01
1
9704-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
