0-50 — OIL COOLER AND OIL FILTER (#64630) — 128 parça

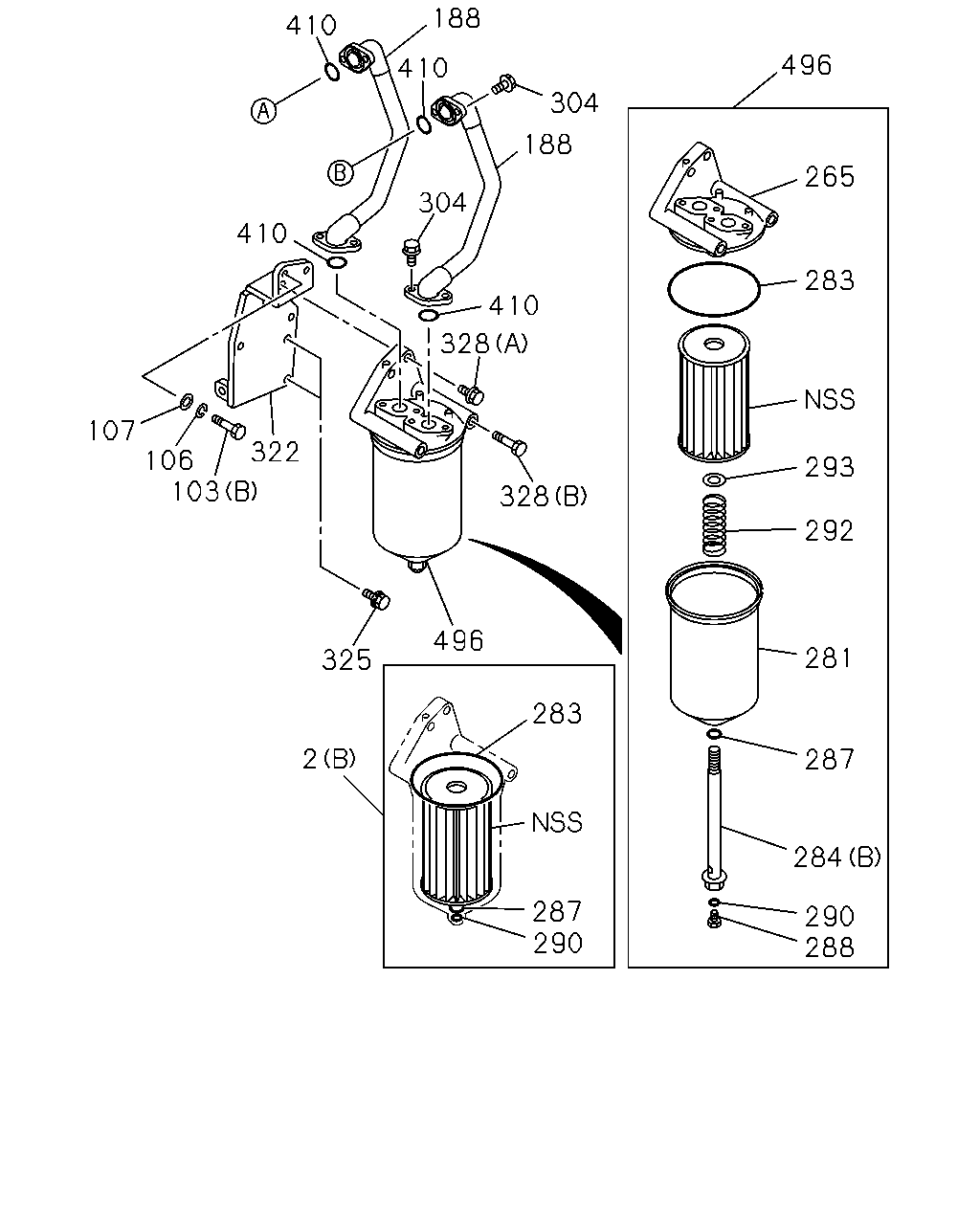

188 410 496 410 304 188 265 304 410 283 410 328 107 106 103 322 293 328 292 496 281 325 283 2 287 284 287 290 290 288

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	ELEMENT; OIL FILTER (A) BEST VALUE PARTS	1-87610-055-1	01	1	0207-
2	ELEMENT; OIL FILTER (B)	1-87810-075-2	01	1	0707-1204
2	ELEMENT; OIL FILTER (A) TOKYO ROKI	1-13240-116-0	01	1	9704-0206
2	ELEMENT; OIL FILTER (A)	1-13240-217-1	01	1	0207-
103	BOLT; OIL COOLER (A) M8X25 FLANGE	0-28080-825-0	24	1	9704-0512
103	BOLT; OIL COOLER (A) M8X25 FLANGE	0-28050-825-0	24	1	0601-
103	BOLT; OIL COOLER (B) M8X138	5-09000-031-1	02	1	9704-
103	BOLT; OIL COOLER (C) M8X155	9-09801-275-0	02	1	9704-
106	WASHER; LK,OIL COOLER ID=8.2	9-09150-508-0	04	1	9704-0603
106	WASHER; LK,OIL COOLER ID=8.2	0-91510-508-0	04	1	0604-
107	WASHER; PL,OIL COOLER ID=8.4	9-09160-508-0	04	1	9704-0605
107	WASHER; PL,OIL COOLER ID=8.4 OD=16	0-91610-508-0	04	1	0606-
188	PIPE; BYPASS	1-13312-650-0	02	1	0707-1204
265	BODY; OIL FILTER	1-13212-161-0	01	1	0707-1204
281	COVER; OIL FILTER	1-13211-153-0	01	1	0707-1204
283	GASKET; BODY TO COVER ID=27.7	1-09623-170-0	01	1	0707-1204
284	BOLT; CENTER,OIL FILTER (B)	1-13231-047-0	01	1	0707-1204
284	BOLT; CENTER,OIL FILTER (A)	1-13212-064-1	01	1	9704-
287	GASKET; CENTER BOLT ID=15.5	9-09920-694-0	01	1	0707-1204
288	PLUG; OIL DRAIN M10	1-09000-105-0	01	1	0707-1204
290	GASKET; PLUG,OIL DRAIN ID=9.8	1-09623-055-0	01	1	9704-0706
290	GASKET; PLUG,OIL DRAIN ID=9.8	1-09623-055-0	02	1	0707-1204
290	GASKET; PLUG,OIL DRAIN ID=9.8	1-09623-055-0	01	1	1205-
292	SPRING; ELEMENT	9-09941-283-0	01	1	9704-0706
292	SPRING; ELEMENT	9-09941-283-0	02	1	0707-1204
292	SPRING; ELEMENT	9-09941-283-0	01	1	1205-
293	SEAT; SPR	1-13219-173-0	01	1	9704-0706
293	SEAT; SPR	1-13219-173-0	02	1	0707-1204
293	SEAT; SPR	1-13219-173-0	01	1	1205-
304	BOLT; PIPE TO COVER M8X20 FLANGE	0-28050-820-0	08	1	0707-1204
322	BRACKET; OIL FILTER	1-19755-122-1	01	1	0707-1204
325	BOLT; BRKT TO BODY M10X22 W/LK WASHER	0-50051-022-0	02	1	0707-0906
325	BOLT; BRKT TO BODY M10X22 W/LK WASHER	0-50551-022-0	02	1	0907-1204
328	BOLT; OIL FILTER (B) M10X140 FLANGE	0-28056-014-0	02	1	0707-1204
328	BOLT; OIL FILTER (A) M10X35 FLANGE IDN	0-28651-035-0	01	1	0707-1204
410	GASKET ID=27.7	1-09623-450-0	04	1	0707-1204
496	FILTER ASM; OIL	1-13200-848-0	01	1	0707-1204

339 338 390 340 282 76 293 292 284 391 280 291 290 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
76	BOLT; OIL FILTER M10X35 W/LK&PL WASHER	0-50141-035-0	03	1	9704-0512
76	BOLT; OIL FILTER M10X35 W/LK&PL WASHER	0-50641-035-0	03	1	0601-
132	PLUG; PARTIAL OIL FILTER M10	1-09000-105-0	01	1	9704-
280	CASE ASM; OIL FILTER	1-13212-150-0	01	1	9704-
282	GASKET; BODY TO CASE ID=27.7	1-09623-170-0	01	1	9704-
284	BOLT; CENTER,OIL FILTER (B)	1-13231-047-0	01	1	0707-1204
284	BOLT; CENTER,OIL FILTER (A)	1-13212-064-1	01	1	9704-
290	GASKET; PLUG,OIL DRAIN ID=9.8	1-09623-055-0	01	1	9704-0706
290	GASKET; PLUG,OIL DRAIN ID=9.8	1-09623-055-0	02	1	0707-1204
290	GASKET; PLUG,OIL DRAIN ID=9.8	1-09623-055-0	01	1	1205-
291	GASKET; OIL DRAIN,CENTER BOLT ID=15.5	9-09920-694-0	01	1	9704-
292	SPRING; ELEMENT	9-09941-283-0	01	1	9704-0706
292	SPRING; ELEMENT	9-09941-283-0	02	1	0707-1204
292	SPRING; ELEMENT	9-09941-283-0	01	1	1205-
293	SEAT; SPR	1-13219-173-0	01	1	9704-0706
293	SEAT; SPR	1-13219-173-0	02	1	0707-1204
293	SEAT; SPR	1-13219-173-0	01	1	1205-
338	FILTER ASM; OIL PARTIAL	1-13200-704-1	01	1	9704-
339	BRACKET; PARTIAL OIL FILTER	1-19755-062-1	01	1	9704-
340	BOLT; BRKT M10X25 W/LK WASHER	0-50051-025-0	04	1	9704-0906
340	BOLT; BRKT M10X25 W/LK WASHER	0-50551-025-0	04	1	0907-
390	BODY; OIL FILTER,PARTIAL	1-13212-141-0	01	1	9704-
391	CARTRIDGE; OIL FILTER,PARTIAL	1-13240-077-1	01	1	9704-

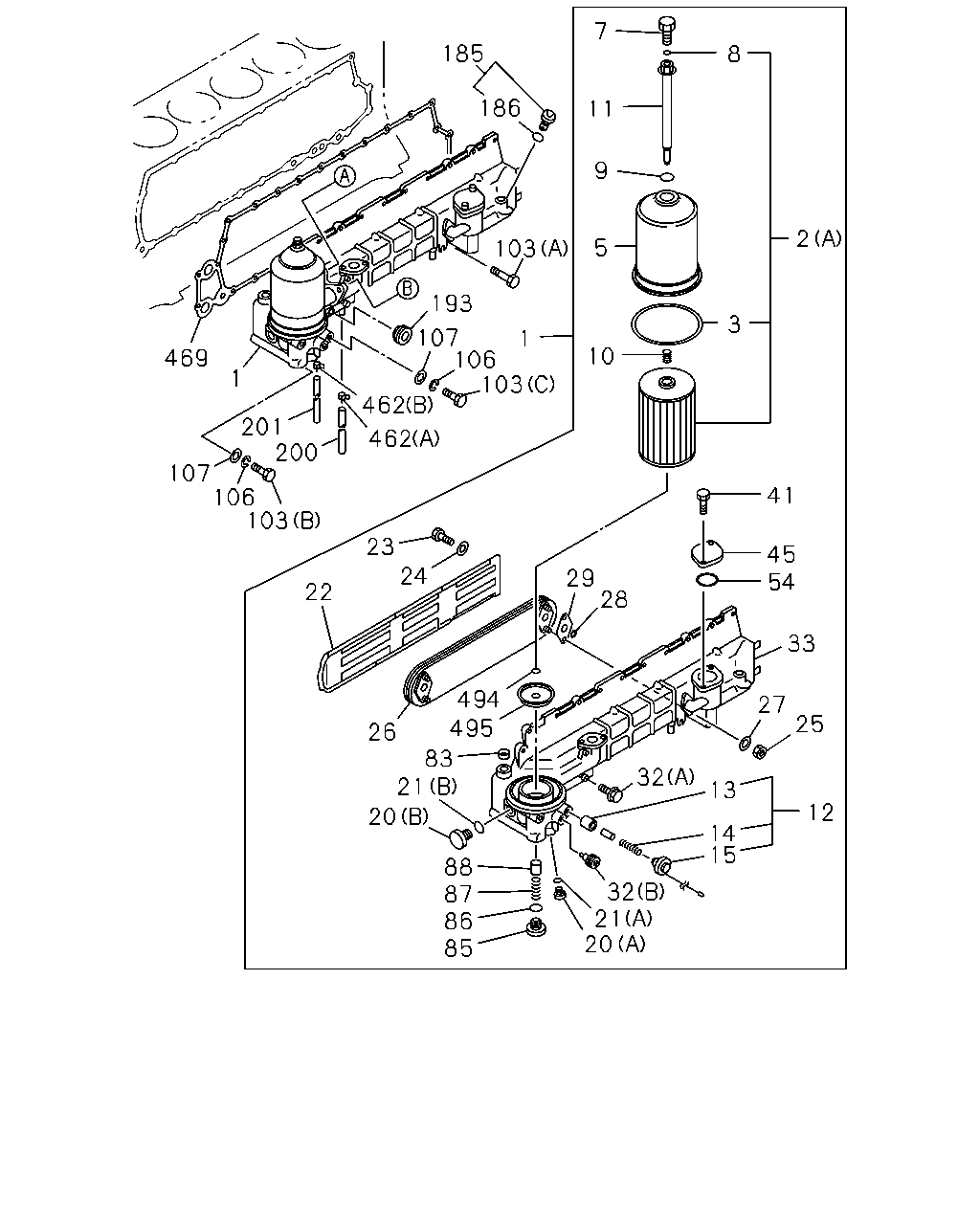

7 185 8 186 11 9 2 5 103 193 3 107 106 103 1 10 469 1 462 201 200 462 107 106 103 41 23 24 45 54 29 28 22 33 494 495 27 25 26 83 21 32 13 12 20 14 15 88 87 86 85 32 21 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	FILTER & COOLER ASM; OIL	1-13200-955-3	01	1	9704-
2	ELEMENT; OIL FILTER (A) BEST VALUE PARTS	1-87610-055-1	01	1	0207-
2	ELEMENT; OIL FILTER (B)	1-87810-075-2	01	1	0707-1204
2	ELEMENT; OIL FILTER (A) TOKYO ROKI	1-13240-116-0	01	1	9704-0206
2	ELEMENT; OIL FILTER (A)	1-13240-217-1	01	1	0207-
3	GASKET	1-13213-010-1	01	1	9704-
5	CASE; OIL FILTER	1-13211-256-0	01	1	9704-
7	PLUG; CENTER BOLT M10	1-09000-105-0	01	1	9704-
8	GASKET; PLUG ID=9.8	1-09623-055-0	01	1	9704-
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-499-0	01	1	9704-
10	SPRING; ELEMENT	1-13219-263-0	01	1	9704-
11	BOLT; CENTER	1-13231-076-0	01	1	9704-
12	VALVE ASM; BYPASS	1-13260-110-0	01	1	9704-
13	VALVE; RELIEF	9-13262-010-0	01	1	9704-
14	SPRING; RELIEF VLV	1-13263-006-0	01	1	9704-
15	PLUG; RELIEF VLV	1-13219-322-0	01	1	9704-
20	PLUG; COOLER BODY (A) M20	1-13219-152-0	03	1	9704-9906
20	PLUG; COOLER BODY (A) M24	1-13219-356-0	01	1	9907-
20	PLUG; COOLER BODY (B) M26	1-13219-153-0	02	1	9704-9906
20	PLUG; COOLER BODY (B) M26	1-13219-153-0	04	1	9907-
21	GASKET; PLUG (A) M20	1-13219-158-0	03	1	9704-9906
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	9907-
21	GASKET; PLUG (B) M26	1-13219-159-0	02	1	9704-9906
21	GASKET; PLUG (B) M26	1-13219-159-0	04	1	9907-
22	GUIDE; WATER	1-13219-155-1	01	1	9704-
23	SCREW; WATER GUIDE	1-13219-156-0	07	1	9704-
24	WASHER; WATER GUIDE	1-13219-157-0	07	1	9704-
25	NUT; CORE TO BODY	1-21729-074-0	04	1	9704-9906
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	9907-
26	CORE ASM; OIL COOLER	1-21723-049-0	01	1	9704-9906
26	CORE ASM; OIL COOLER	1-21723-058-0	01	1	9907-
27	WASHER; PL,CORE TO BODY	1-21729-075-0	04	1	9704-9906
28	GASKET; CORE TO BODY	1-21729-076-0	02	1	9704-9906
28	GASKET; CORE TO BODY	8-94396-810-0	02	1	9907-
29	GASKET; CORE TO BODY	1-21729-077-0	02	1	9704-9906
29	GASKET; CORE TO BODY	8-94394-930-0	02	1	9907-
32	PLUG; DRAIN (A)	1-13219-276-0	01	1	9704-
32	PLUG; DRAIN (B)	1-13219-295-1	01	1	9704-
33	HOUSING ASM; COOLER	1-13211-252-0	01	1	9704-9906
33	HOUSING ASM; COOLER	1-13211-309-0	01	1	9907-
41	BOLT; COVER FIX	1-13219-161-0	02	1	9704-9906
41	BOLT; COVER FIX	8-98272-067-0	02	1	9907-
45	COVER; OIL PORT	1-13210-172-0	01	1	9704-
54	GASKET; OIL PIPE	1-13219-162-0	01	1	9704-
83	CUP; SEALING,BODY,OIL COOLER & FILTER OD=20	9-11129-128-0	01	1	9704-
85	PLUG; DRAIN UNIT,OIL FILTER	1-13219-146-0	01	1	9704-
86	GASKET; DRAIN UNIT,OIL FILTER	1-13219-147-0	01	1	9704-
87	SPRING; DRAIN UNIT,OIL FILTER	1-13219-148-0	01	1	9704-
88	VALVE; DRAIN UNIT,OIL FILTER	9-13262-009-0	01	1	9704-
103	BOLT; OIL COOLER (A) M8X25 FLANGE	0-28080-825-0	24	1	9704-0512
103	BOLT; OIL COOLER (A) M8X25 FLANGE	0-28050-825-0	24	1	0601-
103	BOLT; OIL COOLER (B) M8X138	5-09000-031-1	02	1	9704-
103	BOLT; OIL COOLER (C) M8X155	9-09801-275-0	02	1	9704-
106	WASHER; LK,OIL COOLER ID=8.2	9-09150-508-0	04	1	9704-0603
106	WASHER; LK,OIL COOLER ID=8.2	0-91510-508-0	04	1	0604-
107	WASHER; PL,OIL COOLER ID=8.4	9-09160-508-0	04	1	9704-0605
107	WASHER; PL,OIL COOLER ID=8.4 OD=16	0-91610-508-0	04	1	0606-
185	VALVE; OIL RELIEF,OIL COOLER	1-13160-017-1	01	1	9704-
186	GASKET; RELIEF VLV,OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09565-228-0	01	1	9704-
193	PLUG; TAPER PT3/8 T=8.0	1-09605-066-0	01	1	9704-
200	PIPE; VINYL,WATER DRAIN L=360 SERVICED BY L=3000	0-03157-300-0	01	1	9704-0206
200	PIPE; VINYL,WATER DRAIN L=360 SERVICED BY L=3000	0-03457-300-0	01	1	0207-
201	PIPE; VINYL,OIL DRAIN L=480 SERVICED BY L=10000	9-09914-701-0	01	1	9704-
462	CLIP; HOSE,DRAIN (A)	1-09704-100-0	01	1	9704-
462	CLIP; HOSE,DRAIN (B) ID=13.5	8-97015-754-1	01	1	9704-
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-177-1	01	1	9704-
494	RING; SNAP,OIL FILTER	1-13219-307-0	01	1	9704-
495	PLATE; OIL FILTER	1-13219-306-0	01	1	9704-
