Isuzu WW
▶
TRUCKS
▶
FXZ
▶
10754 - FXZ(INDONESIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-39 - AIR COMPRESSOR; BRAKE
▶

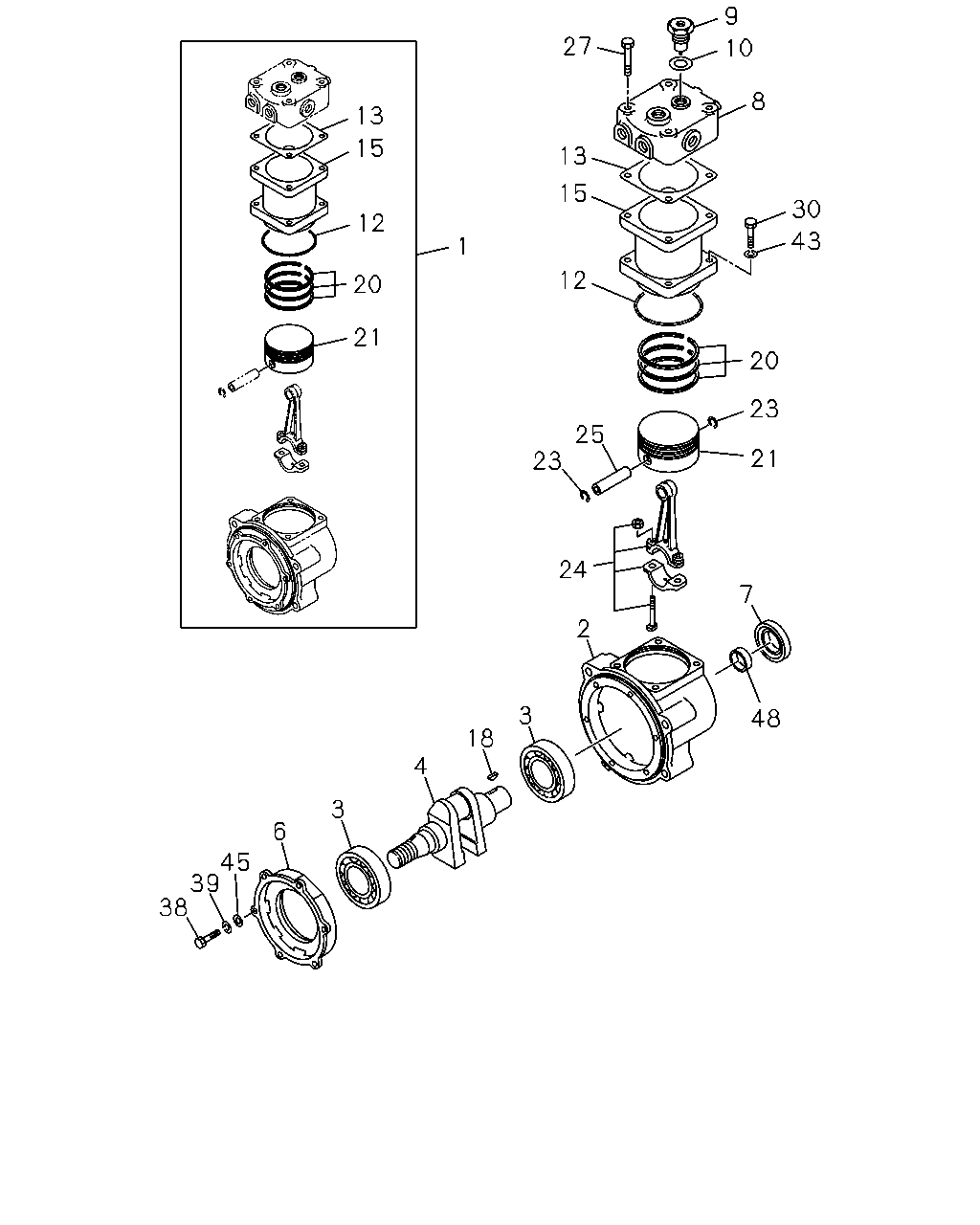

0-39 — AIR COMPRESSOR; BRAKE
(#64626) — 28 parça
9
27
10
8
13
15
13
15
30
12
43
1
12
20
21
20
23
25
21
23
24
7
2
3
48
18
4
3
6
45
39
38
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LINER KIT; CYL,AIR CMPR
1-19163-038-0
01
1
9704-
2
CRANKCASE; AIR CMPR
1-19151-277-0
01
1
9704-9904
2
CRANKCASE; AIR CMPR
1-19151-288-0
01
1
9905-
3
BEARING; AIR CMPR
1-09800-232-0
02
1
9704-
4
CRANKSHAFT; AIR CMPR
1-19171-055-1
01
1
9704-
6
COVER ASM; BRG,AIR CMPR
1-19156-043-0
01
1
9704-
7
SEAL; OIL,BRG COVER,AIR CMPR
1-09625-187-0
01
1
9704-9904
7
SEAL; OIL,BRG COVER,AIR CMPR
1-09625-534-0
01
1
9905-
8
HEAD ASM; CYL,AIR CMPR
1-19110-016-0
01
1
9704-
9
VALVE ASM; UNLOADER,AIR CMPR
1-19120-021-1
01
1
9704-
10
SHIM; AIR CMPR
9-19139-021-0
01
1
9704-
12
GASKET; AIR CMPR
1-09623-539-0
01
1
9704-
13
GASKET; AIR CMPR
1-19139-001-0
01
1
9704-1402
13
GASKET; AIR CMPR
8-98113-037-0
01
1
1403-
15
CYLINDER; AIR CMPR
1-19151-251-0
01
1
9704-
18
KEY; AIR CMPR
9-08055-516-0
01
1
9704-
20
RING KIT; PISTON,AIR CMPR
1-19163-034-0
01
1
9704-
21
PISTON; AIR CMPR
1-19161-016-0
01
1
9704-
23
RING; SNAP,PISTON,AIR CMPR
9-19168-003-0
02
1
9704-
24
ROD ASM; CONN,AIR CMPR
1-19173-007-0
01
1
9704-
25
PIN; PISTON,AIR CMPR
9-19167-003-0
01
1
9704-
27
BOLT; HD
M10X60
9-01066-060-0
04
1
9704-
30
BOLT; CYL TO CRANKCASE
M10X25
9-02051-025-0
04
1
9704-
38
BOLT; COVER FIX
M6X16
9-02050-616-0
06
1
9704-
39
WASHER; LK,COVER FIX
ID=6.1 IDN
9-09150-506-0
06
1
9704-
43
WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2
9-09150-610-0
04
1
9704-
45
WASHER; PL,COVER FIX,AIR CMPR
1-19159-005-0
06
1
9704-
48
SLEEVE; CR/SHF
1-19179-018-0
01
1
9905-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
