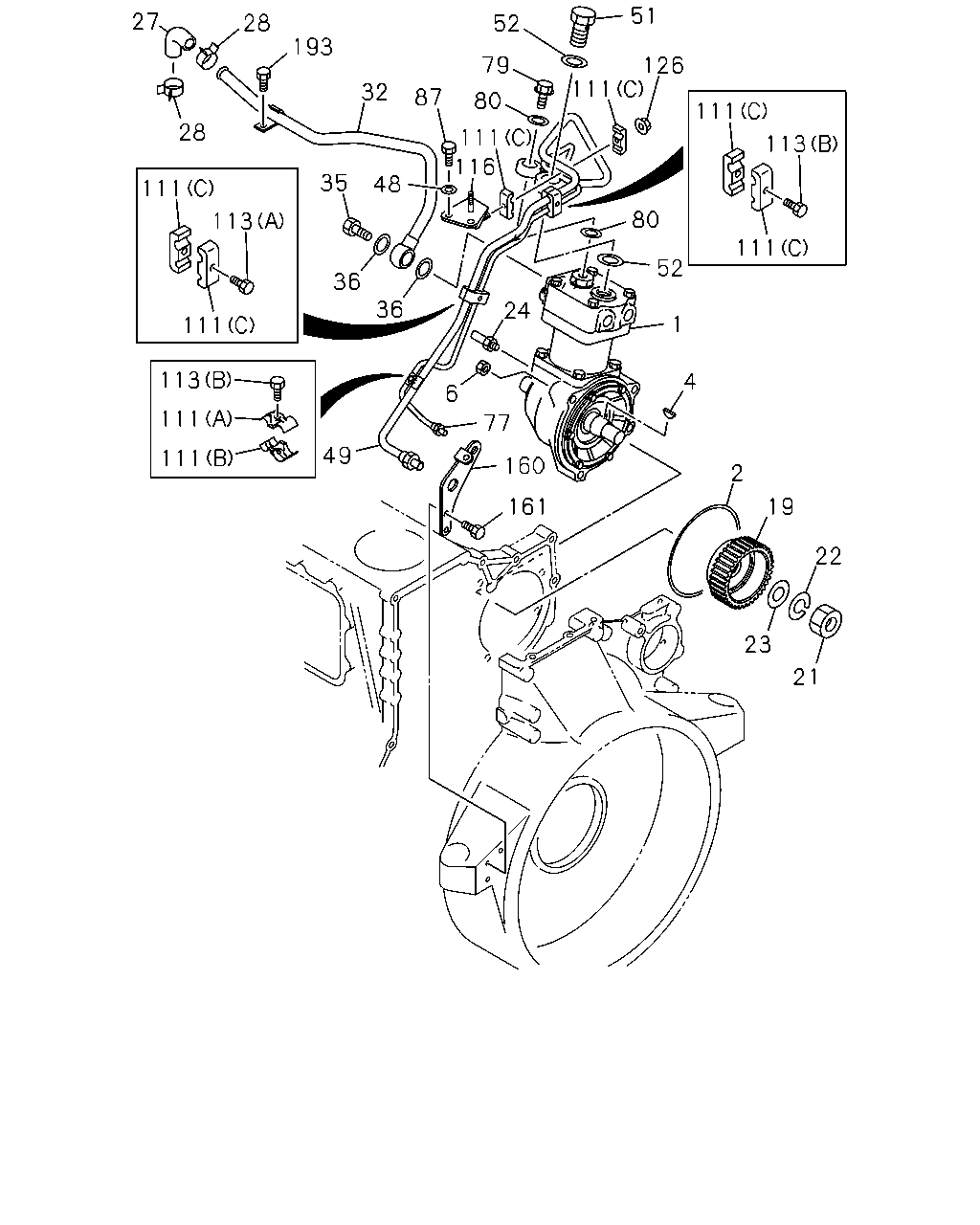

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#64625) — 45 parça

51 27 28 52 193 79 126 111 32 87 80 111 28 111 113 116 35 48 111 80 113 111 52 36 36 24 1 111 113 4 6 111 77 49 111 160 2 161 19 22 23 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-253-6	01	1	9704-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-449-0	01	1	9704-
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	9704-
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	04	1	9704-0602
6	NUT; AIR CMPR M12 FLANGE IDN	0-91180-112-0	04	1	0603-
19	GEAR; INJ PUMP Z=36	1-12524-100-1	01	1	9704-
21	NUT; PUMP GEAR M24	9-99111-524-0	01	1	9704-0512
21	NUT; PUMP GEAR M24	0-91111-524-0	01	1	0601-
22	WASHER; LK,INJ PUMP GEAR FIX ID=24.5	9-09150-524-0	01	1	9704-0603
22	WASHER; LK,INJ PUMP GEAR FIX ID=24.5	0-91510-524-0	01	1	0604-
23	WASHER; PL,PUMP GEAR ID=25	9-09160-524-0	01	1	9704-
24	POINTER; AIR CMPR	9-11327-031-0	01	1	9704-
27	HOSE; AIR CMPR,SUCTION	1-09360-916-0	01	1	9704-
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	9704-
32	PIPE; AIR,AIR CMPR	1-19192-908-0	01	1	9704-
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-2	01	1	9704-
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9704-
48	WASHER; PL,BRKT ID=10.5 OD=18	9-09160-510-0	02	1	0004-0605
48	WASHER; PL,BRKT ID=10.5	0-91610-510-0	02	1	0606-
49	PIPE; AIR,CHARGE	1-19192-963-0	01	1	9704-
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	9704-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9704-
77	PIPE; AIR,GOV	1-19192-962-0	01	1	9704-
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9704-
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9704-1312
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
87	BOLT; BRKT FIX M10X25 FLANGE	0-28081-025-0	02	1	9704-0003
87	BOLT; BRKT FIX M10X20 FLANGE	0-28081-020-0	02	1	0004-0512
87	BOLT; BRKT FIX M10X20 FLANGE	0-28051-020-0	02	1	0601-
111	CLIP; AIR PIPE (A) WO/NUT	1-09700-547-0	01	1	9704-
111	CLIP; AIR PIPE (B) W/NUT	1-09700-550-0	01	1	9704-
111	CLIP; AIR PIPE (C)	1-09701-208-0	06	1	9704-
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28080-625-0	02	1	9704-0512
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28050-625-0	02	1	0601-
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	02	1	9704-0512
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28050-640-0	02	1	0601-
116	BRACKET; AIR PIPE	1-19199-249-1	01	1	9704-0604
116	BRACKET; AIR PIPE	1-19199-357-0	01	1	0605-
126	NUT; CLIP FIX M6 FLANGE	0-91150-106-0	01	1	9704-0602
126	NUT; CLIP FIX M6 FLANGE	0-91180-106-0	01	1	0603-
160	BRACKET; AIR PIPE	1-19199-120-0	01	1	9704-
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	9704-0512
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0601-
193	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	01	1	9704-0512
193	BOLT; BRKT M8X20 FLANGE	0-28050-820-0	01	1	0601-
