0-60B — ENGINE ELECTRICAL CONTROL PARTS (#6462) — 138 parça

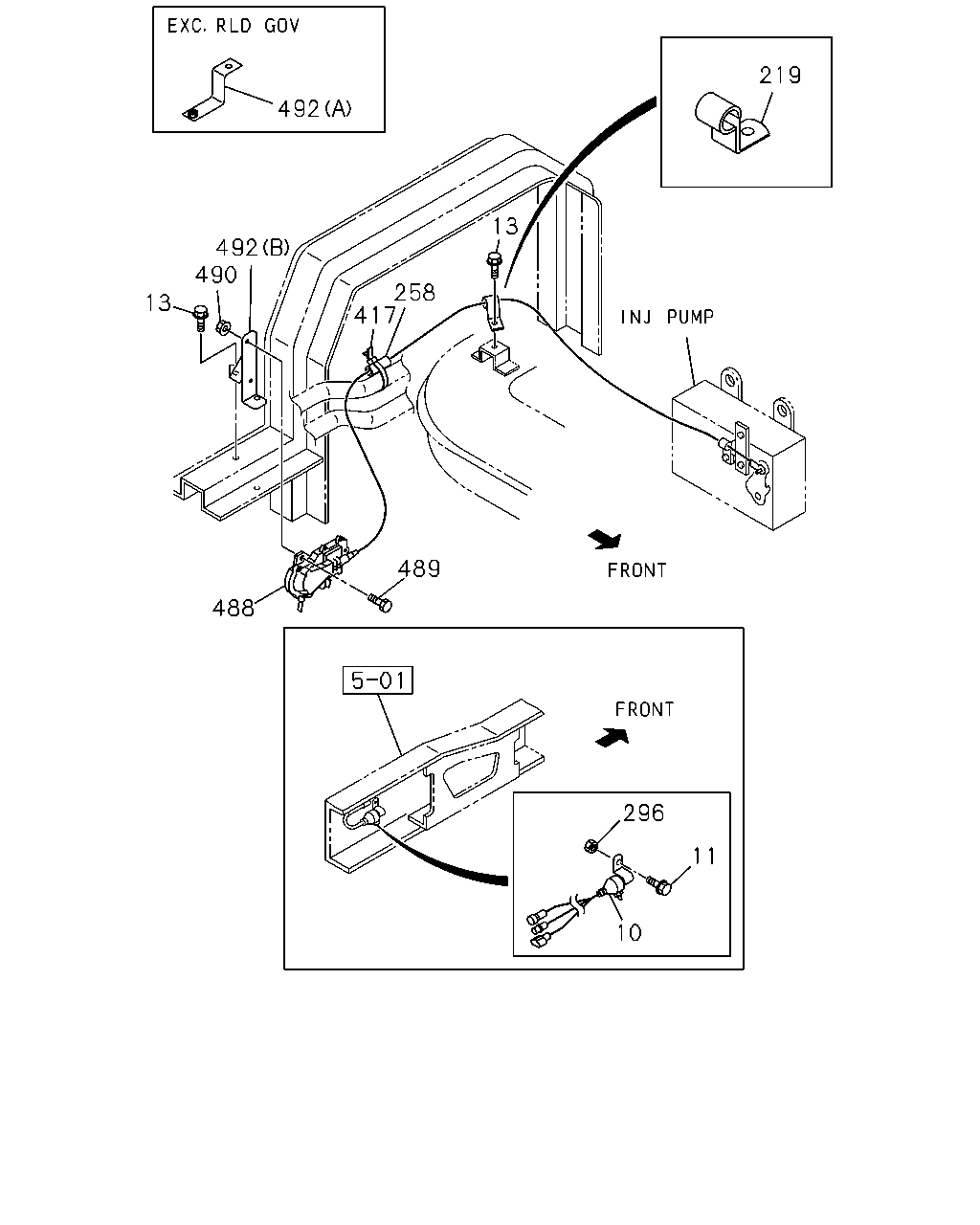

219 492 13 492 490 258 417 13 489 488 296 11 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	RELAY; STARTER NIKKO	1-81171-071-0	01	1	9601-9606	●
10	RELAY; STARTER NIKKO	1-81171-075-0	01	1	9904-9904	●
10	RELAY; STARTER NIKKO	1-81171-075-1	01	1	9905-	●	●
10	RELAY; STARTER HITACHI	1-81171-087-0	01	1	9904-9907	●
10	RELAY; STARTER EXC. NIKKO<Y70> HITACHI	1-81171-087-0	01	1	9908-	●	●
11	BOLT; RELAY STARTER M8X25 FLANGE	0-28080-825-0	02	1	9601-9606	●
11	BOLT; RELAY STARTER M8X30 FLANGE	0-28680-830-0	02	1	9607-9802	●
11	BOLT; RELAY STARTER M8X25 FLANGE	0-28680-825-0	02	1	9803-9904	●
11	BOLT; RELAY STARTER M8X25 FLANGE	0-28680-825-0	02	1	9905-	●	●
13	BOLT; BRKT M8X20	0-28090-820-0	01	1	9601-9601	●
13	BOLT; BRKT M8X20	0-28090-820-0	01	1	9601-9601	●
13	BOLT; BRKT EXC. RLD GOVERNOR(SD7) M8X20	0-28090-820-0	01	1	9601-9601	●
13	BOLT; BRKT EXC. RLD GOVERNOR(SD7) M8X20	0-28090-820-0	02	1	9602-9606	●
13	BOLT; BRKT EXC. RLD GOVERNOR(SD7) M8X25 FLANGE	0-28690-825-0	02	1	9607-9904	●
13	BOLT; BRKT EXC. RLD GOVERNOR(SD7) M8X25 FLANGE	0-28690-825-0	02	1	9905-		●
13	BOLT; BRKT M8X20	0-28090-820-0	01	1	9602-9602	●
219	CLIP; ENG STOP CABLE ID=7 L=40	9-09524-675-0	01	1	9602-9904	●
219	CLIP; ENG STOP CABLE ID=7 L=40	9-09524-675-0	01	1	9905-	●	●
258	SLEEVE; RUBBER OIL PIPE ID=6 L=30	5-09360-352-0	01	1	9601-9904	●
258	SLEEVE; RUBBER OIL PIPE ID=6 L=30	5-09360-352-0	01	1	9905-	●	●
258	SLEEVE; RUBBER OIL PIPE ID=10 OD=14 L=30	9-09956-682-0	01	1	9601-9904	●
258	SLEEVE; RUBBER OIL PIPE ID=10 OD=14 L=30	9-09956-682-0	01	1	9905-	●	●
296	NUT; RELAY,STARTER M8	9-09110-408-0	02	1	9601-9606	●
296	NUT; RELAY,STARTER M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
296	NUT; RELAY,STARTER M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
417	CLIP L=140	5-09707-031-1	02	1	9601-9904	●
417	CLIP L=140	5-09707-031-1	02	1	9905-	●	●
488	STOPPER; ENG RLD GOVERNOR(SD7)	1-82840-133-2	01	1	9601-9904	●
488	STOPPER; ENG RLD GOVERNOR(SD7)	1-82840-133-2	01	1	9905-		●
488	STOPPER; ENG EXC. RLD GOVERNOR(SD7)	1-82840-151-1	01	1	9601-9904	●
488	STOPPER; ENG EXC. RLD GOVERNOR(SD7)	1-82840-151-1	01	1	9905-	●	●
489	BOLT; ENG STOPPER M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●
489	BOLT; ENG STOPPER M8X25 FLANGE	0-28680-825-0	02	1	9607-9610	●
489	BOLT; ENG STOPPER M8X25 FLANGE	0-28680-825-0	02	1	9611-9807	●
489	BOLT; ENG STOPPER M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9808-9904	●
489	BOLT; ENG STOPPER M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9905-	●	●
490	NUT; ENG STOP M8	9-09110-408-0	02	1	9601-9606	●
490	NUT; ENG STOP M8 FLANGE	0-91150-108-0	02	1	9607-9610	●
490	NUT; ENG STOP M8 FLANGE	0-91150-108-0	02	1	9611-9904	●
490	NUT; ENG STOP M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
492	BRACKET; ENG STOPPER (B)	1-47477-415-0	01	1	9601-9904	●
492	BRACKET; ENG STOPPER (B)	1-47477-415-0	01	1	9905-	●	●
492	BRACKET; ENG STOPPER EXC. RLD GOVERNOR(SD7) (A)	1-47475-654-2	01	1	9601-9904	●
492	BRACKET; ENG STOPPER EXC. RLD GOVERNOR(SD7) (A)	1-47475-654-2	01	1	9905-		●

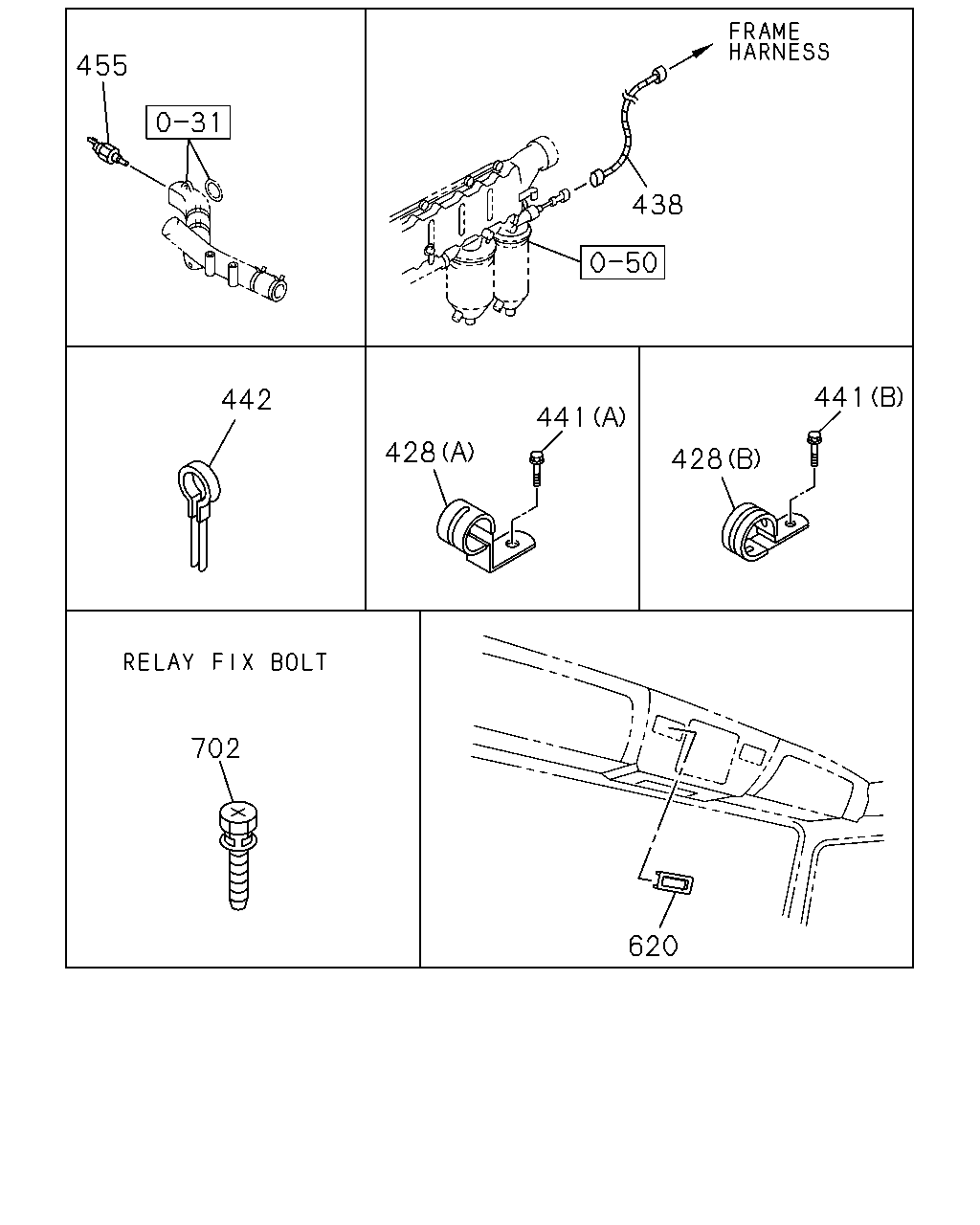

455 438 441 442 441 428 428 702 620

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
428	CLIP; HARNESS (B) ID=32 L=35	1-09701-237-0	01	1	9601-9601	●
428	CLIP; HARNESS (B) ID=32 L=35	1-09701-244-0	01	1	9602-9610	●
428	CLIP; HARNESS (B) ID=32 L=35	1-09701-244-0	01	1	9611-9904	●
428	CLIP; HARNESS (B) ID=32 L=35	1-09701-244-0	01	1	9905-	●	●
428	CLIP; HARNESS (A) ID=31.5 H=23 L=25	1-09701-017-0	01	1	9601-9610	●
428	CLIP; HARNESS (A) ID=31.5 H=23 L=25	1-09701-017-0	01	1	9611-9904	●
428	CLIP; HARNESS (A) ID=31.5 H=23 L=25	1-09701-017-0	01	1	9905-	●	●
428	CLIP; HARNESS (B) ID=26 L=26	1-09701-236-0	01	1	9601-9610	●
428	CLIP; HARNESS (B) ID=26 L=26	1-09701-236-0	01	1	9611-9904	●
428	CLIP; HARNESS (B) ID=26 L=26	1-09701-236-0	01	1	9905-	●	●
438	CABLE; OIL FILTER SW	1-82657-062-0	01	1	9601-9904	●
438	CABLE; OIL FILTER SW	1-82657-062-1	01	1	9905-	●	●
441	BOLT; HARNESS TO FRAME (A) M8X20 FLANGE	0-28080-820-0	01	1	9601-9610	●
441	BOLT; HARNESS TO FRAME (A) M8X20 FLANGE	0-28080-820-0	01	1	9611-9904	●
441	BOLT; HARNESS TO FRAME (A) M8X20 FLANGE	0-28080-820-0	01	1	9905-	●	●
441	BOLT; HARNESS TO FRAME (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9601-9610	●
441	BOLT; HARNESS TO FRAME (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9611-9904	●
441	BOLT; HARNESS TO FRAME (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9905-	●	●
442	CLIP; GRAND ID=11 L=41	1-09700-403-0	01	1	9601-9610	●
442	CLIP; GRAND ID=11 L=41	1-09700-403-0	01	1	9611-9904	●
442	CLIP; GRAND ID=11 L=41	1-09700-403-0	01	1	9905-	●	●
455	SWITCH; ENG OVER HEAT,WATER	1-82450-013-0	01	1	9601-9904	●
620	BEZEL; CONT UNIT	1-72447-666-1	01	1	9706-9904	●
620	BEZEL; CONT UNIT	1-72447-666-1	01	1	9905-	●	●
702	BOLT; RELAY M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9602-9904	●
702	BOLT; RELAY M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9905-	●	●

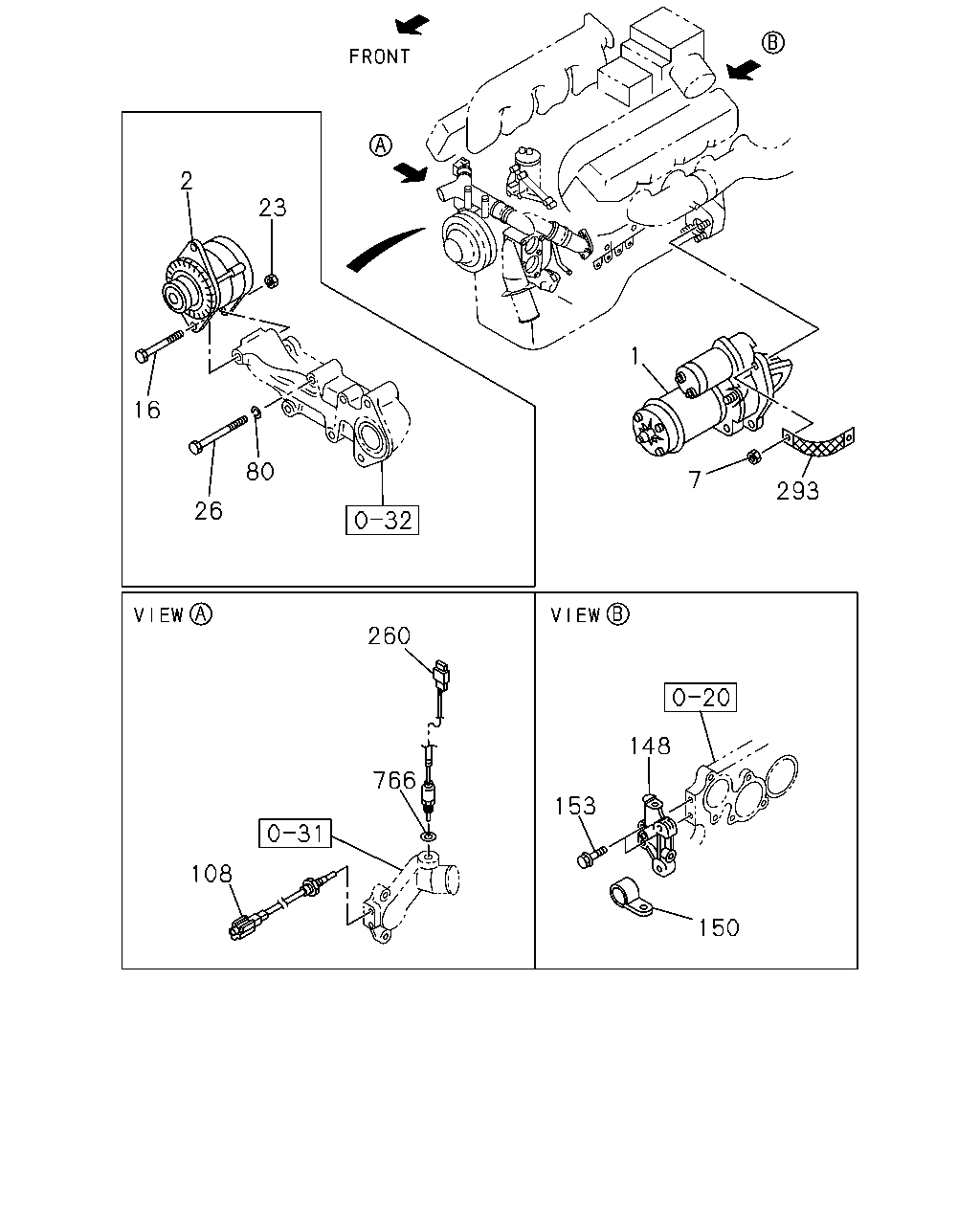

2 23 1 16 80 7 293 26 260 148 766 153 108 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 6.0KW NIKKO	1-81100-302-0	01	1	9601-9708	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 6.0KW NIKKO	1-81100-327-0	01	1	9904-9904	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 6.0KW NIKKO	1-81100-327-0	01	1	9905-	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI	1-81100-345-0	01	1	9904-9904	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI	1-81100-345-0	01	1	9905-9907	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO	1-81200-459-2	01	1	9601-9904	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A NIKKO	1-81200-470-3	01	1	9904-	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI	1-81200-521-0	01	1	9904-9904	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A MITSUBISHI	1-81200-522-0	01	1	9905-9907	●	●
7	NUT; STARTER M14 FLANGE	0-91150-114-0	03	1	9601-9610	●
7	NUT; STARTER M14 FLANGE	0-91150-114-0	03	1	9611-9904	●
7	NUT; STARTER M14 FLANGE	0-91150-114-0	03	1	9905-	●	●
16	BOLT; GEN M14X123	9-09801-204-1	01	1	9601-9610	●
16	BOLT; GEN M14X123	9-09801-204-1	01	1	9611-9904	●
16	BOLT; GEN M14X123	9-09801-204-1	01	1	9906-0010	●	●
16	BOLT; GEN M14X123	9-09801-204-1	01	1	0011-	●	●
23	NUT; GEN M14 FLANGE	0-91150-114-0	01	1	9601-9904	●
23	NUT; GEN M14 FLANGE	0-91150-114-0	01	1	9905-	●	●
26	BOLT; GEN BRKT M10X70	9-01666-070-0	03	1	9601-9611	●
26	BOLT; GEN BRKT M10X70	9-01661-070-0	03	1	9612-9904	●
26	BOLT; GEN BRKT M10X70	9-01661-070-0	03	1	9905-	●	●
80	WASHER; LK,DUCT & BRKT ID=10.2	9-09150-610-0	03	1	9601-9904	●
80	WASHER; LK,DUCT & BRKT ID=10.2	9-09150-610-0	03	1	9905-	●	●
108	SWITCH; THERMO	1-83161-031-1	01	1	9601-9904	●
108	SWITCH; THERMO	1-83161-031-1	01	1	9905-	●	●
148	BRACKET; SOLENOID VLV	1-81919-028-0	01	1	9601-9904	●
148	BRACKET; SOLENOID VLV	1-81919-028-0	01	1	9905-	●	●
150	CLIP; HARNESS,SOLENOID VLV ID=11 L=16	9-09525-025-0	01	1	9703-9904	●
150	CLIP; HARNESS,SOLENOID VLV ID=11 L=16	9-09525-025-0	01	1	9905-	●	●
153	BOLT; BRKT FIX M10X40 FLANGE	0-28181-040-0	02	1	9601-9904	●
153	BOLT; BRKT FIX M10X40 FLANGE	0-28181-040-0	02	1	9905-	●	●
260	SENSOR; WATER TEMP	1-81535-053-1	01	1	9601-9904	●
293	CABLE; STARTER EARTH L=350	1-82650-235-0	01	1	9601-9610	●
293	CABLE; STARTER EARTH L=350	1-82650-235-0	01	1	9611-9904	●
293	CABLE; STARTER EARTH L=350	1-82650-235-0	01	1	9905-	●	●
766	GASKET; SENSOR ID=12.2	1-09630-084-0	01	1	9601-9904	●
766	GASKET; SENSOR ID=12.2	1-09630-084-0	01	1	9905-	●	●

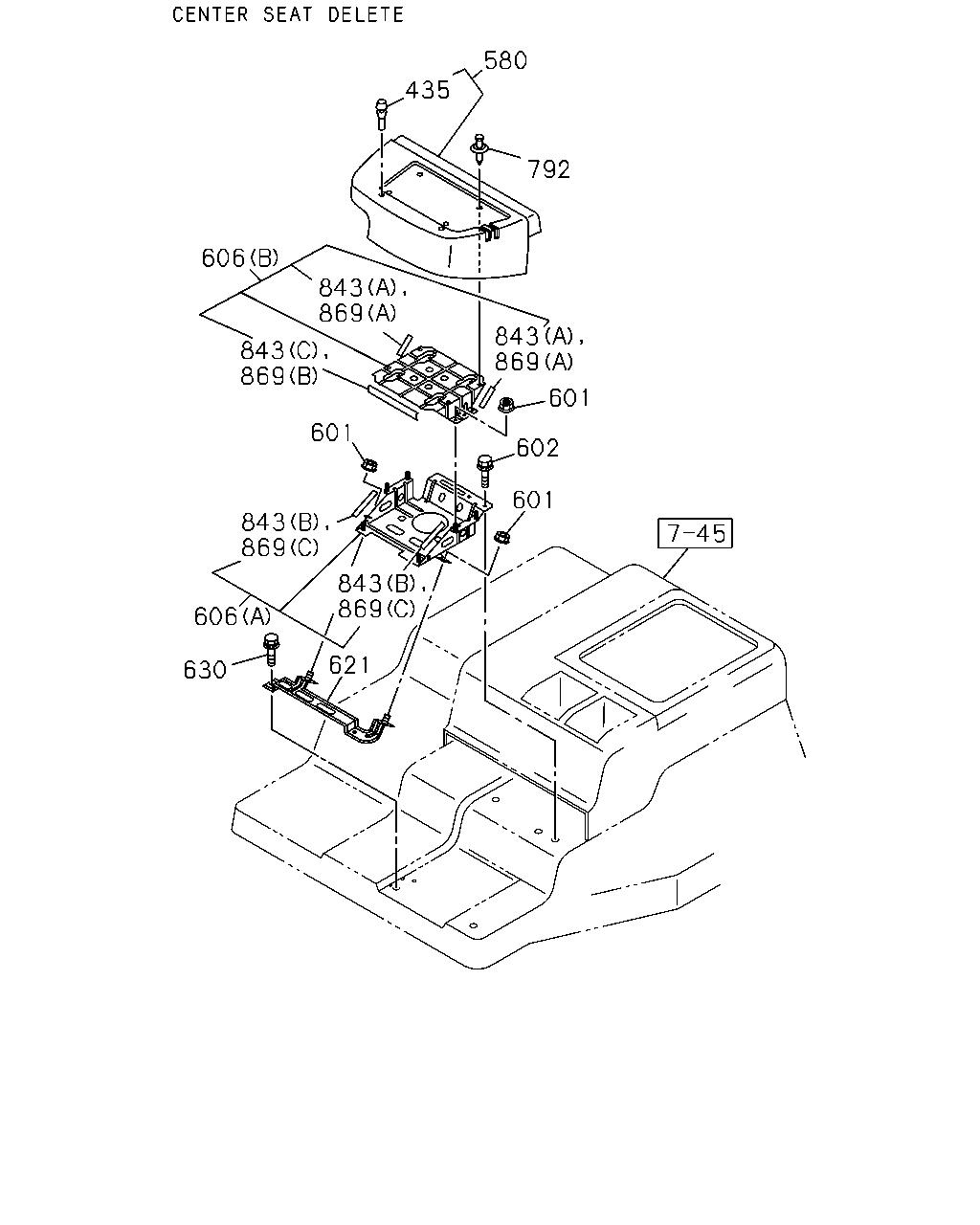

580 435 792 606 843 869 843 869 843 869 601 601 602 601 843 869 843 869 606 621 630

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
435	RUBBER; CUSHION CENTER SEAT DELETE(SP9)	1-72537-138-0	02	1	9607-9904	●
435	RUBBER; CUSHION CENTER SEAT DELETE(SP9)	1-72537-138-0	02	1	9905-	●	●
580	COVER; CONT UNIT CENTER SEAT DELETE(SP9)	1-72537-102-3	01	1	9607-9904	●
580	COVER; CONT UNIT CENTER SEAT DELETE(SP9)	1-72537-102-3	01	1	9905-	●	●
601	NUT; UNIT CENTER SEAT DELETE(SP9) M6 FLANGE	0-91150-106-0	06	1	9607-9904	●
601	NUT; UNIT CENTER SEAT DELETE(SP9) M6 FLANGE	0-91150-106-0	06	1	9905-	●	●
602	BOLT; BRKT CENTER SEAT DELETE(SP9) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9607-9904	●
602	BOLT; BRKT CENTER SEAT DELETE(SP9) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9905-	●	●
606	BRACKET; CONT UNIT CENTER SEAT DELETE(SP9) (A)	1-72537-099-3	01	1	9607-9707	●
606	BRACKET; CONT UNIT CENTER SEAT DELETE(SP9) (A)	1-72537-195-2	01	1	9708-9904	●
606	BRACKET; CONT UNIT CENTER SEAT DELETE(SP9) (A)	1-72537-195-2	01	1	9905-	●	●
606	BRACKET; CONT UNIT CENTER SEAT DELETE(SP9) (B)	1-72537-112-5	01	1	9607-9611	●
606	BRACKET; CONT UNIT CENTER SEAT DELETE(SP9) (B)	1-72537-171-0	01	1	9612-9707	●
606	BRACKET; CONT UNIT CENTER SEAT DELETE(SP9) (B)	1-72537-197-1	01	1	9708-9812	●
606	BRACKET; CONT UNIT CENTER SEAT DELETE(SP9) (B)	1-72537-205-0	01	1	9812-9904	●
606	BRACKET; CONT UNIT CENTER SEAT DELETE(SP9) (B)	1-72537-205-2	01	1	9905-	●	●
621	SUPPORT; CONT UNIT CENTER SEAT DELETE(SP9)	1-72537-097-1	01	1	9607-9904	●
621	SUPPORT; CONT UNIT CENTER SEAT DELETE(SP9)	1-72537-097-1	01	1	9905-	●	●
630	SCREW; UNIT CENTER SEAT DELETE(SP9) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9607-9904	●
630	SCREW; UNIT CENTER SEAT DELETE(SP9) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9905-	●	●
792	FASTENER CENTER SEAT DELETE(SP9)	1-09987-245-1	04	1	9607-9904	●
792	FASTENER CENTER SEAT DELETE(SP9)	1-09987-245-1	04	1	9905-	●	●
843	SEAL; BRKT CENTER SEAT DELETE(SP9) (A)	1-72497-062-0	02	1	9708-9709	●
843	SEAL; BRKT CENTER SEAT DELETE(SP9) (B)	1-72498-014-1	02	1	9708-9709	●
843	SEAL; BRKT CENTER SEAT DELETE(SP9) (C)	1-72498-019-0	01	1	9708-9709	●
869	FINISHER; BRKT CENTER SEAT DELETE(SP9) (B)	1-73948-003-0	01	1	9710-9904	●
869	FINISHER; BRKT CENTER SEAT DELETE(SP9) (B)	1-73948-003-0	01	1	9905-	●	●
869	FINISHER; BRKT CENTER SEAT DELETE(SP9) (C)	1-73948-003-0	02	1	9710-9904	●
869	FINISHER; BRKT CENTER SEAT DELETE(SP9) (C)	1-73948-003-0	02	1	9905-	●	●
869	FINISHER; BRKT CENTER SEAT DELETE(SP9) (A)	1-73948-003-0	02	1	9710-9904	●
869	FINISHER; BRKT CENTER SEAT DELETE(SP9) (A)	1-73948-003-0	02	1	9905-	●	●
