0-60A — ENGINE ELECTRICAL CONTROL PARTS (#6461) — 209 parça

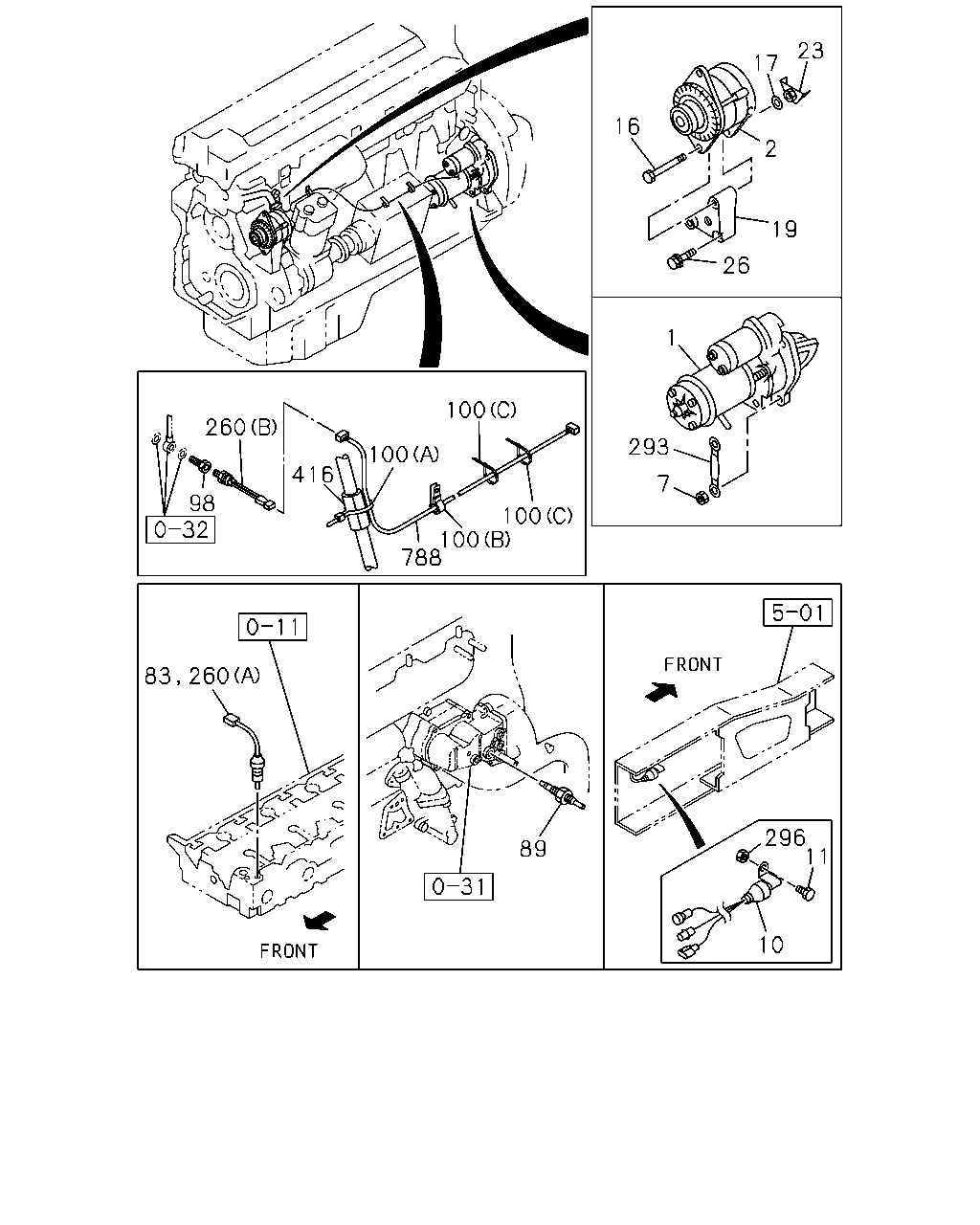

23 17 16 2 19 26 1 100 260 293 100 416 7 98 100 100 788 296 11 89 10 83 260

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 6.0KW NIKKO	1-81100-293-1	01	1	9601-9610	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 6.0KW NIKKO	1-81100-293-1	01	1	9611-9708	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 6.0KW NIKKO	1-81100-325-1	01	1	9904-9904	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 6.0KW NIKKO	1-81100-325-2	01	1	9905-		●	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI	1-81100-341-0	01	1	9904-9904	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI	1-81100-341-1	01	1	9905-9907		●	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO	1-81200-426-1	01	1	9601-9610	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO	1-81200-426-2	01	1	9611-9705	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 40A NIKKO	1-81200-426-2	01	1	9706-9904	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 50A NIKKO	1-81200-469-4	01	1	9905-		●	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 60A NIKKO	1-81200-437-3	01	1	9706-9904	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 60A NIKKO	1-81200-437-4	01	1	9905-			●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 50A MITSUBISHI	1-81200-517-0	01	1	9905-9907		●	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 60A MITSUBISHI	1-81200-572-0	01	1	9906-9907			●
7	NUT; STARTER M14 FLANGE	0-91150-114-0	03	1	9601-9610	●
7	NUT; STARTER M14 FLANGE	0-91150-114-0	03	1	9611-9904	●	●
7	NUT; STARTER M14 FLANGE	0-91150-114-0	03	1	9905-		●	●	●
10	RELAY; STARTER NIKKO	1-81171-071-0	01	1	9601-9606	●
10	RELAY; STARTER NIKKO	1-81171-075-0	01	1	9904-9904	●	●
10	RELAY; STARTER NIKKO	1-81171-075-1	01	1	9905-		●	●	●
10	RELAY; STARTER HITACHI	1-81171-087-0	01	1	9904-9907	●	●
10	RELAY; STARTER EXC. NIKKO<Y70> HITACHI	1-81171-087-0	01	1	9908-		●	●	●
11	BOLT; RELAY STARTER M8X25 FLANGE	0-28080-825-0	02	1	9601-9606	●
11	BOLT; RELAY STARTER M8X30 FLANGE	0-28680-830-0	02	1	9607-9802	●	●
11	BOLT; RELAY STARTER M8X25 FLANGE	0-28680-825-0	02	1	9803-9904	●	●
11	BOLT; RELAY STARTER M8X25 FLANGE	0-28680-825-0	02	1	9905-		●	●	●
16	BOLT; GEN M14X123	9-09801-204-1	01	1	9601-9610	●
16	BOLT; GEN M14X123	9-09801-204-1	01	1	9611-9904	●	●
16	BOLT; GEN M14X123	9-09801-204-1	01	1	9905-9905		●	●	●
16	BOLT; GEN M14X123	9-09801-204-1	01	1	9906-0010		●	●	●
16	BOLT; GEN M14X123	1-09040-105-0	01	1	0011-		●	●	●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	9601-9610	●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	9611-9904	●	●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	9905-		●	●	●
19	BRACKET; GEN	1-19711-068-1	01	1	9601-9610	●
19	BRACKET; GEN	1-19711-068-1	01	1	9611-9904	●	●
19	BRACKET; GEN	1-19711-068-1	01	1	9905-0010		●	●	●
19	BRACKET; GEN	1-19711-144-0	01	1	0011-		●	●	●
23	NUT; GEN M14 W/BRKT	1-19711-029-0	01	1	9601-9610	●
23	NUT; GEN M14 W/BRKT	1-19711-029-0	01	1	9611-9904	●	●
23	NUT; GEN M14 W/BRKT	1-19711-029-0	01	1	9905-		●	●	●
26	BOLT; GEN BRKT M10X60 FLANGE	0-28181-060-0	02	1	9601-9610	●
26	BOLT; GEN BRKT M10X60 FLANGE	0-28181-060-0	02	1	9611-9904	●	●
26	BOLT; GEN BRKT M10X60 FLANGE	0-28181-060-0	02	1	9905-		●	●	●
83	THERMOMETER UNIT	1-83161-031-1	01	1	9601-9610	●
83	THERMOMETER UNIT EXC. EURO2 SPECIFICATION<THN>	1-83161-031-1	01	1	9611-9904	●
83	THERMOMETER UNIT	1-83161-031-1	01	1	9611-9904		●
83	THERMOMETER UNIT	1-83161-031-1	01	1	9905-			●	●
89	SWITCH; OVER HEAT WARNING	5-82450-020-0	01	1	9601-9610	●
89	SWITCH; OVER HEAT WARNING	5-82450-020-0	01	1	9611-9904	●	●
98	ADAPTER; TEMP SENSOR	1-09675-236-0	01	1	0102-		●	●	●
100	CLIP; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ELECTRONIC GOV RED3(KG5) (B) ID=11 L=30	1-09700-511-0	01	1	0102-		●
100	CLIP; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ELECTRONIC GOV RED3(KG5) (C) L=140	5-09707-031-1	01	1	0102-		●
100	CLIP; HARNESS (A) L=180	1-09707-162-1	01	1	0102-		●	●	●
260	SENSOR; WATER TEMP EURO2 SPECIFICATION<THN> (A)	1-80210-004-0	01	1	9611-9904	●
260	SENSOR; WATER TEMP (A)	1-80210-004-0	01	1	9905-		●
260	SENSOR; WATER TEMP (B)	1-83161-038-0	01	1	0102-		●	●	●
293	CABLE; STARTER EARTH L=350	1-82650-235-0	01	1	9601-9610	●
293	CABLE; STARTER EARTH L=350	1-82650-235-0	01	1	9611-9904	●	●
293	CABLE; STARTER EARTH L=350	1-82650-235-0	01	1	9905-		●	●	●
296	NUT; RELAY,STARTER M8	9-09110-408-0	02	1	9601-9606	●	●
296	NUT; RELAY,STARTER M8 FLANGE	0-91150-108-0	02	1	9607-9904	●	●
296	NUT; RELAY,STARTER M8 FLANGE	0-91150-108-0	02	1	9905-		●	●	●
416	SLEEVE; RUBBER M8	9-09956-682-0	02	1	9601-9610	●
416	SLEEVE; RUBBER EXC. EURO2 SPECIFICATION<THN> M8	9-09956-682-0	02	1	9611-9904	●
416	SLEEVE; RUBBER M8	9-09956-682-0	02	1	9611-9904		●
416	SLEEVE; RUBBER EURO2 SPECIFICATION<THN> M8	9-09956-682-0	05	1	9611-9710	●
416	SLEEVE; RUBBER EURO2 SPECIFICATION<THN> M8	9-09956-682-0	06	1	9711-9904	●
416	SLEEVE; RUBBER ID=10 OD=14 L=30	9-09956-682-0	06	1	9905-		●
416	SLEEVE; RUBBER ID=17 OD=21 L=40	1-09337-012-0	01	1	0102-		●	●	●
416	SLEEVE; RUBBER ID=10 OD=14 L=30	9-09956-682-0	02	1	9905-			●	●
788	HARNESS; EXT,WATER TEMP SENSOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ELECTRONIC GOV RED3(KG5)	1-82641-186-0	02	1	0102-		●

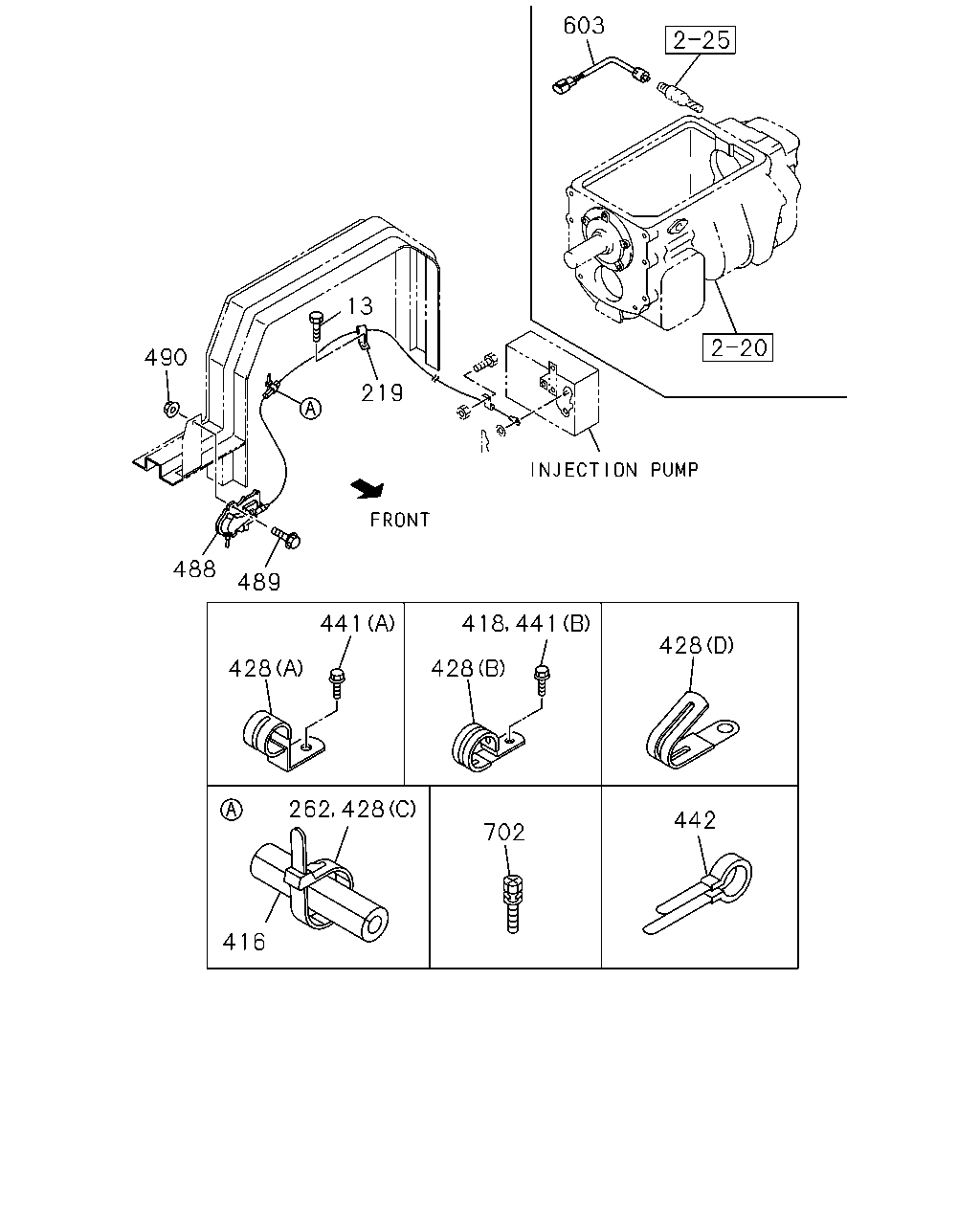

603 13 490 219 488 489 441 428 428 428 442 702 416 418 441 428 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	BOLT; BRKT M8X20	0-28090-820-0	01	1	9601-9601	●
13	BOLT; BRKT M8X20	0-28090-820-0	01	1	9602-9602	●	●
219	CLIP; ENG STOP CABLE ID=6 H=20 L=20	1-09700-603-0	01	1	9601-9601	●
262	CLIP; HARNESS L=140	5-09707-031-0	03	1	9602-9610	●
262	CLIP; HARNESS L=140	5-09707-031-1	03	1	9611-9904	●	●
262	CLIP; HARNESS L=140	5-09707-031-1	03	1	9905-			●	●
416	SLEEVE; RUBBER M8	9-09956-682-0	02	1	9601-9610	●
416	SLEEVE; RUBBER EXC. EURO2 SPECIFICATION<THN> M8	9-09956-682-0	02	1	9611-9904	●
416	SLEEVE; RUBBER M8	9-09956-682-0	02	1	9611-9904		●
416	SLEEVE; RUBBER EURO2 SPECIFICATION<THN> M8	9-09956-682-0	05	1	9611-9710	●
416	SLEEVE; RUBBER EURO2 SPECIFICATION<THN> M8	9-09956-682-0	06	1	9711-9904	●
416	SLEEVE; RUBBER ID=10 OD=14 L=30	9-09956-682-0	06	1	9905-		●
416	SLEEVE; RUBBER ID=17 OD=21 L=40	1-09337-012-0	01	1	0102-		●	●	●
416	SLEEVE; RUBBER ID=10 OD=14 L=30	9-09956-682-0	02	1	9905-			●	●
418	BOLT; CLIP M10X16 FLANGE	0-28181-016-0	01	1	9601-9610	●
418	BOLT; CLIP M10X16 FLANGE	0-28181-016-0	01	1	9611-9904	●	●
418	BOLT; CLIP M10X16 FLANGE	0-28181-016-0	01	1	9905-		●	●	●
428	CLIP; HARNESS (C) L=140	5-09707-031-0	01	1	9601-9610	●
428	CLIP; HARNESS EURO2 SPECIFICATION<THN> (C) L=140	5-09707-031-1	05	1	9611-9904	●
428	CLIP; HARNESS (C) L=140	5-09707-031-1	05	1	9905-		●
428	CLIP; HARNESS (D) L=36	8-94224-891-1	01	1	9601-9610	●
428	CLIP; HARNESS (D) L=36	8-94224-891-1	01	1	9611-9904	●	●
428	CLIP; HARNESS (D) L=36	8-94224-891-1	01	1	9905-		●	●	●
428	CLIP; HARNESS (B) ID=11 L=28	9-09917-544-0	01	1	9601-9610	●
428	CLIP; HARNESS (B) ID=11 L=28	9-09917-544-0	01	1	9611-9904	●	●
428	CLIP; HARNESS (B) ID=11 L=28	9-09917-544-0	01	1	9905-		●	●	●
428	CLIP; HARNESS EURO2 SPECIFICATION<THN> (C) L=250	5-09707-030-1	02	1	9611-9904	●
428	CLIP; HARNESS (C) L=250	5-09707-030-1	02	1	9905-		●
428	CLIP; HARNESS (B) ID=32 L=35	1-09701-237-0	01	1	9601-9601	●
428	CLIP; HARNESS (B) ID=32 L=35	1-09701-244-0	01	1	9602-9610	●
428	CLIP; HARNESS (B) ID=32 L=35	1-09701-244-0	01	1	9611-9904	●	●
428	CLIP; HARNESS (B) ID=32 L=35	1-09701-244-0	01	1	9905-		●	●	●
428	CLIP; HARNESS (C) L=140	5-09707-031-0	01	1	9611-9710	●	●
428	CLIP; HARNESS EXC. EURO2 SPECIFICATION<THN> (C) L=140	5-09707-031-1	01	1	9711-9904	●
428	CLIP; HARNESS (C) L=140	5-09707-031-1	01	1	9711-9904		●
428	CLIP; HARNESS (C) L=140	5-09707-031-1	01	1	9905-			●	●
428	CLIP; HARNESS (A) ID=31.5 H=23 L=25	1-09701-017-0	01	1	9601-9610	●
428	CLIP; HARNESS (A) ID=31.5 H=23 L=25	1-09701-017-0	01	1	9611-9904	●	●
428	CLIP; HARNESS (A) ID=31.5 H=23 L=25	1-09701-017-0	01	1	9905-		●	●	●
428	CLIP; HARNESS (B) ID=26 L=26	1-09701-236-0	01	1	9601-9610	●
428	CLIP; HARNESS (B) ID=26 L=26	1-09701-236-0	01	1	9611-9904	●	●
428	CLIP; HARNESS (B) ID=26 L=26	1-09701-236-0	01	1	9905-		●	●	●
441	BOLT; HARNESS TO FRAME (A) M8X20 FLANGE	0-28080-820-0	01	1	9601-9610	●
441	BOLT; HARNESS TO FRAME (A) M8X20 FLANGE	0-28080-820-0	01	1	9611-9904	●	●
441	BOLT; HARNESS TO FRAME (A) M8X20 FLANGE	0-28080-820-0	01	1	9905-		●	●	●
441	BOLT; HARNESS TO FRAME (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9601-9610	●
441	BOLT; HARNESS TO FRAME (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9611-9904	●	●
441	BOLT; HARNESS TO FRAME (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9905-		●	●	●
442	CLIP; GRAND ID=11 L=41	1-09700-403-0	01	1	9601-9610	●
442	CLIP; GRAND ID=11 L=41	1-09700-403-0	01	1	9611-9904	●	●
442	CLIP; GRAND ID=11 L=41	1-09700-403-0	01	1	9905-		●	●	●
488	STOPPER; ENG	1-82840-145-0	01	1	9601-9608	●
488	STOPPER; ENG EXC. ELECTRONIC GOV RED3(KG5)	1-82840-145-1	01	1	9611-9904	●
488	STOPPER; ENG	1-82840-145-1	01	1	9611-9904		●
488	STOPPER; ENG EXC. ELECTRONIC GOV RED3(KG5)	1-82840-145-1	01	1	9905-		●
488	STOPPER; ENG	1-82840-145-1	01	1	9905-			●	●
489	BOLT; ENG STOPPER M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●
489	BOLT; ENG STOPPER M8X25 FLANGE	0-28680-825-0	02	1	9607-9610	●
489	BOLT; ENG STOPPER EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	02	1	9611-9807	●
489	BOLT; ENG STOPPER M8X25 FLANGE	0-28680-825-0	02	1	9611-9807		●
489	BOLT; ENG STOPPER EXC. ELECTRONIC GOV RED3(KG5) M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9808-9904	●
489	BOLT; ENG STOPPER M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9808-9904		●
489	BOLT; ENG STOPPER EXC. ELECTRONIC GOV RED3(KG5) M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9905-		●
489	BOLT; ENG STOPPER M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9905-			●	●
490	NUT; ENG STOP M8	9-09110-408-0	02	1	9601-9606	●
490	NUT; ENG STOP M8 FLANGE	0-91150-108-0	02	1	9607-9610	●
490	NUT; ENG STOP EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	9611-9904	●
490	NUT; ENG STOP M8 FLANGE	0-91150-108-0	02	1	9611-9904		●
490	NUT; ENG STOP EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	9905-		●
490	NUT; ENG STOP M8 FLANGE	0-91150-108-0	02	1	9905-			●	●
603	SENSOR; TACHO	1-83127-115-0	01	1	9601-9610	●
603	SENSOR; TACHO	1-83127-115-0	01	1	9611-9904	●	●
603	SENSOR; TACHO	1-83127-115-0	01	1	9905-			●	●
702	BOLT; RELAY M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9602-9904	●
702	BOLT; RELAY M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9905-		●	●	●

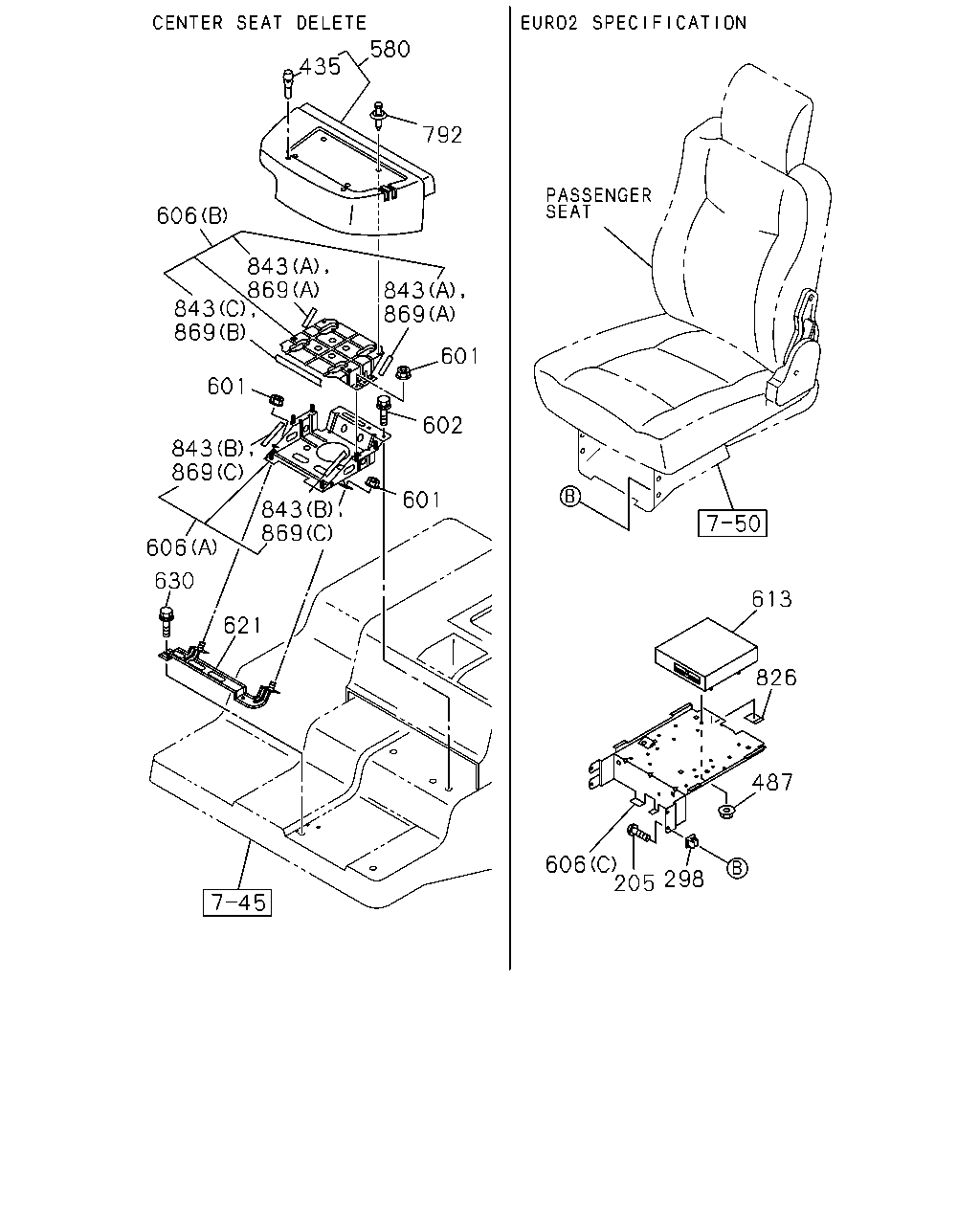

580 435 792 606 843 869 843 869 843 869 601 601 602 843 869 843 869 601 606 630 621 826 487 606 298 205 613

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
205	SCREW; BRKT EURO2 SPECIFICATION<THN> M6X12 TAPPING W/PL WASHER	0-74100-612-0	04	1	9611-9904	●
205	SCREW; BRKT M6X12 TAPPING W/PL WASHER	0-74100-612-0	04	1	9905-		●
298	GROMMET; SCREW EURO2 SPECIFICATION<THN> D=9.7X9.7 L=8	8-94222-314-0	04	1	9611-9904	●
298	GROMMET; SCREW D=9.7X9.7 L=8	8-94222-314-0	04	1	9905-		●
435	RUBBER; CUSHION CENTER SEAT DELETE(SP9)	1-72537-138-0	02	1	9607-9904	●	●
435	RUBBER; CUSHION CENTER SEAT DELETE(SP9)	1-72537-138-0	02	1	9905-		●	●	●
487	NUT EURO2 SPECIFICATION<THN> M6 FLANGE	0-91150-106-0	04	1	9611-9904	●
487	NUT M6 FLANGE	0-91150-106-0	04	1	9905-		●
580	COVER; CONT UNIT CENTER SEAT DELETE(SP9)	1-72537-102-3	01	1	9607-9904	●	●
580	COVER; CONT UNIT CENTER SEAT DELETE(SP9)	1-72537-102-3	01	1	9905-		●	●	●
601	NUT; UNIT CENTER SEAT DELETE(SP9) M6 FLANGE	0-91150-106-0	06	1	9607-9904	●	●
601	NUT; UNIT CENTER SEAT DELETE(SP9) M6 FLANGE	0-91150-106-0	06	1	9905-		●	●	●
602	BOLT; BRKT CENTER SEAT DELETE(SP9) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9607-9904	●	●
602	BOLT; BRKT CENTER SEAT DELETE(SP9) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9905-		●	●	●
606	BRACKET; CONT UNIT EURO2 SPECIFICATION<THN> (C)	1-75558-534-5	01	1	9611-9904	●
606	BRACKET; CONT UNIT (C)	1-75558-534-9	01	1	9905-		●
606	BRACKET; CONT UNIT CENTER SEAT DELETE(SP9) (A)	1-72537-099-3	01	1	9607-9707	●	●
606	BRACKET; CONT UNIT CENTER SEAT DELETE(SP9) (A)	1-72537-195-2	01	1	9708-9904	●	●
606	BRACKET; CONT UNIT CENTER SEAT DELETE(SP9) (A)	1-72537-195-2	01	1	9905-		●	●	●
606	BRACKET; CONT UNIT CENTER SEAT DELETE(SP9) (B)	1-72537-112-5	01	1	9607-9611	●	●
606	BRACKET; CONT UNIT CENTER SEAT DELETE(SP9) (B)	1-72537-171-0	01	1	9612-9707	●	●
606	BRACKET; CONT UNIT CENTER SEAT DELETE(SP9) (B)	1-72537-197-1	01	1	9708-9812	●	●
606	BRACKET; CONT UNIT CENTER SEAT DELETE(SP9) (B)	1-72537-205-0	01	1	9812-9904	●	●
606	BRACKET; CONT UNIT CENTER SEAT DELETE(SP9) (B)	1-72537-205-2	01	1	9905-		●	●	●
613	CONTROL UNIT; ENG EURO2 SPECIFICATION<THN>	1-80110-098-0	01	1	9611-9612	●
613	CONTROL UNIT; ENG EURO2 SPECIFICATION<THN>	1-80110-130-0	01	1	9701-9704	●
613	CONTROL UNIT; ENG EURO2 SPECIFICATION<THN>	1-80110-200-0	01	1	9705-9810	●
613	CONTROL UNIT; ENG EURO2 SPECIFICATION<THN>	1-80110-402-0	01	1	9811-9904	●
613	CONTROL UNIT; ENG ELECTRONIC GOV RED3(KG5)	1-80110-402-0	01	1	9905-		●
613	CONTROL UNIT; ENG RLD GOVERNOR(SD7)	1-80110-440-0	01	1	9905-		●
621	SUPPORT; CONT UNIT CENTER SEAT DELETE(SP9)	1-72537-097-1	01	1	9607-9904	●	●
621	SUPPORT; CONT UNIT CENTER SEAT DELETE(SP9)	1-72537-097-1	01	1	9905-		●	●	●
630	SCREW; UNIT CENTER SEAT DELETE(SP9) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9607-9904	●	●
630	SCREW; UNIT CENTER SEAT DELETE(SP9) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9905-		●	●	●
792	FASTENER CENTER SEAT DELETE(SP9)	1-09987-245-1	04	1	9607-9904	●	●
792	FASTENER CENTER SEAT DELETE(SP9)	1-09987-245-1	04	1	9905-		●	●	●
826	SEAL; NOISE INSULATION EURO2 SPECIFICATION<THN> 30X30	8-97866-626-0	03	1	9611-9904	●
826	SEAL; NOISE INSULATION 30X30	8-97866-626-0	03	1	9905-		●
843	SEAL; BRKT CENTER SEAT DELETE(SP9) (A)	1-72497-062-0	02	1	9708-9709	●	●
843	SEAL; BRKT CENTER SEAT DELETE(SP9) (B)	1-72498-014-1	02	1	9708-9709	●	●
843	SEAL; BRKT CENTER SEAT DELETE(SP9) (C)	1-72498-019-0	01	1	9708-9709	●	●
869	FINISHER; BRKT CENTER SEAT DELETE(SP9) (B)	1-73948-003-0	01	1	9710-9904	●	●
869	FINISHER; BRKT CENTER SEAT DELETE(SP9) (B)	1-73948-003-0	01	1	9905-		●	●	●
869	FINISHER; BRKT CENTER SEAT DELETE(SP9) (C)	1-73948-003-0	02	1	9710-9904	●	●
869	FINISHER; BRKT CENTER SEAT DELETE(SP9) (C)	1-73948-003-0	02	1	9905-		●	●	●
869	FINISHER; BRKT CENTER SEAT DELETE(SP9) (A)	1-73948-003-0	02	1	9710-9904	●	●
869	FINISHER; BRKT CENTER SEAT DELETE(SP9) (A)	1-73948-003-0	02	1	9905-		●	●	●

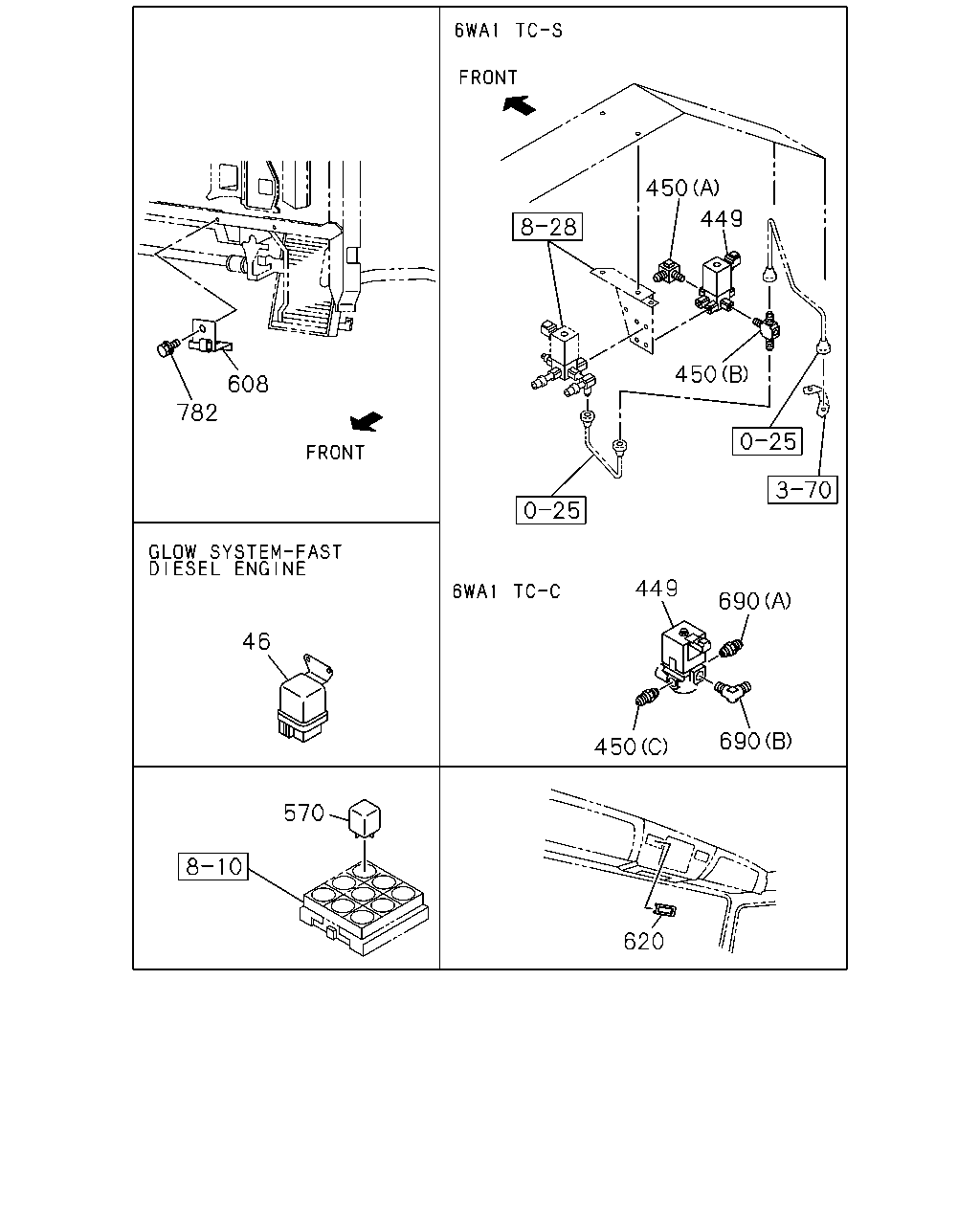

450 449 450 608 782 449 690 46 690 450 570 620

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
46	RELAY; GLOW PLUG GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	8-94258-014-0	01	1	9601-9603	●
449	VALVE; MAG,VARIABLE SWIRL SYSTEM EURO2 SPECIFICATION<THN>	1-82563-598-3	01	1	9611-9904	●
449	VALVE; MAG,VARIABLE SWIRL SYSTEM	1-82563-871-2	01	1	9905-		●
450	CONNECTOR; MAG VLV,INL PORT EURO2 SPECIFICATION<THN> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9611-9904	●
450	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9905-		●
450	CONNECTOR; MAG VLV,INL PORT EURO2 SPECIFICATION<THN> (B) M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	9611-9904	●
570	RELAY; EXH SHUTTER 24V 12.5A MITUBA	8-97062-815-1	01	1	9905-		●
608	SENSOR; AIR TEMP ELECTRONIC GOV RED3(KG5)	1-83544-031-0	01	1	9611-9904	●
608	SENSOR; AIR TEMP ELECTRONIC GOV RED3(KG5)	1-83544-031-0	01	1	9905-		●
620	BEZEL; CONT UNIT	1-72447-666-1	01	1	9706-9904	●	●
620	BEZEL; CONT UNIT	1-72447-666-1	01	1	9905-		●	●	●
690	CONNECTOR (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9905-		●
690	CONNECTOR (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9905-		●
782	BOLT; SENSOR ELECTRONIC GOV RED3(KG5) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9611-9904	●
782	BOLT; SENSOR ELECTRONIC GOV RED3(KG5) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9905-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
