Sayfa 9-01 - Isuzu EPC

178 180 192 193 227 208 230 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
178	BAR; TRANS GUIDE	9-85291-203-0	01	1	9708-
180	PULLER; FRT & RR HUB	1-85210-002-0	02	1	9708-
192	GAUGE; TIRE PRESSURE	1-85315-001-0	01	1	9708-9912
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	0001-
193	JACK ASM 10TON IDN	8-97520-133-0	01	1	9708-
208	HANDLE; JACK L=600 IDN	8-97520-128-0	01	1	9708-
227	PUMP ASM; TIRE	9-85521-132-0	01	1	9708-
230	PUMP; GREASE 1.0 L IDN	8-97520-072-0	01	1	9708-
237	BAG; TOOL IDN	8-97520-067-0	01	1	9708-

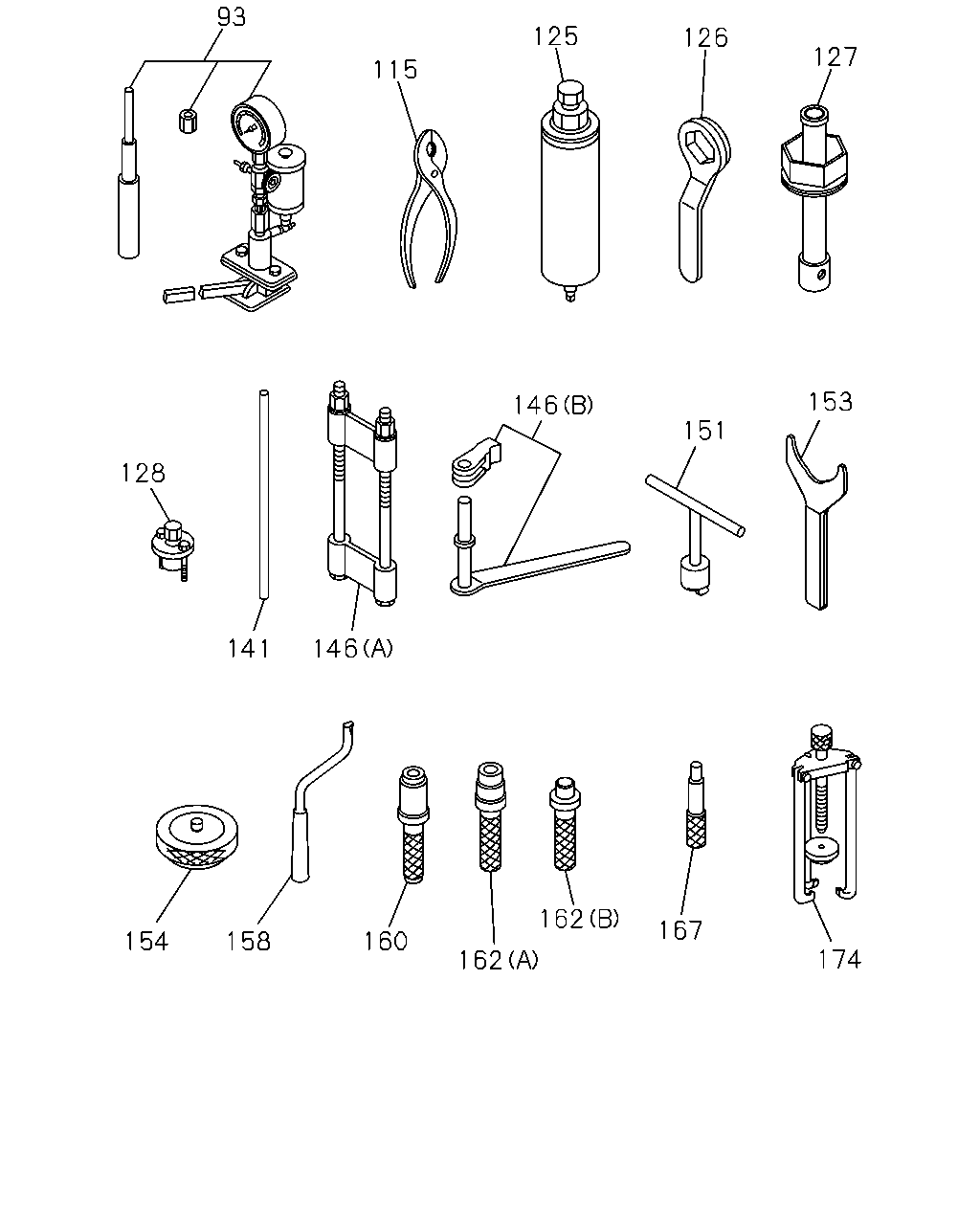

93 125 126 127 115 153 146 151 128 146 141 162 167 154 158 160 174 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
93	SETTING KIT; VALVE GUIDE	1-85220-001-0	01	1	9708-
115	PLIER L=156 IDN	8-97520-071-0	01	1	9708-
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	9708-
126	WRENCH; FRT HUB BRG NUT L=350 B=75	1-85110-002-1	01	1	9708-
127	WRENCH ASM; HUB BRG NUT L=400 B=105	9-85113-509-0	01	1	9708-
128	PULLER ASM; STRG WHEEL	9-85210-099-0	01	1	9708-
141	HANDLE; WRENCH OD=25 L=480 IDN	1-85116-011-0	01	1	9708-1409
141	HANDLE; WRENCH OD=25 L=480 IDN	8-98257-407-0	01	1	1410-
146	REPLACER KIT; LEAF SPR (B)	1-85237-016-0	01	1	9708-
146	REPLACER KIT; LEAF SPR (A)	9-85231-556-0	01	1	9708-
151	REMOVER; OIL BRK,FRT RETURN SPR ID=16	1-85237-002-0	01	1	9708-
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	9708-
154	SLEEPER; KING PIN	1-85238-003-0	01	1	9708-
158	SETTING TOOL; RETURN SPR	9-85221-231-0	01	1	9708-
160	REMOVER; NEEDLE BRG L=220	1-85238-001-0	01	1	9708-
160	REMOVER; NEEDLE BRG L=228	1-85238-010-0	01	1	9708-
162	SETTING TOOL; NEEDLE BRG (B) L=181	1-85238-008-0	01	1	9708-
162	SETTING TOOL; NEEDLE BRG (A) L=213	1-85238-009-0	01	1	9708-
167	ALIGNER; CLU PILOT L=185	1-85253-012-0	01	1	9708-
174	PULLER ASM; MAIN CLU SHAFT	9-85210-148-0	01	1	9708-

9 17 13 12 1 10 23 22 21 20 29 29 29 40 39 38 84 36 37 92 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HANDLE; SPARE TIRE CARRIER IDN	9-23110-018-0	01	1	9708-
9	WRENCH; WHEEL PIN B=41 L=440 IDN	8-97520-132-0	01	1	9708-
10	WRENCH KIT; BRK ADJ	9-85110-013-0	01	1	9708-
12	HANDLE; WRENCH,WHEEL PIN L=600 IDN	8-97520-069-0	01	1	9708-
13	WRENCH; MONKEY IDN	8-97520-131-0	01	1	9708-
17	HAMMER L=321 IDN	8-97520-070-0	01	1	9708-
20	WRENCH; 10X12 10X12	9-09592-110-0	01	1	9708-9708
20	WRENCH; 10X12 10X12 IDN	8-97520-360-0	01	1	9709-
21	WRENCH; 14X17 14X17	9-09592-114-0	01	1	9708-9708
21	WRENCH; 14X17 14X17 IDN	8-97520-361-0	01	1	9709-
22	WRENCH; 19X22 19X22	9-99592-119-0	01	1	9708-9708
22	WRENCH; 19X22 19X22 IDN	8-97520-362-0	01	1	9709-
23	WRENCH; 24X27 24X27	9-09592-124-0	01	1	9708-0607
23	WRENCH; 24X27 24X27 IDN	0-95902-524-0	01	1	0608-
29	DRIVER; SCREW (C) <-> L=158 IDN	8-97520-129-0	01	1	9708-
29	DRIVER; SCREW (B) <+>,<-> L=285 IDN	8-97520-130-0	01	1	9708-
29	DRIVER; SCREW (A) <+> L=190 IDN	9-09595-522-0	01	1	9708-
36	WRENCH; 24	9-85111-377-0	01	1	9708-
37	WRENCH; 27	9-85111-375-0	01	1	9708-
38	WRENCH; 32	9-85111-358-0	01	1	9708-
39	WRENCH; 36	9-85111-374-0	01	1	9708-
40	WRENCH; 41	9-85111-356-0	01	1	9708-
84	REPLACER; VALVE SEAL	8-94396-815-0	01	1	9708-
91	REPLACER ASM; CYL LINER	8-94396-849-0	01	1	9708-
92	ANKLE; REPLACER,CYL LINER	8-94396-821-0	01	1	9708-

274 271 268 209

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
209	CLIP; JACK HANDLE	1-73638-011-1	02	1	9708-0708
209	CLIP; JACK HANDLE	8-98053-799-0	02	1	0709-
268	SCREW; CLIP M6X12 W/LK WASHER	9-03910-612-0	02	1	9708-0604
268	SCREW; CLIP M6X12 W/LK WASHER	0-36220-612-0	02	1	0605-
271	CLIP; TIRE HANGER	1-73638-012-1	02	1	9708-0708
271	CLIP; TIRE HANGER	8-98053-800-0	02	1	0709-
274	SCREW; CLIP M6X12 W/LK WASHER	9-03910-612-0	02	1	9708-0604
274	SCREW; CLIP M6X12 W/LK WASHER	0-36220-612-0	02	1	0605-
