8-73 — BLOWER UNIT (#64603) — 50 parça

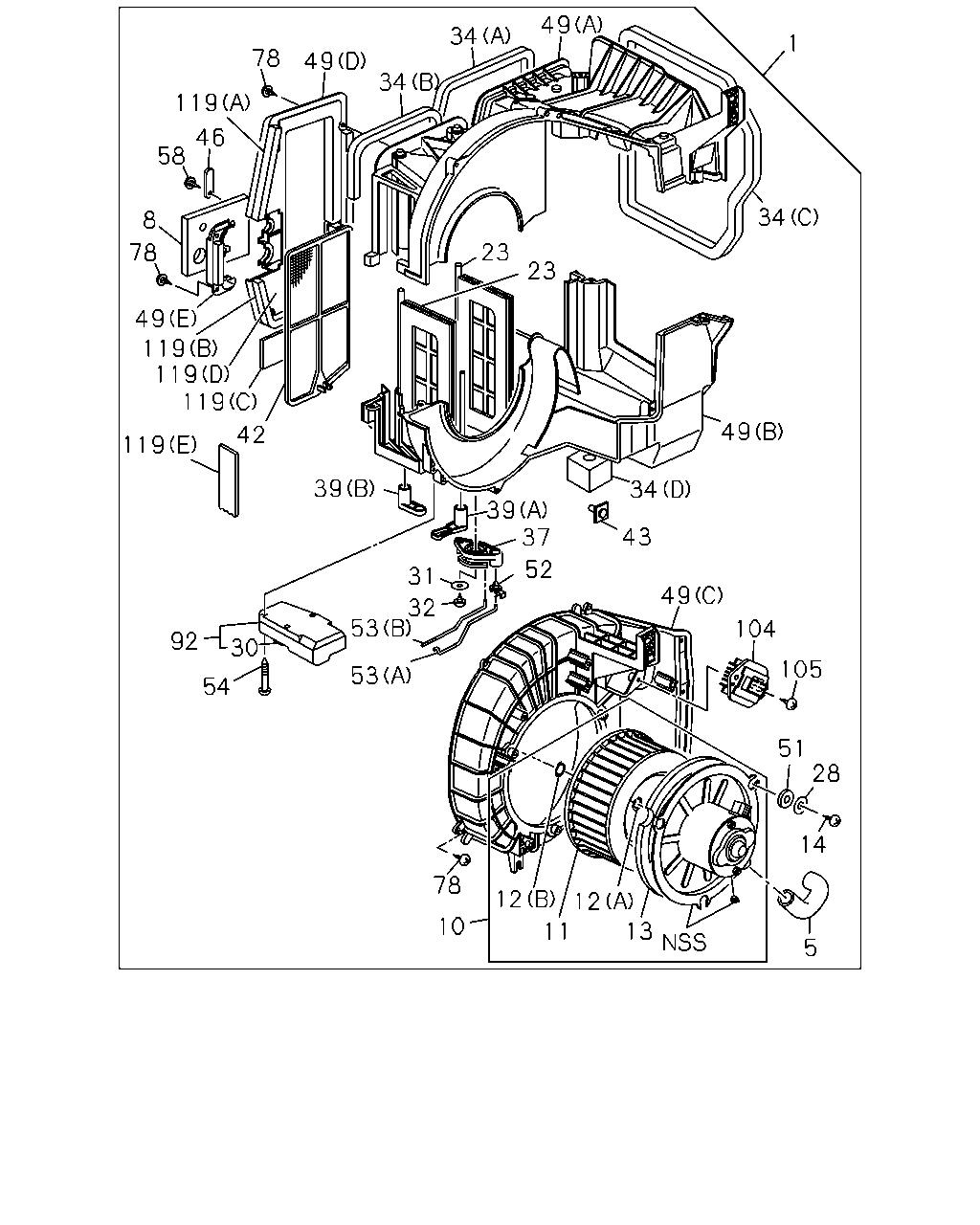

çizim 185069
49 34 1 78 49 34 119 46 58 34 8 23 78 23 49 119 119 119 49 42 119 39 34 39 37 43 52 31 49 32 53 104 92 30 105 53 54 51 28 14 78 12 12 10 13 11 5
BalonParca AdiParca NoAdetTipApplied Date
1 BLOWER ASM 1-83561-105-9 01 1 9708-0703
1 BLOWER ASM 8-98065-903-0 01 1 0704-
5 HOSE; AIR 1-83563-140-0 01 1 9708-
8 SEAL; BLOWER UNIT 1-83579-801-1 01 1 9708-
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-100-1 01 1 9708-9901
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-161-0 01 1 9902-
11 IMPELLER; FAN MOTOR 1-83579-635-0 01 1 9708-
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 9708-
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 9708-
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 9708-
14 SCREW; COVER TO CASE 8-97130-601-0 03 1 9708-9901
14 SCREW; COVER TO CASE
M5X20 		9-09829-324-1 03 1 9902-
23 SHUTTER; BLOWER UNIT 1-83579-637-0 02 1 9708-
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 9708-
30 LEVER; ACTUATOR 1-83564-345-1 01 1 9708-
31 WASHER; LEVER 1-83579-095-0 01 1 9708-
32 SCREW; LEVER 8-97130-601-0 01 1 9708-9901
32 SCREW; LEVER
M5X20 		9-09829-324-1 01 1 9902-
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 9708-
34 LINING; BLOWER UNIT
(B) 		1-83579-634-2 01 1 9708-
34 LINING; BLOWER UNIT
(C) 		1-83579-644-0 01 1 9708-
34 LINING; BLOWER UNIT
(D) 		1-83579-687-0 01 1 9708-9901
37 LEVER; MODE LEVER 1-83564-344-0 01 1 9708-
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-342-0 01 1 9708-
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-343-0 01 1 9708-
42 FILTER; BLOWER UNIT 1-83579-643-3 01 1 9708-
43 BOLT; CASE 1-83579-657-2 04 1 9708-
46 PLATE; BLOWER UNIT 1-83571-870-1 01 1 9708-
49 CASE; BLOWER UNIT
(C) 		1-83564-337-4 01 1 9708-
49 CASE; BLOWER UNIT
(E) 		1-83564-339-1 01 1 9708-
49 CASE; BLOWER UNIT
(A) 		1-83564-351-1 01 1 9708-
49 CASE; BLOWER UNIT
(B) 		1-83564-352-5 01 1 9708-
49 CASE; BLOWER UNIT
(D) 		1-83564-353-1 01 1 9708-
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 9708-
52 CLIP; LEVER TO CASE 1-83579-488-0 02 1 9708-9901
52 CLIP; LEVER TO CASE 8-94248-794-0 02 1 9902-
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-638-0 01 1 9708-
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 9708-
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 9708-
58 SCREW; PLATE TO CASE
M4X16 		8-94324-850-0 01 1 9708-
78 SCREW; CASE TO CASE
M4X16 		8-94324-850-0 17 1 9708-
92 ACTUATOR; BLOWER UNIT 1-83579-640-1 01 1 9708-
104 RESISTOR; BLOWER UNIT 1-83519-073-1 01 1 9708-0703
104 RESISTOR; BLOWER UNIT 1-83519-092-0 01 1 0704-
105 SCREW; RESISTOR
M4X16 		8-94324-850-0 02 1 9708-
119 LINING; CASE
(A) 		1-83579-670-1 01 1 9708-
119 LINING; CASE
(B) 		1-83579-671-1 01 1 9708-
119 LINING; CASE
(C) 		1-83579-672-0 01 1 9708-9901
119 LINING; CASE
(D) 		1-83579-673-1 01 1 9708-9901
119 LINING; CASE
(E) 		1-83579-839-0 02 1 9708-
