Sayfa 1-10 - Isuzu EPC

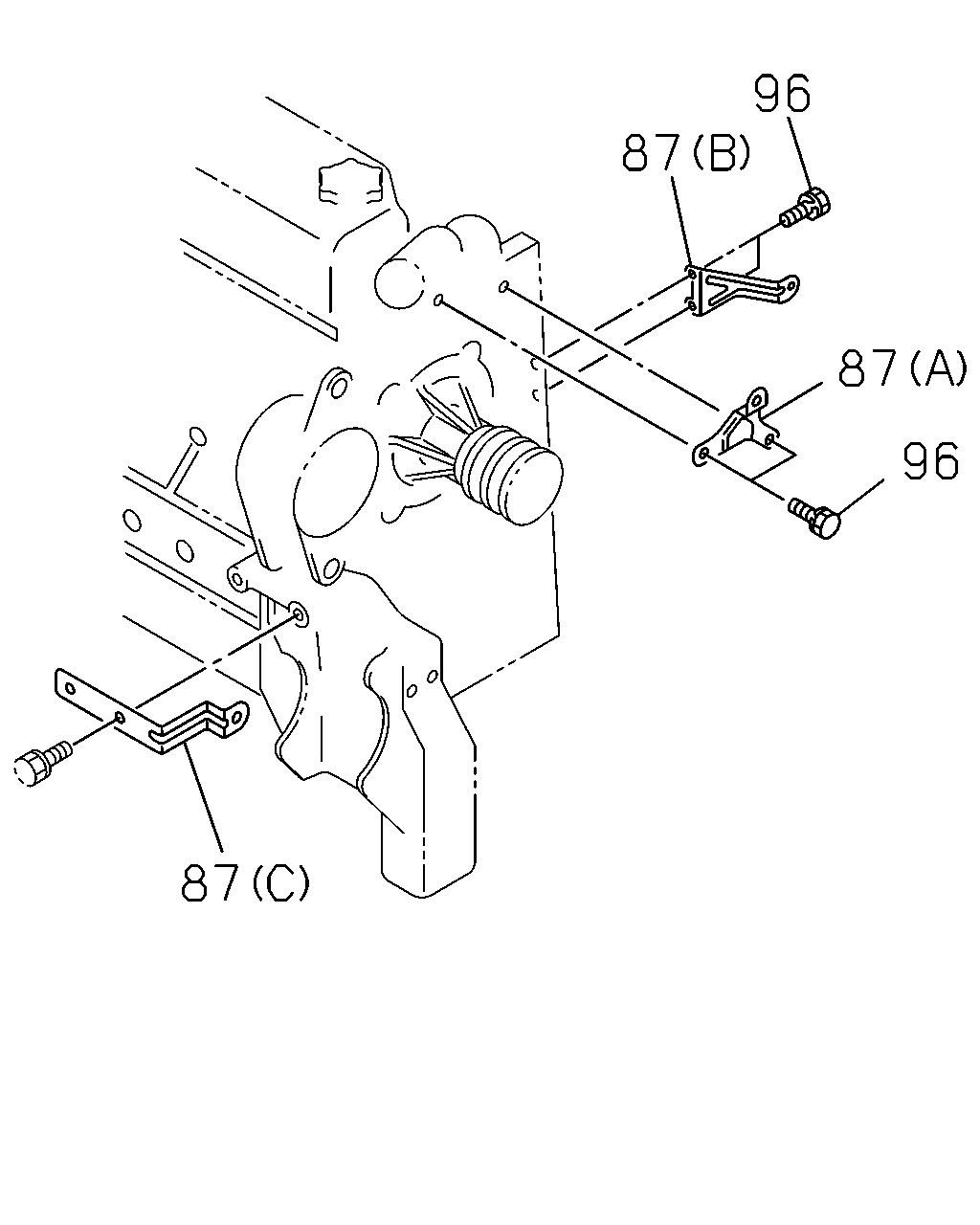

96 87 87 96 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
87	STAY; FAN GUIDE (A)	8-94396-496-1	01	1	9202-	●	●
87	STAY; FAN GUIDE (B)	8-94397-395-1	01	1	9202-	●	●
87	STAY; FAN GUIDE (C)	8-94399-434-1	01	1	9202-9410	●	●
87	STAY; FAN GUIDE (C)	8-94394-775-0	01	1	9411-	●	●
96	BOLT; STAY FIX M10X16 FLANGE	0-28181-016-0	02	1	9202-	●	●

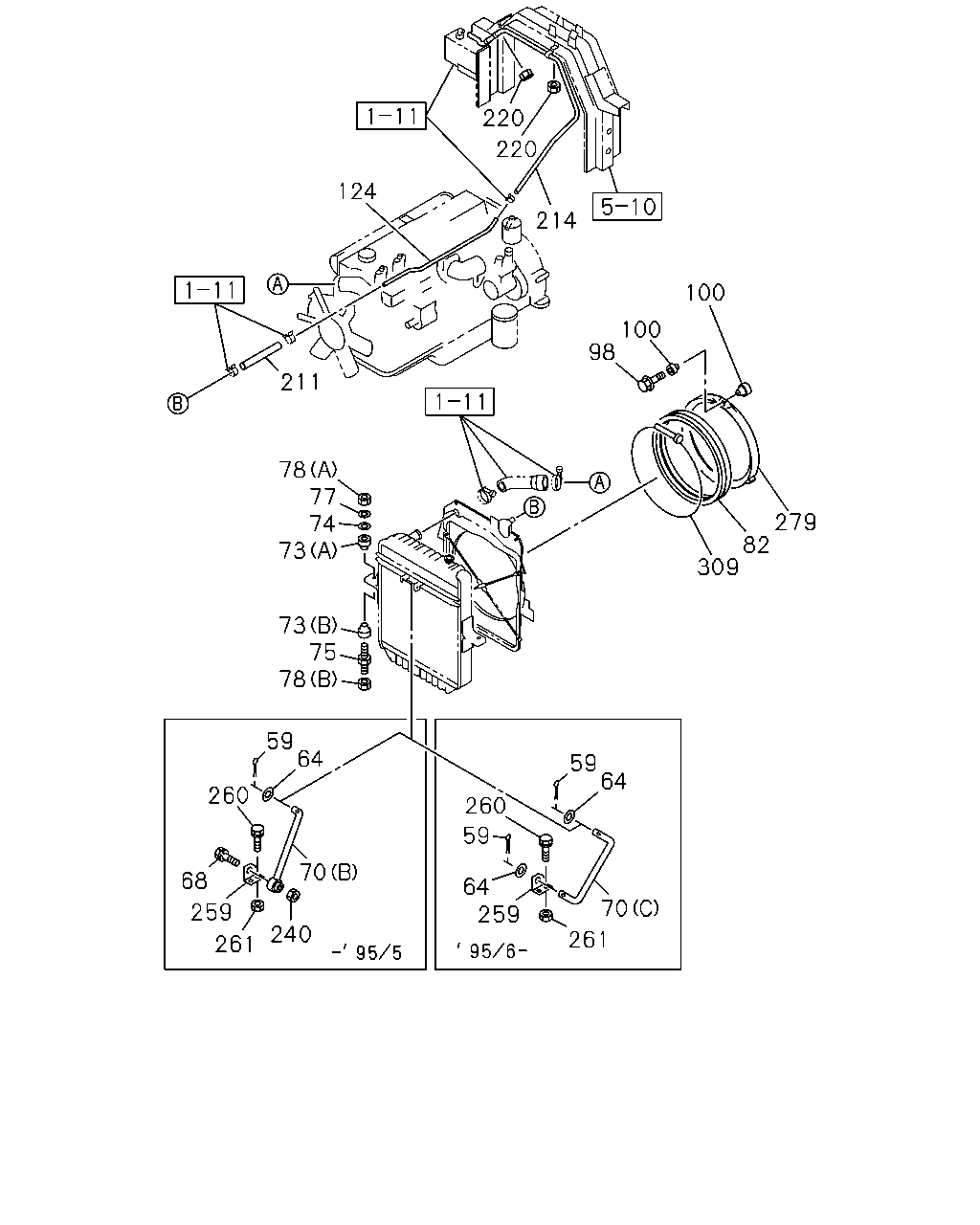

220 220 124 214 100 100 98 211 78 77 74 73 279 82 309 73 75 78 59 64 59 64 260 260 59 70 68 64 259 70 259 240 261 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
59	PIN; SNAP,STAY	1-09987-158-1	01	1	9202-9505	●	●
59	PIN; SNAP,STAY	1-09987-158-1	02	1	9506-	●	●
64	WASHER; STAY TO RAD ID=12.5	9-09160-512-0	01	1	9202-9505	●	●
64	WASHER; STAY TO RAD ID=12.5	9-09160-512-0	02	1	9506-	●	●
68	BOLT; STAY TO BRKT M8X40 FLANGE	0-28080-840-0	01	1	9202-9506	●	●
70	STAY; RAD (A)	1-21522-040-1	01	1	9202-	●	●
70	STAY; RAD (B)	1-21522-053-0	01	1	9202-9505	●	●
70	STAY; RAD (C)	1-21522-069-0	01	1	9506-	●	●
73	RUBBER; CUSHION,RAD MTG (A) T=14	1-21467-004-0	02	1	9202-	●	●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	02	1	9202-	●	●
74	WASHER; PL,CUSHION RUBBER ID=8.4 OD=22	1-09503-154-1	02	1	9202-	●	●
75	BOLT; CUSHION RUBBER,RAD MTG M12X26.5,M10X19 L=86.5	1-21466-007-2	02	1	9202-	●	●
77	WASHER; LK,CUSHION RUBBER ID=12.2	9-09150-512-0	02	1	9202-	●	●
78	NUT; CUSHION RUBBER (A) M10 FLANGE	5-09440-006-0	02	1	9202-	●	●
78	NUT; CUSHION RUBBER (B) M12	9-99110-512-0	02	1	9202-	●	●
82	COVER; FAN,RAD	1-21559-157-0	01	1	9202-	●	●
98	BOLT; RAD FAN GUIDE M8X28 FLANGE	0-28080-828-0	03	1	9202-9308	●	●
98	BOLT; RAD FAN GUIDE M8X25 FLANGE	0-28080-825-0	03	1	9309-	●	●
100	RUBBER; MTG	1-09337-006-0	06	1	9202-9307	●	●
100	RUBBER; MTG	1-09337-027-0	06	1	9308-	●	●
124	PIPE; WATER,TANK TO RAD	8-94396-222-1	01	1	9202-	●	●
211	HOSE; RAD TO PIPE L=200 SERVICED BY L=3000	0-03257-300-0	01	1	9202-	●	●
214	HOSE; PIPE TO RESERVE TANK STD CAB(FS*M) L=1050 SERVICED BY L=3000	0-03257-300-0	01	1	9202-	●
214	HOSE; PIPE TO RESERVE TANK L=1050 SERVICED BY L=3000	0-03257-300-0	01	1	9202-		●
214	HOSE; PIPE TO RESERVE TANK DOUBLE CAB(FS*W) L=1700 SERVICED BY L=3000	0-03257-300-0	01	1	9202-	●
220	NUT; CLIP STD CAB(FS*M) M8	9-09110-408-0	03	1	9202-	●
220	NUT; CLIP M8	9-09110-408-0	03	1	9202-		●
220	NUT; CLIP DOUBLE CAB(FS*W) M8	9-09110-408-0	02	1	9202-	●
240	NUT; STAY M8	9-09110-408-0	01	1	9202-9506	●	●
259	BRACKET; RAD STAY	1-21523-019-0	01	1	9202-9505	●	●
259	BRACKET; RAD STAY	1-21523-024-0	01	1	9506-	●	●
260	BOLT; BRKT M8X20 FLANGE	0-28010-820-0	02	1	9202-9204	●	●
260	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9205-	●	●
261	NUT; BRKT M8	9-09110-408-0	02	1	9202-	●	●
279	BELL MOUTH	8-94397-008-1	01	1	9202-	●	●
309	WIRE; FAN COVER	1-09704-088-0	01	1	9202-	●	●

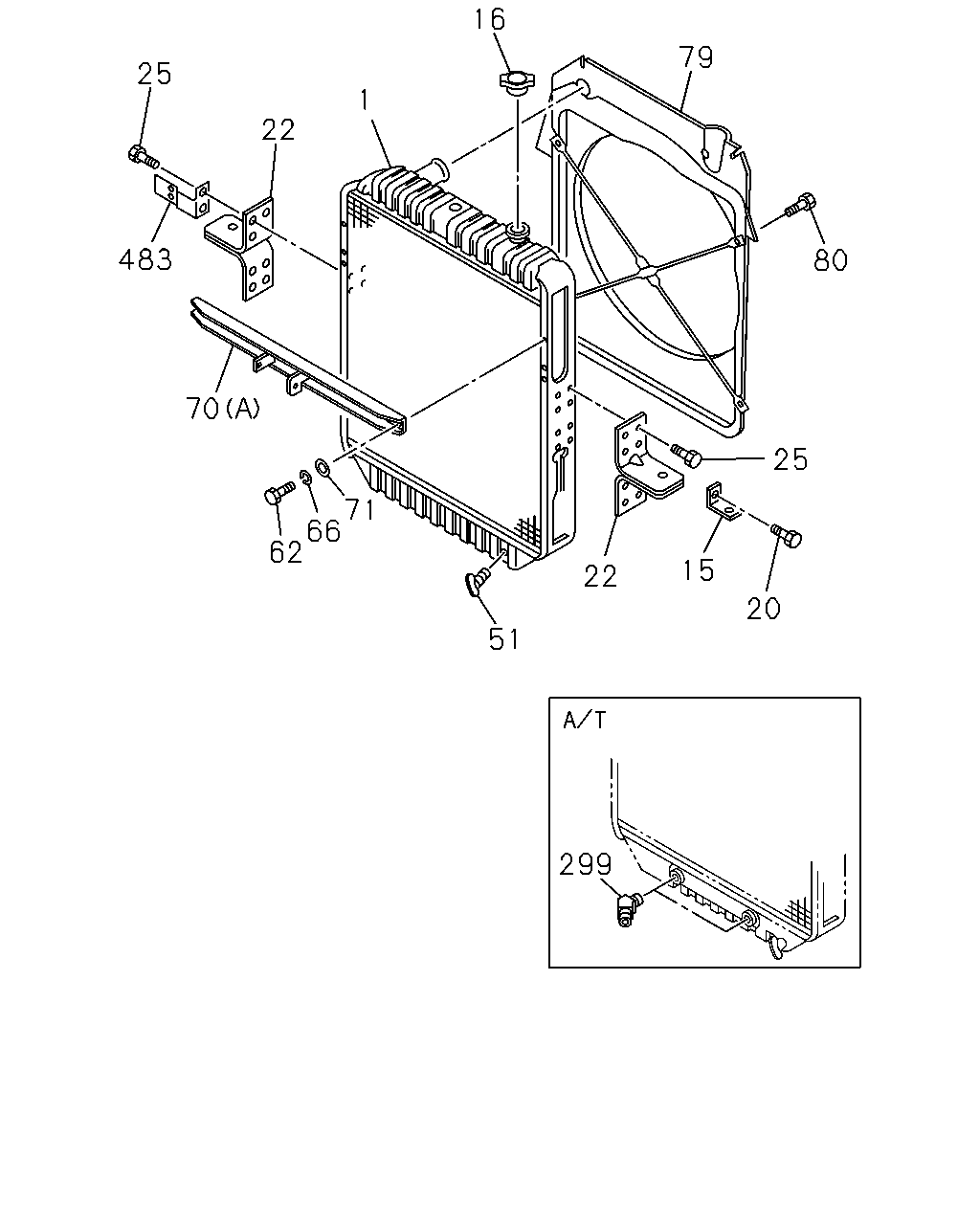

16 79 25 1 22 483 80 70 25 71 66 62 15 22 20 51 299

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	RADIATOR ASM A/T<X9D>	1-21410-627-2	01	1	9202-	●	●
1	RADIATOR ASM ISUZU M/T<X9A>	1-21410-677-1	01	1	9202-	●	●
15	BRACKET; PIPE,RAD A/T<X9D>	1-21464-266-0	01	1	9202-	●	●
16	CAP; RAD	1-21450-053-1	01	1	9202-	●	●
20	BOLT; PIPE BRKT,RAD A/T<X9D> M8X18 W/LK&PL WASHER	9-01960-818-0	01	1	9202-	●	●
22	BRACKET; RAD MTG A/T<X9D>	1-21464-308-0	01	1	9202-	●	●
22	BRACKET; RAD MTG A/T<X9D>	1-21464-307-0	01	1	9202-	●	●
22	BRACKET; RAD MTG ISUZU M/T<X9A>	1-21464-131-2	01	1	9202-	●	●
22	BRACKET; RAD MTG ISUZU M/T<X9A>	1-21464-130-2	01	1	9202-	●	●
25	BOLT; BRKT A/T<X9D> M8X16 W/LK&PL WASHER	9-01960-816-0	15	1	9202-	●	●
25	BOLT; BRKT ISUZU M/T<X9A> M8X16 W/LK WASHER	9-01900-816-0	16	1	9202-	●	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9202-	●	●
62	BOLT; STAY M10X16	9-02041-016-0	02	1	9202-	●	●
66	WASHER; LK,STAY ID=10.2	9-09150-510-0	02	1	9202-	●	●
70	STAY; RAD (A)	1-21522-040-1	01	1	9202-	●	●
70	STAY; RAD (B)	1-21522-053-0	01	1	9202-9505	●	●
70	STAY; RAD (C)	1-21522-069-0	01	1	9506-	●	●
71	WASHER; PL,STAY ID=10.5 OD=22	9-09160-610-0	02	1	9202-	●	●
79	GUIDE; FAN,RAD	1-21551-341-2	01	1	9202-	●	●
80	BOLT; FAN GUIDE M6X14	8-94114-024-0	04	1	9202-	●	●
299	NIPPLE; RAD A/T<X9D>	1-21439-045-0	02	1	9202-	●	●
483	BRACKET; SEAL	1-21559-343-0	01	1	9202-	●	●
