Isuzu WW
▶
TRUCKS
▶
FVM
▶
10753 - FVM(INDONESIA)WB5300
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶

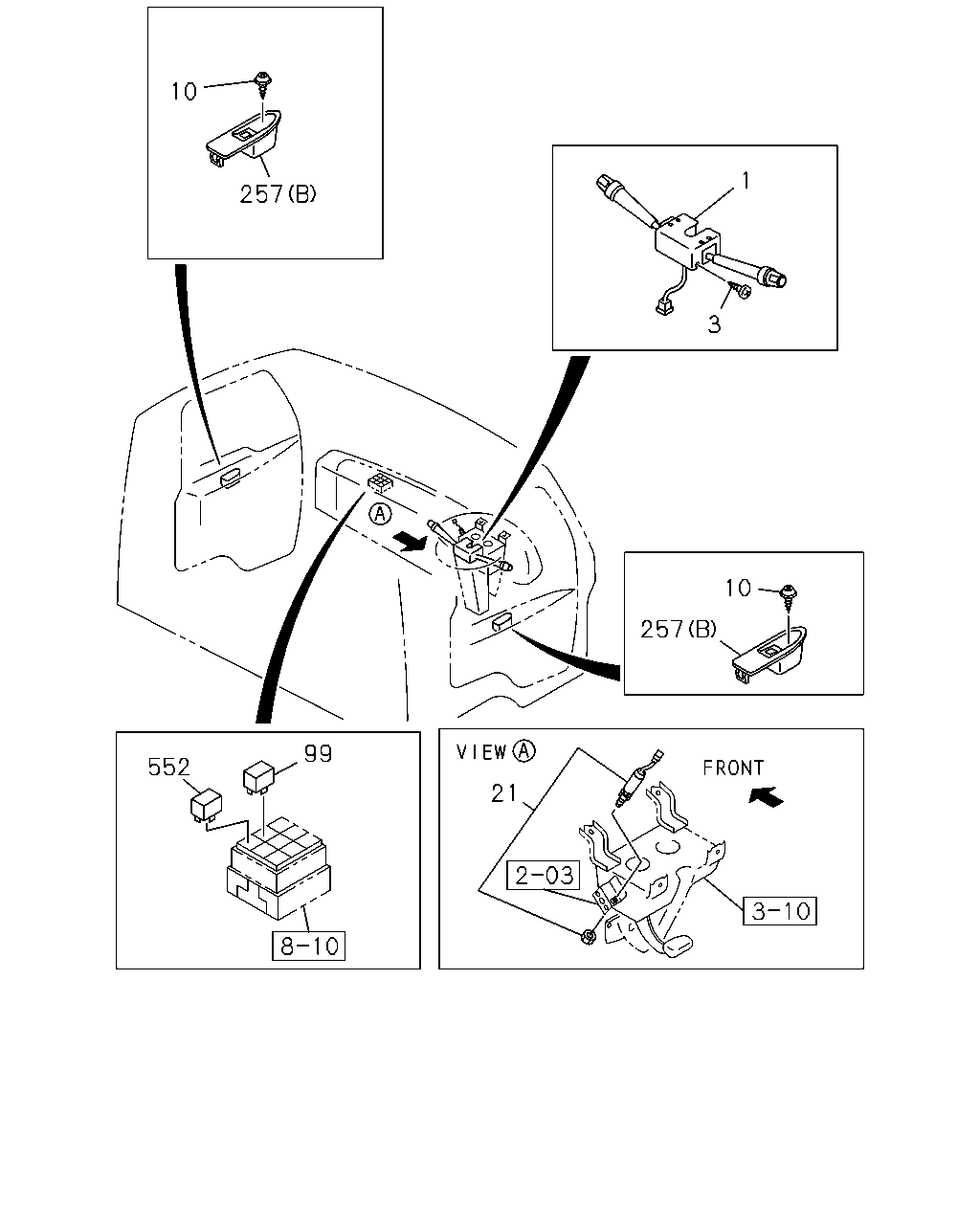

8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#64596) — 18 parça
◀
[825A] CAB SIDE (15 parça)
[825A] DOOR SIDE (3 parça)
▶
10
1
257
3
10
257
99
552
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SWITCH; COMB
1-82360-412-3
01
1
9708-0103
1
SWITCH; COMB
1-82360-619-0
01
1
0104-0312
1
SWITCH; COMB
1-82360-715-0
01
1
0401-
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74105-512-0
04
1
9708-0604
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74165-512-0
04
1
0605-
10
SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER IDN
0-74310-516-0
02
1
9708-0604
10
SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER IDN
0-74360-516-0
02
1
0605-
21
SWITCH; CLU
1-82380-114-3
01
1
9708-
99
RELAY; FOG LAMP
24V 12.5A MITUBA
8-97062-815-1
01
1
9708-0111
99
RELAY; FOG LAMP
24V 12.5A PANASONIC
8-97262-933-0
01
1
0112-
257
COVER; HOLE,SW
(A)
8-94229-914-1
02
1
9708-
257
COVER; HOLE,SW
(B)
1-82389-012-2
01
1
9708-
257
COVER; HOLE,SW
(B)
1-82389-011-2
01
1
9708-
552
RELAY; CIGAR LIGHTER
24V 12.5A MITUBA
8-97062-815-1
01
1
9708-0111
552
RELAY; CIGAR LIGHTER
24V 12.5A PANASONIC
8-97262-933-0
01
1
0112-
257
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
257
COVER; HOLE,SW
(A)
8-94229-914-1
02
1
9708-
257
COVER; HOLE,SW
(B)
1-82389-012-2
01
1
9708-
257
COVER; HOLE,SW
(B)
1-82389-011-2
01
1
9708-
