8-15 — FIXING PARTS; WIRING HARNESS (#64594) — 160 parça

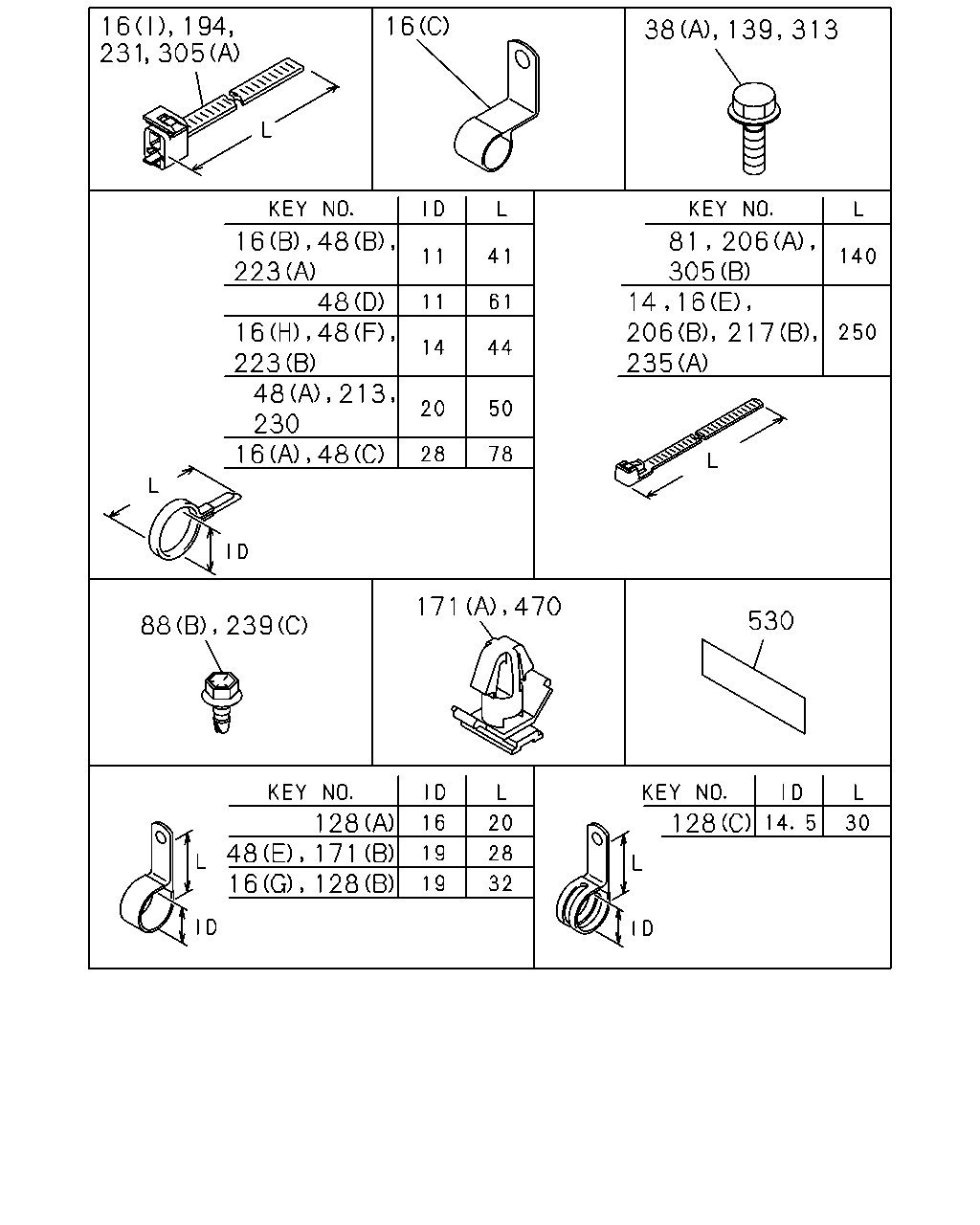

çizim 185060
16 194 16 38 223 48 223 230 305 235 171 470 530 128 171 128 128 48 16 231 305 139 313 16 48 81 206 16 48 14 16 206 217 88 239 16 48 48 213
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
EXC. FLUID DRIVE FAN<KA3>,TACHOMETER<UD7> L=250 IDN 		5-09707-030-1 01 1 0002-0304
14 CLIP; BAND,HARNESS
EXC. FLUID DRIVE FAN<KA3> L=250 IDN 		5-09707-030-1 01 1 0305-1205
14 CLIP; BAND,HARNESS
EXC. FLUID DRIVE FAN<KA3> L=250 		8-98216-430-0 01 1 1206-
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 9708-
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 9708-
16 CLIP; HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9708-
16 CLIP; HARNESS
(C) ID=19 H=33 L=45 		1-09701-045-0 01 1 9708-
16 CLIP; HARNESS
(F) L=300 		1-09707-001-1 01 1 9708-
16 CLIP; HARNESS
(I) L=180 		1-09707-162-1 02 1 9708-
16 CLIP; HARNESS
(E) L=250 IDN 		5-09707-030-1 01 1 9708-
16 CLIP; HARNESS
(G) ID=19 L=32 		9-09525-866-0 01 1 9708-0606
16 CLIP; HARNESS
(G) ID=19 L=32 		0-95235-866-0 01 1 0607-
16 CLIP; HARNESS
(H) ID=14 L=44 		9-09917-427-0 03 1 9708-
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 04 1 9708-0512
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28050-816-0 04 1 0601-
38 BOLT; CLIP,HARNESS
(A) M10X16 FLANGE 		0-28181-016-0 01 1 9708-0512
38 BOLT; CLIP,HARNESS
(A) M10X16 FLANGE 		0-28151-016-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9708-0512
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE IDN 		0-28650-820-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE IDN 		0-28680-825-0 01 1 9708-0512
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE IDN 		0-28650-825-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28680-830-0 02 1 9708-0512
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9708-0512
38 BOLT; CLIP,HARNESS
(B) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(C) M8X20 W/LK&PL WASHER IDN 		8-97086-825-0 01 1 9708-9903
38 BOLT; CLIP,HARNESS
(C) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9904-9909
38 BOLT; CLIP,HARNESS
(C) M8X20 W/LK&PL WASHER IDN 		8-97086-825-0 01 1 9910-1202
38 BOLT; CLIP,HARNESS
(C) M8X18.5 W/PL WASHER IDN 		8-98141-255-0 01 1 1203-
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 9708-
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 03 1 9708-
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 		1-09700-858-0 04 1 9708-
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		9-09525-856-0 01 1 9708-0606
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		0-95235-856-0 01 1 0607-
48 CLIP; FRAME HARNESS
(F) ID=14 L=44 		9-09917-427-0 01 1 9708-
48 CLIP; FRAME HARNESS
(F) ID=14 L=44 		9-09917-427-0 02 1 9708-
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 9708-
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 24 1 9708-
48 CLIP; FRAME HARNESS
(G) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 9708-
81 CLIP; HARNESS
L=140 IDN 		5-09707-031-1 02 1 9708-
88 BOLT; DOOR HARNESS EARTH
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9708-1007
88 BOLT; DOOR HARNESS EARTH
(B) M8X18.5 W/PL WASHER IDN 		8-98141-255-0 01 1 1008-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 9708-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=19 L=32 		9-09525-862-0 01 1 9708-0011
128 CLIP; COMB SW HARNESS,STRG COLUMN
(C) ID=14.5 L=30 		9-09916-893-1 01 1 0012-
139 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 9708-0512
139 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
171 CLIP; STARTER HARNESS
(A) OD=9 H=6 		1-09709-178-0 02 1 9708-
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		9-09525-856-0 04 1 9708-0606
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		0-95235-856-0 04 1 0607-
194 CLIP; BAND
L=180 		1-09707-162-1 03 1 9708-
206 CLIP; FUEL TANK HARNESS
(A) L=140 		5-09707-031-0 02 1 9708-9709
206 CLIP; FUEL TANK HARNESS
(B) L=250 IDN 		5-09707-030-1 01 1 9710-
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 03 1 9708-
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 9708-
217 CLIP; RR BODY HARNESS
(B) L=250 IDN 		5-09707-030-1 02 1 9708-
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 10 1 9708-
223 CLIP; AIR TANK HARNESS
(B) ID=14 L=44 		9-09917-427-0 02 1 9708-
230 CLIP; C/MBR HARNESS
ID=20 L=50 		9-09917-430-0 02 1 9708-
231 CLIP; BAND,OIL PRESS
L=180 		1-09707-162-1 01 1 9708-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) ID=6 H=25 L=21 		1-09700-432-0 01 1 9708-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) L=250 IDN 		5-09707-030-1 01 1 9708-
239 BOLT; GRAND
(A) M5X8 		0-20800-508-0 01 1 9708-
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 9708-1007
239 BOLT; GRAND
(C) M6X14 W/PL WASHER IDN 		8-98164-836-0 02 1 1008-
239 BOLT; GRAND
(B) M8X20 W/LK&PL WASHER IDN 		8-97086-825-0 01 1 9708-9903
239 BOLT; GRAND
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9904-1202
239 BOLT; GRAND
(B) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1203-
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-1 01 1 9708-
305 CLIP; ENG HARNESS
EXC. TACHOMETER<UD7> (B) L=140 IDN 		5-09707-031-1 01 1 9708-
313 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 9708-0512
313 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 9708-
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 0102-

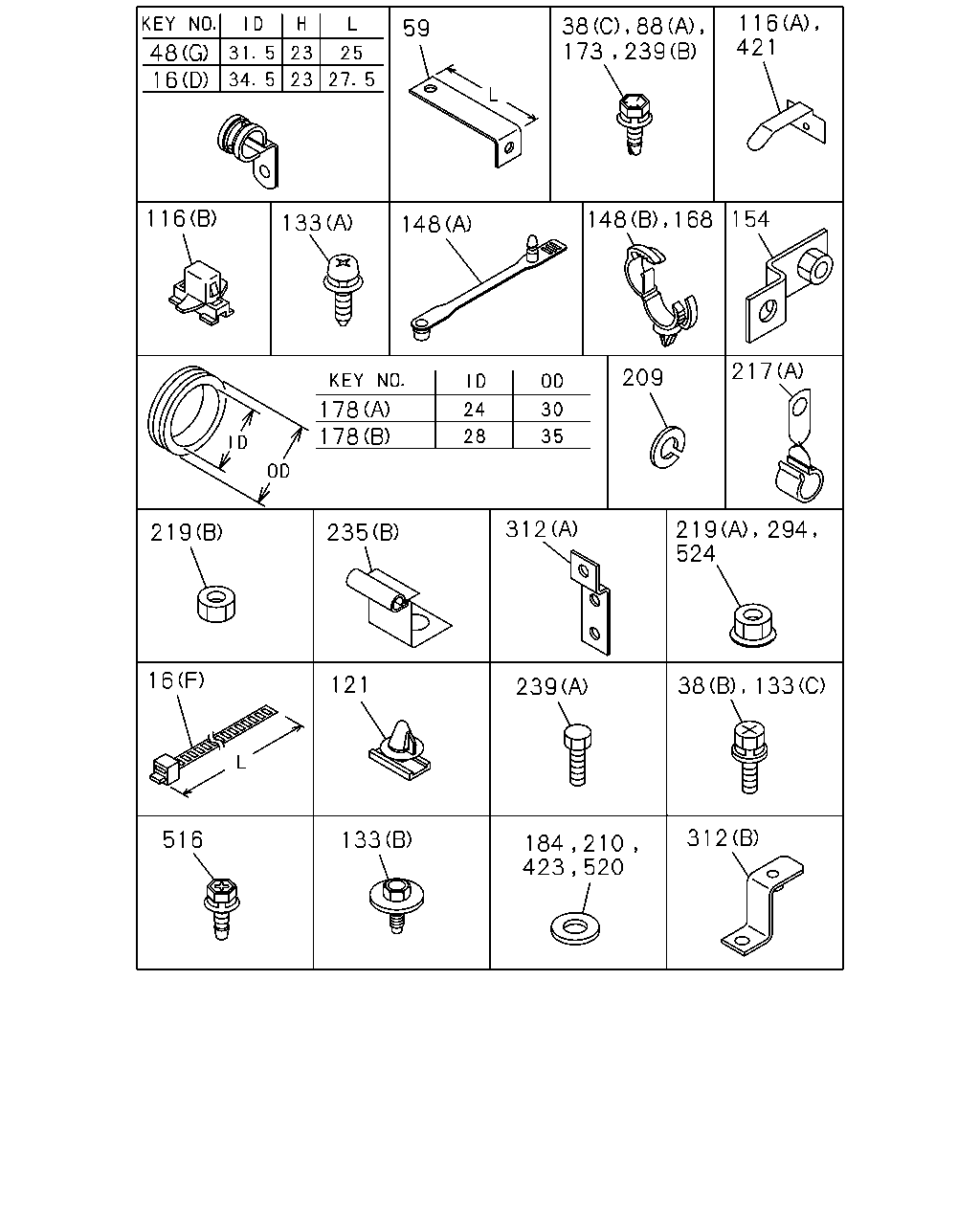

çizim 185064
116 421 59 48 16 116 154 148 168 133 148 217 209 178 178 312 219 524 294 219 235 16 121 133 38 239 312 516 133 38 88 173 239 184 210 423 520
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 9708-
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 9708-
16 CLIP; HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9708-
16 CLIP; HARNESS
(C) ID=19 H=33 L=45 		1-09701-045-0 01 1 9708-
16 CLIP; HARNESS
(F) L=300 		1-09707-001-1 01 1 9708-
16 CLIP; HARNESS
(I) L=180 		1-09707-162-1 02 1 9708-
16 CLIP; HARNESS
(E) L=250 IDN 		5-09707-030-1 01 1 9708-
16 CLIP; HARNESS
(G) ID=19 L=32 		9-09525-866-0 01 1 9708-0606
16 CLIP; HARNESS
(G) ID=19 L=32 		0-95235-866-0 01 1 0607-
16 CLIP; HARNESS
(H) ID=14 L=44 		9-09917-427-0 03 1 9708-
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 04 1 9708-0512
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28050-816-0 04 1 0601-
38 BOLT; CLIP,HARNESS
(A) M10X16 FLANGE 		0-28181-016-0 01 1 9708-0512
38 BOLT; CLIP,HARNESS
(A) M10X16 FLANGE 		0-28151-016-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9708-0512
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE IDN 		0-28650-820-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE IDN 		0-28680-825-0 01 1 9708-0512
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE IDN 		0-28650-825-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28680-830-0 02 1 9708-0512
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9708-0512
38 BOLT; CLIP,HARNESS
(B) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(C) M8X20 W/LK&PL WASHER IDN 		8-97086-825-0 01 1 9708-9903
38 BOLT; CLIP,HARNESS
(C) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9904-9909
38 BOLT; CLIP,HARNESS
(C) M8X20 W/LK&PL WASHER IDN 		8-97086-825-0 01 1 9910-1202
38 BOLT; CLIP,HARNESS
(C) M8X18.5 W/PL WASHER IDN 		8-98141-255-0 01 1 1203-
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 9708-
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 03 1 9708-
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 		1-09700-858-0 04 1 9708-
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		9-09525-856-0 01 1 9708-0606
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		0-95235-856-0 01 1 0607-
48 CLIP; FRAME HARNESS
(F) ID=14 L=44 		9-09917-427-0 01 1 9708-
48 CLIP; FRAME HARNESS
(F) ID=14 L=44 		9-09917-427-0 02 1 9708-
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 9708-
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 24 1 9708-
48 CLIP; FRAME HARNESS
(G) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 9708-
59 BRACKET; FRAME HARNESS
L=95 		1-82699-085-0 01 1 9708-
88 BOLT; DOOR HARNESS EARTH
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9708-1007
88 BOLT; DOOR HARNESS EARTH
(B) M8X18.5 W/PL WASHER IDN 		8-98141-255-0 01 1 1008-
116 CLIP; ROOF HARNESS
(A) L=20 SET=10 PIECE 		1-09987-246-2 02 1 9708-0009
116 CLIP; ROOF HARNESS
(A) L=20 SET=10 PIECE 		1-09987-246-2 03 1 0010-
116 CLIP; ROOF HARNESS
(B) L=15 		8-94315-436-1 01 1 9708-
121 CLIP; FACIA HARNESS
OD=7 H=1.2 		8-94364-750-0 02 1 9708-
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER IDN 		8-94279-402-0 01 1 9708-0110
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 		8-94232-611-0 01 1 9708-
148 CLIP; BAND,HEADLAMP HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 01 1 9708-
154 BRACKET; STARTER EARTH CABLE
EXC. FLUID DRIVE FAN<KA3> 		1-47465-518-0 01 1 9708-
168 CLIP; DASH HARNESS
ID=6 & 10-13 		8-97069-515-0 06 1 9708-
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 9708-
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 02 1 9708-
178 GROMMET; HARNESS
(A) W/SLIT ID=24 OD=30 T=22 		1-09332-104-0 01 1 9708-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 9904-
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 9708-0603
209 WASHER; LK,GEN,EARTH
ID=5.1 		0-91510-505-0 01 1 0604-
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 9904-
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 9708-
217 CLIP; RR BODY HARNESS
(B) L=250 IDN 		5-09707-030-1 02 1 9708-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 9708-0602
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0603-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 9708-0602
219 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0603-
219 NUT
(B) M8 		9-09110-408-0 02 1 9708-0512
219 NUT
(B) M8 IDN 		0-91110-508-0 02 1 0601-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) ID=6 H=25 L=21 		1-09700-432-0 01 1 9708-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) L=250 IDN 		5-09707-030-1 01 1 9708-
239 BOLT; GRAND
(A) M5X8 		0-20800-508-0 01 1 9708-
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 9708-1007
239 BOLT; GRAND
(C) M6X14 W/PL WASHER IDN 		8-98164-836-0 02 1 1008-
239 BOLT; GRAND
(B) M8X20 W/LK&PL WASHER IDN 		8-97086-825-0 01 1 9708-9903
239 BOLT; GRAND
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9904-1202
239 BOLT; GRAND
(B) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1203-
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 9708-0602
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 9708-0602
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-
312 BRACKET; CLIP HARNESS
(A) 		1-82699-588-0 01 1 9708-0302
312 BRACKET; CLIP HARNESS
(B) 		1-47478-981-0 01 1 0303-
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 07 1 9708-0101
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 01 1 0102-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 01 1 9904-9909
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9708-
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 9904-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 9708-0602
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0603-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
