0-52A — OIL AND VACUUM PIPING; ENGINE (#6459) — 140 parça

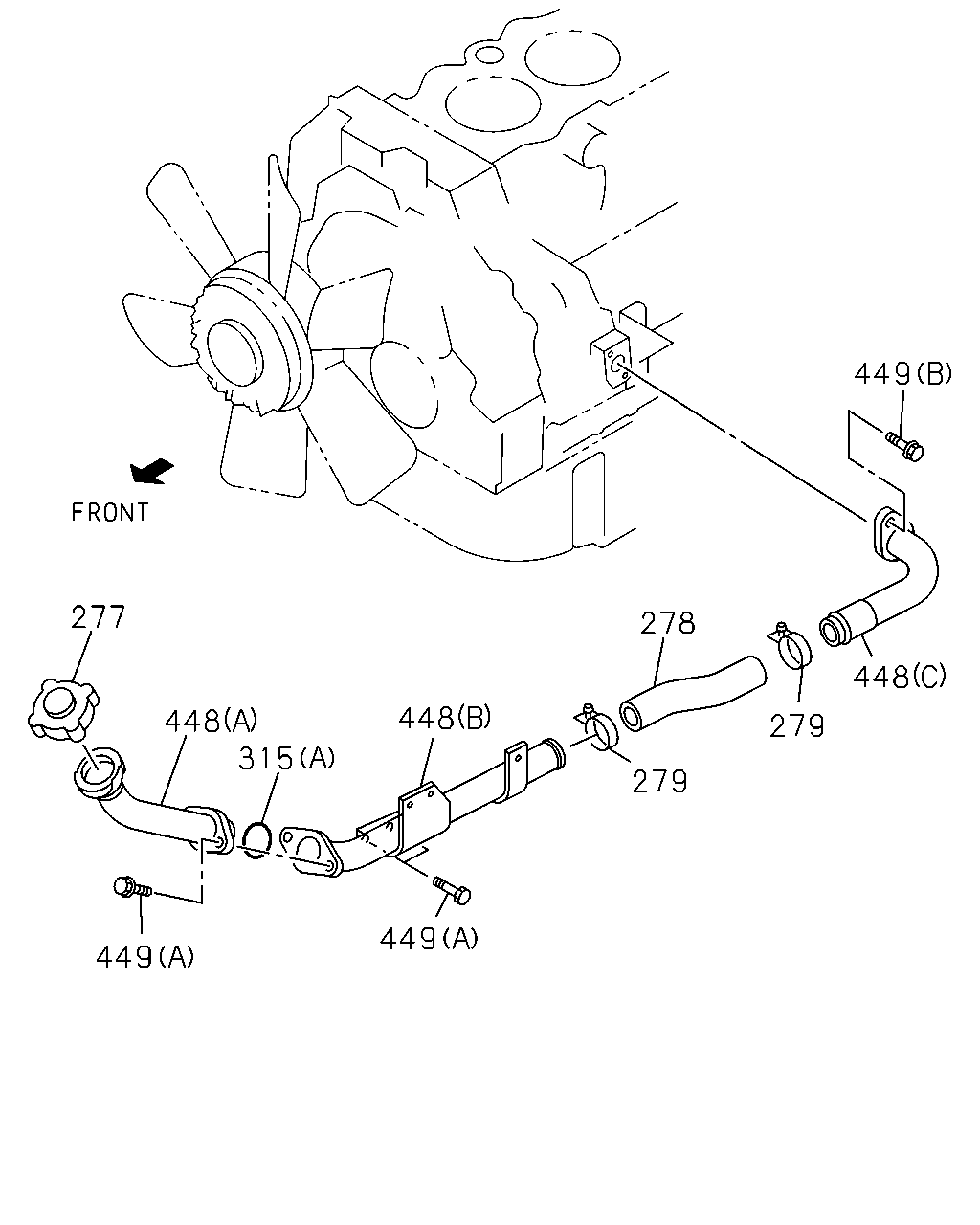

449 277 278 448 448 448 279 315 279 449 449

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
277	CAP; OIL FILLER	1-11750-020-0	01	1	9601-9610	●
277	CAP; OIL FILLER	1-11750-020-0	01	1	9611-9904	●	●
277	CAP; OIL FILLER	1-11750-020-0	01	1	9905-		●	●	●
278	HOSE; RUBBER,OIL FILLER	1-11749-148-1	01	1	9601-9610	●
278	HOSE; RUBBER,OIL FILLER	1-11749-148-1	01	1	9611-9904	●	●
278	HOSE; RUBBER,OIL FILLER	1-11749-148-1	01	1	9905-		●	●	●
279	CLIP; RUBBER HOSE ID=48	9-09915-512-1	02	1	9601-9610	●
279	CLIP; RUBBER HOSE ID=48	9-09915-512-1	02	1	9611-9904	●	●
279	CLIP; RUBBER HOSE ID=48	9-09915-512-1	02	1	9905-		●	●	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=38.7	1-09623-299-0	02	1	9601-9610	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=38.7	1-09623-299-0	02	1	9611-9705	●	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-299-0	01	1	9811-9904	●	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=38.7	1-09623-299-0	01	1	9811-9904	●	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-299-0	01	1	9905-		●	●	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=38.7	1-09623-299-0	01	1	9905-		●	●	●
448	FILLER; OIL (C)	1-11740-227-1	01	1	9601-9610	●
448	FILLER; OIL (C)	1-11740-227-1	01	1	9611-9904	●	●
448	FILLER; OIL (C)	1-11740-227-1	01	1	9905-		●	●	●
448	FILLER; OIL (A)	1-11741-175-3	01	1	9601-9610	●
448	FILLER; OIL (A)	1-11741-175-3	01	1	9611-9904	●	●
448	FILLER; OIL (A)	1-11741-175-4	01	1	9905-		●	●	●
448	FILLER; OIL (B)	1-11741-178-2	01	1	9601-9610	●
448	FILLER; OIL (B)	1-11741-178-2	01	1	9611-9904	●	●
448	FILLER; OIL ELECTRONIC GOV RED3(KG5) (B)	1-11741-178-2	01	1	9905-9912		●
448	FILLER; OIL (B)	1-11741-178-2	01	1	9905-9912			●	●
448	FILLER; OIL (B)	1-11741-178-2	01	1	0001-		●	●	●
448	FILLER; OIL EXC. ELECTRONIC GOV RED3(KG5) (B)	1-11741-210-1	01	1	9905-9912		●
449	BOLT; OIL FILLER (B) M8X16 FLANGE	0-28080-816-0	02	1	9601-9610	●
449	BOLT; OIL FILLER (B) M8X16 FLANGE	0-28080-816-0	02	1	9611-9904	●	●
449	BOLT; OIL FILLER (B) M8X16 FLANGE	0-28080-816-0	02	1	9905-		●	●	●
449	BOLT; OIL FILLER (A) M8X20 FLANGE	0-28080-820-0	04	1	9601-9606	●
449	BOLT; OIL FILLER (A) M8X20 FLANGE	0-28680-820-0	04	1	9607-9609	●	●
449	BOLT; OIL FILLER (A) M8X20 FLANGE	0-28680-820-0	02	1	9610-9904	●	●
449	BOLT; OIL FILLER (A) M8X20 FLANGE	0-28680-820-0	02	1	9905-		●	●	●
449	BOLT; OIL FILLER (A) M8X25 FLANGE	0-28680-825-0	02	1	9601-9610	●
449	BOLT; OIL FILLER (A) M8X25 FLANGE	0-28680-825-0	02	1	9611-9904	●	●
449	BOLT; OIL FILLER (A) M8X25 FLANGE	0-28680-825-0	02	1	9905-		●	●	●

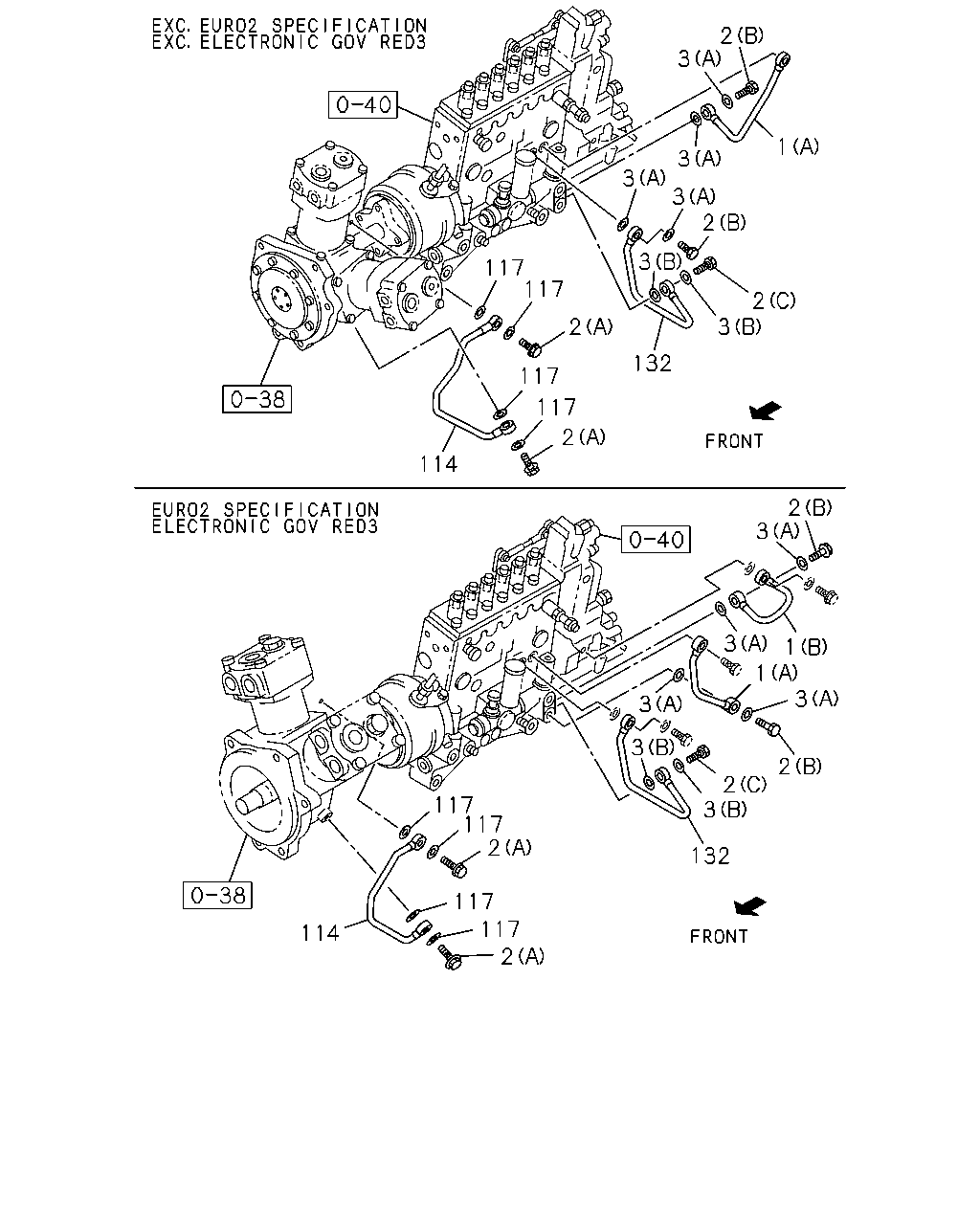

2 3 1 3 3 3 2 3 117 117 2 3 2 132 117 117 2 114 2 3 3 1 1 3 3 3 2 117 117 2 2 3 132 117 117 2 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; OIL,INJ PUMP TO C/BL (A)	1-13313-645-0	01	1	9601-9610	●
1	PIPE; OIL,INJ PUMP TO C/BL EXC. EURO2 SPECIFICATION<THN> (A)	1-13313-645-0	01	1	9611-9904	●
1	PIPE; OIL,INJ PUMP TO C/BL (A)	1-13313-645-0	01	1	9611-9904		●
1	PIPE; OIL,INJ PUMP TO C/BL RLD GOVERNOR(SD7) (A)	1-13313-645-0	01	1	9905-		●
1	PIPE; OIL,INJ PUMP TO C/BL (A)	1-13313-645-0	01	1	9905-			●	●
1	PIPE; OIL,INJ PUMP TO C/BL EURO2 SPECIFICATION<THN> (A)	1-13313-449-0	01	1	9611-9904	●
1	PIPE; OIL,INJ PUMP TO C/BL ELECTRONIC GOV RED3(KG5) (A)	1-13313-449-0	01	1	9905-		●
1	PIPE; OIL,INJ PUMP TO C/BL EURO2 SPECIFICATION<THN> (B)	1-13313-450-0	01	1	9611-9904	●
1	PIPE; OIL,INJ PUMP TO C/BL ELECTRONIC GOV RED3(KG5) (B)	1-13313-450-0	01	1	9905-		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9601-9610	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9611-9904	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9905-		●	●	●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	9601-9610	●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	9611-9904	●	●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	9905-		●	●	●
2	BOLT; EYE,OIL PIPE (C) M18X26	1-09675-120-0	01	1	9601-9610	●
2	BOLT; EYE,OIL PIPE (C) M18X26	1-09675-120-0	01	1	9611-9904	●	●
2	BOLT; EYE,OIL PIPE (C) M18X26	1-09675-120-0	01	1	9905-		●	●	●
2	BOLT; EYE,OIL PIPE (D) M12X27 FLANGE	1-09675-160-0	01	1	9601-9610	●
2	BOLT; EYE,OIL PIPE (D) M12X27 FLANGE	1-09675-160-0	01	1	9611-9904	●	●
2	BOLT; EYE,OIL PIPE (D) M12X27 FLANGE	1-09675-160-0	01	1	9905-		●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	9601-9602	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	9603-9610	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	9611-9904	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	9905-		●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	9601-9610	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	9611-9904	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	9905-		●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=18.2 OD=24.4	1-09630-087-0	02	1	9601-9610	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=18.2 OD=24.4	1-09630-087-0	02	1	9611-9904	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=18.2 OD=24.4	1-09630-087-0	02	1	9905-		●	●	●
114	PIPE ASM; OIL,BODY	1-13313-643-0	01	1	9601-9610	●
114	PIPE ASM; OIL,BODY	1-13313-643-0	01	1	9611-9904	●	●
114	PIPE ASM; OIL,BODY	1-13313-643-0	01	1	9905-		●	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	9601-9610	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	9611-9904	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	9905-		●	●	●
132	PIPE ASM; OIL,INJ PUMP FEED	1-13313-451-0	01	1	9601-9606	●
132	PIPE ASM; OIL,INJ PUMP FEED	1-13313-665-0	01	1	9607-9610	●
132	PIPE ASM; OIL,INJ PUMP FEED	1-13313-665-0	01	1	9611-9904	●	●
132	PIPE ASM; OIL,INJ PUMP FEED	1-13313-665-0	01	1	9905-		●	●	●

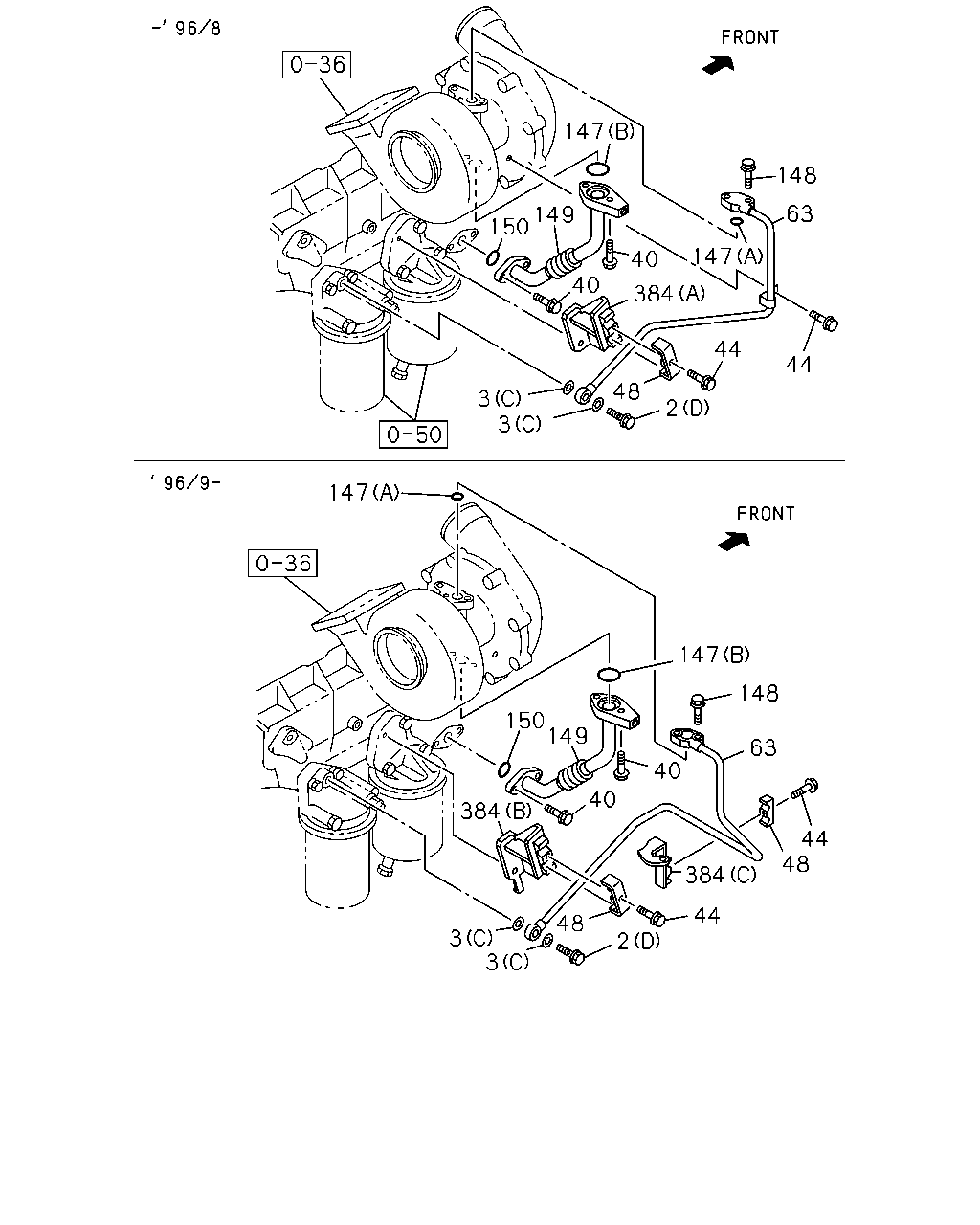

147 148 63 149 150 147 40 40 384 44 44 48 3 3 2 147 147 148 150 149 63 40 384 40 44 48 384 44 48 3 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9601-9610	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9611-9904	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9905-		●	●	●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	9601-9610	●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	9611-9904	●	●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	9905-		●	●	●
2	BOLT; EYE,OIL PIPE (C) M18X26	1-09675-120-0	01	1	9601-9610	●
2	BOLT; EYE,OIL PIPE (C) M18X26	1-09675-120-0	01	1	9611-9904	●	●
2	BOLT; EYE,OIL PIPE (C) M18X26	1-09675-120-0	01	1	9905-		●	●	●
2	BOLT; EYE,OIL PIPE (D) M12X27 FLANGE	1-09675-160-0	01	1	9601-9610	●
2	BOLT; EYE,OIL PIPE (D) M12X27 FLANGE	1-09675-160-0	01	1	9611-9904	●	●
2	BOLT; EYE,OIL PIPE (D) M12X27 FLANGE	1-09675-160-0	01	1	9905-		●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	9601-9602	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	9603-9610	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	9611-9904	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	9905-		●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	9601-9610	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	9611-9904	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	9905-		●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=18.2 OD=24.4	1-09630-087-0	02	1	9601-9610	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=18.2 OD=24.4	1-09630-087-0	02	1	9611-9904	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=18.2 OD=24.4	1-09630-087-0	02	1	9905-		●	●	●
40	BOLT; OIL PIPE M10X25 FLANGE	0-28181-025-0	04	1	9601-9608	●
40	BOLT; OIL PIPE M10X30 FLANGE	0-28181-030-0	04	1	9609-9610	●
40	BOLT; OIL PIPE M10X30 FLANGE	0-28181-030-0	04	1	9611-9904	●	●
40	BOLT; OIL PIPE M10X30 FLANGE	0-28181-030-0	04	1	9905-		●	●	●
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE	0-28080-630-0	01	1	9601-9608	●
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE	0-28080-630-0	02	1	9609-9610	●
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE	0-28080-630-0	02	1	9611-9904	●	●
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE	0-28080-630-0	02	1	9905-		●	●	●
44	BOLT; CLIP,OIL PIPE M8X14 FLANGE	0-28080-814-0	01	1	9601-9608	●
48	CLIP; OIL PIPE ID=9 & 9 L=25	1-09701-212-0	01	1	9601-9608	●
48	CLIP; OIL PIPE ID=9 & 9 L=25	1-09701-212-0	02	1	9609-9610	●
48	CLIP; OIL PIPE ID=9 & 9 L=25	1-09701-212-0	02	1	9611-9904	●	●
48	CLIP; OIL PIPE ID=9 & 9 L=25	1-09701-212-2	02	1	9905-		●	●	●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-534-0	01	1	9601-9608	●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-704-0	01	1	9609-9610	●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-704-0	01	1	9611-9810	●	●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-866-0	01	1	9811-9904	●	●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-866-0	01	1	9905-		●	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.8	1-09623-274-0	01	1	9601-9610	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.8	1-09623-274-0	01	1	9611-9904	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.8	1-09623-274-0	01	1	9905-		●	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=27.7	1-09623-450-0	01	1	9601-9610	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=27.7	1-09623-450-0	01	1	9611-9904	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=27.7	1-09623-450-0	01	1	9905-		●	●	●
148	BOLT; FLANGE & BRKT M10X35 FLANGE	0-28181-035-0	02	1	9601-9610	●
148	BOLT; FLANGE & BRKT M10X35 FLANGE	0-28181-035-0	02	1	9611-9904	●	●
148	BOLT; FLANGE & BRKT M10X35 FLANGE	0-28181-035-0	02	1	9905-		●	●	●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-319-0	01	1	9601-9610	●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-319-0	01	1	9611-9904	●	●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-319-0	01	1	9905-		●	●	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	01	1	9601-9610	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	01	1	9611-9904	●	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	01	1	9905-		●	●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (A)	1-13345-185-0	01	1	9601-9608	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (B)	1-13345-191-0	01	1	9609-9610	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (B)	1-13345-191-0	01	1	9611-9904	●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (B)	1-13345-191-0	01	1	9905-		●	●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (C)	1-13345-192-0	01	1	9609-9610	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (C)	1-13345-192-0	01	1	9611-9904	●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (C)	1-13345-192-0	01	1	9905-		●	●	●
