7-43 — SUN VISOR AND ASSIST GRIP
(#64585) — 61 parça
◀

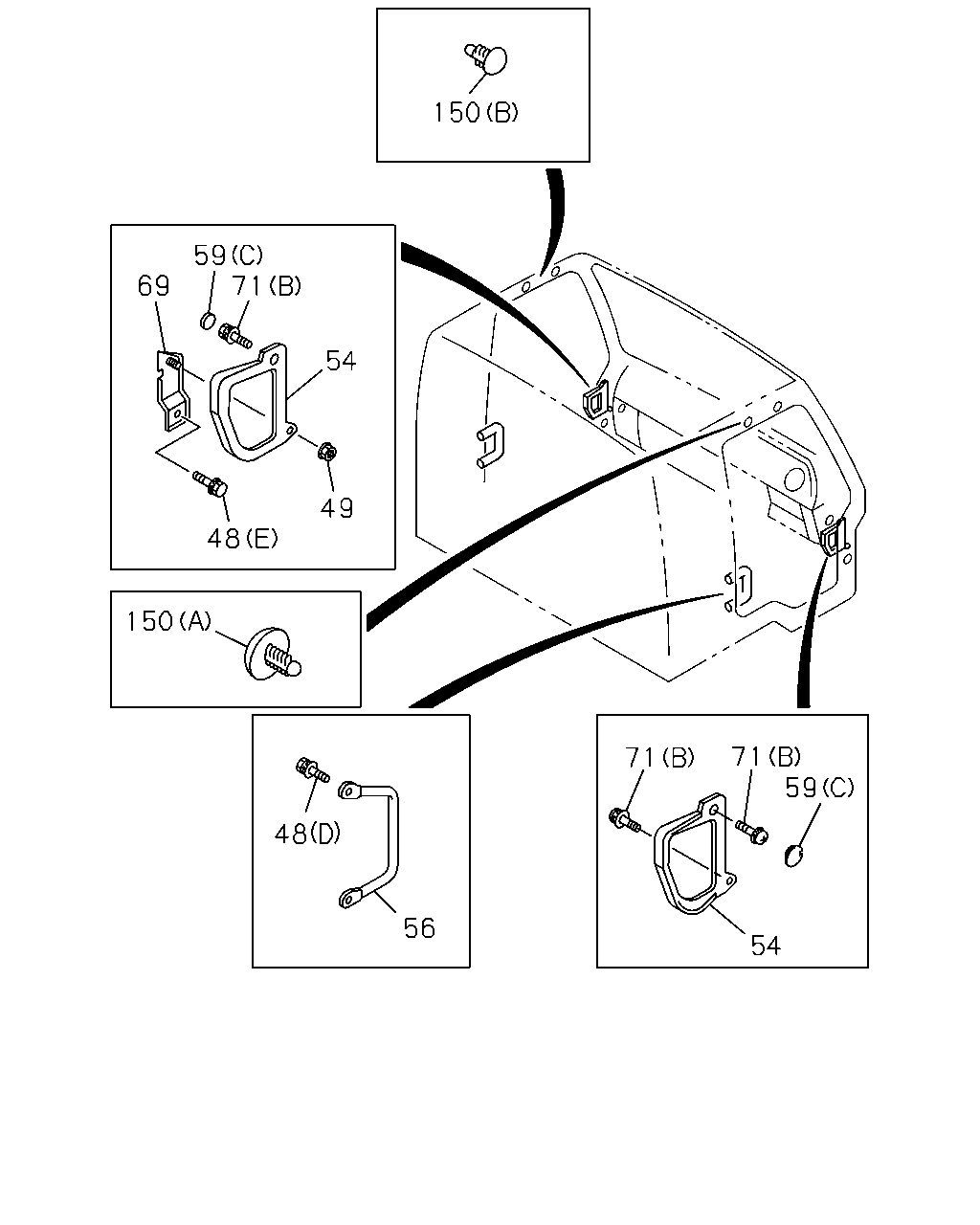

[743A] ASSIST GRIP;CAB OUTSIDE (16 parça)

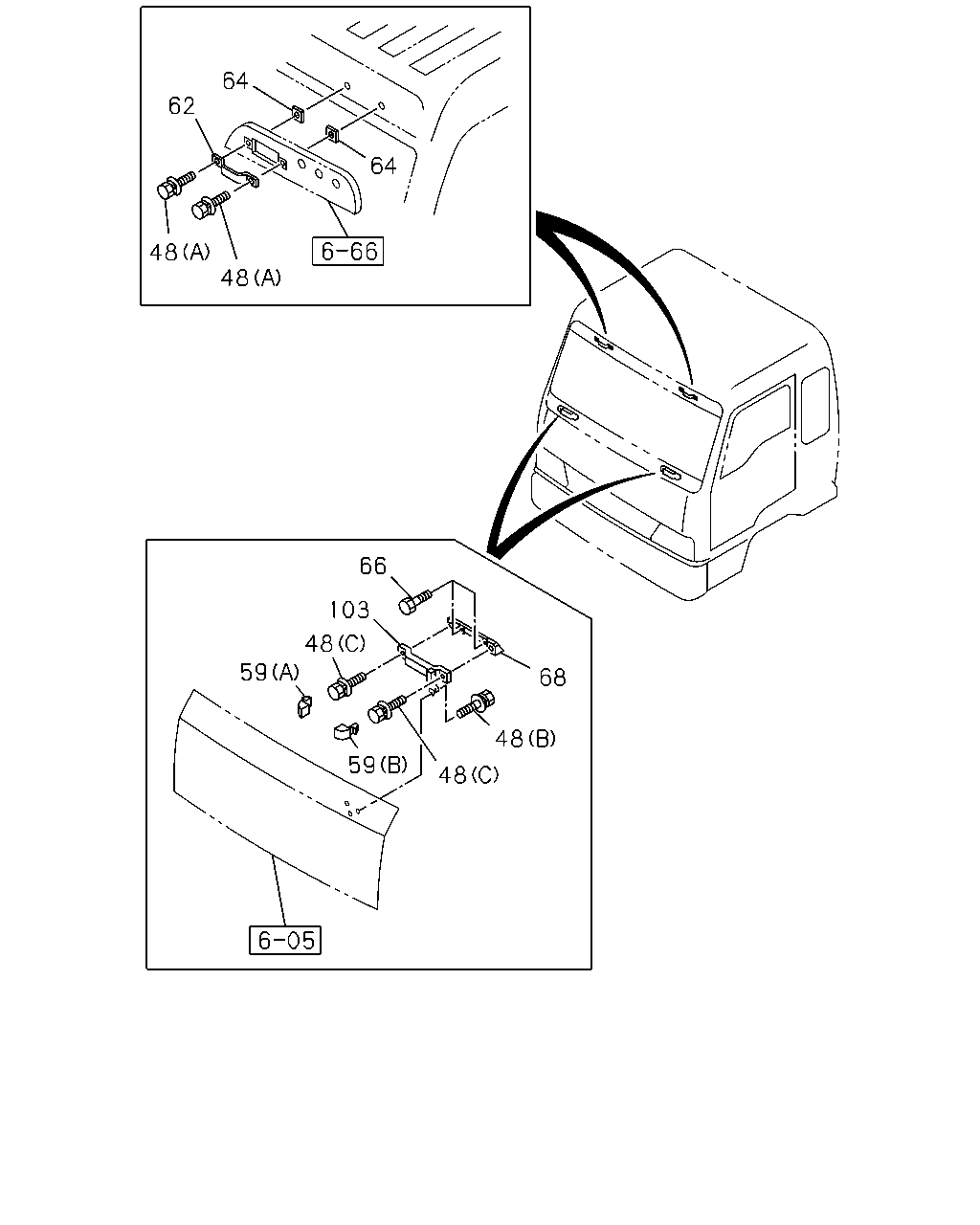

[743A] ASSIST GRIP;CAB INSIDE (19 parça)

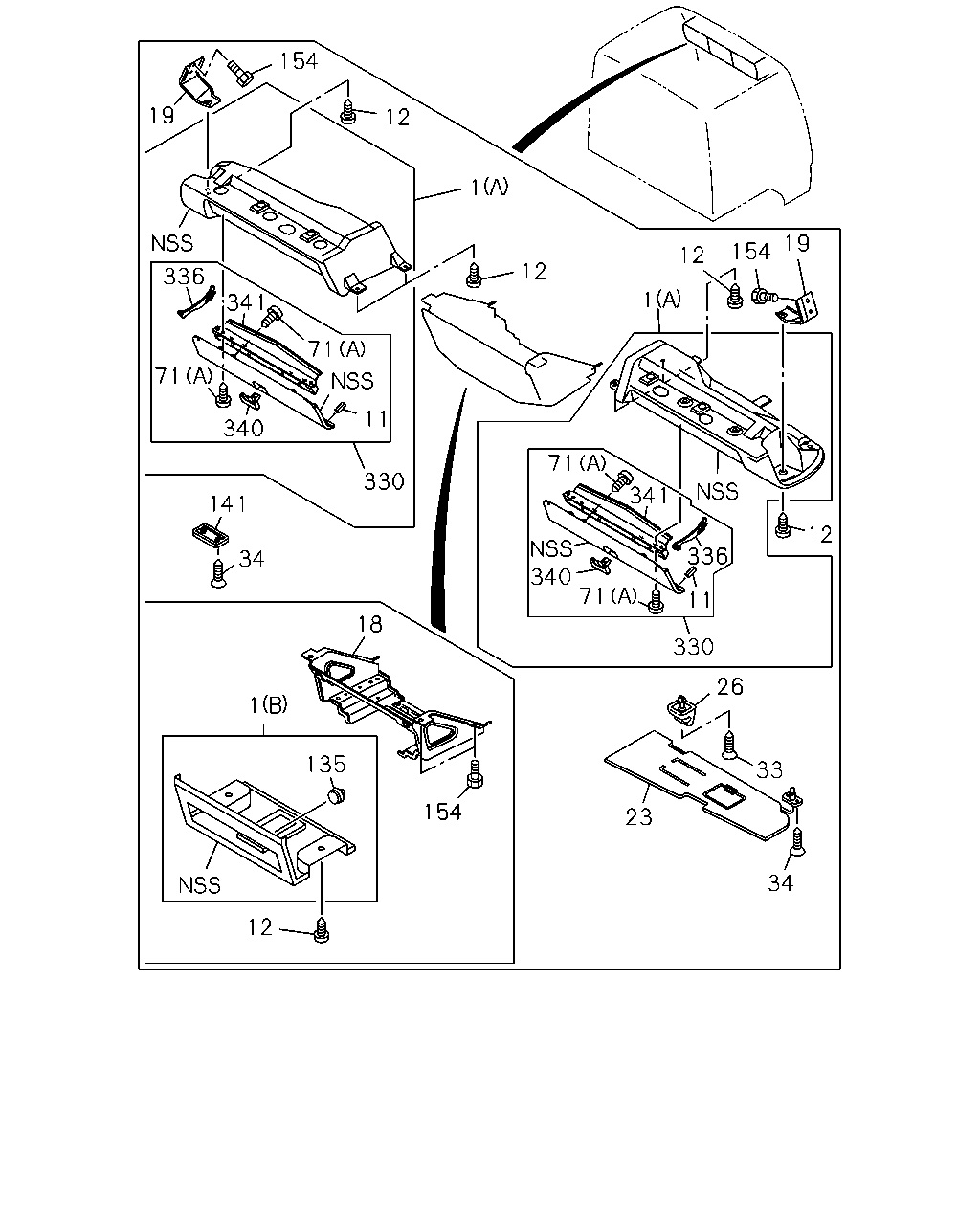

[743A] HEADER SHELF AND SUN VISOR (26 parça)
▶
64
62
64
48
48
66
103
48
59
68
48
59
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
BOLT; ASSIST GRIP
(B) M6X16 W/LK&PL WASHER
1-09980-492-0
04
1
9708-
48
BOLT; ASSIST GRIP
(D) M6X12 W/LK&PL WASHER
1-09980-611-0
04
1
9708-
48
BOLT; ASSIST GRIP
(A) M6X33.5 W/LK&PL WASHER
1-09980-613-1
04
1
9708-
48
BOLT; ASSIST GRIP
(E) M8X24.5 W/LK&PL WASHER
8-94279-208-0
01
1
9708-0904
48
BOLT; ASSIST GRIP
(E) M8X24.5 W/LK&PL WASHER
8-98059-720-0
01
1
0905-
48
BOLT; ASSIST GRIP
(C) M8X30 W/LK&PL WASHER
8-94279-210-0
04
1
9708-
59
COVER; ASSIST GRIP
(B) OUTER
1-71998-789-2
02
1
9708-
59
COVER; ASSIST GRIP
(A) INNER
1-71998-790-2
02
1
9708-
59
COVER; ASSIST GRIP
(C) IDN
8-97525-052-0
02
1
9708-
62
GRIP; ASSIST,ROOF PANEL
1-71907-492-0
02
1
9708-0907
62
GRIP; ASSIST,ROOF PANEL
8-97630-819-0
02
1
0908-
64
SHEET; ASSIST GRIP
25X25
8-94272-533-0
04
1
9708-
66
BOLT; ASSIST GRIP BRKT
M8X20.5 W/LK&PL WASHER
8-94279-207-0
04
1
9708-
68
BRACKET; ASSIST GRIP,FRT PANEL
1-65580-203-0
02
1
9708-
103
GRIP; ASSIST,FRT PNL
1-71998-792-2
01
1
9708-
103
GRIP; ASSIST,FRT PNL
1-71998-791-2
01
1
9708-
150
59
71
69
54
49
48
150
71
59
71
48
56
54
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
BOLT; ASSIST GRIP
(B) M6X16 W/LK&PL WASHER
1-09980-492-0
04
1
9708-
48
BOLT; ASSIST GRIP
(D) M6X12 W/LK&PL WASHER
1-09980-611-0
04
1
9708-
48
BOLT; ASSIST GRIP
(A) M6X33.5 W/LK&PL WASHER
1-09980-613-1
04
1
9708-
48
BOLT; ASSIST GRIP
(E) M8X24.5 W/LK&PL WASHER
8-94279-208-0
01
1
9708-0904
48
BOLT; ASSIST GRIP
(E) M8X24.5 W/LK&PL WASHER
8-98059-720-0
01
1
0905-
48
BOLT; ASSIST GRIP
(C) M8X30 W/LK&PL WASHER
8-94279-210-0
04
1
9708-
49
NUT; ASSIST GRIP
M6 FLANGE
0-91150-106-0
01
1
9708-0602
49
NUT; ASSIST GRIP
M6 FLANGE
0-91180-106-0
01
1
0603-
54
GRIP; ASSIST,QUARTER SIDE
IDN
8-97525-043-1
01
1
9708-
54
GRIP; ASSIST,QUARTER SIDE
IDN
8-97525-042-1
01
1
9708-
56
GRIP; ASSIST,SIDE SILL
IDN
8-97525-037-1
02
1
9708-
59
COVER; ASSIST GRIP
(B) OUTER
1-71998-789-2
02
1
9708-
59
COVER; ASSIST GRIP
(A) INNER
1-71998-790-2
02
1
9708-
59
COVER; ASSIST GRIP
(C) IDN
8-97525-052-0
02
1
9708-
69
BRACKET; ASSIST GRIP
1-73618-178-2
01
1
9708-
71
SCREW
(B) M6X20 W/LK&PL WASHER
1-09981-073-0
03
1
9708-
71
SCREW
(A) M5X14 W/PL WASHER
5-09981-050-0
06
1
9708-
150
CLIP; ASSIST GRIP HOLE
(A) OD=6 L=17 DARK GRAY
1-73996-128-1
04
1
9708-
150
CLIP; ASSIST GRIP HOLE
(B) OD=6 L=17 LIGHT GRAY
1-73996-301-0
04
1
9708-
154
19
12
1
19
154
12
12
336
1
341
71
71
11
340
71
330
341
141
12
340
71
336
11
34
18
330
26
1
135
33
154
23
34
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BOARD; HEADER SHELF
(B)
1-72448-568-1
01
1
9708-
1
BOARD; HEADER SHELF
(A)
1-73317-363-1
01
1
9708-0003
1
BOARD; HEADER SHELF
(A)
1-73318-688-0
01
1
0004-
1
BOARD; HEADER SHELF
(A)
1-73317-362-1
01
1
9708-0003
1
BOARD; HEADER SHELF
(A)
1-73318-687-0
01
1
0004-
11
CAP; HEADER SHELF
8-94270-538-0
04
1
9708-
12
SCREW; HEADER SHELF
M6X24 W/LK&PL WASHER
8-94279-404-0
12
1
9708-
18
SUPPORT; HEADER SHELF CENTER
8-97865-124-1
01
1
9708-
19
SUPPORT ASM; HEADER SHELF
1-72448-324-1
01
1
9708-
19
SUPPORT ASM; HEADER SHELF
1-72448-323-1
01
1
9708-
23
SUN VISOR
IDN
8-97525-044-1
01
1
9708-
26
HOLDER; SUN VISOR
1-73138-142-0
01
1
9708-
33
SCREW; HOLDER,SUN VISOR
M4X16 TAPPING OVAL-HEAD
0-70580-416-0
01
1
9708-0603
33
SCREW; HOLDER,SUN VISOR
M4X16 TAPPING OVAL-HEAD
0-70540-416-0
01
1
0604-
34
SCREW; SUN VISOR
M6X25
1-09981-441-0
04
1
9708-
71
SCREW
(B) M6X20 W/LK&PL WASHER
1-09981-073-0
03
1
9708-
71
SCREW
(A) M5X14 W/PL WASHER
5-09981-050-0
06
1
9708-
135
CLIP; HEADER SHELF
D6X23 DARK GRAY
1-09987-238-0
02
1
9708-0209
135
CLIP; HEADER SHELF
D6X23 BLACK
1-09987-114-0
02
1
0210-
135
CLIP; HEADER SHELF
OD=7.9 BLACK
8-94279-974-1
03
1
9708-
141
COVER; SUN VISOR
1-73318-551-0
01
1
9708-
154
BOLT; SUPPORT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
08
1
9708-
330
LID; HEADER SHELF
1-72448-360-3
02
1
9708-
336
STAY; LID
1-72448-379-3
04
1
9708-
340
LOCK; HEADER SHELF
1-72448-376-0
02
1
9708-
341
HINGE; LID,HEADER SHELF
1-72448-403-1
02
1
9708-
