Isuzu WW
▶
TRUCKS
▶
FVM
▶
10753 - FVM(INDONESIA)WB5300
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-60 - ROOF PANEL
▶

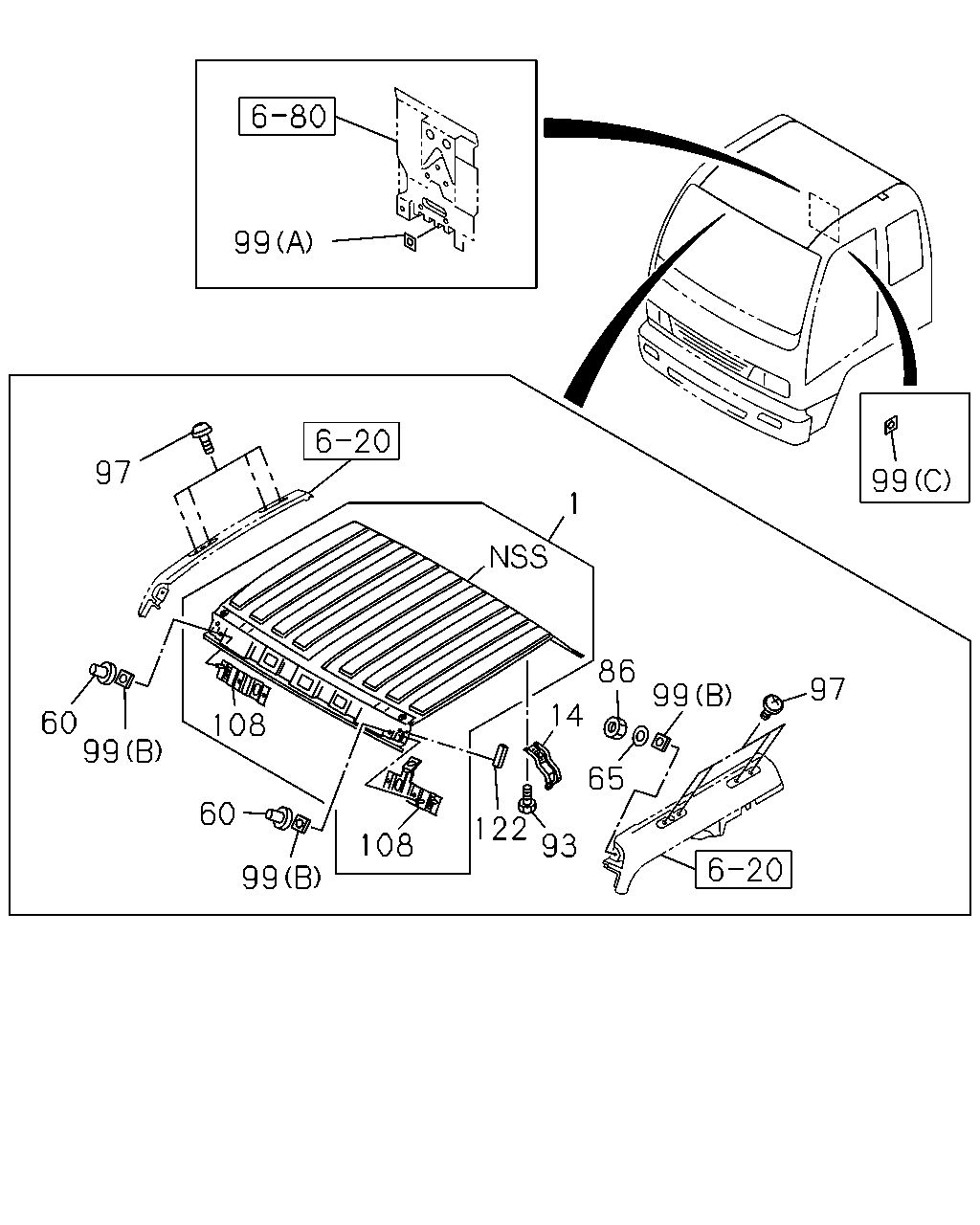

6-60 — ROOF PANEL
(#64570) — 27 parça
99
97
99
1
86
97
99
108
14
60
99
65
60
122
108
93
99
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL; ROOF
IDN
8-97525-006-0
01
1
9708-
14
SUPPORT; ROOF
1-73318-595-3
02
1
9708-
60
COVER; ROOF
1-79998-922-3
02
1
9708-
65
WASHER; PL
ID=8 T=2.3
8-94368-403-1
01
1
9708-0701
65
WASHER; PL
ID=8 T=2.3
8-98073-399-0
01
1
0702-
86
NUT; ROOF
M8 FLANGE
9-09130-408-0
01
1
9708-0011
86
NUT; ROOF
M8 LOCK NUT
9-09131-408-0
01
1
0012-0103
86
NUT; ROOF
M8 LOCK NUT
9-09131-508-0
01
1
0104-0603
86
NUT; ROOF
M8 LOCK NUT
0-91370-008-0
01
1
0604-
93
BOLT; SUPPORT
M6X12 W/LK&PL WASHER
8-94279-200-0
10
1
9708-
97
BOLT; AIR DEFLECTOR
M8X15 W/PL WASHER
1-79198-003-2
08
1
9708-
99
SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7
1-61281-380-1
29
1
9708-9806
99
SEAL; BODY,METAL
(C) 14X14 ID=10 T=0.7
1-61281-427-0
10
1
9708-9806
99
SEAL; BODY,METAL
(B) 30X30 ID=9 T=0.7
1-61281-444-0
03
1
9708-9711
99
SEAL; BODY,METAL
(B) 30X30 ID=9 T=0.7
1-61281-444-0
05
1
9712-9806
99
SEAL; BODY,METAL
(B) 55X55 ID=42 T=0.7
1-61281-445-0
02
1
9708-9711
99
SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7
1-61281-380-2
08
1
9807-
99
SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7
1-61281-380-1
13
1
9807-0001
99
SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7
1-61281-380-2
15
1
0002-
99
SEAL; BODY,METAL
(C) 14X14 ID=10 T=0.7
1-61281-427-1
08
1
9807-
99
SEAL; BODY,METAL
(B) 30X30 ID=9 T=0.7
1-61281-444-1
02
1
9807-
99
SEAL; BODY,METAL
(C) 14X14 ID=10 T=0.7
1-61281-427-0
06
1
9808-0403
99
SEAL; BODY,METAL
(C) 14X14 ID=10 T=0.7
1-61281-427-1
02
1
0404-
108
PATCH; MIRROR
IDN
1-61180-979-4
01
1
9708-
108
PATCH; MIRROR
IDN
1-61180-956-4
01
1
9708-
122
SEAL; FRT UPR
1-61270-919-0
02
1
9708-0809
122
SEAL; FRT UPR
1-61270-973-0
02
1
0810-
