Isuzu WW
▶
TRUCKS
▶
FVM
▶
10753 - FVM(INDONESIA)WB5300
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-36 - POWER STEERING CONTROL; ENGINE SIDE
▶

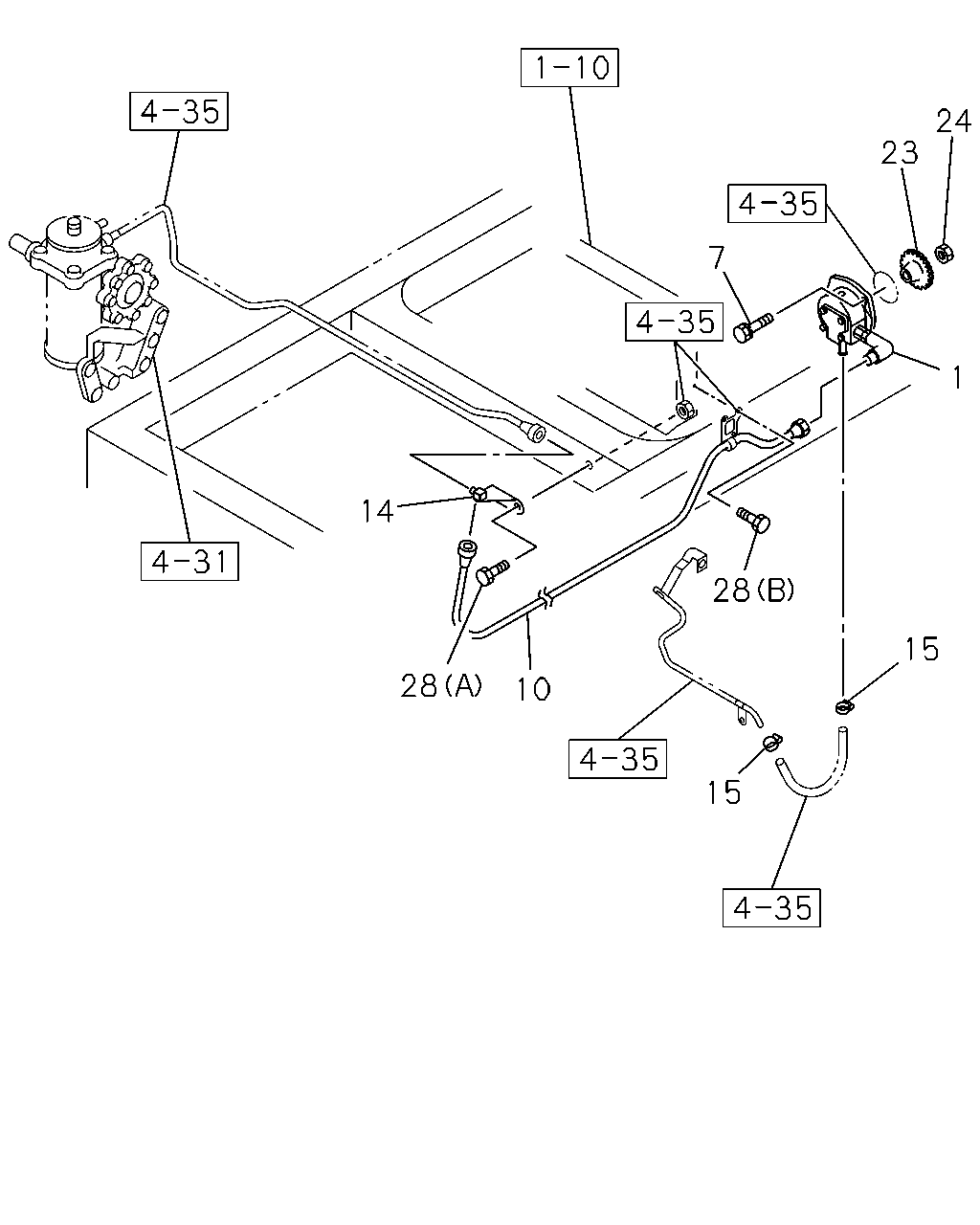

4-36 — POWER STEERING CONTROL; ENGINE SIDE
(#64545) — 14 parça
24
23
7
1
14
28
15
28
10
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
1-19500-466-0
01
1
9708-0202
1
PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
1-19500-590-1
01
1
0203-
7
BOLT; OIL PUMP,P/S
M10X55 FLANGE
8-94399-863-1
02
1
9708-0805
7
BOLT; OIL PUMP,P/S
M10X55 FLANGE
8-97365-449-0
02
1
0806-
10
HOSE; FLEX,P/S OIL PUMP,INL
L=875
1-09364-980-0
01
1
9708-
14
UNION; FLEX HOSE,P/S
1-47470-315-2
01
1
9708-
15
CLIP; OIL PIPE SUCTION
ID=32
1-09704-085-0
02
1
9708-
23
GEAR; OIL PUMP
Z=30
8-94396-957-3
01
1
9708-
24
NUT; GEAR,P/S PUMP
M14 FLANGE
0-91150-114-0
01
1
9708-0712
24
NUT; GEAR,P/S PUMP
M14 FLANGE IDN
0-91180-114-0
01
1
0801-
28
BOLT; BRKT,FLEX HOSE,P/S
(A) M8X25 FLANGE IDN
0-28680-825-0
02
1
9708-0512
28
BOLT; BRKT,FLEX HOSE,P/S
(A) M8X25 FLANGE IDN
0-28650-825-0
02
1
0601-
28
BOLT; BRKT,FLEX HOSE,P/S
(B) M8X16 W/LK&PL WASHER
1-09980-498-0
02
1
9708-9708
28
BOLT; BRKT,FLEX HOSE,P/S
(B) M8X14
0-50140-814-0
02
1
9709-
