4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#64544) — 52 parça

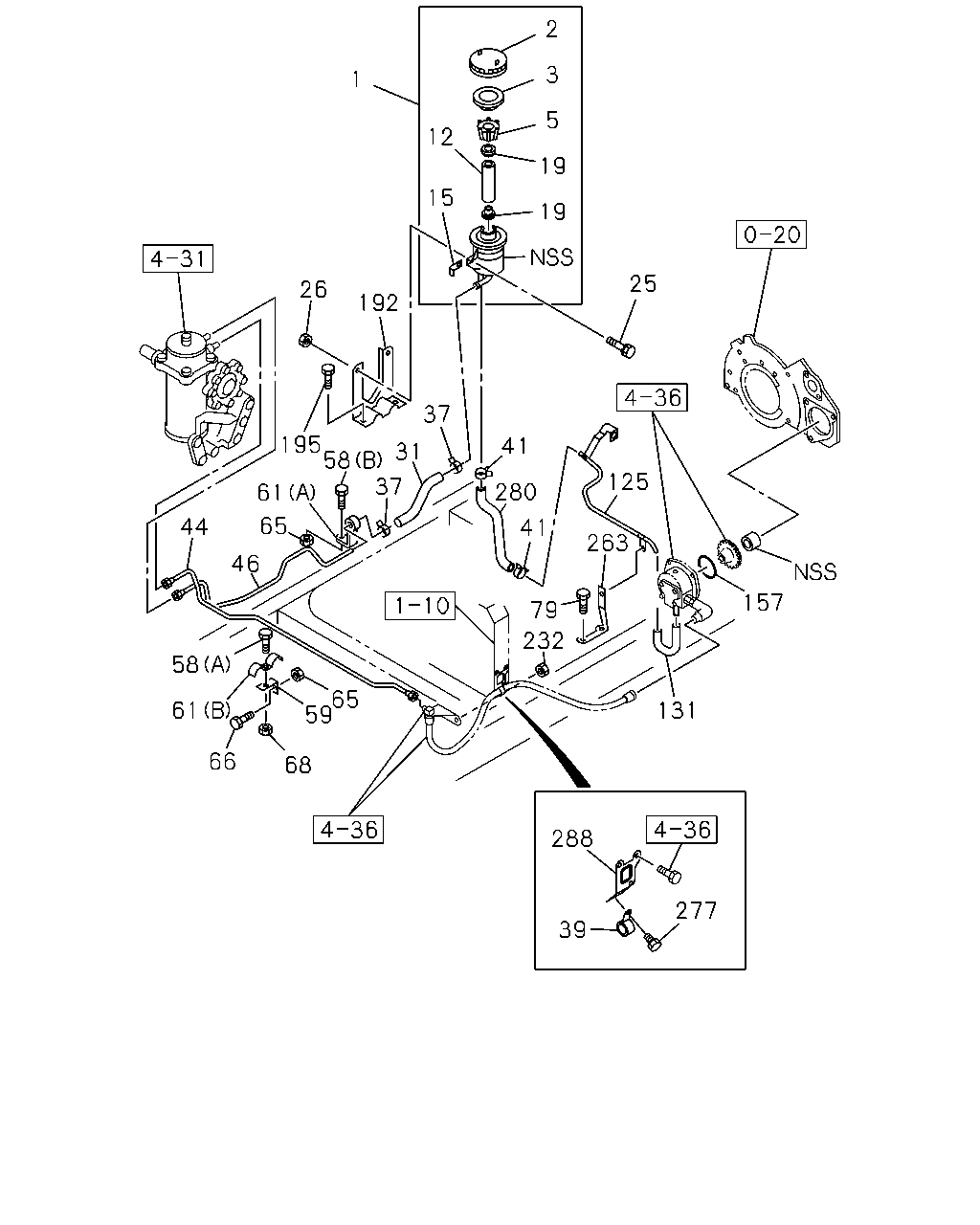

çizim 185033
2 3 1 5 12 19 15 19 25 26 192 37 195 58 37 41 31 125 280 61 65 44 41 263 46 157 79 232 58 65 59 61 131 66 68 288 277 39
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; OIL,P/S 1-21210-205-0 01 1 9708-0508
1 TANK ASM; OIL,P/S 1-21210-238-1 01 1 0509-1006
1 TANK ASM; OIL,P/S
IDN 		8-98166-928-0 01 1 1007-
2 CAP; OIL TANK,P/S 1-21241-004-4 01 1 9708-1006
2 CAP; OIL TANK,P/S
IDN 		8-98166-876-0 01 1 1007-
3 GASKET; OIL TANK,P/S
IDN 		1-21249-003-1 01 1 9708-
5 STRAINER; OIL TANK,P/S
IDN 		1-21235-007-1 01 1 9708-
12 FILTER; MICROBON,OIL TANK,P/S
IDN 		1-21235-011-0 01 1 9708-
15 PLATE; FILTER,OIL TANK 1-21249-007-1 02 1 9708-0508
15 PLATE; FILTER,OIL TANK
IDN 		1-21249-016-0 02 1 0509-
19 SEAT; OIL TANK
IDN 		1-21249-004-0 02 1 9708-
25 BOLT; OIL TANK BRKT
M8X25 FLANGE IDN 		0-28680-825-0 02 1 9708-0512
25 BOLT; OIL TANK BRKT
M8X25 FLANGE IDN 		0-28650-825-0 02 1 0601-
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91150-108-0 02 1 9708-0602
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
31 HOSE; P/S OIL TANK,INL 1-21113-590-0 01 1 9708-
37 CLIP; HOSE,P/S
ID=26 		1-09704-082-0 02 1 9708-
39 CLIP; FLEX HOSE
ID=40 		8-94226-553-0 01 1 9708-
41 CLIP; HOSE,P/S
ID=32 		1-09704-085-0 02 1 9708-
44 PIPE; OIL,P/S UNIT TO NIPPLE 1-21115-358-0 01 1 9708-
46 PIPE; OIL,P/S UNIT TO OIL TANK 1-21115-144-0 01 1 9708-
58 BOLT; CLIP
(A) M8X20 FLANGE 		0-28080-820-0 01 1 9708-0512
58 BOLT; CLIP
(A) M8X20 FLANGE 		0-28050-820-0 01 1 0601-
58 BOLT; CLIP
(B) M8X30 FLANGE 		0-28680-830-0 01 1 9708-0512
58 BOLT; CLIP
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0601-
59 BRACKET; CLIP,OIL PIPE
L=60 		1-47475-455-0 01 1 9708-
61 CLIP; OIL PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 9708-
61 CLIP; OIL PIPE
(B) ID=16 & 13 L=18 & 17 		1-09700-658-0 01 1 9708-
65 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9708-0602
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
66 BOLT; BRKT,OIL PIPE
M8X25 FLANGE IDN 		0-28680-825-0 01 1 9708-0512
66 BOLT; BRKT,OIL PIPE
M8X25 FLANGE IDN 		0-28650-825-0 01 1 0601-
68 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 01 1 9708-0602
68 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 01 1 0603-
79 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 02 1 9708-0512
79 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 0601-
125 CONNECTOR; P/S PUMP 8-94390-310-0 01 1 9708-9901
125 CONNECTOR; P/S PUMP 8-97600-113-0 01 1 9902-
131 HOSE; RUBBER,P/S 8-94396-331-1 01 1 9708-
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4 		1-09623-178-0 01 1 9708-
192 BRACKET; P/S OIL TANK 1-21119-142-1 01 1 9708-
195 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 02 1 9708-0512
195 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0601-
232 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9708-0602
232 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
263 BRACKET; P/S PIPE 8-94393-981-0 01 1 9708-9901
263 BRACKET; P/S PIPE 8-97600-117-0 01 1 9902-
277 BOLT; HOSE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9708-0512
277 BOLT; HOSE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
280 HOSE; P/S OIL PUMP,INL 1-21115-491-0 01 1 9708-0206
280 HOSE; P/S OIL PUMP,INL 1-21116-721-0 01 1 0207-
288 BRACKET; CLIP,P/S 1-82659-149-0 01 1 9708-
