4-25 — REAR FINAL DRIVE (#64540) — 185 parça

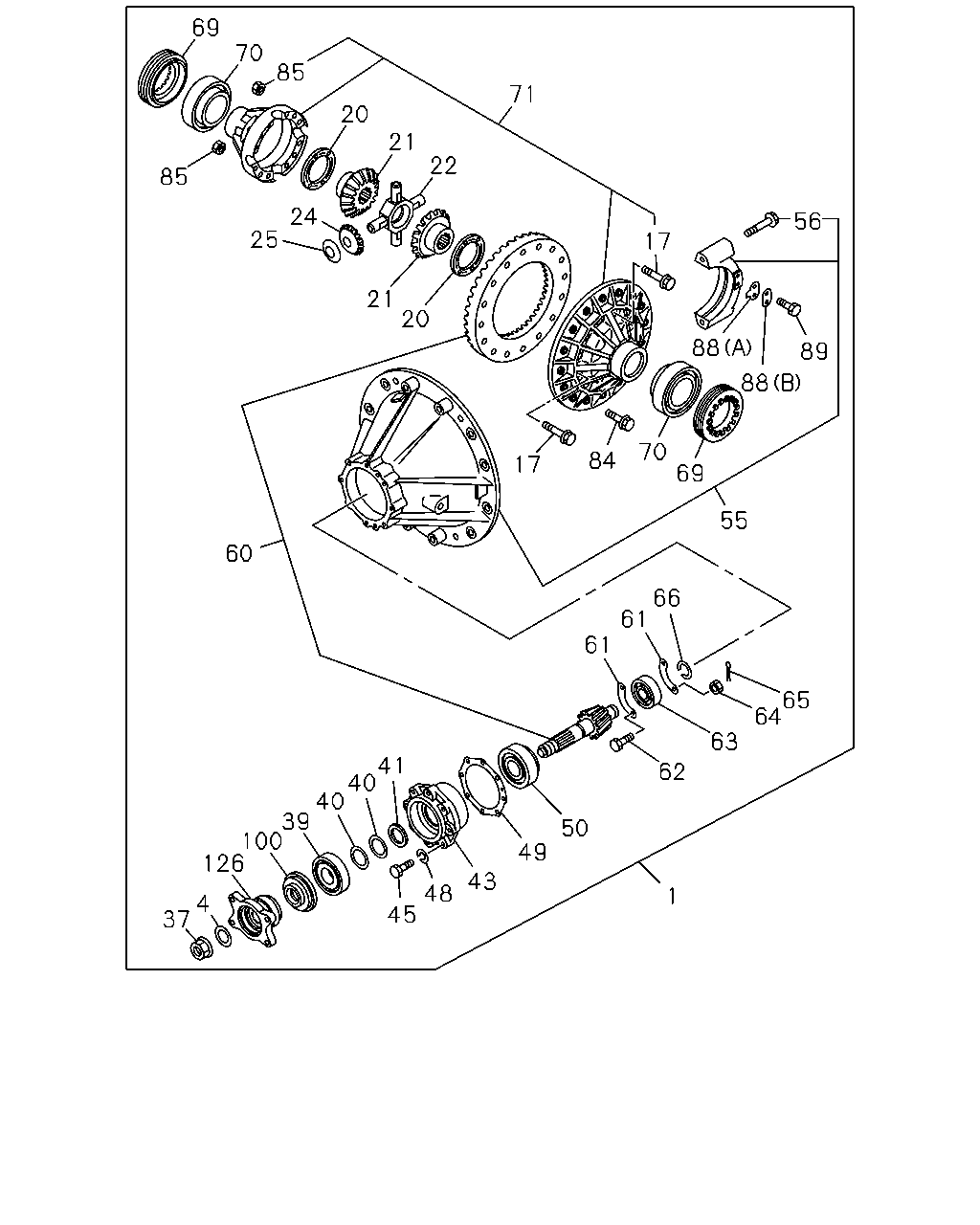

çizim 185032
69 70 85 71 20 21 22 85 24 56 25 17 21 20 88 89 88 70 84 17 69 55 60 66 61 61 65 64 63 41 40 40 39 100 126 62 50 49 43 48 45 1 4 37
BalonParca AdiParca NoAdetTipApplied Date A B C
1 DRIVE ASM; FINAL,RR
41/6 IDN 		8-97520-289-0 01 1 9708- ●
1 DRIVE ASM; FINAL,RR
45/7 		1-41001-381-0 01 1 9708- ●
1 DRIVE ASM; FINAL,RR
43/6 IDN 		8-97520-506-0 01 1 0107- ●
4 GASKET; FLANGE,FINAL PINION
ID=57 		1-09623-386-0 01 1 9708-0106 ● ●
4 GASKET; FLANGE,FINAL PINION
ID=57 		1-09623-386-0 01 1 0107- ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 04 1 0408- ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 04 1 9708-0106 ● ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 04 1 0107- ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 08 1 9708-0106 ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 08 1 0107- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 9708-0106 ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 0107- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 9708-0106 ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 0107- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 9708-0106 ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 0107- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 9708-0106 ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 0107- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 9708-0106 ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 0107- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 9708-0106 ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 0107- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 9708-0106 ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 0107- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 9708- ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 9708- ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 9708- ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 9708- ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 9708- ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 9708- ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 9708- ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-151-0 02 1 0906-0906 ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-151-0 02 1 0907- ● ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-086-0 02 1 9708-0106 ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-086-0 02 1 0107-0409 ● ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-139-0 02 1 0410-0905 ● ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-139-0 02 1 0906-0906 ● ●
22 SPIDER; DIFF PINION
OD=35 		1-41521-037-0 01 1 9708-0106 ● ●
22 SPIDER; DIFF PINION
OD=35 		1-41521-037-2 01 1 0107- ● ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-053-0 04 1 0906-0906 ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-053-0 04 1 0907- ● ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-025-0 04 1 9708-0106 ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-025-0 04 1 0107-0409 ● ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-044-0 04 1 0410-0905 ● ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-044-0 04 1 0906-0906 ● ●
25 WASHER; THRUST,PINION
T=1.6 		1-41552-017-0 04 1 9708-0106 ● ●
25 WASHER; THRUST,PINION
T=1.6 		1-41552-017-0 04 1 0107- ● ● ●
37 NUT; DRIVING PINION
M46 FLANGE 		1-09449-071-0 01 1 9708-0106 ● ●
37 NUT; DRIVING PINION
M46 FLANGE 		1-09449-071-0 01 1 0107- ● ● ●
39 BEARING; FINAL PINION
NSK 		1-09812-075-0 01 1 9708-0106 ● ●
39 BEARING; FINAL PINION
NSK 		1-09812-075-0 01 1 0107- ● ● ●
39 BEARING; FINAL PINION
JTEKT 		1-09812-076-0 01 1 9708-0106 ● ●
39 BEARING; FINAL PINION
JTEKT 		1-09812-076-1 01 1 0107- ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 9708-0106 ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 0107- ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 9708-0106 ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 0107- ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 9708-0106 ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 0107- ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 9708-0106 ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 0107- ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 9708-0106 ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 0107- ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 9708-0106 ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 0107- ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 9708-0106 ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 0107- ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 9708-0106 ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 0107- ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 9708-0106 ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 0107- ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 9708-0106 ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 0107- ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 9708-0106 ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 0107- ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 9708- ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 9708- ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 9708- ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 9708- ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 9708- ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 9708- ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 9708- ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 9708- ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 9708- ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 9708- ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 9708- ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 9708-0106 ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 0107- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 9708-0106 ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 0107- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 9708-0106 ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 0107- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 9708-0106 ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 0107- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 9708-0106 ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 0107- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 9708-0106 ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 0107- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 9708-0106 ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 0107- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 9708-0106 ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 0107- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 9708- ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 9708- ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 9708- ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 9708- ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 9708- ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 9708- ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 9708- ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 9708- ●
43 CAGE; FINAL PINION
T=81 		1-41151-030-0 01 1 9708-0106 ● ●
43 CAGE; FINAL PINION
T=81 		1-41151-030-0 01 1 0107- ● ● ●
45 BOLT; FINAL PINION CAGE
M16X55 		0-16806-655-0 08 1 9708-0106 ● ●
45 BOLT; FINAL PINION CAGE
M16X55 		0-16806-655-0 08 1 0107- ● ● ●
48 WASHER; LK,FINAL PINION
ID=16.2 		9-09150-516-0 08 1 9708-0106 ● ●
48 WASHER; LK,FINAL PINION
ID=16.2 		9-09150-516-0 08 1 0107-0603 ● ● ●
48 WASHER; LK,FINAL PINION
ID=16.2 		0-91510-516-0 08 1 0604- ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.50 		1-41154-024-0 AR 1 9708-0106 ●
49 SHIM; FINAL PINION CAGE
T=0.50 		1-41154-024-0 AR 1 0107- ● ●
49 SHIM; FINAL PINION CAGE
T=1.00 		1-41154-025-0 AR 1 9708-0106 ●
49 SHIM; FINAL PINION CAGE
T=1.00 		1-41154-025-0 AR 1 0107- ● ●
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-057-0 AR 1 9708-0106 ●
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-057-0 AR 1 0107- ● ●
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-058-0 AR 1 9708-0106 ●
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-058-0 AR 1 0107- ● ●
49 SHIM; FINAL PINION CAGE
T=0.50 		1-41154-024-0 AR 1 9708- ●
49 SHIM; FINAL PINION CAGE
T=1.00 		1-41154-025-0 AR 1 9708- ●
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-057-0 AR 1 9708- ●
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-058-0 AR 1 9708- ●
50 BEARING; FINAL PINION
NSK 		1-09812-073-1 01 1 9708-0106 ● ●
50 BEARING; FINAL PINION
NSK 		1-09812-073-1 01 1 0107- ● ● ●
50 BEARING; FINAL PINION
JTEKT 		1-09812-074-1 01 1 9708-0106 ● ●
50 BEARING; FINAL PINION
JTEKT 		1-09812-074-3 01 1 0107- ● ● ●
55 CARRIER; DIFF 1-41110-109-0 01 1 9708-0106 ● ●
55 CARRIER; DIFF 1-41110-109-0 01 1 0107- ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 9708-0106 ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 0107- ● ● ●
60 GEAR SET; FINAL DRIVE,RR
41/6 		1-41210-462-0 01 1 9708-9811 ●
60 GEAR SET; FINAL DRIVE,RR
41/6 		1-41210-601-0 01 1 9812- ●
60 GEAR SET; FINAL DRIVE,RR
45/7 		1-41210-463-0 01 1 9708-9901 ●
60 GEAR SET; FINAL DRIVE,RR
45/7 		1-41210-602-0 01 1 9902- ●
60 GEAR SET; FINAL DRIVE,RR
43/6 		1-41210-600-0 01 1 0107- ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 9708-0106 ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 0107- ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 9708-0106 ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 0107- ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 9708-0106 ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 0107- ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 9708-0106 ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 0107- ● ● ●
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 02 1 9708-0106 ● ●
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 02 1 0107-0512 ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 0601- ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 9708-0106 ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 0107-0805 ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 0806- ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-1 01 1 9708-0106 ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 0107- ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 9708-0106 ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 0107- ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 9708-0106 ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 0107- ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 9708-0106 ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 0107- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 9708-0106 ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 0107-0509 ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 0510- ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 9708-0106 ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 0107- ● ● ●
85 NUT; DIFF CAGE SETTING
M16 IDN 		9-99110-516-0 04 1 0408- ●
85 NUT; DIFF CAGE SETTING
M16 IDN 		9-99110-516-0 12 1 9708-0106 ● ●
85 NUT; DIFF CAGE SETTING
M16 IDN 		9-99110-516-0 12 1 0107-0512 ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 0601- ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 9708-0106 ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 0107- ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 9708-0106 ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 0107- ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 04 1 9708-0106 ● ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 04 1 0107-0512 ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 0601- ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-322-0 01 1 9708-0106 ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-322-0 01 1 0107- ● ● ●
126 COUPLING; DRIVING PINION 1-37245-143-2 01 1 9708-9901 ● ●
126 COUPLING; DRIVING PINION 1-37245-265-2 01 1 9902-0106 ● ●
126 COUPLING; DRIVING PINION 1-37245-265-2 01 1 0107- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
