3-78 — FIXING PARTS; AIR PIPING (#64535) — 133 parça

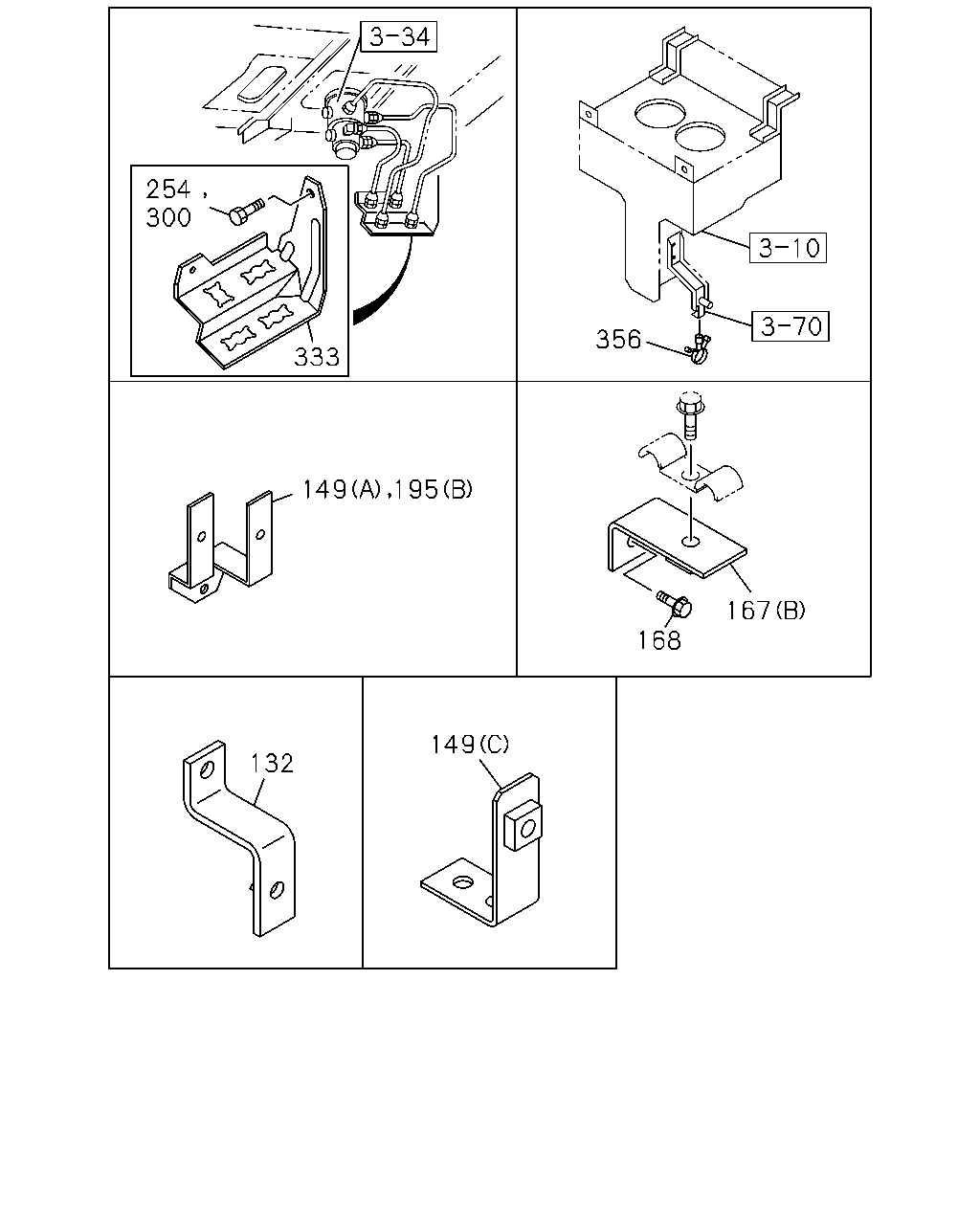

çizim 185027
254 300 356 333 195 149 167 168 149 132
BalonParca AdiParca NoAdetTipApplied Date
132 BRACKET; PIPE CLIP 1-47475-881-0 01 1 9708-
149 BRACKET; PIPE CLIP
(B) L=50 		1-47475-299-2 01 1 9708-
149 BRACKET; PIPE CLIP
(A) M8 W/NUT 		1-47475-439-2 04 1 9708-
149 BRACKET; PIPE CLIP
(C) 		1-47475-746-2 01 1 9708-
167 BRACKET; PIPE CLIP
(A) L=50 		1-47475-299-2 01 1 9708-
167 BRACKET; PIPE CLIP
(B) L=90 B=25 		1-47475-530-0 01 1 9708-
168 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 9708-0512
168 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
195 BRACKET; PIPE CLIP
(A) 		1-47475-427-1 03 1 9708-
195 BRACKET; PIPE CLIP
(B) M8 W/NUT 		1-47475-439-2 01 1 9708-
195 BRACKET; PIPE CLIP
(B) M8 W/NUT 		1-47475-439-2 04 1 9708-
254 BOLT; PIPE CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9708-
254 BOLT; PIPE CLIP
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0205-0205
300 BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0206-0904
300 BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
333 BRACKET; BRK AIR PIPE 1-79738-815-2 01 1 9708-
356 CLIP; AIR PIPE
ID=4.8 		8-94128-483-0 01 1 9708-
çizim 185028
13 1 284 13 37 195 310 167 310 35 39 78 129 146 164 177 192 204 224 287 311 314 2 17 20 75 79 123 130 133 147 165 178 193 196 205 225 288 371 37 84 149 181 223 3 18 34 36 80 150 166 194 197 206 210 226 279 283 289 290 295
BalonParca AdiParca NoAdetTipApplied Date
1 CLIP; AIR PIPE
ID=6 H=20 L=20 		1-09700-603-0 01 1 9708-
2 BOLT; CLIP FIX
M8X30 FLANGE 		0-28680-830-0 01 1 9708-0512
2 BOLT; CLIP FIX
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
3 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 01 1 9708-0602
3 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 01 1 0603-
13 CLIP; AIR PIPE
(A) ID=7 L=38 H=21 		1-09700-916-0 01 1 9708-
13 CLIP; AIR PIPE
(B) ID=7 L=40 		9-09524-675-0 01 1 9708-0606
13 CLIP; AIR PIPE
(B) ID=7 L=40 		0-95234-675-0 01 1 0607-
17 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28680-835-0 04 1 9708-0512
17 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 04 1 0601-
18 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9708-0602
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603-
20 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9708-0512
20 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
34 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 9708-0602
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-
35 CLIP; AIR PIPE
ID=16 & 7 L=21 & 17 		1-09700-675-0 01 1 9708-
36 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 9708-0602
36 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
37 BRACKET; PIPE CLIP
(A) L=50 		1-47475-299-2 02 1 9708-
37 BRACKET; PIPE CLIP
(B) 		1-47475-427-1 03 1 9708-
39 CLIP; AIR PIPE
ID=16 & 7 L=21 & 17 		1-09700-675-0 04 1 9708-
75 BOLT; CLIP
M8X14 FLANGE 		0-28080-814-0 04 1 9708-
75 BOLT; CLIP
M8X25 FLANGE IDN 		0-28680-825-0 01 1 9708-0512
75 BOLT; CLIP
M8X25 FLANGE IDN 		0-28650-825-0 01 1 0601-
78 CLIP; AIR PIPE
ID=16 & 7 L=18 & 15 		1-09700-661-0 01 1 9708-
79 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9708-0512
79 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
80 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 01 1 9708-0602
80 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 01 1 0603-
84 BRACKET; PIPE CLIP
L=50 		1-47475-299-2 01 1 9708-
123 BOLT; PIPE CLIP
M8X25 FLANGE IDN 		0-28680-825-0 02 1 9708-0512
123 BOLT; PIPE CLIP
M8X25 FLANGE IDN 		0-28650-825-0 02 1 0601-
123 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 03 1 9708-0512
123 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 03 1 0601-
123 BOLT; PIPE CLIP
M8X35 FLANGE 		0-28680-835-0 02 1 9708-0512
123 BOLT; PIPE CLIP
M8X35 FLANGE 		0-28650-835-0 02 1 0601-
129 CLIP; AIR PIPE
ID=11 & 7 L=17.5 & 17.5 		1-09700-740-0 01 1 9708-
130 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9708-0512
130 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
133 BOLT; BRKT
M8X25 FLANGE IDN 		0-28680-825-0 01 1 9708-0512
133 BOLT; BRKT
M8X25 FLANGE IDN 		0-28650-825-0 01 1 0601-
146 CLIP; AIR PIPE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 05 1 9708-
147 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28080-816-0 04 1 9708-0512
147 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28050-816-0 04 1 0601-
149 BRACKET; PIPE CLIP
(B) L=50 		1-47475-299-2 01 1 9708-
149 BRACKET; PIPE CLIP
(A) M8 W/NUT 		1-47475-439-2 04 1 9708-
149 BRACKET; PIPE CLIP
(C) 		1-47475-746-2 01 1 9708-
150 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 07 1 9708-0602
150 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 07 1 0603-
164 CLIP; AIR PIPE
ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 9708-
165 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28080-816-0 02 1 9708-0512
165 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28050-816-0 02 1 0601-
166 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 02 1 9708-0602
166 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603-
167 BRACKET; PIPE CLIP
(A) L=50 		1-47475-299-2 01 1 9708-
167 BRACKET; PIPE CLIP
(B) L=90 B=25 		1-47475-530-0 01 1 9708-
177 CLIP; AIR PIPE
ID=11 & 7 L=17.5 & 17.5 		1-09700-740-0 01 1 9708-
177 CLIP; AIR PIPE
ID=16 & 11 L=21.5 & 21.5 		1-09700-924-0 01 1 9708-
178 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28080-816-0 02 1 9708-0512
178 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28050-816-0 02 1 0601-
181 BRACKET; PIPE CLIP
L=50 		1-47475-299-2 02 1 9708-
192 CLIP; AIR PIPE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 03 1 9708-
193 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9708-0512
193 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
193 BOLT; PIPE CLIP
M8X45 FLANGE 		0-28080-845-0 02 1 9708-0512
193 BOLT; PIPE CLIP
M8X45 FLANGE 		0-28050-845-0 02 1 0601-
194 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 02 1 9708-0602
194 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603-
195 BRACKET; PIPE CLIP
(A) 		1-47475-427-1 03 1 9708-
195 BRACKET; PIPE CLIP
(B) M8 W/NUT 		1-47475-439-2 01 1 9708-
195 BRACKET; PIPE CLIP
(B) M8 W/NUT 		1-47475-439-2 04 1 9708-
196 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28680-835-0 01 1 9708-0512
196 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0601-
197 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 01 1 9708-0602
197 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-
204 CLIP; AIR PIPE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 06 1 9708-
205 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28080-816-0 04 1 9708-0512
205 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28050-816-0 04 1 0601-
205 BOLT; PIPE CLIP
M8X40 FLANGE 		0-28680-840-0 01 1 9708-0512
205 BOLT; PIPE CLIP
M8X40 FLANGE 		0-28650-840-0 01 1 0601-
206 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 9708-0602
206 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
210 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 04 1 9708-0602
210 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 04 1 0603-
223 BRACKET; PIPE CLIP
L=50 		1-47475-299-2 01 1 9708-
224 CLIP; AIR PIPE
ID=16 & 11 L=21.5 & 21.5 		1-09700-924-0 01 1 9708-
225 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9708-0512
225 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
226 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 9708-0602
226 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
279 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9708-0602
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
283 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 9708-0602
283 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
284 CLIP; FLEX HOSE
ID=18 & 18 		8-94323-068-0 02 1 9708-
287 CLIP; AIR PIPE
ID=16 & 7 L=21 & 17 		1-09700-675-0 01 1 9708-
288 BOLT; CLIP,AIR PIPE
M8X16 FLANGE 		0-28080-816-0 01 1 9708-0512
288 BOLT; CLIP,AIR PIPE
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
288 BOLT; CLIP,AIR PIPE
M8X25 FLANGE IDN 		0-28680-825-0 02 1 9708-0512
288 BOLT; CLIP,AIR PIPE
M8X25 FLANGE IDN 		0-28650-825-0 02 1 0601-
289 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 01 1 9708-0602
289 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 01 1 0603-
290 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 02 1 9708-0602
290 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 02 1 0603-
295 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 03 1 9708-0602
295 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 03 1 0603-
310 BRACKET; PIPE CLIP
(A) L=50 		1-47475-299-2 02 1 9708-
310 BRACKET; PIPE CLIP
(B) 		1-47475-427-1 01 1 9708-
311 CLIP; AIR PIPE
ID=11 & 7 L=17.5 & 17.5 		1-09700-740-0 01 1 9708-
311 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 04 1 9708-
314 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 9708-
371 BOLT; CLIP,AIR PIPE
M8X16 FLANGE 		0-28080-816-0 01 1 9708-0512
371 BOLT; CLIP,AIR PIPE
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
371 BOLT; CLIP,AIR PIPE
M8X45 FLANGE 		0-28080-845-0 03 1 9708-0512
371 BOLT; CLIP,AIR PIPE
M8X45 FLANGE 		0-28050-845-0 03 1 0601-
