Isuzu WW
▶
TRUCKS
▶
FVM
▶
10753 - FVM(INDONESIA)WB5300
▶
3 - Brakes, Brake System
▶
3-77 - BRAKE PIPING; AIR,REAR
▶
3-77 — BRAKE PIPING; AIR,REAR
(#64534) — 34 parça
◀

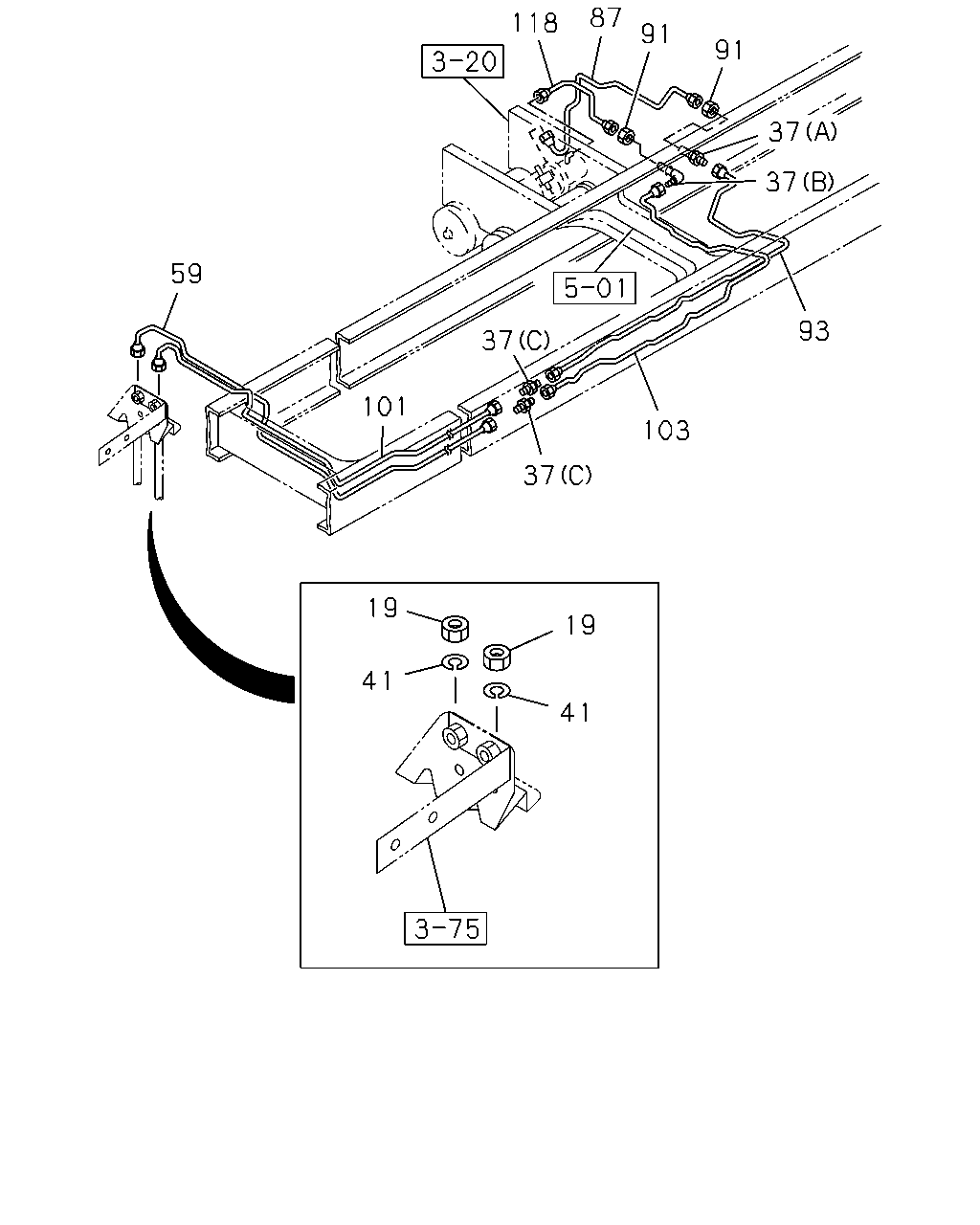

[377A] NO.1 (18 parça)
[377A] NO.2 (16 parça)
▶
87
118
91
91
37
37
59
93
37
101
103
37
19
19
41
41
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
NUT; PIPE UNION
M16
9-99111-416-0
02
1
9708-0512
19
NUT; PIPE UNION
M16 IDN
0-91111-516-0
02
1
0601-
37
UNION; AIR PIPE
(C) M16 L=42
9-09233-010-1
02
1
9708-0607
37
UNION; AIR PIPE
(C) M16 L=42
0-92123-010-0
02
1
0608-
37
UNION; AIR PIPE
(A) M16 L=74
9-09233-310-1
01
1
9708-0607
37
UNION; AIR PIPE
(A) M16 L=74
0-92123-310-0
01
1
0608-
37
UNION; AIR PIPE
(B) M16 ELBOW
9-09235-210-1
01
1
9708-0607
37
UNION; AIR PIPE
(B) M16 ELBOW
0-92135-210-0
01
1
0608-
41
WASHER; LK,FLEX HOSE
ID=16.2
9-09150-516-0
02
1
9708-0603
41
WASHER; LK,FLEX HOSE
ID=16.2
0-91510-516-0
02
1
0604-
59
PIPE; AIR,UNION TO FLEX HOSE
L=3548 SERVICED BY L=3700
1-47426-427-0
01
1
9708-
87
PIPE; AIR,AIR TANK TO UNION
1-49115-787-0
01
1
9708-
91
NUT; PIPE UNION
M16
9-99111-416-0
02
1
9708-0512
91
NUT; PIPE UNION
M16 IDN
0-91111-516-0
02
1
0601-
93
PIPE; AIR,UNION TO UNION
L=1870 SERVICED BY L=1900
1-47426-421-0
01
1
9708-
101
PIPE; AIR,FLEX HOSE TO UNION
L=3523 SERVICED BY L=3700
1-47426-427-0
01
1
9708-
103
PIPE; AIR,UNION TO UNION
L=1821 SERVICED BY L=1900
1-47426-421-0
01
1
9708-
118
PIPE; AIR,UNION TO AIR MASTER
1-49115-790-0
01
1
9708-
1
206
1
206
7
7
6
6
285
285
10
10
64
64
8
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; AIR,FLEX HOSE TO BRK VLV
L=279
1-47492-449-4
01
1
9708-9902
1
PIPE; AIR,FLEX HOSE TO BRK VLV
L=277
1-49121-487-0
01
1
9903-0109
1
PIPE; AIR,FLEX HOSE TO BRK VLV
L=278
1-49121-498-0
01
1
0110-
6
WASHER; LK,FLEX HOSE
ID=16.2
9-09150-516-0
02
1
9708-0603
6
WASHER; LK,FLEX HOSE
ID=16.2
0-91510-516-0
02
1
0604-
7
NUT; FLEX HOSE
M16
9-99111-416-0
02
1
9708-0512
7
NUT; FLEX HOSE
M16 IDN
0-91111-516-0
02
1
0601-
8
HOSE; FLEX,AIR,CAB SIDE
0-07474-580-1
02
1
9708-0209
8
HOSE; FLEX,AIR,CAB SIDE
L=580
1-09363-764-0
02
1
0210-
10
CONNECTOR; FLEX HOSE
1-09654-324-0
02
1
9708-0209
10
CONNECTOR; FLEX HOSE
M16 STRAIGHT
1-09654-380-0
02
1
0210-
64
GASKET; FLEX HOSE
ID=11 OD=18
9-09572-510-0
02
1
9708-0209
206
PIPE; AIR,BRK VLV TO FLEX HOSE
L=406
1-47492-451-3
01
1
9708-0109
206
PIPE; AIR,BRK VLV TO FLEX HOSE
L=397
1-49118-723-2
01
1
0110-
285
WASHER; PL,CONNECTOR
ID=17
9-09160-516-0
02
1
9708-0605
285
WASHER; PL,CONNECTOR
ID=17 OD=30
0-91610-516-0
02
1
0606-
