Sayfa 3-70 - Isuzu EPC

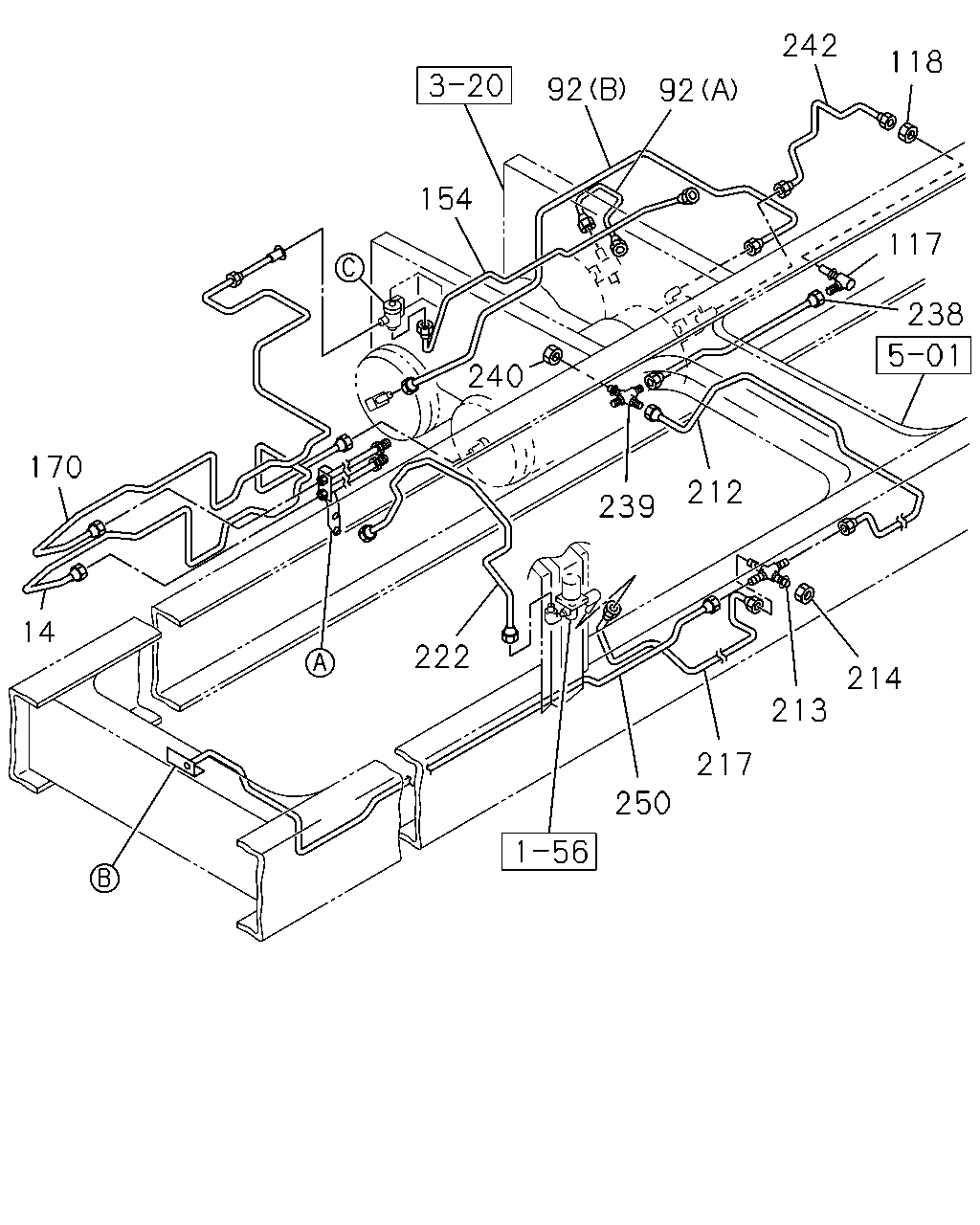

3-70 — BRAKE PIPING; AIR,AIR MASTER (#64532) — 70 parça

242 118 92 92 154 117 238 240 170 212 239 14 222 214 213 217 250

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	PIPE; AIR,FLEX HOSE TO AIR TANK	1-49114-330-0	01	1	9708-
92	PIPE; AIR,AIR TANK TO AIR MASTER (A) L=534	1-47482-332-1	01	1	9708-
92	PIPE; AIR,AIR TANK TO AIR MASTER (B) L=1499 SERVICED BY L=1500	1-49111-463-0	01	1	9708-
117	UNION; AIR PIPE M12 ELBOW	9-09225-206-1	01	1	9708-0607
117	UNION; AIR PIPE M12 ELBOW	0-92125-206-0	01	1	0608-
118	NUT; UNION M12	9-09840-280-0	01	1	9708-
154	PIPE; AIR,AIR TANK TO AIR GOV	1-49111-892-0	01	1	9708-
170	PIPE; AIR,AIR GOV TO FLEX HOSE	1-49114-340-0	01	1	9708-
212	PIPE; AIR,UNION TO UNION L=1285 SERVICED BY L=1370	1-47426-354-0	01	1	9708-
213	UNION; AIR PIPE M12	9-09228-306-1	01	1	9708-0607
213	UNION; AIR PIPE M12	0-92138-306-0	01	1	0608-
214	NUT; UNION,AIR PIPE M12	9-99111-412-0	01	1	9708-0512
214	NUT; UNION,AIR PIPE M12	0-91111-512-0	01	1	0601-
217	PIPE; VAC,UNION TO MAG VLV L=1027 SERVICED BY L=1100	1-47426-351-0	01	1	9708-
222	PIPE; AIR,MAG VLV TO FLEX HOSE L=1078 SERVICED BY L=1100	1-47434-387-0	01	1	9708-
238	PIPE; AIR,UNION TO UNION	1-49116-189-0	01	1	9708-
239	UNION; AIR PIPE M12	9-09228-306-1	01	1	9708-0607
239	UNION; AIR PIPE M12	0-92138-306-0	01	1	0608-
240	NUT; UNION,AIR PIPE M12	9-99111-412-0	01	1	9708-0512
240	NUT; UNION,AIR PIPE M12	0-91111-512-0	01	1	0601-
242	PIPE; AIR,AIR TANK TO UNION	1-49115-791-0	01	1	9708-
250	PIPE; AIR,UNION TO FLEX HOSE L=2757 SERVICED BY L=2900	1-47426-364-0	01	1	9708-

307 307 437 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
307	PIPE; AIR,FLEX HOSE TO BRK VLV L=421	1-47492-448-5	01	1	9708-9902
307	PIPE; AIR,FLEX HOSE TO BRK VLV L=421	1-49121-486-0	01	1	9903-0109
307	PIPE; AIR,FLEX HOSE TO BRK VLV L=414	1-49121-497-0	01	1	0110-
374	CONNECTOR	1-09654-324-0	01	1	9708-0209
374	CONNECTOR M16 STRAIGHT	1-09654-380-0	01	1	0210-
437	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	01	1	9708-0605
437	WASHER; PL,CONNECTOR ID=17 OD=30	0-91610-516-0	01	1	0606-

184 186 185 170 1 6 3 7 2 14 250 138 139 170 155 137 155 154 124 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK L=360	1-09363-530-0	01	1	9708-
2	NUT; FLEX HOSE,AIR TANK M22	9-09111-422-0	01	1	9708-0512
2	NUT; FLEX HOSE,AIR TANK M22	0-91111-522-0	01	1	0601-
3	WASHER; LK,FLEX HOSE,AIR TANK ID=22.5	9-09150-522-0	01	1	9708-0603
3	WASHER; LK,FLEX HOSE,AIR TANK ID=22.5	0-91510-522-0	01	1	0604-
6	BRACKET; FLEX HOSE,AIR TANK	1-47477-264-2	01	1	9708-0304
6	BRACKET; FLEX HOSE,AIR TANK	1-47478-864-0	01	1	0305-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28680-830-0	02	1	9708-0512
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	0601-
14	PIPE; AIR,FLEX HOSE TO AIR TANK	1-49114-330-0	01	1	9708-
124	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	01	1	9708-0512
124	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	01	1	0601-
124	BOLT; BRKT M8X45 FLANGE	0-28080-845-0	01	1	9708-0512
124	BOLT; BRKT M8X45 FLANGE	0-28050-845-0	01	1	0601-
137	HOSE; FLEX,AIR PRESSURE GAGE L=450	0-07120-450-0	01	1	9708-
138	NUT; FLEX HOSE,AIR GOV M12	9-09840-280-0	01	1	9708-
139	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	9-09150-512-0	01	1	9708-0603
139	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	0-91510-512-0	01	1	0604-
154	PIPE; AIR,AIR TANK TO AIR GOV	1-49111-892-0	01	1	9708-
155	GASKET; AIR PIPE ID=11 OD=18	9-09572-510-0	02	1	9708-
170	PIPE; AIR,AIR GOV TO FLEX HOSE	1-49114-340-0	01	1	9708-
184	HOSE; FLEX,AIR GOV L=350	1-09363-651-0	01	1	9708-
185	NUT; FLEX HOSE,AIR GOV M12	9-09840-280-0	01	1	9708-
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	9-09150-512-0	01	1	9708-0603
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	0-91510-512-0	01	1	0604-
250	PIPE; AIR,UNION TO FLEX HOSE L=2757 SERVICED BY L=2900	1-47426-364-0	01	1	9708-

434 337 434 333 286 328 325 322 323 438 321 140 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
137	HOSE; FLEX,AIR PRESSURE GAGE L=450	0-07120-450-0	01	1	9708-
140	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	9708-
286	PLUG; AIR PIPE	9-09204-510-0	01	1	9708-
321	JOINT; FLEX HOSE	1-09654-362-1	01	1	9708-
322	NUT; JOINT,FLEX HOSE M10 H=8	1-09400-029-0	01	1	9708-
323	WASHER; LK,JOINT ID=10.2	9-09150-510-0	01	1	9708-0603
323	WASHER; LK,JOINT ID=10.2	0-91510-510-0	01	1	0604-
325	PIPE; AIR,FLEX HOSE TO UNION	1-47492-452-2	01	1	9708-
328	UNION; AIR PIPE	1-47470-362-2	01	1	9708-
333	BOLT; PIPE UNION M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9708-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=810	0-07210-810-0	01	1	9708-0605
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=810	0-57210-810-0	01	1	0606-
434	CLIP (A) ID=17	1-09987-105-1	01	1	9708-
434	CLIP (B)	8-94297-486-0	02	1	9708-
438	WASHER; PL,JOINT ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	9708-
