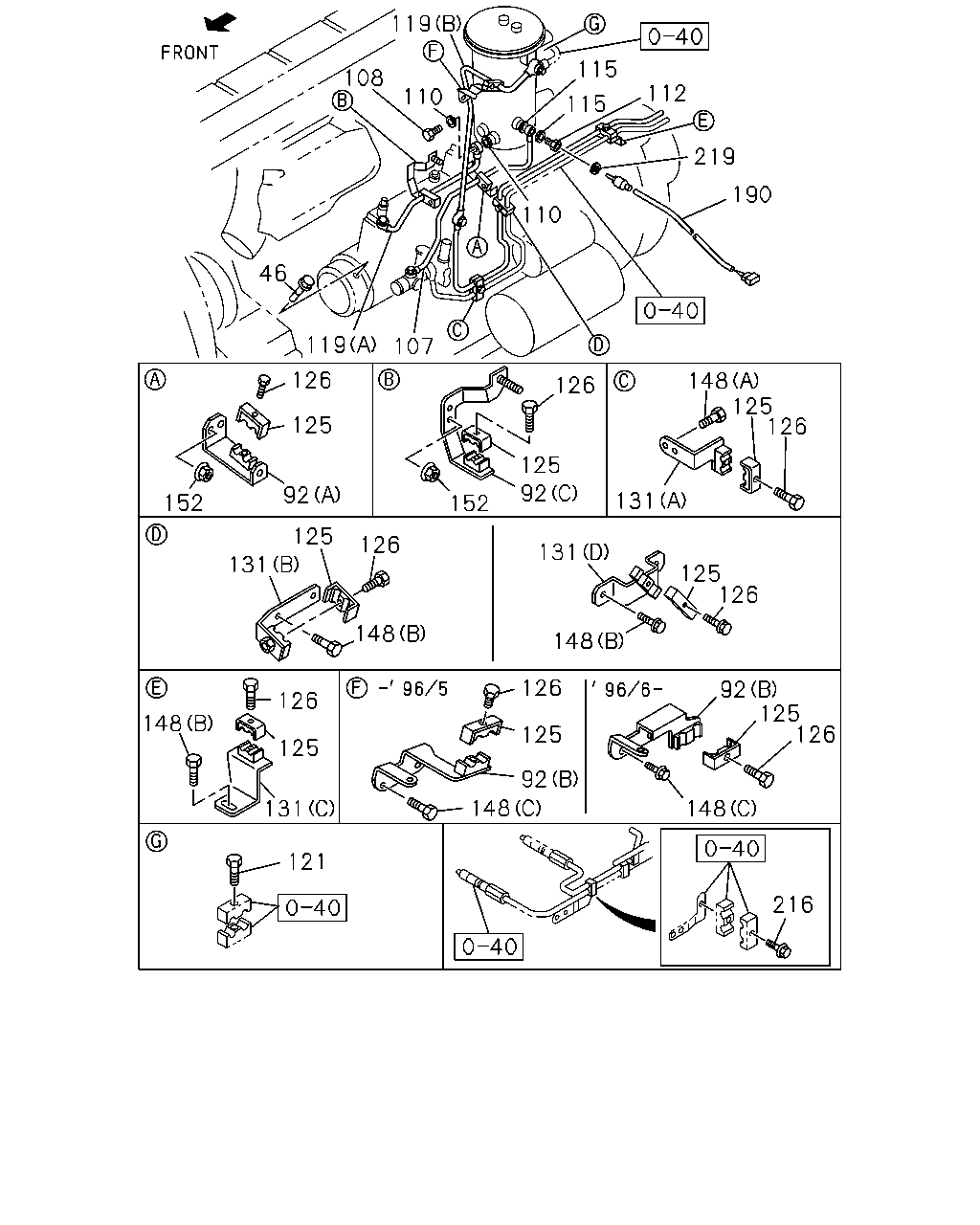

0-42A — FUEL PUMP AND PIPE (#6453) — 91 parça

119 115 108 112 110 115 219 190 110 46 119 107 126 148 125 126 126 125 125 92 92 131 152 152 125 126 131 131 125 126 148 148 126 92 125 126 126 148 125 125 92 148 131 148 121 216

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
46	PLUG M14X9	9-99202-314-0	01	1	9601-9610	●
46	PLUG EXC. EURO2 SPECIFICATION<THN> M14X9	9-99202-314-0	01	1	9611-9904	●
46	PLUG M14X9	9-99202-314-0	01	1	9611-9904		●
46	PLUG RLD GOVERNOR(SD7) M14X9	9-99202-314-0	01	1	9905-		●
46	PLUG M14X9	9-99202-314-0	01	1	9905-			●	●
92	BRACKET; FUEL PIPE (A)	1-15419-425-0	01	1	9601-9610	●
92	BRACKET; FUEL PIPE (A)	1-15419-425-0	01	1	9611-9904	●	●
92	BRACKET; FUEL PIPE (A)	1-15419-425-0	01	1	9905-		●	●	●
92	BRACKET; FUEL PIPE (B)	1-15419-426-0	01	1	9601-9601	●
92	BRACKET; FUEL PIPE (B)	1-15419-468-0	01	1	9602-9605	●
92	BRACKET; FUEL PIPE (B)	1-15419-474-1	01	1	9606-9610	●
92	BRACKET; FUEL PIPE (B)	1-15419-474-1	01	1	9611-9904	●	●
92	BRACKET; FUEL PIPE (B)	1-15419-474-1	01	1	9905-		●	●	●
92	BRACKET; FUEL PIPE (C)	1-15419-427-0	01	1	9601-9610	●
92	BRACKET; FUEL PIPE (C)	1-15419-427-0	01	1	9611-9904	●	●
92	BRACKET; FUEL PIPE (C)	1-15419-427-0	01	1	9905-		●	●	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-731-0	01	1	9601-9610	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-731-0	01	1	9611-9904	●	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-731-0	01	1	9905-		●	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9601-9610	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9611-9904	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9905-		●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9610	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9611-9904	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-		●	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9601-9610	●
112	BOLT; JOINT,FUEL FILTER EXC. EURO2 SPECIFICATION<THN> M14X27 FLANGE	1-09675-086-0	01	1	9611-9904	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9611-9904		●
112	BOLT; JOINT,FUEL FILTER EURO2 SPECIFICATION<THN>	1-09675-156-1	01	1	9611-9904	●
112	BOLT; JOINT,FUEL FILTER	1-09675-156-1	01	1	9905-		●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9905-			●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9610	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9611-9904	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-		●	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP (A)	1-15415-538-1	01	1	9601-9610	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. EURO2 SPECIFICATION<THN> (A)	1-15415-538-1	01	1	9611-9904	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP (A)	1-15415-538-1	01	1	9611-9904		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP (A)	1-15415-538-1	01	1	9905-			●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP (B)	1-15415-540-1	01	1	9601-9605	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP (B)	1-15416-091-0	01	1	9606-9610	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. EURO2 SPECIFICATION<THN> (B)	1-15416-091-0	01	1	9611-9904	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP (B)	1-15416-091-0	01	1	9611-9904		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO2 SPECIFICATION<THN> (A)	1-15415-539-1	01	1	9611-9904	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP (A)	1-15415-539-1	01	1	9905-		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO2 SPECIFICATION<THN> (B)	1-15416-090-0	01	1	9611-9904	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP (B)	1-15416-090-0	01	1	9905-		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (B)	1-15416-137-0	01	1	9905-			●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP (B)	1-15416-137-0	01	1	9905-				●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (B)	1-15416-091-0	01	1	9905-			●
121	BOLT; CLIP M6X30 FLANGE	0-28080-630-0	01	1	9601-9610	●
121	BOLT; CLIP M6X30 FLANGE	0-28080-630-0	01	1	9611-9904	●	●
121	BOLT; CLIP M6X30 FLANGE	0-28080-630-0	01	1	9905-		●	●	●
125	CLIP; FUEL PIPE ID=10 & 10 L=25	8-94393-280-1	06	1	9601-9610	●
125	CLIP; FUEL PIPE ID=10 & 10 L=25	8-94393-280-1	06	1	9611-9904	●	●
125	CLIP; FUEL PIPE ID=10 & 10 L=25	8-94393-280-2	06	1	9905-		●	●	●
126	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28080-630-0	06	1	9601-9610	●
126	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28080-630-0	06	1	9611-9904	●	●
126	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28080-630-0	06	1	9905-		●	●	●
131	BRACKET; FUEL PIPE CLIP (A)	1-15419-336-0	01	1	9601-9610	●
131	BRACKET; FUEL PIPE CLIP (A)	1-15419-336-0	01	1	9611-9904	●	●
131	BRACKET; FUEL PIPE CLIP (A)	1-15419-336-0	01	1	9905-		●	●	●
131	BRACKET; FUEL PIPE CLIP (B)	1-15419-372-0	01	1	9601-9610	●
131	BRACKET; FUEL PIPE CLIP (B)	1-15419-372-0	01	1	9611-9904	●	●
131	BRACKET; FUEL PIPE CLIP (C)	1-15419-423-1	01	1	9601-9610	●
131	BRACKET; FUEL PIPE CLIP (C)	1-15419-423-1	01	1	9611-9904	●	●
131	BRACKET; FUEL PIPE CLIP (C)	1-15419-423-1	01	1	9905-		●	●	●
131	BRACKET; FUEL PIPE CLIP (B)	1-15419-372-0	01	1	9905-		●
131	BRACKET; FUEL PIPE CLIP EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (B)	1-15419-372-0	01	1	9905-			●
131	BRACKET; FUEL PIPE CLIP INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (D)	1-15419-484-0	01	1	9905-			●
131	BRACKET; FUEL PIPE CLIP (D)	1-15419-484-0	01	1	9905-				●
148	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	02	1	9601-9610	●
148	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	02	1	9611-9904	●	●
148	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	02	1	9905-		●	●	●
148	BOLT; BRKT (B) M10X18 FLANGE	0-28181-018-0	03	1	9601-9603	●
148	BOLT; BRKT (C) M10X20 FLANGE	0-28181-020-0	02	1	9601-9702	●
148	BOLT; BRKT (C) M10X20 FLANGE	0-28181-020-0	02	1	9703-9904		●	●	●
148	BOLT; BRKT (B) M10X20 FLANGE	0-28181-020-0	05	1	9604-9610	●
148	BOLT; BRKT (B) M10X20 FLANGE	0-28181-020-0	05	1	9611-9904	●	●
148	BOLT; BRKT (B) M10X20 FLANGE	0-28181-020-0	05	1	9905-		●	●	●
152	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	9601-9602	●
152	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9603-9610	●
152	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9611-9710	●	●
152	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	9711-9904	●	●
152	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	9905-		●	●	●
190	SENSOR; FUEL TEMP EURO2 SPECIFICATION<THN>	1-81535-036-5	01	1	9611-9904	●
190	SENSOR; FUEL TEMP	1-81535-036-6	01	1	9905-		●
216	BOLT; CLIP,FUEL PIPE M6X40 FLANGE	0-28080-640-0	01	1	9601-9610	●
216	BOLT; CLIP,FUEL PIPE M6X40 FLANGE	0-28080-640-0	01	1	9611-9904	●	●
216	BOLT; CLIP,FUEL PIPE M6X40 FLANGE	0-28080-640-0	01	1	9905-		●	●	●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ID=14.2 OD=19.2	1-09630-085-0	01	1	9611-9904	●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9905-		●
