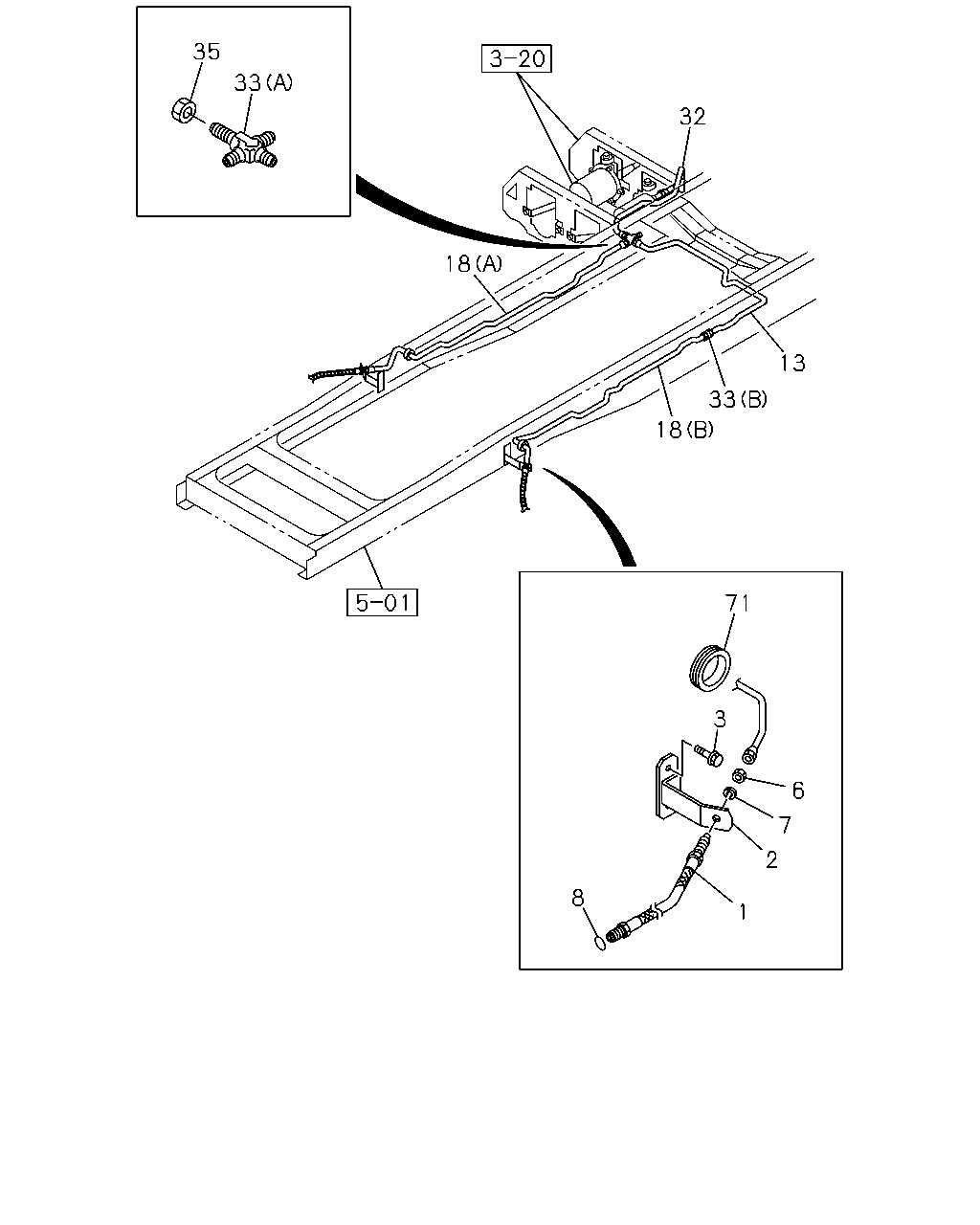

3-52 — BRAKE PIPING; OIL,FRONT
(#64529) — 19 parça
35
33
32
18
13
33
18
71
3
6
7
2
8
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,FRT BRK
L=610
0-05312-610-0
02
1
9708-0907
1
HOSE; FLEX,FRT BRK
L=610
0-05212-610-0
02
1
0908-
2
BRACKET; FLEX HOSE,FRT BRK
1-47476-817-0
02
1
9708-
3
BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE IDN
0-28680-825-0
04
1
9708-0512
3
BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE IDN
0-28650-825-0
04
1
0601-
6
NUT; FLEX HOSE,FRT BRK
M12
9-09840-280-0
02
1
9708-
7
WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2
9-09150-512-0
02
1
9708-0603
7
WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2
0-91510-512-0
02
1
0604-
8
GASKET; FLEX HOSE,FRT BRK
ID=9 OD=17
9-09920-472-0
02
1
9708-
13
PIPE; OIL,UNION TO UNION
L=1444 SERVICED BY L=1500
1-47426-355-0
01
1
9708-
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1588 SERVICED BY L=1620
1-47426-356-0
01
1
9708-
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=1624 SERVICED BY L=1700
1-47426-357-0
01
1
9708-
32
PIPE; OIL,AIR MASTER TO UNION
1-47428-648-0
01
1
9708-
33
UNION; OIL PIPE
(A)
1-09656-019-1
01
1
9708-
33
UNION; OIL PIPE
(B) M12 L=40
9-09223-006-1
01
1
9708-0607
33
UNION; OIL PIPE
(B) M12 L=40
0-92113-006-0
01
1
0608-
35
NUT; UNION,OIL PIPE
M14
9-99111-414-0
01
1
9708-0512
35
NUT; UNION,OIL PIPE
M14
0-91111-514-0
01
1
0601-
71
GROMMET; OIL PIPE
ID=28 OD=35 T=17
9-09956-256-2
02
1
9708-
