Isuzu WW
▶
TRUCKS
▶
FVM
▶
10753 - FVM(INDONESIA)WB5300
▶
2 - Clutch, Transmission, Trans Axle
▶
2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE
▶

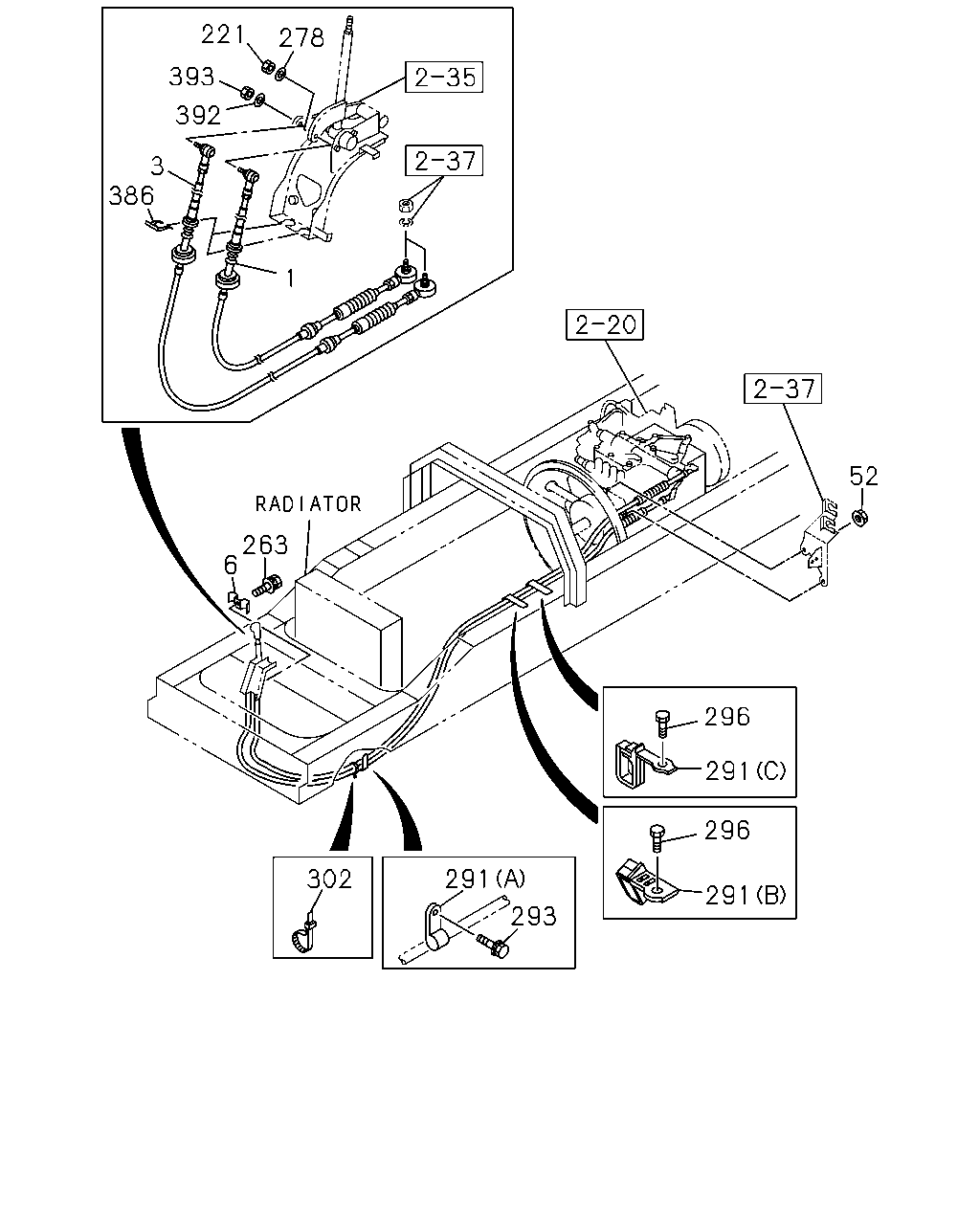

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE
(#64517) — 27 parça
221
278
393
392
3
386
1
52
263
6
296
291
296
291
302
291
293
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; SHIFT,TRANS CONT
L=3561
1-33670-856-0
01
1
9708-
3
CABLE; SELECT,TRANS CONT
L=3672
1-33670-868-1
01
1
9708-
6
CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5
1-09700-739-0
01
1
9708-
52
NUT; BRKT
M10 FLANGE
0-91150-210-0
02
1
9708-0602
52
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
0603-
221
NUT; SHIFT WIRE TO LEVER
M8
9-09110-408-0
01
1
9708-9811
221
NUT; SHIFT WIRE TO LEVER
M8 FLANGE
1-09440-049-0
01
1
9812-1011
221
NUT; SHIFT WIRE TO LEVER
M8 FLANGE
1-09440-062-1
01
1
1012-
263
BOLT; CLIP,TRANS CONT WIRE
M8X24.5 W/LK&PL WASHER
8-94279-208-0
01
1
9708-9812
263
BOLT; CLIP,TRANS CONT WIRE
M8X20.5 W/LK&PL WASHER
8-94279-207-0
01
1
9901-
278
WASHER; LK,SHIFT WIRE
ID=8.2
9-09150-508-0
01
1
9708-9811
291
CLIP; SHIFT TO SELECT,FRAME
(C) ID=10 & 10 M8
1-09701-220-0
01
1
9708-
291
CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32
1-09701-245-0
01
1
9708-0506
291
CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32
1-09701-312-0
01
1
0507-
291
CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16
9-09535-026-0
01
1
9708-0606
291
CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16
0-95325-026-0
01
1
0607-
293
BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE
0-28080-816-0
01
1
9708-0512
293
BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE
0-28050-816-0
01
1
0601-
296
BOLT; CLIP,SHIFT & SELECT
M8X30 FLANGE
0-28680-830-0
02
1
9708-0512
296
BOLT; CLIP,SHIFT & SELECT
M8X30 FLANGE
0-28650-830-0
02
1
0601-
302
CLIP; BAND
L=300
1-09707-001-1
01
1
9708-
302
CLIP; BAND
L=140 IDN
5-09707-031-1
01
1
9708-
386
CLIP; CONT CABLE & TUBE
1-09700-966-1
02
1
9708-
392
WASHER; LK,SELECT CABLE,CAB
ID=8.2
9-09150-508-0
01
1
9708-9811
393
NUT; SELECT CABLE,CAB
M8
9-09110-408-0
01
1
9708-9811
393
NUT; SELECT CABLE,CAB
M8 FLANGE
1-09440-049-0
01
1
9812-1011
393
NUT; SELECT CABLE,CAB
M8 FLANGE
1-09440-062-1
01
1
1012-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
