2-05 — CLUTCH PIPING (#64508) — 72 parça

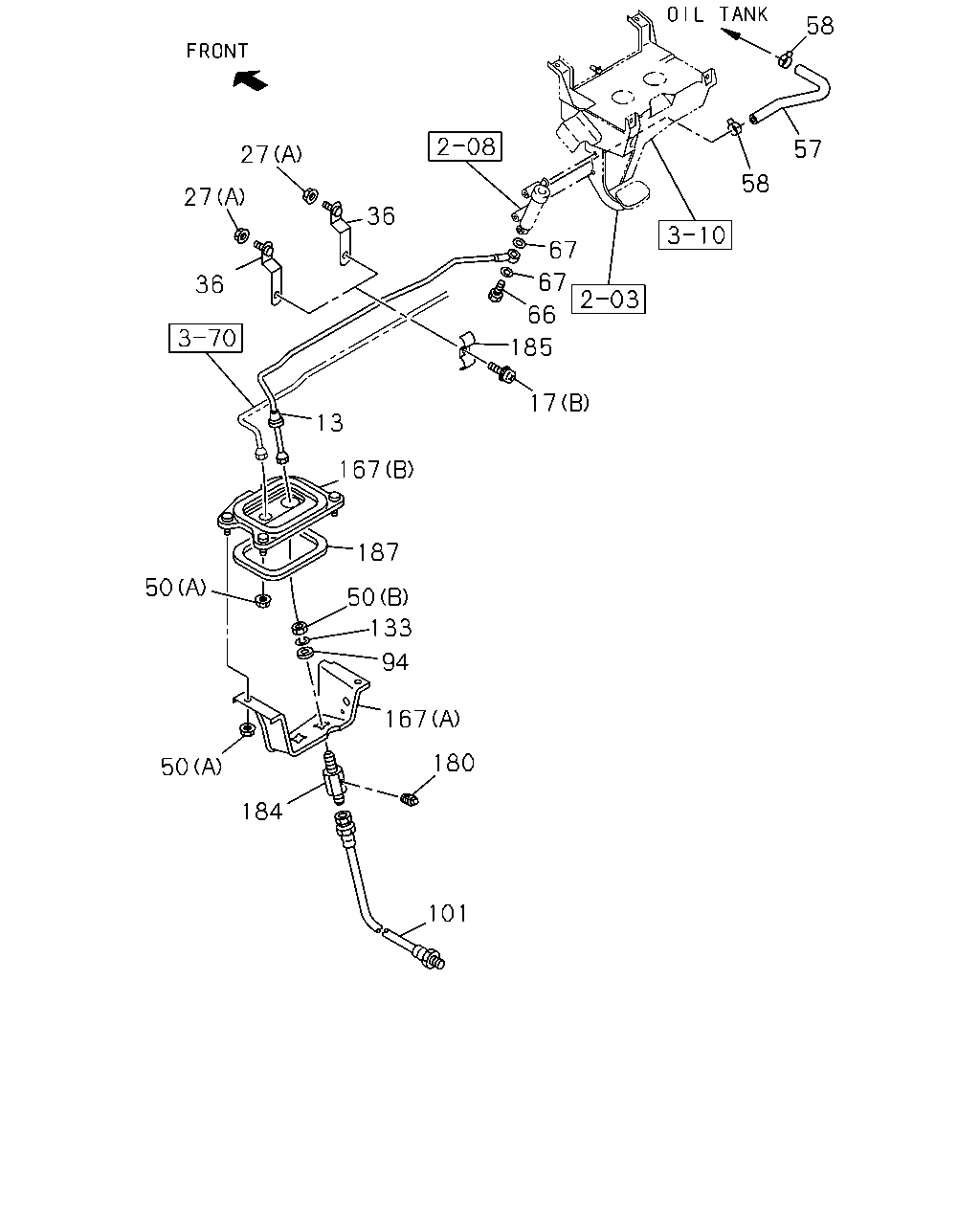

çizim 99552
58 57 27 58 27 36 67 67 36 66 185 17 13 167 187 50 50 133 94 167 180 50 184 101
BalonParca AdiParca NoAdetTipApplied Date
13 PIPE; OIL,FLEX HOSE TO CLU M/CYL 1-47423-750-4 01 1 9708-
17 BOLT; BRKT
(A) M8X25 FLANGE IDN 		0-28680-825-0 02 1 9708-0512
17 BOLT; BRKT
(A) M8X25 FLANGE IDN 		0-28650-825-0 02 1 0601-
17 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9708-
27 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 02 1 9708-0602
27 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0603-
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9708-
36 BRACKET; CLIP 1-79738-186-1 02 1 9708-
50 NUT; UNION
(A) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 03 1 9708-
50 NUT; UNION
(B) M14 		9-99111-414-0 01 1 9708-0512
50 NUT; UNION
(B) M14 		0-91111-514-0 01 1 0601-
57 HOSE; CLU M/CYL TO OIL TANK 1-47424-533-0 01 1 9708-
58 CLIP; RUBBER HOSE TO M/CYL
ID=14 		8-94238-572-0 02 1 9708-
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		1-09675-146-0 01 1 9708-0805
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		8-98037-827-0 01 1 0806-
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		1-09630-085-0 02 1 9708-1312
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
94 WASHER; PL,UNION
ID=15 		9-09160-514-0 01 1 9708-0605
94 WASHER; PL,UNION
ID=15 		0-91610-514-0 01 1 0606-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=430 		1-09364-859-1 01 1 9708-0703
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=430 		8-98072-326-0 01 1 0704-
133 WASHER; LK,UNION
ID=14.2 		9-09150-514-0 01 1 9708-0603
133 WASHER; LK,UNION
ID=14.2 		0-91510-514-0 01 1 0604-
167 BRACKET; UNION
(A) 		1-79738-193-6 01 1 9708-
167 BRACKET; UNION
(B) 		1-79738-204-2 01 1 9708-9911
167 BRACKET; UNION
(B) 		1-79738-845-1 01 1 9912-
180 PLUG; PIPE 9-09204-510-0 01 1 9708-0804
184 UNION; FLEX HOSE
3WAY 		1-09656-679-0 01 1 9708-0804
184 UNION; FLEX HOSE
STRAIGHT 		1-09654-435-0 01 1 0805-
185 CLIP; BRKT
ID=5 & 8 		5-09700-165-0 02 1 9708-
187 SEAL; BRKT 1-79738-190-0 01 1 9708-

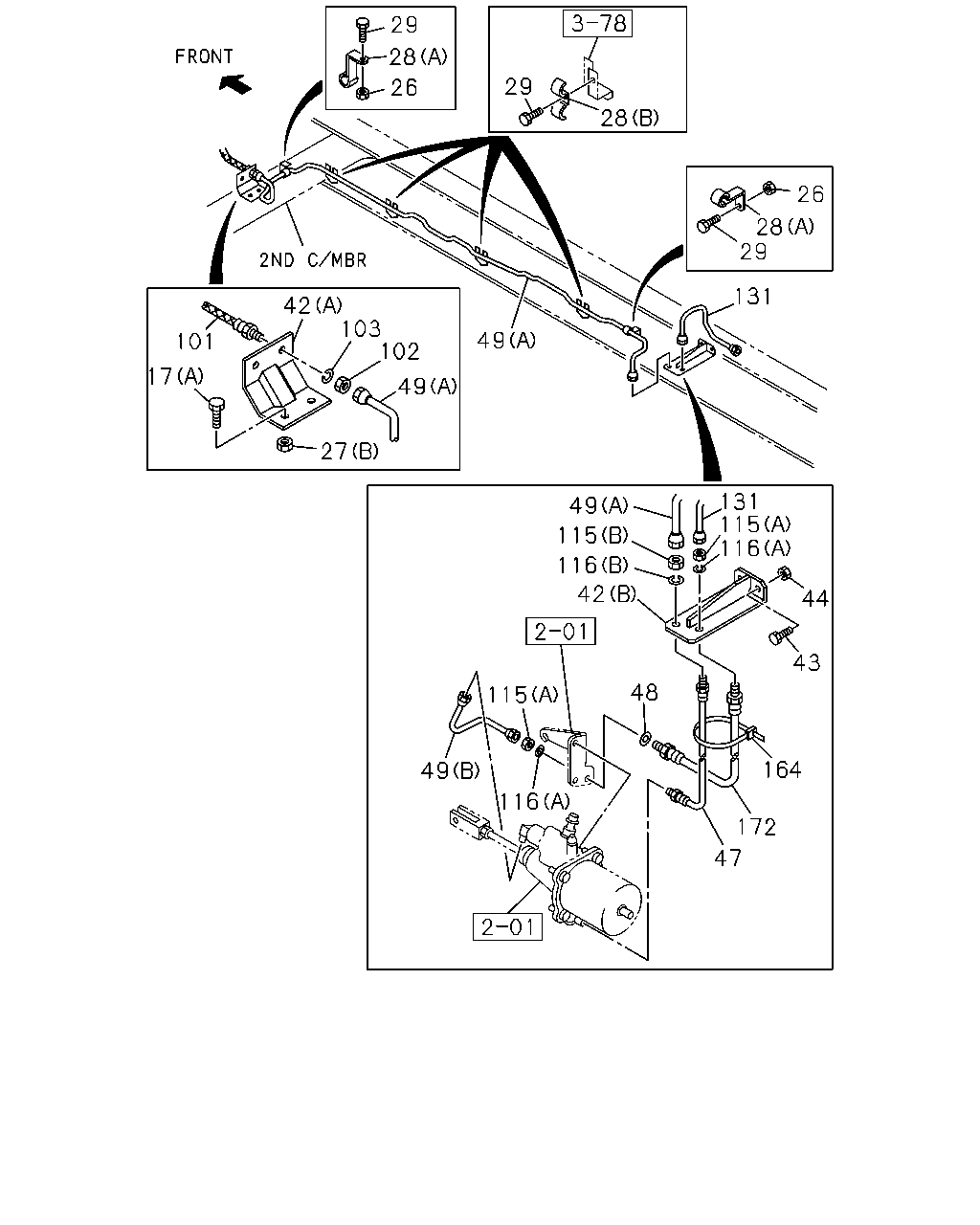

çizim 102239
29 28 29 26 28 26 28 29 131 42 103 102 49 101 17 49 27 131 115 116 49 115 116 42 44 43 48 115 164 49 116 172 47
BalonParca AdiParca NoAdetTipApplied Date
17 BOLT; BRKT
(A) M8X25 FLANGE IDN 		0-28680-825-0 02 1 9708-0512
17 BOLT; BRKT
(A) M8X25 FLANGE IDN 		0-28650-825-0 02 1 0601-
17 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9708-
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 02 1 9708-0602
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 02 1 0603-
27 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 02 1 9708-0602
27 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0603-
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9708-
28 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 02 1 9708-
28 CLIP; OIL PIPE
(B) ID=7 & 9 L=17.5 & 17.5 		1-09700-746-0 04 1 9708-
29 BOLT; CLIP,OIL PIPE
M8X14 FLANGE 		0-28080-814-0 04 1 9708-
29 BOLT; CLIP,OIL PIPE
M8X16 FLANGE 		0-28080-816-0 01 1 9708-0512
29 BOLT; CLIP,OIL PIPE
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
29 BOLT; CLIP,OIL PIPE
M8X35 FLANGE 		0-28680-835-0 01 1 9708-0512
29 BOLT; CLIP,OIL PIPE
M8X35 FLANGE 		0-28650-835-0 01 1 0601-
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-781-0 01 1 9708-
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		1-47476-912-1 01 1 9708-
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X35 FLANGE 		0-28680-835-0 02 1 9708-0512
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X35 FLANGE 		0-28650-835-0 02 1 0601-
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91150-108-0 02 1 9708-0602
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91180-108-0 02 1 0603-
47 HOSE; FLEX,CLU CONT
L=600 		0-07030-600-0 01 1 9708-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 01 1 9708-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
(A) L=3192 SERVICED BY L=3300 		1-47426-398-0 01 1 9708-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
(B) L=216 		1-47493-418-1 01 1 9708-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=430 		1-09364-859-1 01 1 9708-0703
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=430 		8-98072-326-0 01 1 0704-
102 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9708-0512
102 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 0601-
103 WASHER; LK,FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9708-0603
103 WASHER; LK,FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 0604-
115 NUT; FLEX HOSE,CLU CONT
(A) M12 		9-09840-280-0 02 1 9708-
115 NUT; FLEX HOSE,CLU CONT
(B) M14 		9-99111-414-0 01 1 9708-0512
115 NUT; FLEX HOSE,CLU CONT
(B) M14 		0-91111-514-0 01 1 0601-
116 WASHER; FLEX HOSE,CLU CONT
(A) ID=12.2 		9-09150-512-0 02 1 9708-0603
116 WASHER; FLEX HOSE,CLU CONT
(A) ID=12.2 		0-91510-512-0 02 1 0604-
116 WASHER; FLEX HOSE,CLU CONT
(B) ID=14.2 		9-09150-514-0 01 1 9708-0603
116 WASHER; FLEX HOSE,CLU CONT
(B) ID=14.2 		0-91510-514-0 01 1 0604-
131 PIPE; AIR,UNION TO FLEX HOSE 1-49115-717-0 01 1 9708-
164 CLIP; BAND,FLEX HOSE
L=140 IDN 		5-09707-031-1 01 1 9708-
172 HOSE; FLEX,CLU BOOSTER
L=520 		1-09364-583-0 01 1 9708-
