1-50 — EXHAUST PIPE AND SILENCER (#64503) — 53 parça

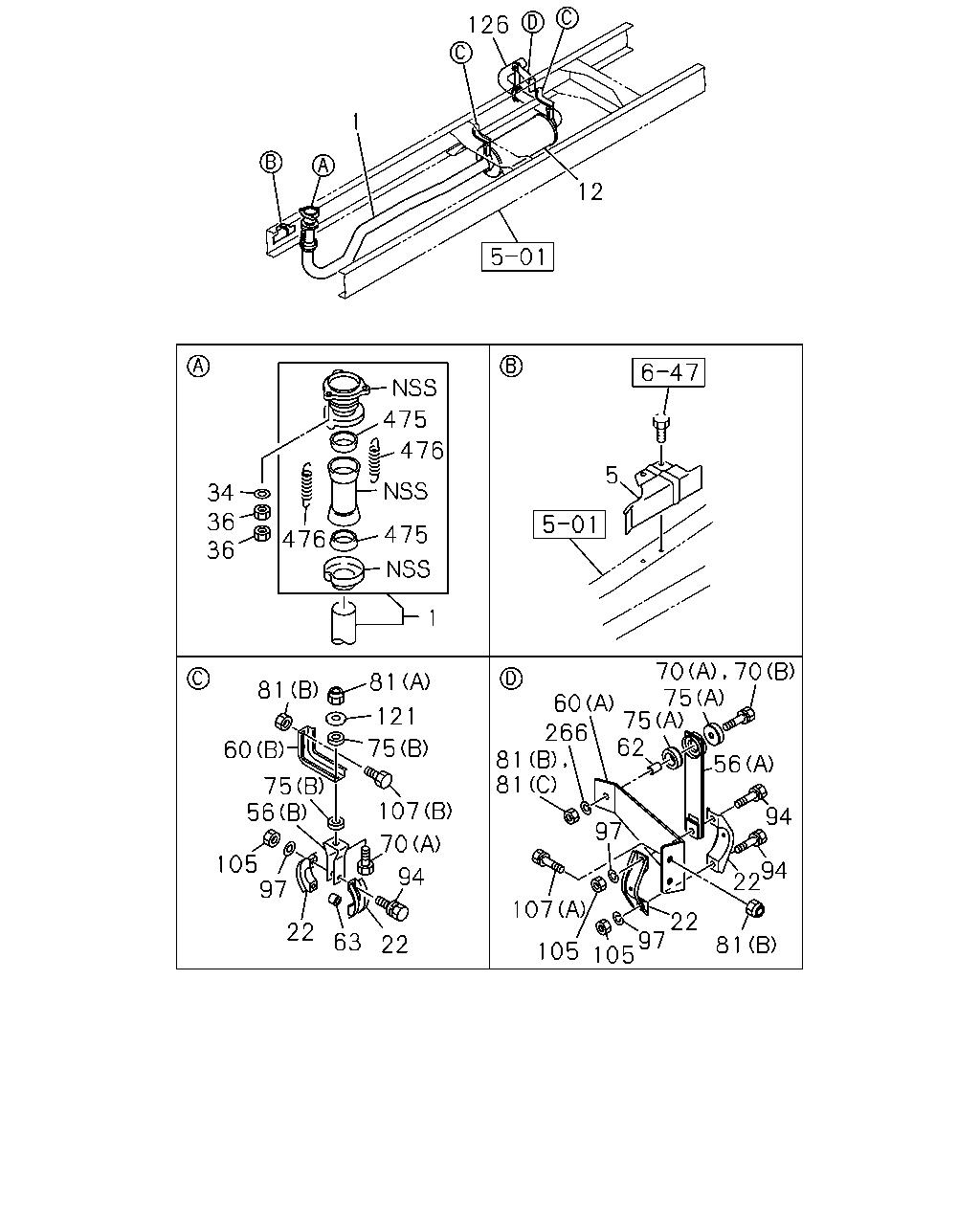

çizim 185008
126 1 12 475 476 5 34 36 36 475 476 1 75 75 62 81 81 60 266 81 81 121 60 75 56 75 56 107 94 97 70 22 97 105 105 97 94 22 94 107 22 63 22 81 105 70 70
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
IDN 		8-97520-047-0 01 1 9708-
5 PROTECTOR; HEAT 1-33659-182-1 01 1 9708-
12 SILENCER ASM; EXH
IDN 		8-97520-043-0 01 1 9708-
22 CLAMP; EXH PIPE
ID=80-84 IDN 		1-22133-233-0 02 1 9708-
22 CLAMP; EXH PIPE
ID=80-84 IDN 		1-22133-233-0 04 1 9708-
34 WASHER; EXH PIPE
ID=13 OD=26 DISH 		1-09556-002-0 03 1 9708-0410
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0411-
36 NUT; EXH PIPE
M12 		1-09400-010-0 06 1 9708-
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22131-528-1 01 1 9708-
56 BRACKET; CLAMP,EXH PIPE
(B) H=163 		1-22139-049-0 02 1 9708-
60 BRACKET; FRAME TO BRKT
(A) 		1-22131-741-0 01 1 9708-
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-630-1 02 1 9708-
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 01 1 9708-
63 TUBE; DIST,BRKT
L=11 IDN 		1-22139-026-0 02 1 9708-
70 BOLT; BRKT
(A) M10X50 		0-10806-050-0 02 1 9708-0512
70 BOLT; BRKT
(A) M10X50 		0-10856-050-0 02 1 0601-
70 BOLT; BRKT
(B) M10X55 		0-10806-055-0 01 1 9708-0204
70 BOLT; BRKT
(A) M10X50 		0-10806-050-0 01 1 0205-0512
70 BOLT; BRKT
(A) M10X50 		0-10856-050-0 01 1 0601-
75 RUBBER; SUPPORT,BRKT
(A) OD=40 		1-22159-094-0 02 1 9708-
75 RUBBER; SUPPORT,BRKT
(B) OD=30 		1-22159-106-1 04 1 9708-
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 06 1 9708-0204
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 0205-0602
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 0205-0602
81 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0603-
81 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0603-
81 NUT; BRKT
(C) M10 		9-09110-510-0 01 1 9708-0204
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 03 1 0205-0602
81 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 03 1 0603-
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 02 1 9708-0603
81 NUT; BRKT
(A) M10 LOCK NUT IDN 		0-91370-010-0 02 1 0604-
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9708-0805
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806-
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 9708-0805
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 04 1 0806-
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9708-
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 04 1 9708-0812
97 WASHER; PL,CLAMP
ID=10.5 		0-91614-510-0 04 1 0901-0907
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 04 1 0908-
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9708-0512
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 0601-
105 NUT; CLAMP
M10 		9-09110-510-0 04 1 9708-0512
105 NUT; CLAMP
M10 		0-91110-510-0 04 1 0601-
107 BOLT; BRKT
(A) M10X35 FLANGE IDN 		0-28681-035-0 02 1 9708-0512
107 BOLT; BRKT
(A) M10X35 FLANGE IDN 		0-28651-035-0 02 1 0601-
107 BOLT; BRKT
(B) M10X40 FLANGE 		0-28681-040-0 04 1 9708-0512
107 BOLT; BRKT
(B) M10X40 FLANGE 		0-28651-040-0 04 1 0601-
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 02 1 9708-0605
121 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 02 1 0606-
126 PIPE; EXH,RR
IDN 		8-97520-044-1 01 1 9708-
266 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 01 1 9708-0204
475 BEARING; SEAL,VIBNON,EXH PIPE 1-22119-277-1 02 1 9708-
476 SPRING; VIBNON,EXH PIPE 1-09583-298-0 02 1 9708-
