Isuzu WW
▶
TRUCKS
▶
FVM
▶
10753 - FVM(INDONESIA)WB5300
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶

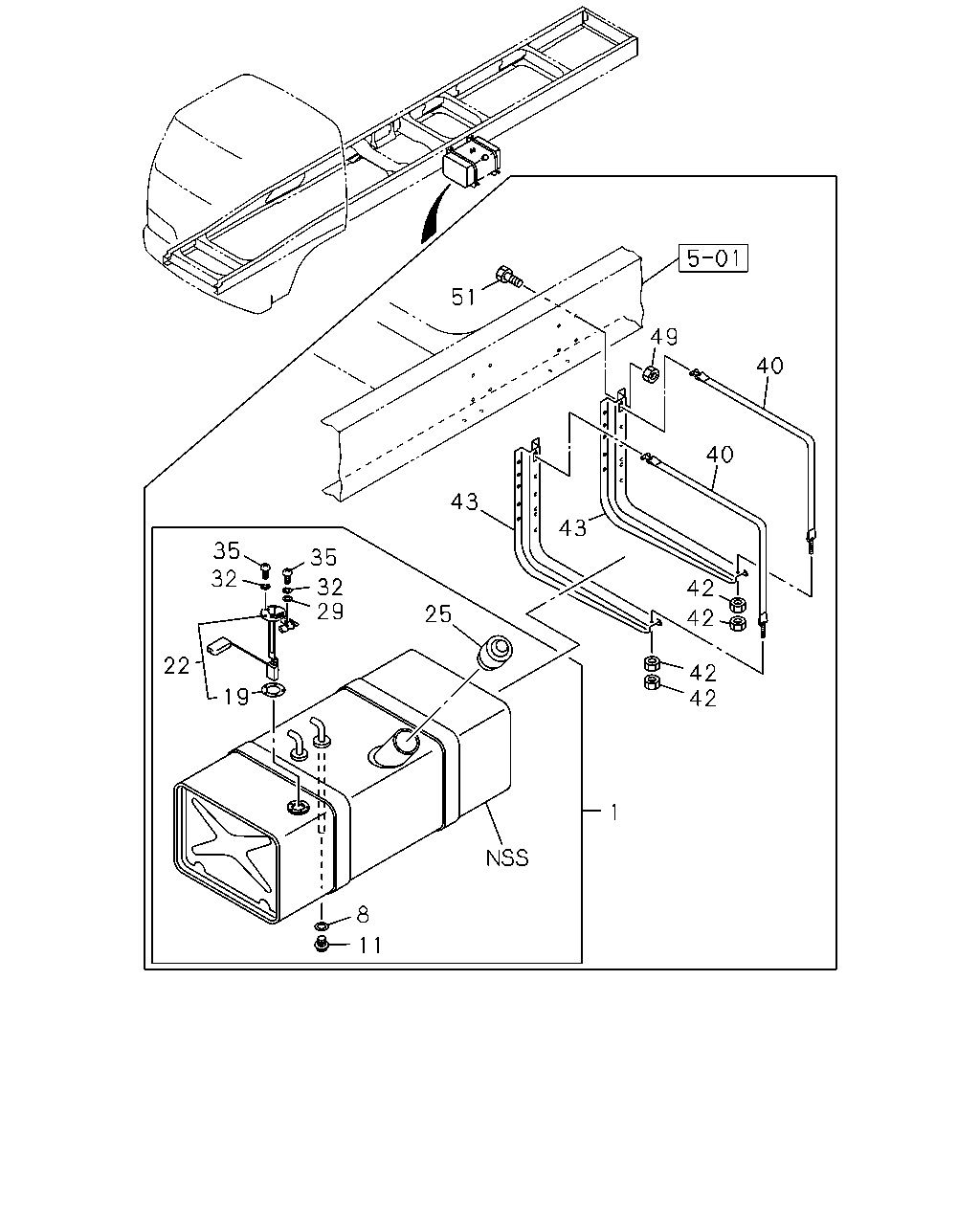

1-40 — FUEL TANK
(#64500) — 24 parça
51
49
40
40
43
43
35
32
35
32
29
42
25
42
22
42
42
19
1
8
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
1170X500X380 200L IDN
8-97520-121-0
01
1
9708-9709
1
TANK; FUEL
720X610X496 200L IDN
8-97520-473-0
01
1
9710-
8
GASKET; DRAIN PLUG,FUEL TANK
IDN
8-97520-041-0
01
1
9708-
11
PLUG; DRAIN,FUEL TANK
IDN
8-97520-124-0
01
1
9708-
19
GASKET; FUEL TANK UNIT
ID=42 OD=71
5-83148-001-0
01
1
9708-
22
UNIT; FUEL TANK
1-83141-137-0
01
1
9708-9709
22
UNIT; FUEL TANK
IDN
1-83141-084-1
01
1
9710-
25
CAP; FILLER,FUEL TANK
IDN
8-97520-228-0
01
1
9708-
29
WASHER; PL,FUEL TANK UNIT
ID=5.3
9-09160-505-0
01
1
9708-0605
29
WASHER; PL,FUEL TANK UNIT
ID=5.3
0-91610-505-0
01
1
0606-
32
WASHER; LK,FUEL TANK UNIT
ID=5.1
9-09150-505-0
05
1
9708-0501
35
SCREW; FUEL TANK UNIT
M5X10
9-93497-510-0
05
1
9708-0501
35
SCREW; FUEL TANK UNIT
M5X10 W/LK WASHER
9-03910-510-0
05
1
0502-0604
35
SCREW; FUEL TANK UNIT
M5X10 W/LK WASHER
0-36220-510-0
05
1
0605-
40
BELT; SUPPORT,FUEL TANK
IDN
8-97520-104-0
02
1
9708-9709
40
BELT; SUPPORT,FUEL TANK
IDN
8-97520-472-0
02
1
9710-
42
NUT; SUPPORT BELT
M10
9-09110-510-0
04
1
9708-0512
42
NUT; SUPPORT BELT
M10
0-91110-510-0
04
1
0601-
43
BRACKET; FUEL TANK
IDN
8-97520-122-0
02
1
9708-9709
43
BRACKET; FUEL TANK
IDN
8-97520-474-0
02
1
9710-
49
NUT; BRKT
M12 IDN
9-99110-512-0
08
1
9708-0512
49
NUT; BRKT
M12
0-91110-512-0
08
1
0601-
51
BOLT; BRKT TO FRAME
M12X45 FLANGE
0-28081-245-0
08
1
9708-0512
51
BOLT; BRKT TO FRAME
M12X45 FLANGE
0-28051-245-0
08
1
0601-
