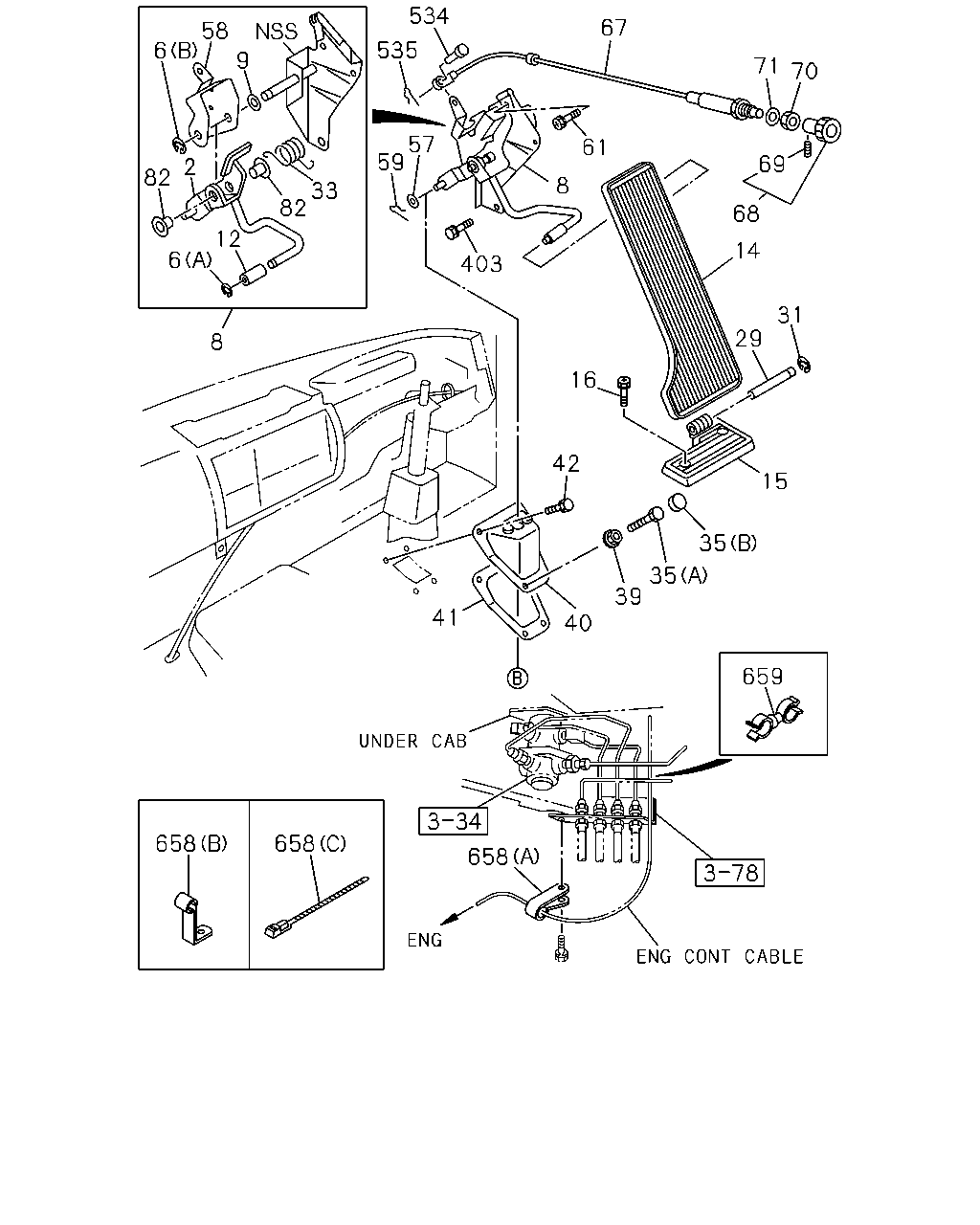

1-01 — ACCELERATOR PEDAL AND CONTROL (#645) — 84 parça

534 67 58 6 535 9 71 70 57 59 61 69 2 82 8 33 82 68 12 14 6 403 31 29 8 16 42 15 35 35 39 41 40 659 658 658 658

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	LEVER; ENG CONT	1-73997-904-1	01	1	9202-	●	●
6	RING; SNAP,LINK TO LINK (A) ID=6	9-09185-406-0	01	1	9202-	●	●
6	RING; SNAP,LINK TO LINK (B) ID=9	9-09185-409-0	01	1	9202-9306	●	●
6	RING; SNAP,LINK TO LINK (B) ID=8	9-09185-408-0	01	1	9307-	●	●
8	LINK ASM; ENG CONT	1-23240-067-2	01	1	9202-	●	●
9	WASHER; PL,CONT LINK ID=10.5 OD=16	9-09855-178-0	01	1	9202-	●	●
12	ROLLER; ENG CONT LEVER	1-09989-007-0	01	1	9202-	●	●
14	PAD; PEDAL,ACCEL	1-23241-021-0	01	1	9202-	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73997-675-3	01	1	9202-9305	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-2	01	1	9306-	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X24 W/PL WASHER	1-09981-504-0	02	1	9202-	●	●
29	SHAFT; ACCEL PEDAL OD=8 L=74	1-09987-206-0	01	1	9202-	●	●
31	RING; SNAP,ACCEL PEDAL ID=6	9-09185-406-0	01	1	9202-	●	●
33	SPRING; IDLING CONT LEVER	1-73997-906-0	01	1	9202-	●	●
35	STOPPER; ACCEL PEDAL (A) M8X85	1-09980-412-0	01	1	9202-9307	●	●
35	STOPPER; ACCEL PEDAL (A)	1-09980-582-0	01	1	9308-	●	●
35	STOPPER; ACCEL PEDAL (B) RUBBER	1-23249-009-0	01	1	9202-	●	●
39	NUT; ACCEL PEDAL STOPPER M8 FLANGE	8-94279-060-0	01	1	9202-	●	●
40	BRACKET; ENG CONT CABLE	1-73997-632-1	01	1	9202-	●	●
41	SEAL; BRKT,ENG CONT CABLE	1-73998-451-0	01	1	9202-	●	●
42	BOLT; BRKT,ENG CONT CABLE M6X16 W/LK&PL WASHER	1-09980-586-0	03	1	9202-	●	●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	9202-	●	●
58	LEVER; IDLING CONT	1-73997-905-1	01	1	9202-	●	●
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	9202-	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X14 FLANGE	0-28010-814-0	01	1	9202-9204	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X14 FLANGE	0-28080-814-0	01	1	9205-	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X20 FLANGE	0-28010-820-0	01	1	9202-9204	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X20 FLANGE	0-28080-820-0	01	1	9205-	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M5X14 W/LK WASHER	1-09980-023-0	01	1	9202-	●	●
67	CABLE ASM; IDLE CONT L=387	1-73998-538-1	01	1	9202-	●	●
68	KNOB; IDLE CONT W/SCREW	8-94134-716-0	01	1	9202-	●	●
69	SCREW; KNOB,IDLE CONT	5-09120-004-0	01	1	9202-	●	●
70	NUT; CONT CABLE M18 RING NUT	5-09409-004-1	01	1	9202-	●	●
71	WASHER; WAVE,CONT CABLE ID=18.5	5-09550-005-0	01	1	9202-	●	●
82	BUSHING; ENG CONT LVR	8-94206-569-0	02	1	9202-	●	●
403	BOLT; BRKT,ACCEL PEDAL M6X20 W/LK&PL WASHER	1-09980-493-0	03	1	9202-	●	●
534	PIN; JAW JOINT,IDLING CONT CABLE	1-09987-034-1	01	1	9202-	●	●
535	PIN; SNAP,IDLING CONT CABLE L=17.9	1-09747-002-0	01	1	9202-	●	●
658	CLIP; ENG CONT CABLE (A) ID=11 L=20	9-09525-032-0	01	1	9202-9205	●	●
658	CLIP; ENG CONT CABLE (B) ID=13	1-09700-757-0	01	1	9206-	●	●
658	CLIP; ENG CONT CABLE (C) L=140	5-09707-031-0	01	1	9203-	●	●
659	CLIP; ACCEL CONT CABLE ID=8.3 & 10	8-94176-792-0	01	1	9202-9202	●	●

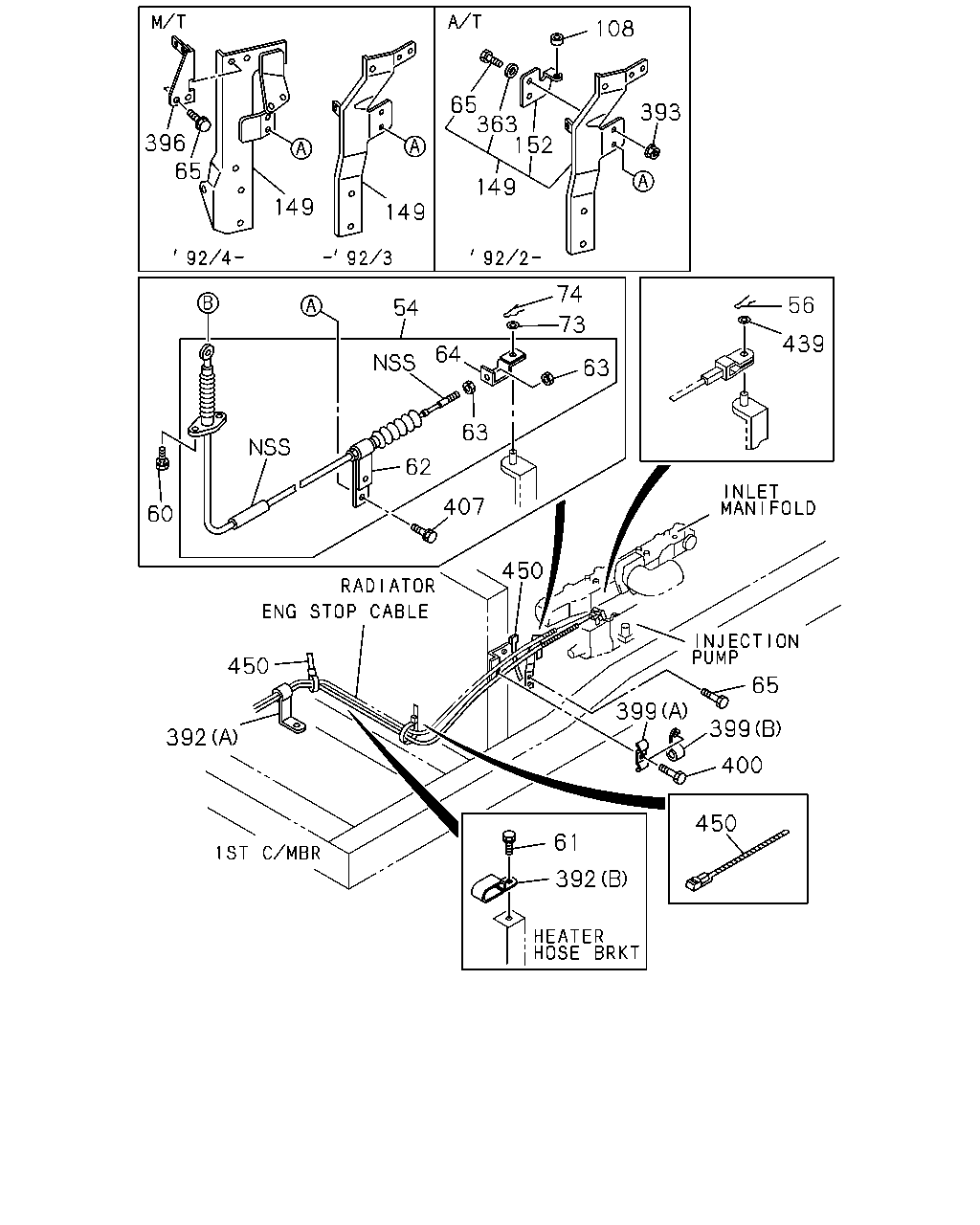

108 65 363 152 393 396 65 149 149 149 74 56 54 73 439 64 63 63 62 407 60 450 450 65 399 399 392 400 450 61 392

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	CABLE; ENG CONT L=2551	1-23210-977-2	01	1	9202-	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-015-0	01	1	9202-	●	●
60	BOLT; CABLE M6X16 W/LK&PL WASHER	1-09980-458-0	02	1	9202-	●	●
60	BOLT; CABLE M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9202-	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X14 FLANGE	0-28010-814-0	01	1	9202-9204	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X14 FLANGE	0-28080-814-0	01	1	9205-	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X20 FLANGE	0-28010-820-0	01	1	9202-9204	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X20 FLANGE	0-28080-820-0	01	1	9205-	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M5X14 W/LK WASHER	1-09980-023-0	01	1	9202-	●	●
62	CLIP; ENG CONT CABLE L=30	1-09700-326-0	01	1	9202-	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9202-	●	●
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	9202-	●	●
65	BOLT M10X60	0-16811-060-0	01	1	9202-	●	●
65	BOLT M10X20 FLANGE	0-28181-020-0	01	1	9202-	●	●
65	BOLT A/T<X9D> M6X25 W/LK WASHER	0-50040-625-0	02	1	9202-	●	●
65	BOLT ISUZU M/T<X9A> M8X10 FLANGE	0-28080-810-0	02	1	9204-9206	●	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	9202-	●	●
74	PIN; SNAP,CABLE END L=27.7	8-94157-841-0	01	1	9202-	●	●
108	BUSHING; ENG CONT A/T<X9D>	1-09330-072-0	01	1	9202-9203	●	●
149	BRACKET; ENG CONT A/T<X9D>	8-94394-520-5	01	1	9202-	●	●
149	BRACKET; ENG CONT ISUZU M/T<X9A>	8-94393-339-0	01	1	9202-9203	●	●
149	BRACKET; ENG CONT ISUZU M/T<X9A>	8-94394-516-5	01	1	9204-	●	●
152	BRACKET; SPRING A/T<X9D>	1-34656-023-0	01	1	9202-9203	●	●
152	BRACKET; SPRING A/T<X9D>	8-94393-718-0	01	1	9204-	●	●
363	SPACER; BRKT,ENG CONT SHAFT A/T<X9D> ID=6.4	9-09164-506-0	02	1	9204-	●	●
392	CLIP; ACCEL CONT CABLE (B) ID=9X2 L=16	9-09534-825-0	01	1	9202-	●	●
392	CLIP; ACCEL CONT CABLE AUTO ENG SHUTOFF<KB6> (A) ID=9 L=25 H=45	1-09700-867-0	01	1	9202-9202	●	●
392	CLIP; ACCEL CONT CABLE (A) ID=13 H=40 L=25	1-09700-620-0	01	1	9203-	●	●
392	CLIP; ACCEL CONT CABLE EXC. AUTO ENG SHUTOFF<KB6> (A) L=85	1-09701-093-0	01	1	9202-9202	●	●
393	NUT; CLIP TO FRAME A/T<X9D> M6 FLANGE	0-91150-106-0	02	1	9202-9410	●	●
393	NUT; CLIP TO FRAME M6 FLANGE	0-91150-106-0	02	1	9411-	●	●
396	BRACKET; CLIP ISUZU M/T<X9A>	8-94394-173-1	01	1	9204-9206	●	●
399	CLIP; CABLE,RAD SIDE (A) ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	9202-9205	●	●
399	CLIP; CABLE,RAD SIDE (B) ID=9X2 L=16	9-09534-825-0	01	1	9206-	●	●
400	BOLT; CLIP,RAD SIDE M8X12	0-28010-812-0	01	1	9202-9204	●	●
400	BOLT; CLIP,RAD SIDE M8X12 FLANGE	0-28080-812-0	01	1	9205-	●	●
407	BOLT; CLIP TO ENG ISUZU M/T<X9A> M6X18	0-28010-618-0	02	1	9202-9204	●	●
407	BOLT; CLIP TO ENG ISUZU M/T<X9A> M6X18 FLANGE	0-28080-618-0	02	1	9205-9207	●	●
407	BOLT; CLIP TO ENG ISUZU M/T<X9A> M6X20 FLANGE	0-28080-620-0	02	1	9208-9404	●	●
407	BOLT; CLIP TO ENG ISUZU M/T<X9A> M6X14 FLANGE	0-28080-614-0	02	1	9405-9410	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9202-	●	●
450	CLIP; BAND L=140	5-09707-031-0	03	1	9202-	●	●
