Sayfa 0-40A - Isuzu EPC

0-40A — FUEL INJECTION SYSTEM (#6449) — 245 parça

31 31 32 32 34 36 36 42 140 44 46 42 45 140 46 47 44 45 46 33 47 33 35 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
31	NOZZLE ASM; INJ	1-15300-340-1	06	1	9601-9606	●
31	NOZZLE ASM; INJ	1-15300-356-0	06	1	9607-9610	●
31	NOZZLE ASM; INJ EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15300-356-1	06	1	9611-9904	●
31	NOZZLE ASM; INJ	1-15300-356-1	06	1	9611-9904		●
31	NOZZLE ASM; INJ	1-15300-356-2	06	1	9905-			●	●
31	NOZZLE ASM; INJ EURO2 SPECIFICATION<THN>	1-15300-358-1	06	1	9611-9904	●
31	NOZZLE ASM; INJ	1-15300-358-1	06	1	9905-		●
32	HOLDER ASM; NOZZLE	1-15330-114-0	06	1	9905-		●
32	HOLDER ASM; NOZZLE	1-15330-104-0	06	1	9601-9610	●
32	HOLDER ASM; NOZZLE EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15330-104-1	06	1	9611-9904	●
32	HOLDER ASM; NOZZLE	1-15330-104-1	06	1	9611-9904		●
32	HOLDER ASM; NOZZLE	1-15330-104-1	06	1	9905-			●	●
32	HOLDER ASM; NOZZLE EURO2 SPECIFICATION<THN>	1-15330-105-1	06	1	9611-9904	●
33	NOZZLE; INJ	1-15311-271-1	06	1	9601-9610	●
33	NOZZLE; INJ EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15311-271-1	06	1	9611-9904	●
33	NOZZLE; INJ	1-15311-271-1	06	1	9611-9904		●
33	NOZZLE; INJ	1-15311-271-2	06	1	9905-			●	●
33	NOZZLE; INJ EURO2 SPECIFICATION<THN>	1-15311-278-0	06	1	9611-9904	●
33	NOZZLE; INJ	1-15311-278-0	06	1	9905-		●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	06	1	9601-9610	●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	06	1	9611-9901	●	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-130-0	06	1	9601-9610	●
35	NUT; NOZZLE RET,NOZZLE HOLDER EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15349-130-1	06	1	9611-9904	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-130-1	06	1	9611-9904		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-130-1	06	1	9905-			●	●
35	NUT; NOZZLE RET,NOZZLE HOLDER EURO2 SPECIFICATION<THN>	1-15332-016-0	06	1	9611-9904	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-016-1	06	1	9905-		●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15349-010-0	12	1	9601-9610	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15349-010-0	12	1	9611-9901	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15349-010-0	12	1	9611-9901		●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN>	1-15339-010-0	12	1	9611-9901	●
42	GASKET; INL CONNECTOR,NOZZLE HOLDER	1-15349-050-0	06	1	9601-9610	●
42	GASKET; INL CONNECTOR,NOZZLE HOLDER EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15349-050-0	06	1	9611-9901	●
42	GASKET; INL CONNECTOR,NOZZLE HOLDER	1-15349-050-0	06	1	9611-9901		●
42	GASKET; INL CONNECTOR,NOZZLE HOLDER	1-15349-050-0	06	1	9902-9904	●	●
42	GASKET; INL CONNECTOR,NOZZLE HOLDER	1-15349-050-0	06	1	9905-		●	●	●
42	GASKET; INL CONNECTOR,NOZZLE HOLDER EURO2 SPECIFICATION<THN>	1-15349-131-0	06	1	9611-9901	●
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15345-003-0	06	1	9601-9610	●
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15345-003-0	06	1	9611-9904	●	●
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15345-003-0	06	1	9905-		●	●	●
45	ROD; PUSH,NOZZLE HOLDER	1-15341-093-0	06	1	9601-9610	●
45	ROD; PUSH,NOZZLE HOLDER	1-15341-093-0	06	1	9611-9904	●	●
45	ROD; PUSH,NOZZLE HOLDER	1-15341-093-0	06	1	9905-		●	●	●
46	PIN; NOZZLE SET,NOZZLE HOLDER (A)	1-15347-001-0	12	1	9601-9610	●
46	PIN; NOZZLE SET,NOZZLE HOLDER (A)	1-15347-001-0	12	1	9611-9901	●	●
46	PIN; NOZZLE SET,NOZZLE HOLDER (B)	9-15347-003-0	12	1	9601-9610	●
46	PIN; NOZZLE SET,NOZZLE HOLDER (B)	9-15347-003-0	12	1	9611-9904	●	●
46	PIN; NOZZLE SET,NOZZLE HOLDER (B)	9-15347-003-0	12	1	9905-		●	●	●
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER	1-15339-098-0	06	1	9601-9610	●
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER	1-15339-098-0	06	1	9611-9904	●	●
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER	1-15339-098-0	06	1	9905-		●	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.500	1-15349-051-0	AR	1	9601-9610	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.500	1-15349-051-0	AR	1	9611-9904	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.500	1-15349-051-0	AR	1	9905-		●	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.550	1-15349-053-0	AR	1	9601-9610	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.550	1-15349-053-0	AR	1	9611-9904	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.550	1-15349-053-0	AR	1	9905-		●	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.600	1-15349-055-0	AR	1	9601-9610	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.600	1-15349-055-0	AR	1	9611-9904	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.600	1-15349-055-0	AR	1	9905-		●	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.650	1-15349-057-0	AR	1	9601-9610	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.650	1-15349-057-0	AR	1	9611-9904	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.650	1-15349-057-0	AR	1	9905-		●	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.700	1-15349-059-0	AR	1	9601-9610	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.700	1-15349-059-0	AR	1	9611-9904	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.700	1-15349-059-0	AR	1	9905-		●	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.750	1-15349-061-0	AR	1	9601-9610	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.750	1-15349-061-0	AR	1	9611-9904	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.750	1-15349-061-0	AR	1	9905-		●	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.800	1-15349-063-0	AR	1	9601-9610	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.800	1-15349-063-0	AR	1	9611-9904	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.800	1-15349-063-0	AR	1	9905-		●	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.850	1-15349-065-0	AR	1	9601-9610	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.850	1-15349-065-0	AR	1	9611-9904	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.850	1-15349-065-0	AR	1	9905-		●	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.900	1-15349-067-0	AR	1	9601-9610	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.900	1-15349-067-0	AR	1	9611-9904	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.900	1-15349-067-0	AR	1	9905-		●	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.950	1-15349-069-0	AR	1	9601-9610	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.950	1-15349-069-0	AR	1	9611-9904	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.950	1-15349-069-0	AR	1	9905-		●	●	●

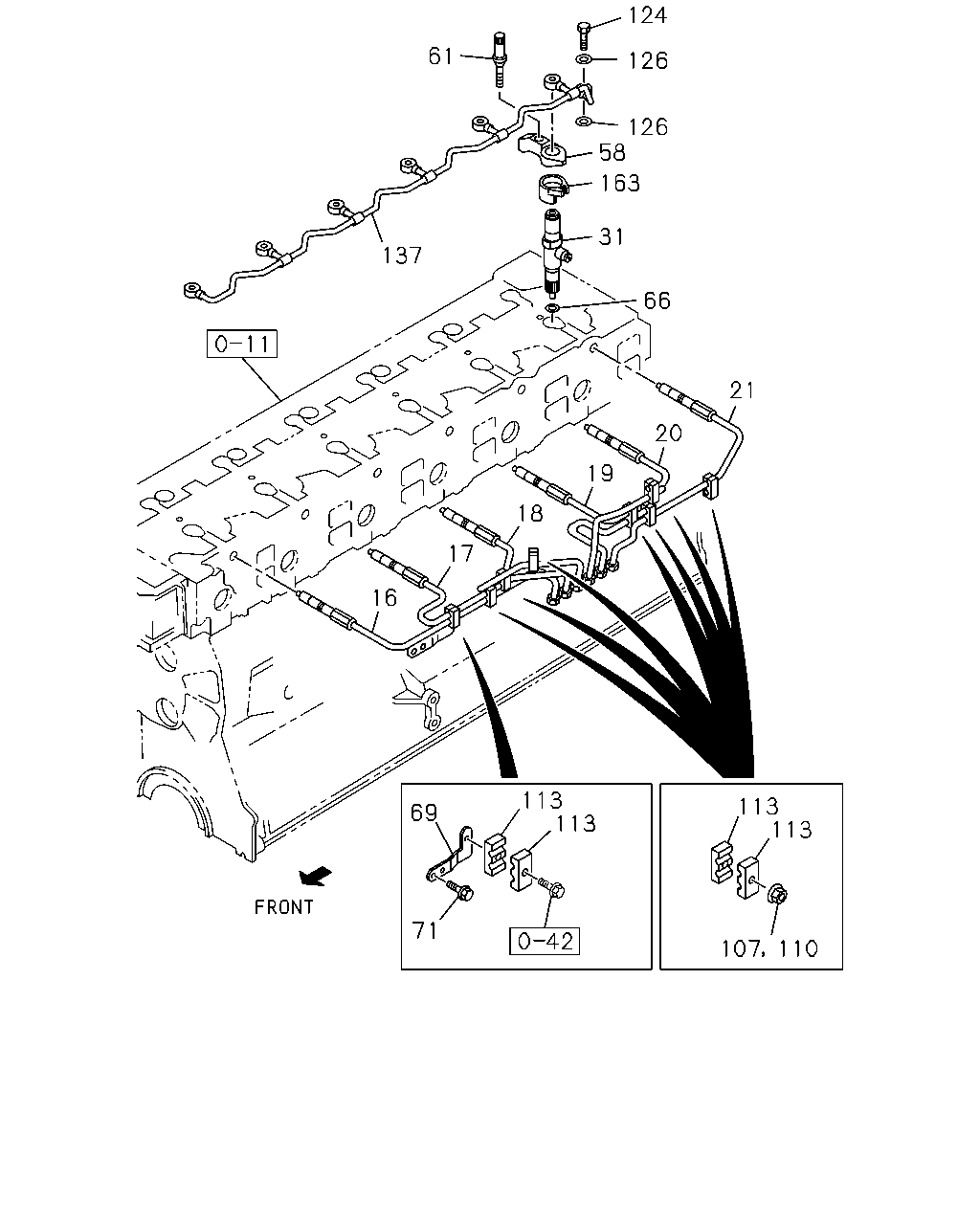

124 61 126 126 58 163 31 137 66 21 20 19 18 17 16 113 113 113 113 69 71 107 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
16	PIPE; INJ NO.1	1-15415-987-0	01	1	9601-9610	●
16	PIPE; INJ NO.1 EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15415-987-0	01	1	9611-9904	●
16	PIPE; INJ NO.1	1-15415-987-0	01	1	9611-9904		●
16	PIPE; INJ NO.1	1-15415-987-0	01	1	9905-			●	●
16	PIPE; INJ NO.1 EURO2 SPECIFICATION<THN>	1-15415-072-7	01	1	9611-9904	●
16	PIPE; INJ NO.1	1-15415-072-7	01	1	9905-		●
17	PIPE; INJ NO.2	1-15415-988-0	01	1	9601-9610	●
17	PIPE; INJ NO.2 EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15415-988-0	01	1	9611-9904	●
17	PIPE; INJ NO.2	1-15415-988-0	01	1	9611-9904		●
17	PIPE; INJ NO.2	1-15415-988-0	01	1	9905-			●	●
17	PIPE; INJ NO.2 EURO2 SPECIFICATION<THN>	1-15415-073-6	01	1	9611-9904	●
17	PIPE; INJ NO.2	1-15415-073-6	01	1	9905-		●
18	PIPE; INJ NO.3	1-15415-989-0	01	1	9601-9610	●
18	PIPE; INJ NO.3 EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15415-989-0	01	1	9611-9904	●
18	PIPE; INJ NO.3	1-15415-989-0	01	1	9611-9904		●
18	PIPE; INJ NO.3	1-15415-989-0	01	1	9905-			●	●
18	PIPE; INJ NO.3 EURO2 SPECIFICATION<THN>	1-15415-074-6	01	1	9611-9904	●
18	PIPE; INJ NO.3	1-15415-074-6	01	1	9905-		●
19	PIPE; INJ NO.4	1-15415-990-0	01	1	9601-9610	●
19	PIPE; INJ NO.4 EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15415-990-0	01	1	9611-9904	●
19	PIPE; INJ NO.4	1-15415-990-0	01	1	9611-9904		●
19	PIPE; INJ NO.4	1-15415-990-0	01	1	9905-			●	●
19	PIPE; INJ NO.4 EURO2 SPECIFICATION<THN>	1-15415-525-1	01	1	9611-9904	●
19	PIPE; INJ NO.4	1-15415-525-1	01	1	9905-		●
20	PIPE; INJ NO.5	1-15415-991-0	01	1	9601-9610	●
20	PIPE; INJ NO.5 EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15415-991-0	01	1	9611-9904	●
20	PIPE; INJ NO.5	1-15415-991-0	01	1	9611-9904		●
20	PIPE; INJ NO.5	1-15415-991-0	01	1	9905-			●	●
20	PIPE; INJ NO.5 EURO2 SPECIFICATION<THN>	1-15415-076-6	01	1	9611-9904	●
20	PIPE; INJ NO.5	1-15415-076-6	01	1	9905-		●
21	PIPE; INJ NO.6	1-15415-992-0	01	1	9601-9610	●
21	PIPE; INJ NO.6 EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15415-992-0	01	1	9611-9904	●
21	PIPE; INJ NO.6	1-15415-992-0	01	1	9611-9904		●
21	PIPE; INJ NO.6	1-15415-992-0	01	1	9905-			●	●
21	PIPE; INJ NO.6 EURO2 SPECIFICATION<THN>	1-15415-077-6	01	1	9611-9904	●
21	PIPE; INJ NO.6	1-15415-077-6	01	1	9905-		●
31	NOZZLE ASM; INJ	1-15300-340-1	06	1	9601-9606	●
31	NOZZLE ASM; INJ	1-15300-356-0	06	1	9607-9610	●
31	NOZZLE ASM; INJ EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15300-356-1	06	1	9611-9904	●
31	NOZZLE ASM; INJ	1-15300-356-1	06	1	9611-9904		●
31	NOZZLE ASM; INJ	1-15300-356-2	06	1	9905-			●	●
31	NOZZLE ASM; INJ EURO2 SPECIFICATION<THN>	1-15300-358-1	06	1	9611-9904	●
31	NOZZLE ASM; INJ	1-15300-358-1	06	1	9905-		●
58	FLANGE; INJ,NOZZLE HOLDER	1-15337-016-0	06	1	9601-9610	●
58	FLANGE; INJ,NOZZLE HOLDER	1-15337-016-0	06	1	9611-9711	●	●
58	FLANGE; INJ,NOZZLE HOLDER	1-15337-022-0	06	1	9712-9904	●	●
58	FLANGE; INJ,NOZZLE HOLDER	1-15337-022-0	06	1	9905-		●	●	●
61	BOLT; CLAMP NOZZLE HOLDER	1-09070-121-0	06	1	9601-9610	●
61	BOLT; CLAMP NOZZLE HOLDER	1-09070-121-0	06	1	9611-9904	●	●
61	BOLT; CLAMP NOZZLE HOLDER	1-09070-121-0	06	1	9905-		●	●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15315-019-0	06	1	9601-9610	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15315-019-0	06	1	9611-9804	●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=15	1-15315-011-0	06	1	9805-9904	●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=15	1-15315-011-0	06	1	9905-		●	●	●
69	BRACKET; INJ PIPE CLIP	1-15419-334-0	01	1	9601-9610	●
69	BRACKET; INJ PIPE CLIP	1-15419-334-0	01	1	9611-9904	●	●
69	BRACKET; INJ PIPE CLIP	1-15419-334-0	01	1	9905-		●	●	●
71	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	02	1	9601-9610	●
71	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	02	1	9611-9904	●	●
71	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	02	1	9905-		●	●	●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	07	1	9601-9610	●
107	NUT; INJ PIPE CLIP EXC. EURO2 SPECIFICATION<THN> M6 FLANGE	0-91150-106-0	07	1	9611-9904	●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	07	1	9611-9904		●
107	NUT; INJ PIPE CLIP EURO2 SPECIFICATION<THN> M6 FLANGE	0-91150-106-0	06	1	9611-9904	●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	06	1	9905-		●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	07	1	9905-			●	●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	9601-9610	●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	9611-9904	●	●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	9905-		●	●	●
113	CLIP; INJ PIPE	1-09701-132-0	16	1	9601-9610	●
113	CLIP; INJ PIPE EXC. EURO2 SPECIFICATION<THN>	1-09701-132-0	16	1	9611-9904	●
113	CLIP; INJ PIPE	1-09701-132-0	16	1	9611-9904		●
113	CLIP; INJ PIPE	1-09701-132-1	16	1	9905-			●	●
113	CLIP; INJ PIPE EURO2 SPECIFICATION<THN>	1-09701-132-0	14	1	9611-9904	●
113	CLIP; INJ PIPE	1-09701-132-1	14	1	9905-		●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	03	1	9601-9606	●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	09	1	9607-9610	●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	09	1	9611-9904	●	●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	09	1	9905-		●	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	06	1	9601-9606	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	04	1	9607-9610	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	04	1	9611-9904	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	04	1	9905-		●	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	07	1	9607-9610	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	07	1	9611-9904	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	07	1	9905-		●	●	●
137	PIPE ASM; LEAK OFF	1-15415-164-1	01	1	9601-9604	●
137	PIPE ASM; LEAK OFF	1-15415-626-0	01	1	9605-9608	●
137	PIPE ASM; LEAK OFF	1-15416-139-0	01	1	9609-9610	●
137	PIPE ASM; LEAK OFF	1-15416-139-0	01	1	9611-9904	●	●
137	PIPE ASM; LEAK OFF	1-15416-139-0	01	1	9905-		●	●	●
163	CAP; INJ NOZZLE	1-15319-002-0	06	1	9601-9610	●
163	CAP; INJ NOZZLE	1-15319-002-0	06	1	9611-9904	●	●
163	CAP; INJ NOZZLE	1-15319-002-0	06	1	9905-		●	●	●

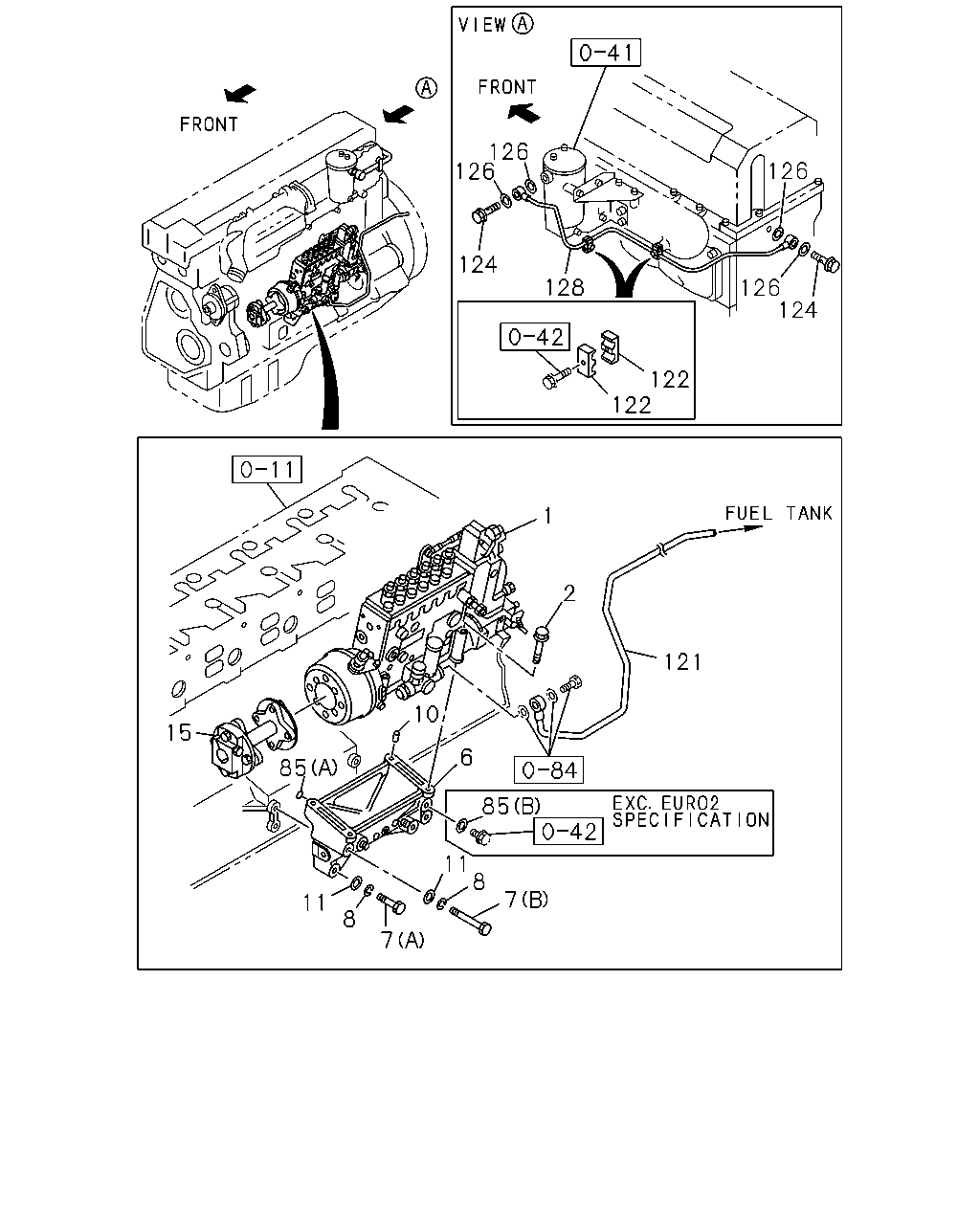

126 126 126 124 128 126 124 122 122 1 2 121 10 15 85 6 85 11 8 7 11 8 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-068-5	01	1	9601-9607	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15603-068-5	01	1	9603-9904	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. RLD GOVERNOR(SD7)	1-15603-290-5	01	1	9905-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15603-121-1	01	1	9603-9904	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EURO2 SPECIFICATION<THN>	1-15603-156-1	01	1	9603-9707	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EURO2 SPECIFICATION<THN>	1-15603-265-0	01	1	9708-9904	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-115-1	01	1	9611-9904		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15603-115-2	01	1	9905-			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. ELECTRONIC GOV RED3(KG5)	1-15603-265-3	01	1	9905-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-15603-121-2	01	1	9905-			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-122-2	01	1	9905-				●
2	BOLT; INJ PUMP M10X85 FLANGE	8-94397-359-1	04	1	9601-9610	●
2	BOLT; INJ PUMP M10X85 FLANGE	8-94397-359-1	04	1	9611-9904	●	●
2	BOLT; INJ PUMP M10X85 FLANGE	8-94397-359-1	04	1	9905-		●	●	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-092-3	01	1	9601-9610	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-092-3	01	1	9611-9611	●	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-155-0	01	1	9612-9904	●	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-155-0	01	1	9905-		●	●	●
7	BOLT; INJ PUMP BRKT (A)	0-16806-470-0	02	1	9601-9610	●
7	BOLT; INJ PUMP BRKT (A)	0-16806-470-0	02	1	9611-9611	●	●
7	BOLT; INJ PUMP BRKT (A)	0-28981-490-0	02	1	9612-9904	●	●
7	BOLT; INJ PUMP BRKT (A) M14X90 FLANGE	0-28981-490-0	02	1	9905-		●	●	●
7	BOLT; INJ PUMP BRKT (B) M14X117	9-09804-193-1	02	1	9601-9610	●
7	BOLT; INJ PUMP BRKT (B) M14X117	9-09804-193-1	02	1	9611-9904	●	●
7	BOLT; INJ PUMP BRKT (B) M14X117	9-09804-193-1	02	1	9905-		●	●	●
8	WASHER; LK,INJ PUMP BRKT ID=14.2	9-09150-514-0	04	1	9601-9610	●
8	WASHER; LK,INJ PUMP BRKT ID=14.2	9-09150-514-0	04	1	9611-9904	●	●
8	WASHER; LK,INJ PUMP BRKT ID=14.2	9-09150-514-0	04	1	9905-		●	●	●
10	DOWEL; INJ PUMP OD=14 L=9	9-19759-019-1	02	1	9601-9610	●
10	DOWEL; INJ PUMP OD=14 L=9	9-19759-019-1	02	1	9611-9904	●	●
10	DOWEL; INJ PUMP OD=14 L=9	9-19759-019-1	02	1	9905-		●	●	●
11	WASHER; INJ PUMP BRKT ID=15	9-09160-514-0	04	1	9601-9610	●
11	WASHER; INJ PUMP BRKT ID=15	9-09160-514-0	04	1	9611-9904	●	●
11	WASHER; INJ PUMP BRKT ID=15	9-09160-514-0	04	1	9905-		●	●	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-146-1	01	1	9601-9610	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT. HONG KONG EQUIPMENT(PQ1) EXC. EURO2 SPECIFICATION<THN>	1-15780-146-1	01	1	9611-9904	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-146-1	01	1	9611-9904		●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-146-1	01	1	9905-			●	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT. HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<THN>	1-15780-143-1	01	1	9611-9904	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-143-1	01	1	9905-		●
85	GASKET; BRKT,INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	03	1	9601-9610	●
85	GASKET; BRKT,INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	03	1	9611-9904	●	●
85	GASKET; BRKT,INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	03	1	9905-		●	●	●
85	GASKET; BRKT,INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2	1-09630-085-0	01	1	9601-9610	●
85	GASKET; BRKT,INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2	1-09630-085-0	01	1	9611-9904	●	●
85	GASKET; BRKT,INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). RLD GOVERNOR(SD7). (B) ID=14.2 OD=19.2	1-09630-085-0	01	1	9905-		●
85	GASKET; BRKT,INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2	1-09630-085-0	01	1	9905-			●	●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15415-595-1	01	1	9601-9610	●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15415-595-1	01	1	9611-9904	●	●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15415-595-1	01	1	9905-		●
121	PIPE; FUEL,FEED PUMP,SUCTION EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15415-595-1	01	1	9905-			●
121	PIPE; FUEL,FEED PUMP,SUCTION INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15416-138-0	01	1	9905-			●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15416-138-0	01	1	9905-				●
122	CLIP; LEAK OFF PIPE	1-09701-132-0	04	1	9601-9610	●
122	CLIP; LEAK OFF PIPE	1-09701-132-0	04	1	9611-9904	●	●
122	CLIP; LEAK OFF PIPE	1-09701-132-1	04	1	9905-		●	●	●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	03	1	9601-9606	●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	09	1	9607-9610	●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	09	1	9611-9904	●	●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	09	1	9905-		●	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	06	1	9601-9606	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	04	1	9607-9610	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	04	1	9611-9904	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	04	1	9905-		●	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	07	1	9607-9610	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	07	1	9611-9904	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	07	1	9905-		●	●	●
128	PIPE ASM; INJ	1-15415-543-1	01	1	9601-9610	●
128	PIPE ASM; INJ	1-15415-543-1	01	1	9611-9904	●	●
128	PIPE ASM; INJ	1-15415-543-1	01	1	9905-		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
