Isuzu WW
▶
TRUCKS
▶
FVM
▶
10753 - FVM(INDONESIA)WB5300
▶
0 - Engine, Emission, Engine Electrical
▶
0-60 - ENGINE ELECTRICAL CONTROL PARTS
▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#64486) — 49 parça
◀

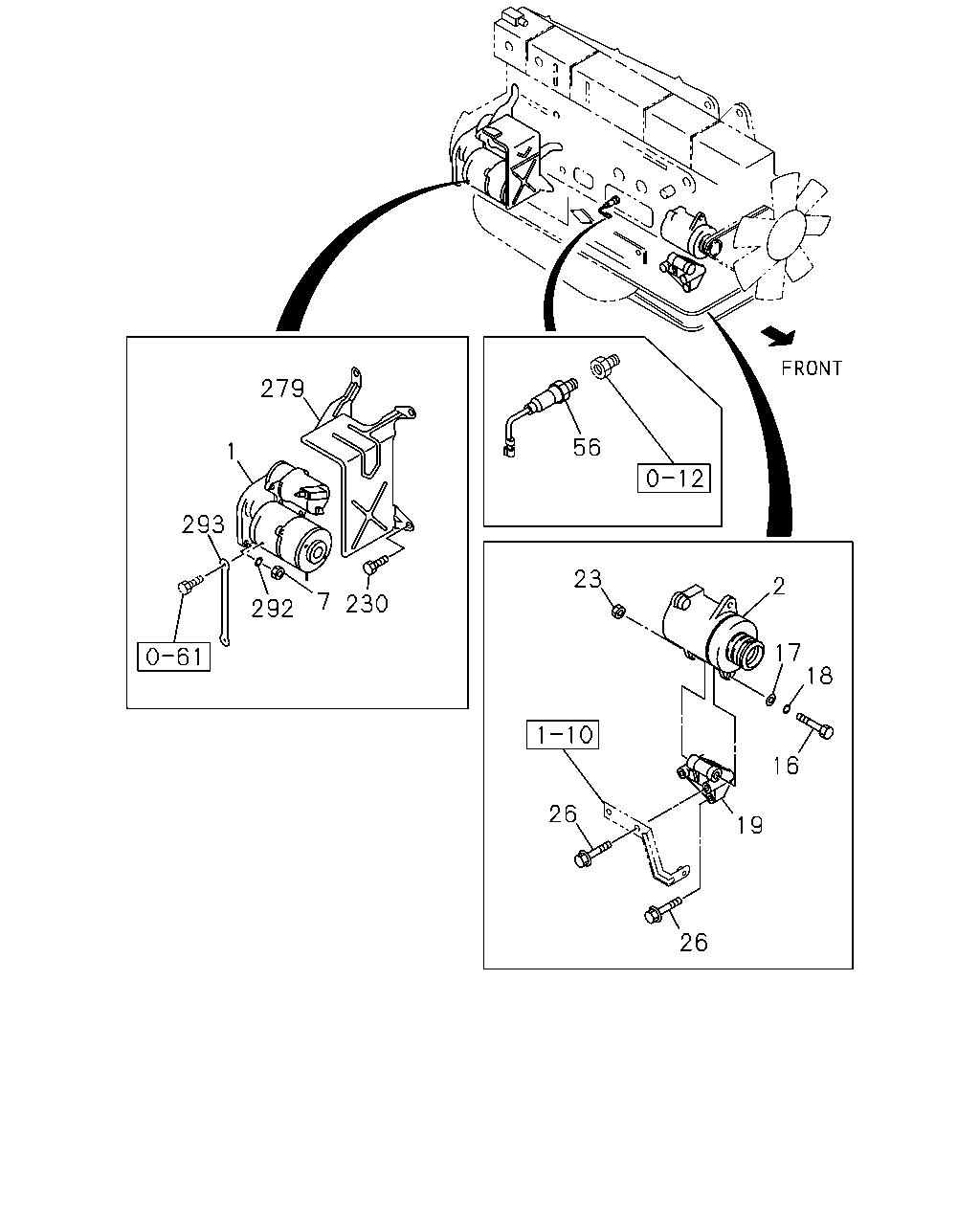

[060A] NO.1 (29 parça)

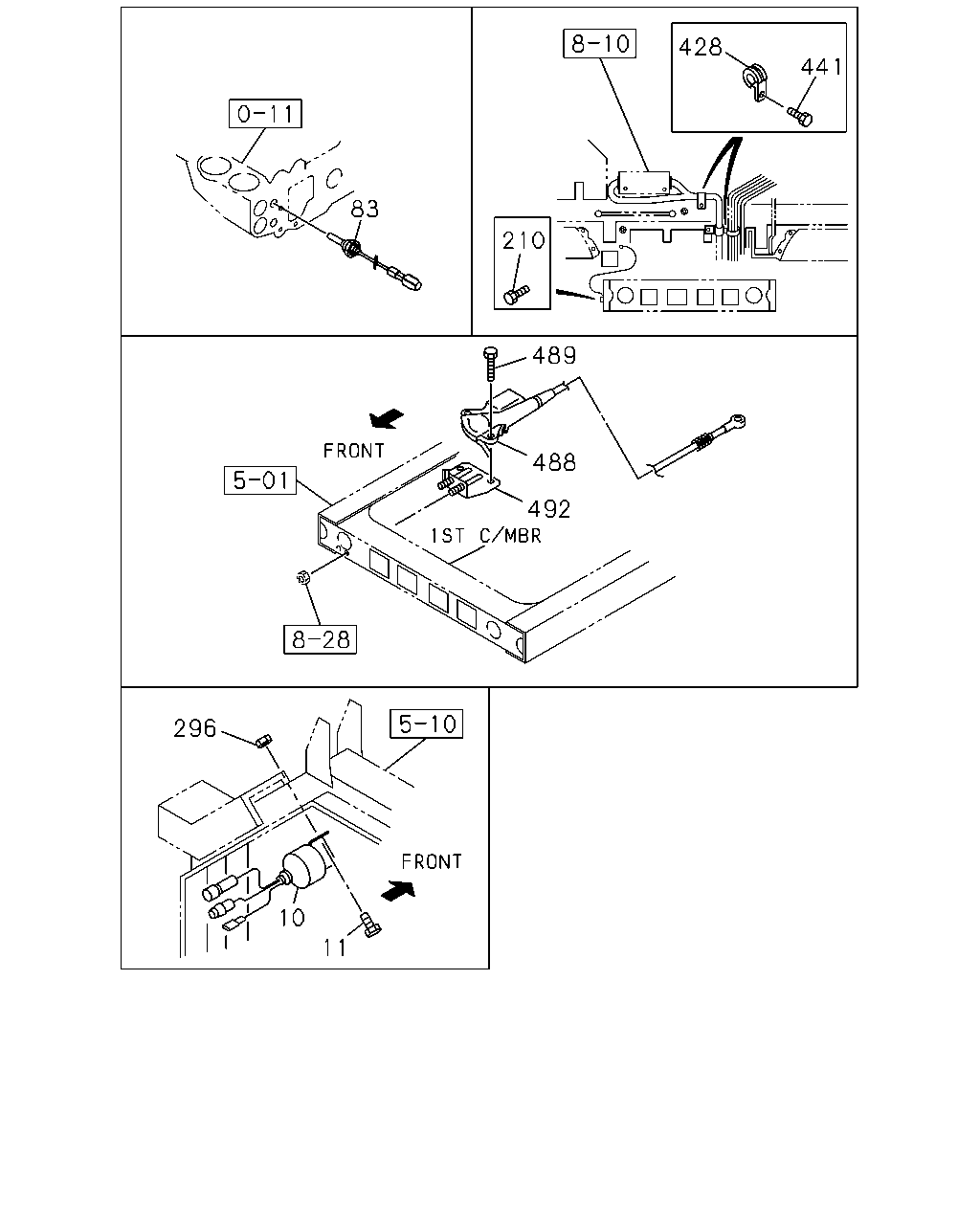

[060A] NO.2 (20 parça)
▶
279
56
1
293
23
2
7
230
292
17
18
16
26
19
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO
1-81100-307-0
01
1
9708-9708
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO
1-81100-323-1
01
1
9709-
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO
8-94399-159-4
01
1
9905-9907
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO
1-81200-416-5
01
1
9708-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI
1-81200-521-0
01
1
9904-9905
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI
1-81200-577-0
01
1
9906-9907
7
NUT; STARTER
M14
9-99110-414-0
02
1
9708-0512
7
NUT; STARTER
M14
0-91110-514-0
02
1
0601-
16
BOLT; GEN
M14X135
1-09000-133-1
01
1
9708-
17
WASHER; PL,GEN
ID=15
9-09160-514-0
01
1
9708-0605
17
WASHER; PL,GEN
ID=15
0-91610-514-0
01
1
0606-
18
WASHER; LK,GEN
ID=14.2
9-09150-514-0
01
1
9708-0603
18
WASHER; LK,GEN
ID=14.2
0-91510-514-0
01
1
0604-
19
BRACKET; GEN
8-94396-297-0
01
1
9708-0112
19
BRACKET; GEN
8-97602-318-0
01
1
0201-
23
NUT; GEN
M14
9-99110-414-0
01
1
9708-0512
23
NUT; GEN
M14
0-91110-514-0
01
1
0601-
26
BOLT; GEN BRKT
M10X40 FLANGE
0-28181-040-0
01
1
9708-0512
26
BOLT; GEN BRKT
M10X40 FLANGE
0-28151-040-0
01
1
0601-
26
BOLT; GEN BRKT
M10X80 FLANGE
0-28181-080-0
02
1
9708-0512
26
BOLT; GEN BRKT
M10X80 FLANGE
0-28151-080-0
02
1
0601-
56
SWITCH; OIL PRESSURE WARNING
1-82410-170-1
01
1
9708-
230
BOLT; HEAT PROTECTOR
M8X28 FLANGE
0-28080-828-0
01
1
9708-
230
BOLT; HEAT PROTECTOR
M10X30 FLANGE
0-28181-030-0
01
1
9708-0512
230
BOLT; HEAT PROTECTOR
M10X30 FLANGE
0-28151-030-0
01
1
0601-
279
PROTECTOR; STARTER
8-94394-952-1
01
1
9708-
292
WASHER; LK,STARTER
ID=14.2
9-09150-514-0
02
1
9708-0603
292
WASHER; LK,STARTER
ID=14.2
0-91510-514-0
02
1
0604-
293
CABLE; STARTER EARTH
L=360
1-82650-230-1
01
1
9708-
428
441
83
210
489
488
492
296
10
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
RELAY; STARTER
NIKKO
1-81171-075-0
01
1
9708-0303
10
RELAY; STARTER
NIKKO
1-81171-075-1
01
1
0304-
10
RELAY; STARTER
EXC. NIKKO<Y70> NIKKO
1-81171-075-1
01
1
0304-
10
RELAY; STARTER
HITACHI
1-81171-087-0
01
1
9904-9907
10
RELAY; STARTER
EXC. NIKKO<Y70> HITACHI
1-81171-087-0
01
1
9908-0303
11
BOLT; RELAY STARTER
M8X25 FLANGE IDN
0-28680-825-0
02
1
9708-0512
11
BOLT; RELAY STARTER
M8X25 FLANGE IDN
0-28650-825-0
02
1
0601-
83
THERMOMETER UNIT
1-83161-031-1
01
1
9708-
210
BOLT; CABLE FIX
M8X20 W/LK&PL WASHER IDN
8-97086-825-0
01
1
9708-9903
210
BOLT; CABLE FIX
M8X16 W/LK&PL WASHER
8-97087-055-0
01
1
9904-1202
210
BOLT; CABLE FIX
M8X14 W/PL WASHER
8-98164-837-0
01
1
1203-
296
NUT; RELAY,STARTER
M8 FLANGE
0-91150-108-0
02
1
9708-0602
296
NUT; RELAY,STARTER
M8 FLANGE
0-91180-108-0
02
1
0603-
428
CLIP; HARNESS
ID=35 L=50
1-09701-214-0
02
1
9708-
441
BOLT; HARNESS TO FRAME
M8X25 FLANGE IDN
0-28680-825-0
02
1
9708-0512
441
BOLT; HARNESS TO FRAME
M8X25 FLANGE IDN
0-28650-825-0
02
1
0601-
488
STOPPER; ENG
1-82840-128-3
01
1
9708-
489
BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER IDN
0-50140-825-0
02
1
9708-0512
489
BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER IDN
0-50640-825-0
02
1
0601-
492
BRACKET; ENG STOPPER
1-82849-089-1
01
1
9708-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
