Isuzu WW
▶
TRUCKS
▶
FVM
▶
10753 - FVM(INDONESIA)WB5300
▶
0 - Engine, Emission, Engine Electrical
▶
0-39 - AIR COMPRESSOR; BRAKE
▶

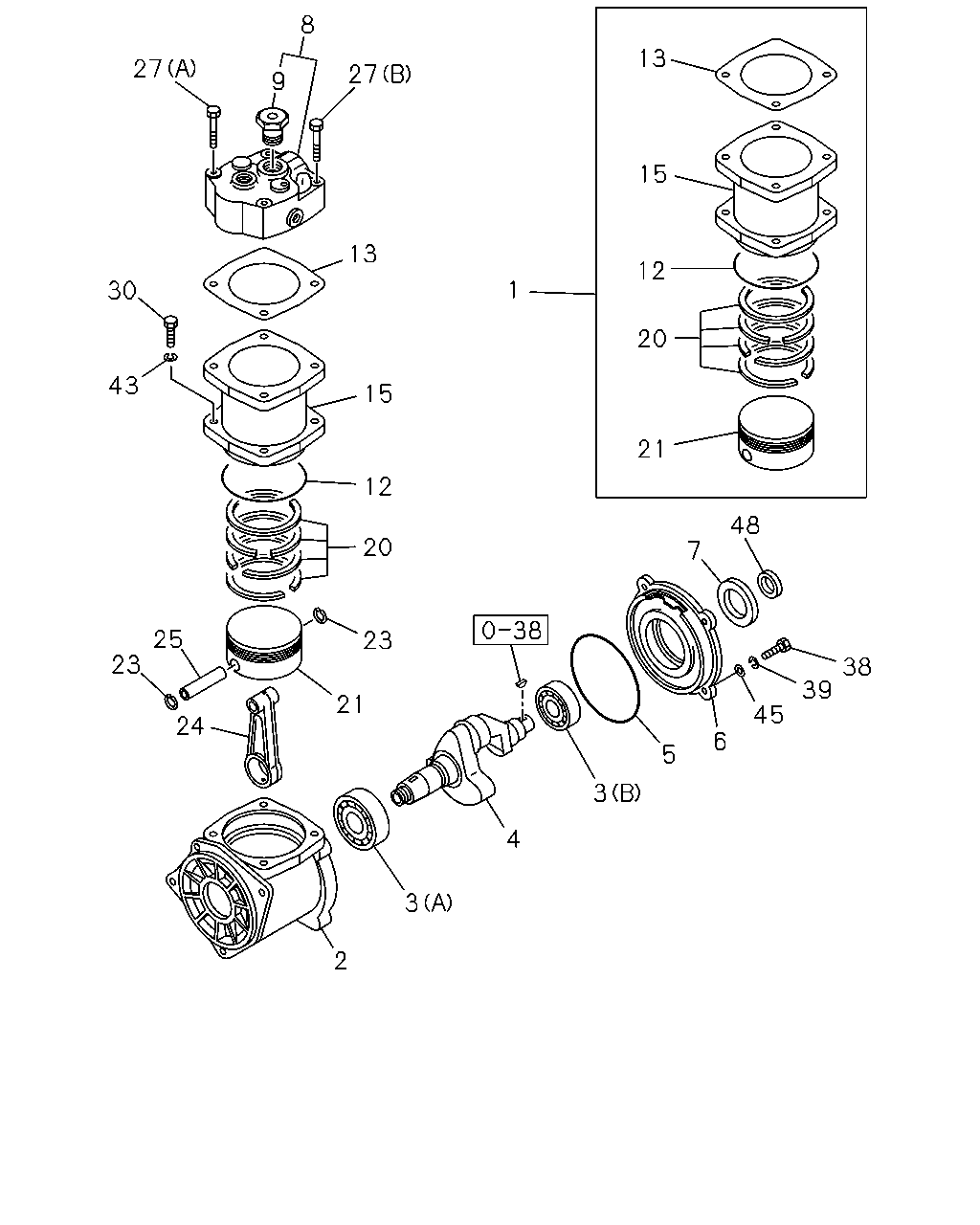

0-39 — AIR COMPRESSOR; BRAKE
(#64479) — 35 parça
8
13
27
27
9
15
13
12
1
30
20
43
15
21
12
48
20
7
25
23
23
38
39
21
45
24
6
5
3
4
3
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LINER KIT; CYL,AIR CMPR
1-19163-053-2
01
1
9708-0812
1
LINER KIT; CYL,AIR CMPR
1-19163-074-0
01
1
0901-
2
CRANKCASE; AIR CMPR
1-19151-266-1
01
1
9708-
3
BEARING; AIR CMPR
(B)
9-00006-206-0
01
1
9708-
3
BEARING; AIR CMPR
(A)
9-00090-152-0
01
1
9708-
4
CRANKSHAFT; AIR CMPR
1-19171-048-1
01
1
9708-
5
GASKET; AIR CMPR
1-09623-361-0
01
1
9708-1107
5
GASKET; AIR CMPR
8-98192-460-0
01
1
1108-
6
COVER ASM; BRG,AIR CMPR
1-19156-058-1
01
1
9708-
7
SEAL; OIL,BRG COVER,AIR CMPR
1-19158-026-0
01
1
9708-
8
HEAD ASM; CYL,AIR CMPR
1-19110-052-1
01
1
9708-
9
VALVE ASM; UNLOADER,AIR CMPR
1-19120-017-1
01
1
9708-
12
GASKET; AIR CMPR
1-09623-539-0
01
1
9708-1107
12
GASKET; AIR CMPR
8-98185-684-0
01
1
1108-
13
GASKET; AIR CMPR
T=0.8
1-19139-004-0
01
1
9708-9805
13
GASKET; AIR CMPR
8-98112-947-0
01
1
9806-
15
CYLINDER; AIR CMPR
1-19151-219-0
01
1
9708-
20
RING KIT; PISTON,AIR CMPR
1-19163-051-1
01
1
9708-0812
20
RING KIT; PISTON,AIR CMPR
1-19163-058-0
01
1
0901-
21
PISTON; AIR CMPR
1-19161-016-0
01
1
9708-0812
21
PISTON; AIR CMPR
1-19161-027-0
01
1
0901-
23
RING; SNAP,PISTON,AIR CMPR
9-19168-003-0
02
1
9708-0812
23
RING; SNAP,PISTON,AIR CMPR
1-19169-004-0
02
1
0901-
24
ROD ASM; CONN,AIR CMPR
1-19173-010-0
01
1
9708-
25
PIN; PISTON,AIR CMPR
9-19167-003-0
01
1
9708-0812
25
PIN; PISTON,AIR CMPR
1-19167-003-0
01
1
0901-
27
BOLT; HD
(B) M10X45
9-01066-045-0
02
1
9708-
27
BOLT; HD
(A) M10X60
9-01066-060-0
02
1
9708-
30
BOLT; CYL TO CRANKCASE
M10X25
9-02051-025-0
04
1
9708-9805
30
BOLT; CYL TO CRANKCASE
M10X25
9-01911-025-0
04
1
9806-
38
BOLT; COVER FIX
9-81385-023-0
04
1
9708-
39
WASHER; LK,COVER FIX
ID=8.2
9-09150-608-0
04
1
9708-
43
WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2
9-09150-610-0
04
1
9708-9805
45
WASHER; PL,COVER FIX,AIR CMPR
ID=8.4
9-09160-508-0
04
1
9708-
48
SLEEVE; CR/SHF
1-19179-014-0
01
1
9708-
