0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#64478) — 30 parça

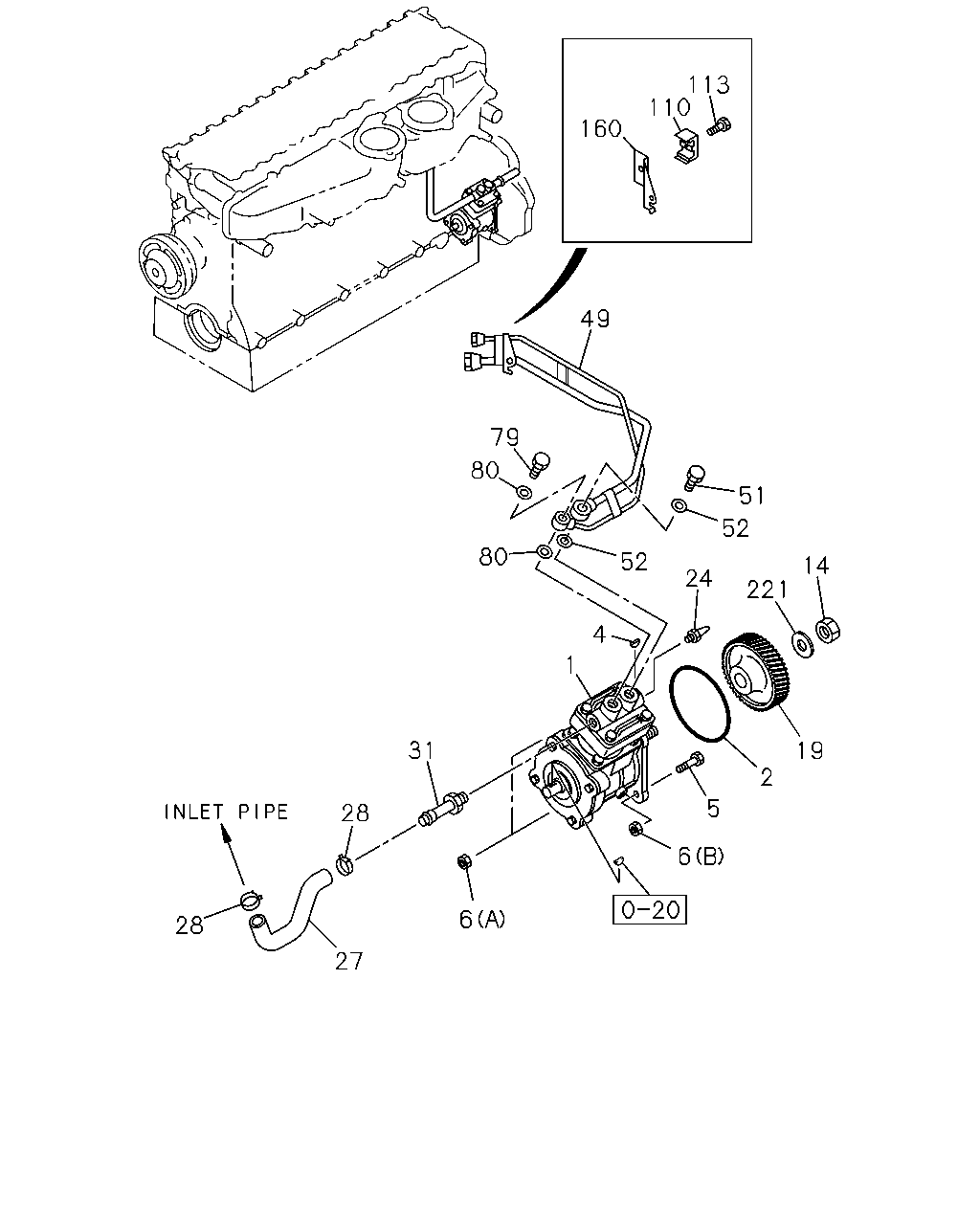

çizim 62310
113 110 160 49 79 80 51 52 80 52 14 24 221 4 1 31 19 2 5 28 6 6 28 27
BalonParca AdiParca NoAdetTipApplied Date
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		8-94396-892-9 01 1 9708-1107
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		8-98187-310-1 01 1 1108-
2 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6 		1-09623-464-0 01 1 9708-
4 KEY; INJ PUMP GEAR 9-08055-516-0 01 1 9708-
5 BOLT; AIR CMPR FIX
M12X95 FLANGE 		8-94396-485-1 01 1 9708-
6 NUT; AIR CMPR
(A) M10 FLANGE 		0-91150-110-0 02 1 9708-0602
6 NUT; AIR CMPR
(A) M10 FLANGE 		0-91180-110-0 02 1 0603-
6 NUT; AIR CMPR
(B) M12 FLANGE 		0-91150-112-0 01 1 9708-0602
6 NUT; AIR CMPR
(B) M12 FLANGE IDN 		0-91180-112-0 01 1 0603-
14 NUT; GEAR
M20 		9-99110-520-0 01 1 9708-0512
14 NUT; GEAR
M20 		0-91110-520-0 01 1 0601-
19 GEAR; INJ PUMP
Z=35 		8-94336-157-4 01 1 9708-
24 POINTER; AIR CMPR
L=21 		9-11327-602-0 01 1 9708-
27 HOSE; AIR CMPR,SUCTION 8-94394-967-0 01 1 9708-
28 CLIP; HOSE,AIR CMPR
ID=26 		1-09707-091-0 02 1 9708-
31 PIPE; AIR,AIR CMPR SUCTION 8-94399-954-0 01 1 9708-
49 PIPE; AIR,CHARGE 8-94395-087-2 01 1 9708-
51 BOLT; EYE,AIR PIPE TO CMPR
M24X39 		1-09675-132-1 01 1 9708-1404
51 BOLT; EYE,AIR PIPE TO CMPR
M24X39 		1-09675-175-2 01 1 1405-
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32 		9-09571-424-0 02 1 9708-
79 BOLT; EYE,AIR PIPE TO CMPR
M14X27 FLANGE 		1-09675-086-0 01 1 9708-
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9708-1312
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
110 CLIP; AIR PIPE 8-94393-037-0 01 1 9708-
113 BOLT; CLIP,AIR PIPE
M6X40 W/LK&PL WASHER 		0-50140-640-0 01 1 9708-9709
113 BOLT; CLIP,AIR PIPE
M6X40 FLANGE 		0-28080-640-0 01 1 9710-0512
113 BOLT; CLIP,AIR PIPE
M6X40 FLANGE 		0-28050-640-0 01 1 0601-
160 BRACKET; AIR PIPE 8-94393-091-0 01 1 9708-
221 WASHER; PL,GEAR
ID=21 		9-09160-520-0 01 1 9708-0605
221 WASHER; PL,GEAR
ID=21 		0-91610-520-0 01 1 0606-
