Isuzu WW
▶
TRUCKS
▶
FVM
▶
10753 - FVM(INDONESIA)WB5300
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶
0-32 — WATER PIPING; ENGINE
(#64475) — 27 parça
◀

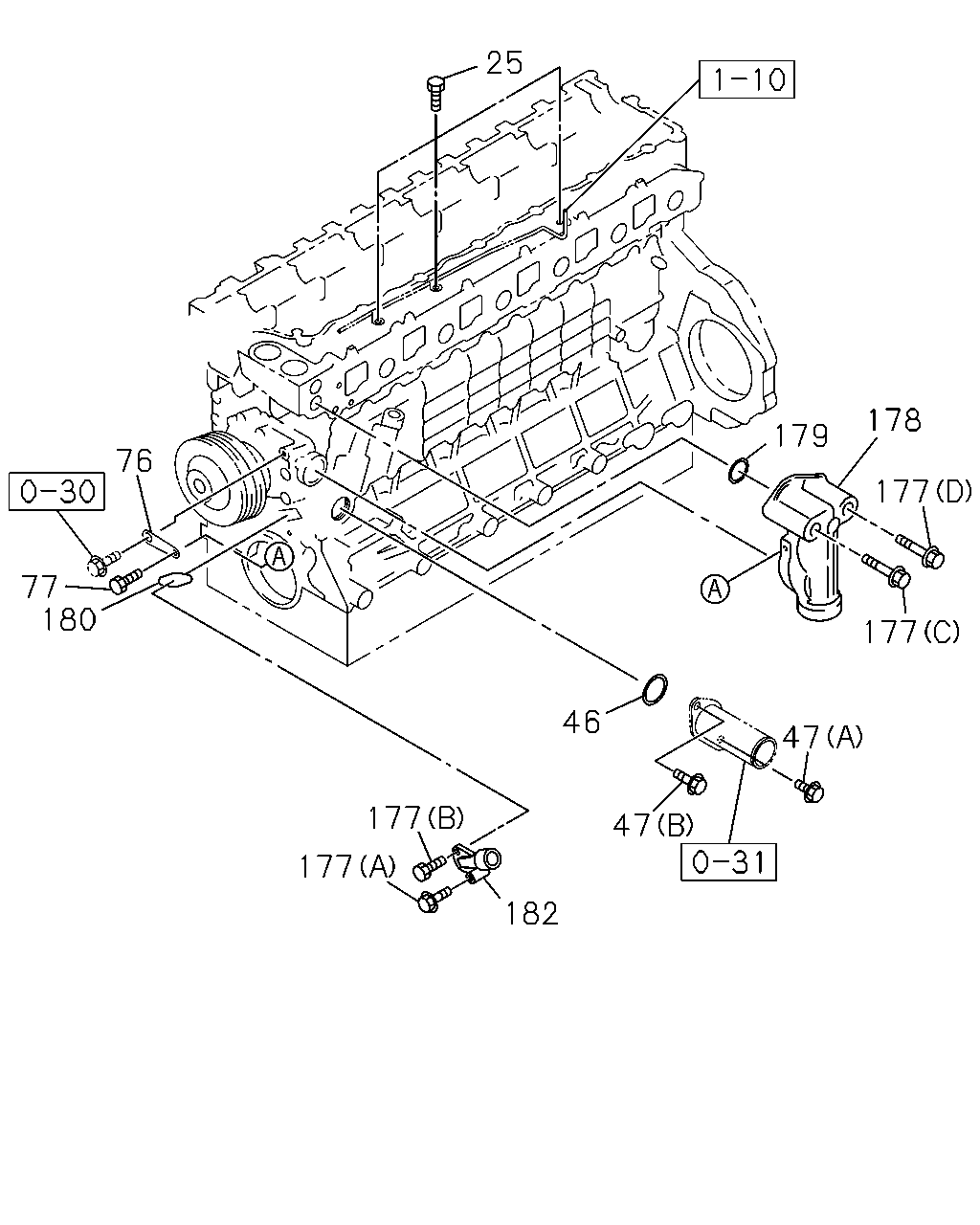

[032A] NO.1 (22 parça)
[032A] NO.2 (5 parça)
▶
25
178
179
76
177
77
180
177
46
47
177
47
177
182
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
BOLT; WATER PIPE
M8X12 FLANGE
0-28080-812-0
03
1
9708-0512
25
BOLT; WATER PIPE
M8X12 FLANGE
0-28050-812-0
03
1
0601-
46
GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3
8-94396-680-2
01
1
9708-
47
BOLT; DUCT,TO OIL COOLER
(B) M8X45 FLANGE
0-28080-845-0
01
1
9708-0512
47
BOLT; DUCT,TO OIL COOLER
(B) M8X45 FLANGE
0-28050-845-0
01
1
0601-
47
BOLT; DUCT,TO OIL COOLER
(A) M8X25 FLANGE IDN
0-28680-825-0
01
1
9708-0512
47
BOLT; DUCT,TO OIL COOLER
(A) M8X25 FLANGE IDN
0-28650-825-0
01
1
0601-
76
BRACKET; WATER DUCT,PUMP
8-94394-784-0
01
1
9708-
77
BOLT; BRKT,WATER DUCT
M8X50 FLANGE
0-28080-850-0
01
1
9708-0512
77
BOLT; BRKT,WATER DUCT
M8X50 FLANGE
0-28050-850-0
01
1
0601-
177
BOLT; WATER DUCT
(B) M8X22 FLANGE
0-28080-822-0
01
1
9708-9709
177
BOLT; WATER DUCT
(B) M8X25 FLANGE IDN
0-28680-825-0
01
1
9710-0512
177
BOLT; WATER DUCT
(B) M8X25 FLANGE IDN
0-28650-825-0
01
1
0601-
177
BOLT; WATER DUCT
(C) M8X80 FLANGE
0-28080-880-0
01
1
9708-0512
177
BOLT; WATER DUCT
(C) M8X80 FLANGE
0-28050-880-0
01
1
0601-
177
BOLT; WATER DUCT
(A) M8X65 FLANGE
1-09044-072-1
01
1
9708-
177
BOLT; WATER DUCT
(D) M16X75 FLANGE
8-94397-360-1
01
1
9708-
178
DUCT; WATER,BYPASS
8-94396-627-3
01
1
9708-
179
GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2
8-94396-679-0
01
1
9708-1408
179
GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2
8-98276-756-0
01
1
1409-
180
GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94396-720-1
01
1
9708-
182
DUCT; WATER,HTR
8-94390-283-0
01
1
9708-
91
91
90
90
91
92
91
91
91
90
91
89
91
90
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
89
PIPE; WATER,AIR CMPR,IN
8-94395-178-1
01
1
9708-
90
BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT
1-09675-193-0
04
1
9708-
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
08
1
9708-1312
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
8-98251-345-0
08
1
1401-
92
PIPE; WATER,AIR CMPR,OUT
8-94395-742-1
01
1
9708-
