◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10753 - FVM(INDONESIA)WB5300 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-31 - THERMOSTAT AND HOUSING ▶
0-31 — THERMOSTAT AND HOUSING (#64474) — 25 parça

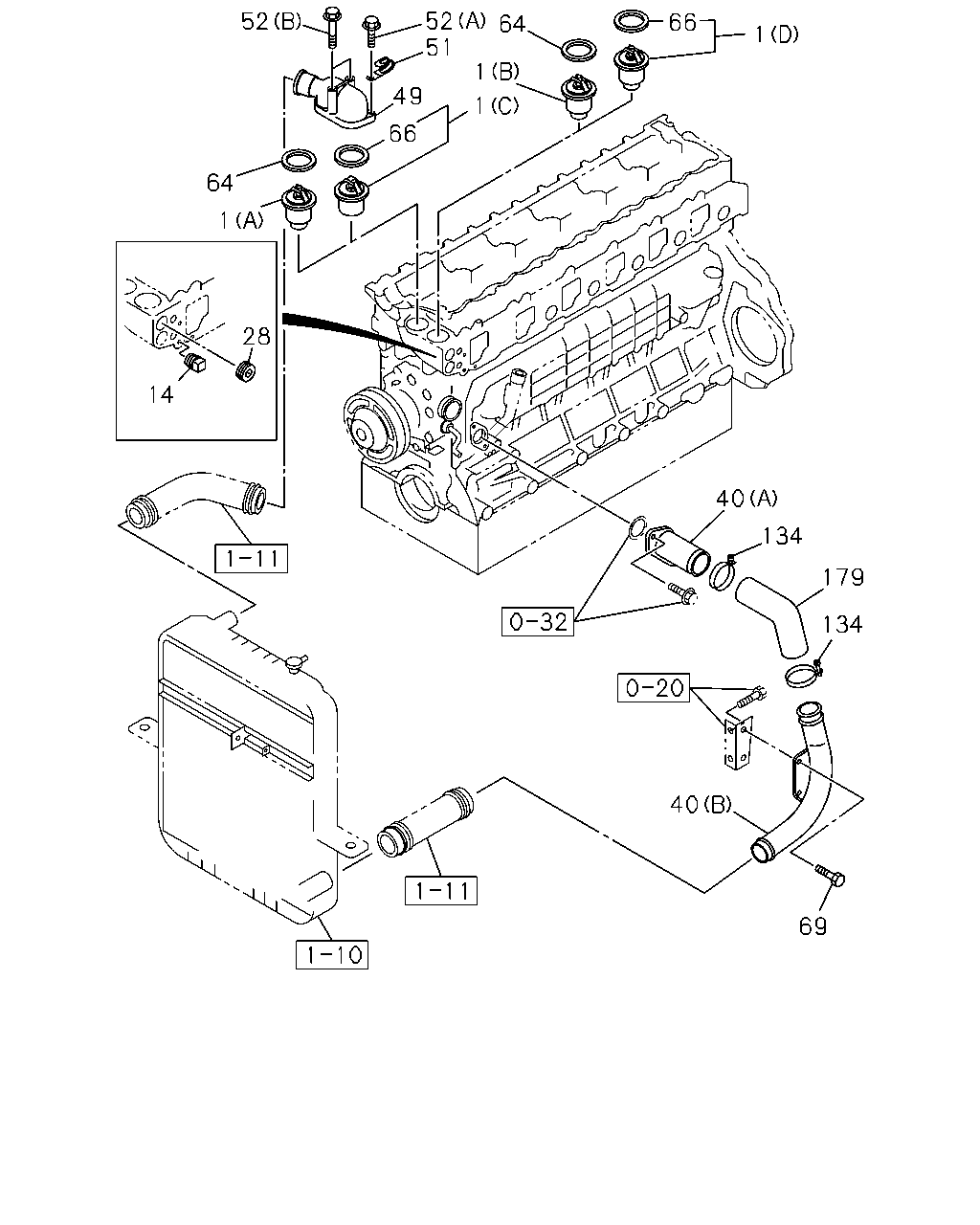

çizim 41583
52 51 52 66 64 1 1 49 1 66 64 1 28 14 40 134 179 134 40 69
BalonParca AdiParca NoAdetTipApplied Date
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 9708-0105
1 THERMOSTAT
(C) 82 CELSIUS 		8-97602-048-2 01 1 0106-
1 THERMOSTAT
(B) 82 CELSIUS 		8-94397-311-0 01 1 9708-9807
1 THERMOSTAT
(B) 82 CELSIUS 		8-94392-817-0 01 1 9808-0105
1 THERMOSTAT
(D) 82 CELSIUS 		8-97602-037-0 01 1 0106-0112
1 THERMOSTAT
(D) 82 CELSIUS 		8-97602-393-1 01 1 0201-
14 PLUG; SW
PT3/8 		8-94397-338-0 01 1 9708-
28 PLUG; HTR
PT3/4 		1-09605-020-0 01 1 9708-
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-1 01 1 9708-
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 9708-
49 PIPE; WATER OUTLET 8-94399-499-1 01 1 9708-0105
49 PIPE; WATER OUTLET 8-97602-047-0 01 1 0106-
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 9708-0801
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-97367-985-1 01 1 0802-
52 BOLT; JOINT,THERMOSTAT
(A) M8X22 FLANGE 		0-28080-822-0 02 1 9708-9709
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE IDN 		0-28680-825-0 02 1 9710-0512
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE IDN 		0-28650-825-0 02 1 0601-
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 9708-0512
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28050-880-0 02 1 0601-
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94370-480-0 02 1 9708-0105
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97300-793-0 02 1 0106-
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28080-820-0 02 1 9708-0512
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28050-820-0 02 1 0601-
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 9708-
179 HOSE; RUBBER,WATER DUCT 8-94394-535-2 01 1 9708-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
