Isuzu WW
▶
TRUCKS
▶
FVM
▶
10753 - FVM(INDONESIA)WB5300
▶
0 - Engine, Emission, Engine Electrical
▶
0-20 - TIMING GEAR CASE AND FLYWHEEL HOUSING
▶
0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING
(#64468) — 70 parça
◀

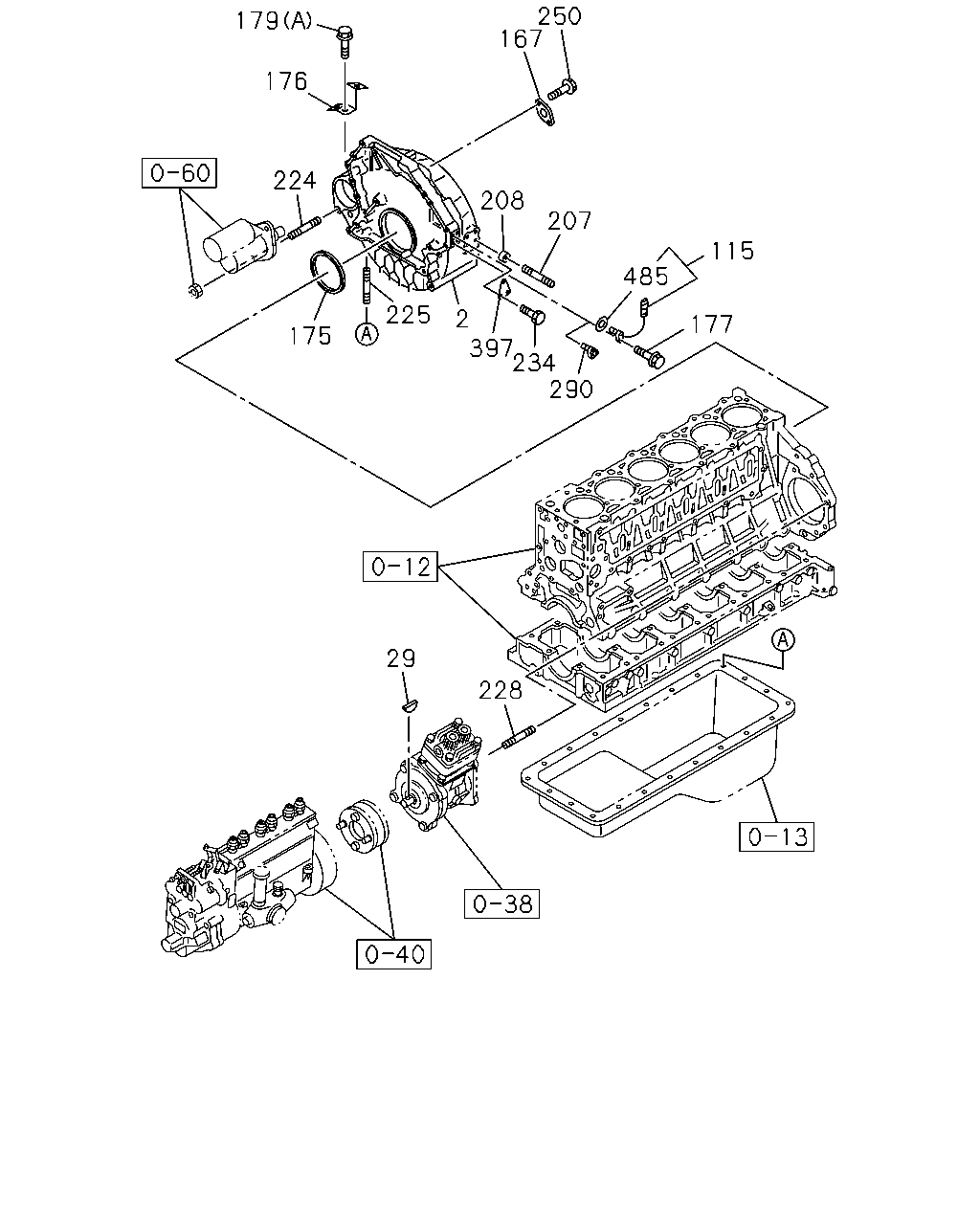

[020A] NO.2 (29 parça)

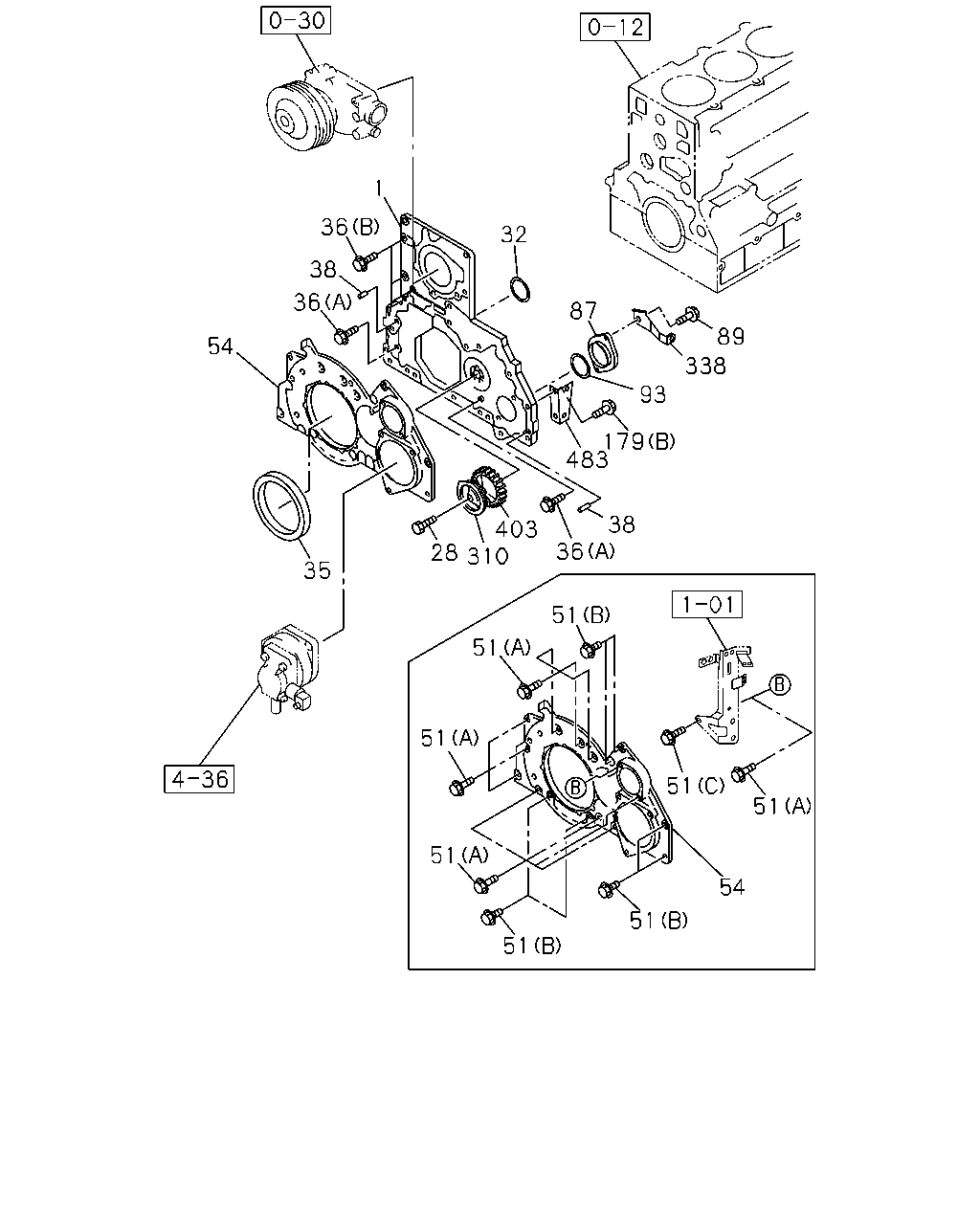

[020A] NO.1 (30 parça)

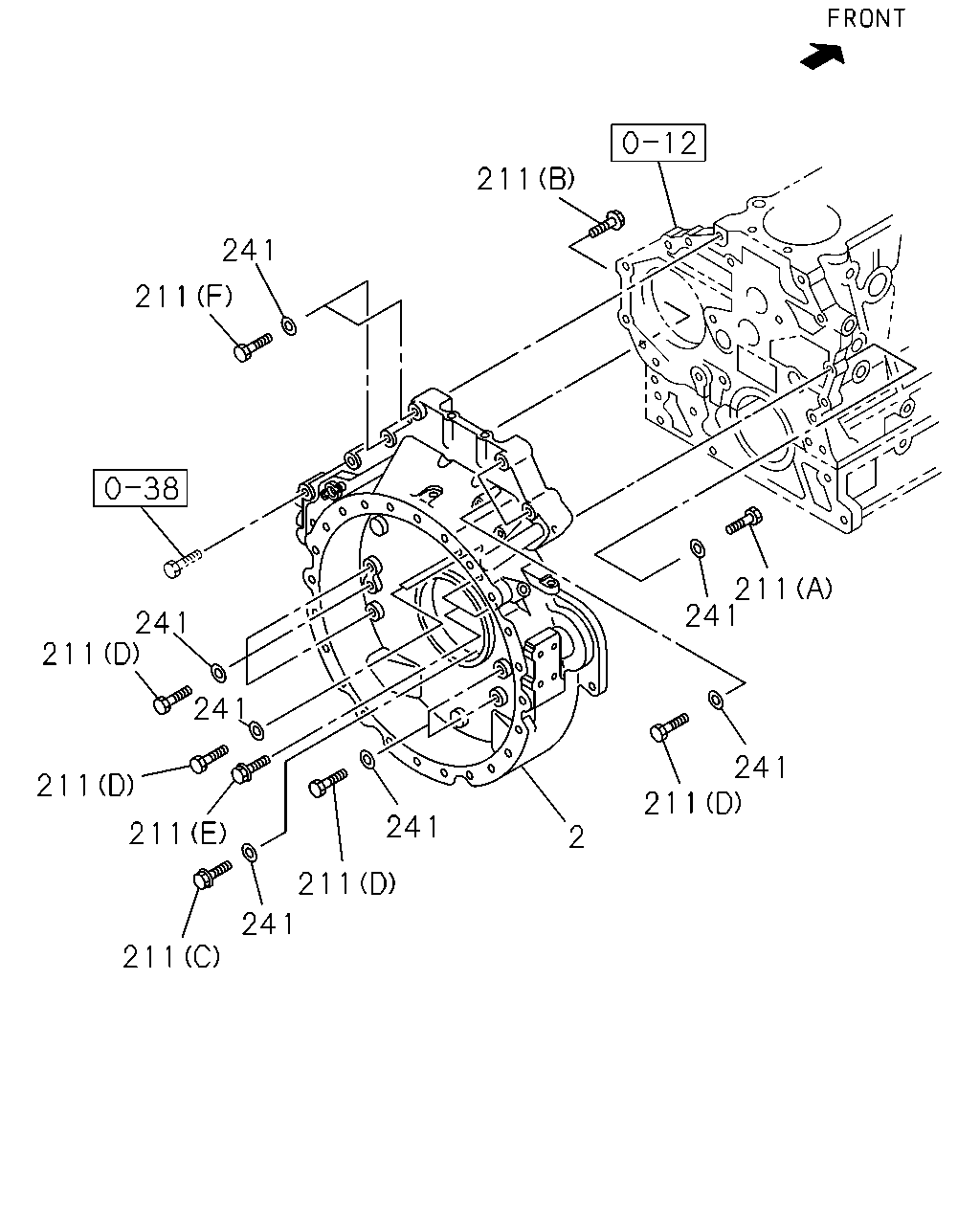

[020A] NO.3 (11 parça)
▶
250
167
179
176
224
208
207
115
485
225
2
397
234
290
177
175
29
228
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
HOUSING; FLYWHEEL
8-94395-915-6
01
1
9708-
29
KEY; COUPLING
9-08055-416-0
01
1
9708-
115
SENSOR; REVOLUTION,ENG SPD
1-81510-561-0
01
1
9708-
167
COVER; OIL
1-11219-163-0
01
1
9708-
175
SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94370-637-0
01
1
9708-0112
175
SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97602-379-0
01
1
0201-
176
BRACKET; HARNESS
1-82699-412-1
01
1
9708-
177
BOLT; SENSOR
M6X16 FLANGE
0-28080-616-0
01
1
9708-0512
177
BOLT; SENSOR
M6X16 FLANGE IDN
0-28050-616-0
01
1
0601-
179
BOLT; BRKT
(A) M8X16 FLANGE
0-28080-816-0
01
1
9708-0512
179
BOLT; BRKT
(A) M8X16 FLANGE
0-28050-816-0
01
1
0601-
179
BOLT; BRKT
(B) M8X20 FLANGE
0-28080-820-0
02
1
9708-0512
179
BOLT; BRKT
(B) M8X20 FLANGE
0-28050-820-0
02
1
0601-
207
STUD; ENG FOOT
M12X24 L=104
8-94390-111-0
02
1
9708-
207
STUD; ENG FOOT
M12X10 L=55
9-94321-255-0
06
1
9708-0604
207
STUD; ENG FOOT
M12X10 L=55
0-43211-255-0
06
1
0605-
208
DOWEL; ENG FOOT
9-43269-009-1
04
1
9708-
224
STUD; STARTER
M14X35 L=56
9-04411-435-0
02
1
9708-0604
224
STUD; STARTER
M14X35 L=56
0-44011-435-0
02
1
0605-
225
STUD; OIL PAN
M8X28 L=38
8-94396-512-0
04
1
9708-
228
STUD; AIR CMPR
M12X60 L=78
9-94411-260-0
01
1
9708-0604
228
STUD; AIR CMPR
M12X60 L=78
0-44011-260-0
01
1
0605-
234
BOLT; BRKT
TACHOMETER<UD7> M8X12 FLANGE
0-28080-812-0
02
1
9708-0512
234
BOLT; BRKT
M8X12 FLANGE
0-28050-812-0
02
1
0601-
250
BOLT; COVER,OIL
M8X18 FLANGE
0-28080-818-0
02
1
9708-
290
PLUG; SENSOR HOLE
1-11349-157-0
01
1
9708-0205
290
PLUG; SENSOR HOLE
8-97101-974-0
01
1
0206-
397
BRACKET; CONNECTOR
8-94394-411-1
01
1
9708-
485
GASKET; SENSOR
9-09565-212-0
01
1
9708-
1
36
32
38
36
87
89
54
338
93
179
483
38
403
28
310
36
35
51
51
51
51
51
51
54
51
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CASE; TIMING GEAR
8-94393-110-2
01
1
9708-9802
1
CASE; TIMING GEAR
8-94396-434-6
01
1
9803-
28
BOLT; DRIVE GEAR
M8X28
8-94399-256-0
03
1
9708-
32
GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.2
8-94397-364-0
01
1
9708-9805
32
GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1
8-97028-748-1
01
1
9806-
35
SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137
8-94396-199-1
01
1
9708-0112
35
SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137
8-97602-378-3
01
1
0201-
36
BOLT; GEAR CASE
(A) M8X28 FLANGE
0-28080-828-0
02
1
9708-0801
36
BOLT; GEAR CASE
(A) M8X30 FLANGE
0-28650-830-0
02
1
0802-
36
BOLT; GEAR CASE
(B) M8X32 FLANGE
0-28080-832-0
04
1
9708-0801
36
BOLT; GEAR CASE
(B) M8X35 FLANGE
0-28050-835-0
04
1
0802-
38
PIN; GEAR CASE COVER
L=22
8-94483-674-0
02
1
9708-
51
BOLT; GEAR CASE COVER
(A) M8X40 FLANGE
0-28080-840-0
10
1
9708-0512
51
BOLT; GEAR CASE COVER
(A) M8X40 FLANGE
0-28050-840-0
10
1
0601-
51
BOLT; GEAR CASE COVER
(C) M8X45 FLANGE
0-28080-845-0
01
1
9708-0512
51
BOLT; GEAR CASE COVER
(C) M8X45 FLANGE
0-28050-845-0
01
1
0601-
51
BOLT; GEAR CASE COVER
(B) M8X20 FLANGE
0-28680-820-0
06
1
9708-0512
51
BOLT; GEAR CASE COVER
(B) M8X20 FLANGE IDN
0-28650-820-0
06
1
0601-
54
COVER; GEAR CASE
8-94393-304-1
01
1
9708-
87
COVER; TACHOMETER DRIVE
8-94396-370-0
01
1
9708-
89
BOLT; ELBOW
M8X18 FLANGE
0-28080-818-0
02
1
9708-
93
GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). OD=54.7
1-09623-180-0
01
1
9708-
179
BOLT; BRKT
(A) M8X16 FLANGE
0-28080-816-0
01
1
9708-0512
179
BOLT; BRKT
(A) M8X16 FLANGE
0-28050-816-0
01
1
0601-
179
BOLT; BRKT
(B) M8X20 FLANGE
0-28080-820-0
02
1
9708-0512
179
BOLT; BRKT
(B) M8X20 FLANGE
0-28050-820-0
02
1
0601-
310
SHAFT; IDLE GEAR
8-94394-806-0
01
1
9708-
338
BRACKET; CLIP,HARNESS
1-82699-889-0
01
1
9708-
403
GEAR; IDLE,FRONT
Z=33
8-94395-943-1
01
1
9708-
483
BRACKET; WATER DUCT
8-94394-405-1
01
1
9708-
211
241
211
211
241
241
211
241
241
211
211
241
211
2
211
241
211
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
HOUSING; FLYWHEEL
8-94395-915-6
01
1
9708-
211
BOLT; HSG
(A) M12X60
0-16806-260-0
01
1
9708-0512
211
BOLT; HSG
(A) M12X60
0-16856-260-0
01
1
0601-
211
BOLT; HSG
(B) M10X50 FLANGE
0-28181-050-0
02
1
9708-0512
211
BOLT; HSG
(B) M10X50 FLANGE
0-28151-050-0
02
1
0601-
211
BOLT; HSG
(E) M14X70 FLANGE W/PL WASHER
8-94396-095-0
02
1
9708-
211
BOLT; HSG
(F) M12X128
8-94399-252-0
02
1
9708-
211
BOLT; HSG
(C) M12X65
9-01666-265-0
01
1
9708-
211
BOLT; HSG
(D) M12X70
9-01666-270-0
09
1
9708-0512
211
BOLT; HSG
(D) M12X70
0-16956-270-0
09
1
0601-
241
WASHER; PL,HSG
ID=12.5 OD=22
8-94393-140-1
13
1
9708-
