Isuzu WW
▶
TRUCKS
▶
FVM
▶
10753 - FVM(INDONESIA)WB5300
▶
0 - Engine, Emission, Engine Electrical
▶

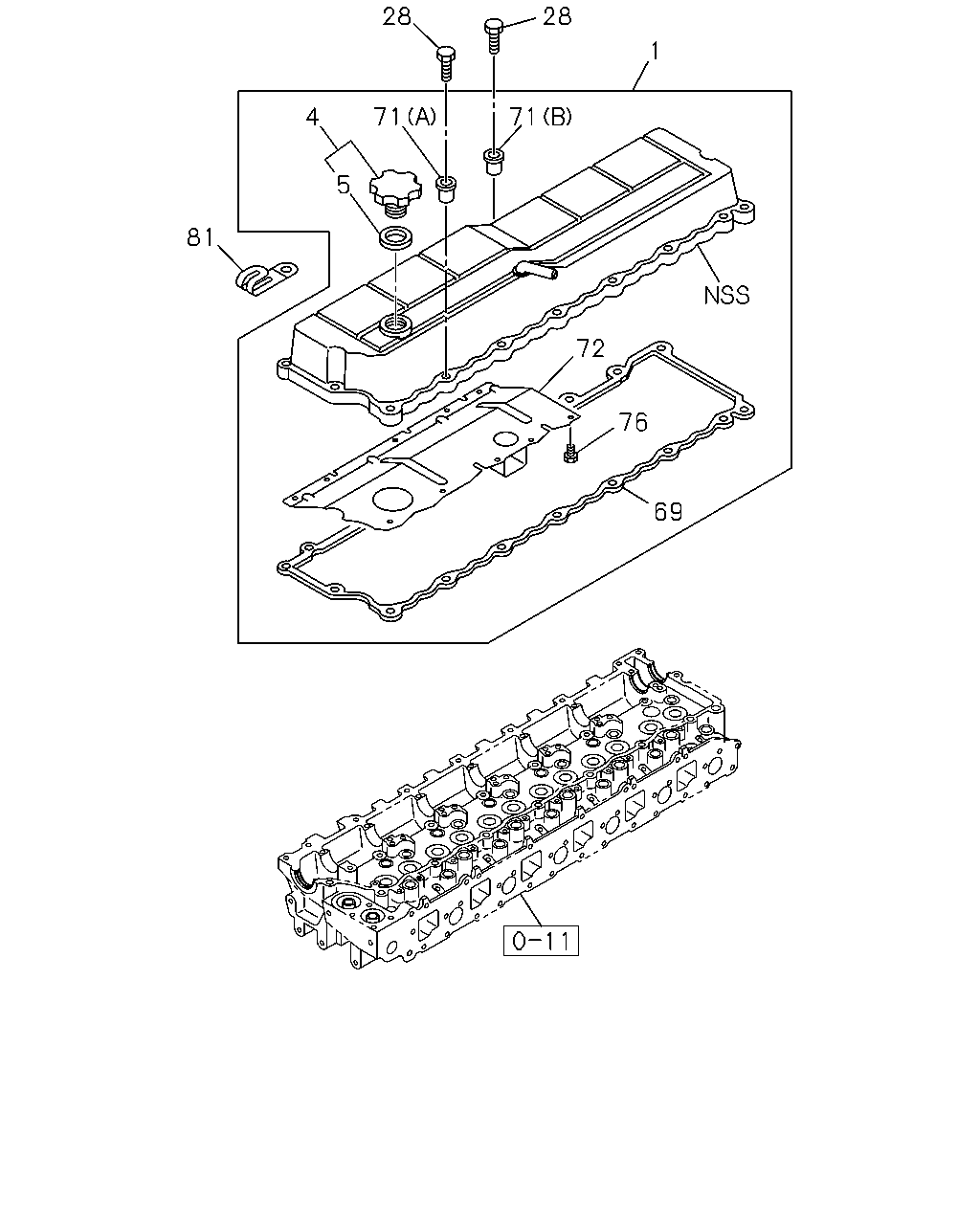

0-10 - CYLINDER HEAD COVER
▶
0-10 — CYLINDER HEAD COVER
(#64462) — 14 parça
28
28
1
71
71
4
5
81
72
76
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COVER; CYL HD
8-94394-862-1
01
1
9708-
4
CAP; OIL FILLER
8-94399-723-0
01
1
9708-
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58
8-94399-689-0
01
1
9708-
28
BOLT; HD COVER
M8X35 FLANGE
0-28280-835-0
19
1
9708-9812
28
BOLT; HD COVER
M8X35 FLANGE
0-28680-835-0
19
1
9901-0512
28
BOLT; HD COVER
M8X35 FLANGE
0-28650-835-0
19
1
0601-
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94396-383-0
01
1
9708-
71
COLLAR; HD COVER
(A) OD=12.3
8-94396-971-1
18
1
9708-
71
COLLAR; HD COVER
(B) OD=11
8-94396-972-1
01
1
9708-
72
PLATE; INNER HD COVER
8-94393-609-1
01
1
9708-
76
SCREW; INNER PLATE
M4X12 TAPPING
0-71180-412-0
07
1
9708-0603
76
SCREW; INNER PLATE
M4X12 TAPPING
0-71240-412-0
07
1
0604-
81
CLIP; HARNESS
ID=18 L=44
8-94225-185-0
01
1
9708-0801
81
CLIP; HARNESS
ID=18 L=44
8-97367-985-1
01
1
0802-
