◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10752 - FTR(IDN)WB3600/4200 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-90 - RADIO AND TV ▶
8-90 — RADIO AND TV (#64458) — 21 parça

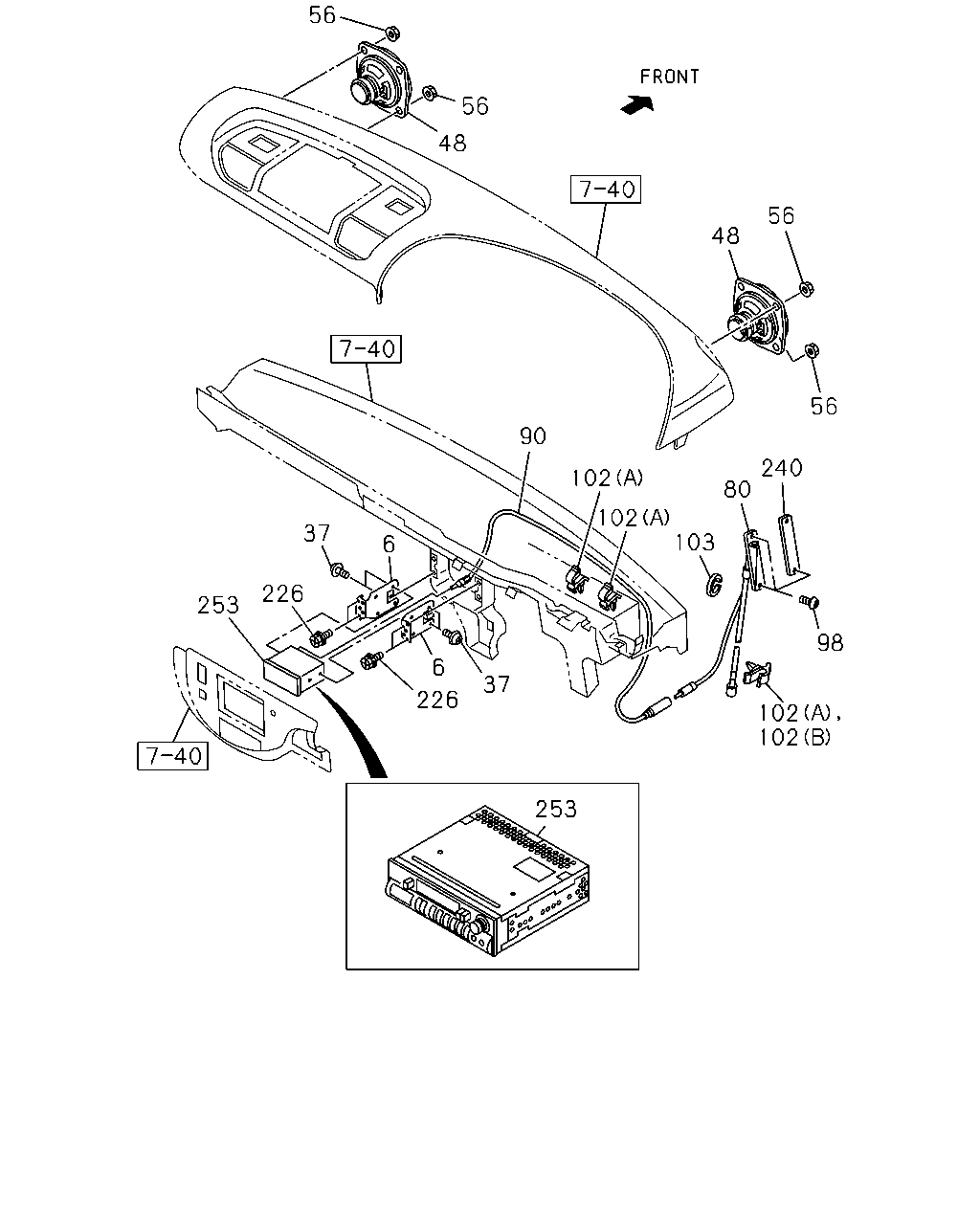

çizim 158306
56 56 48 56 48 56 90 240 80 102 102 103 37 6 226 253 98 6 37 226 102 102 253
BalonParca AdiParca NoAdetTipApplied Date A B
6 BRACKET; RADIO TO PANEL 1-65671-551-4 02 1 9707-0612 ● ●
6 BRACKET; RADIO TO PANEL 1-65671-822-1 02 1 0701- ● ●
37 SCREW; CASSETTE & RADIO
RADIO AM/FM STEREO & TAPE PLAYER<UN3> M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 9707-0604 ● ●
37 SCREW; CASSETTE & RADIO
RADIO AM/FM STEREO & TAPE PLAYER<UN3> M5X10 W/LK+PL WASHER 		0-36230-510-0 04 1 0605- ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-84114-050-0 02 1 9707-0308 ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-84114-073-0 02 1 0309-0905 ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		8-98140-326-0 02 1 0906- ● ●
56 NUT; SPEAKER,RADIO OR STEREO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE 		1-09984-170-0 04 1 9707- ● ●
80 ANTENNA
ANTENNA RADIO<U73> 		1-84115-055-2 01 1 9707-1203 ● ●
80 ANTENNA
ANTENNA RADIO<U73> 		8-98210-874-1 01 1 1204- ● ●
90 CABLE; ANTENNA,FEEDER
ANTENNA RADIO<U73> 		1-84113-011-2 01 1 9707- ● ●
98 SCREW; TAP,ANTENNA
M5X11 		1-09981-536-1 02 1 9707- ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (A) WO/PACKING ID=4.8 		8-94128-483-0 07 1 9707-9808 ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (A) WO/PACKING ID=4.8 		8-94128-483-0 06 1 9809-9809 ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (A) WO/PACKING ID=4.8 		8-94128-483-0 07 1 9810-9902 ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (A) WO/PACKING ID=4.8 		8-94128-483-0 02 1 9903- ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (B) W/PACKING ID=4.8 IDN 		1-73907-618-0 05 1 9903- ● ●
103 GROMMET; ANTENNA HOLE,FRT
ANTENNA RADIO<U73> 		8-97027-381-0 01 1 9707- ● ●
226 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9707- ● ●
240 COVER; ANTENNA
EXC. ANTENNA RADIO<U73> 		1-79996-296-0 01 1 9707- ● ●
253 DECK ASM; RADIO & CD
RADIO AM/FM STEREO & TAPE PLAYER<UN3> CLARION 		1-84122-032-3 01 1 9707- ● ●
